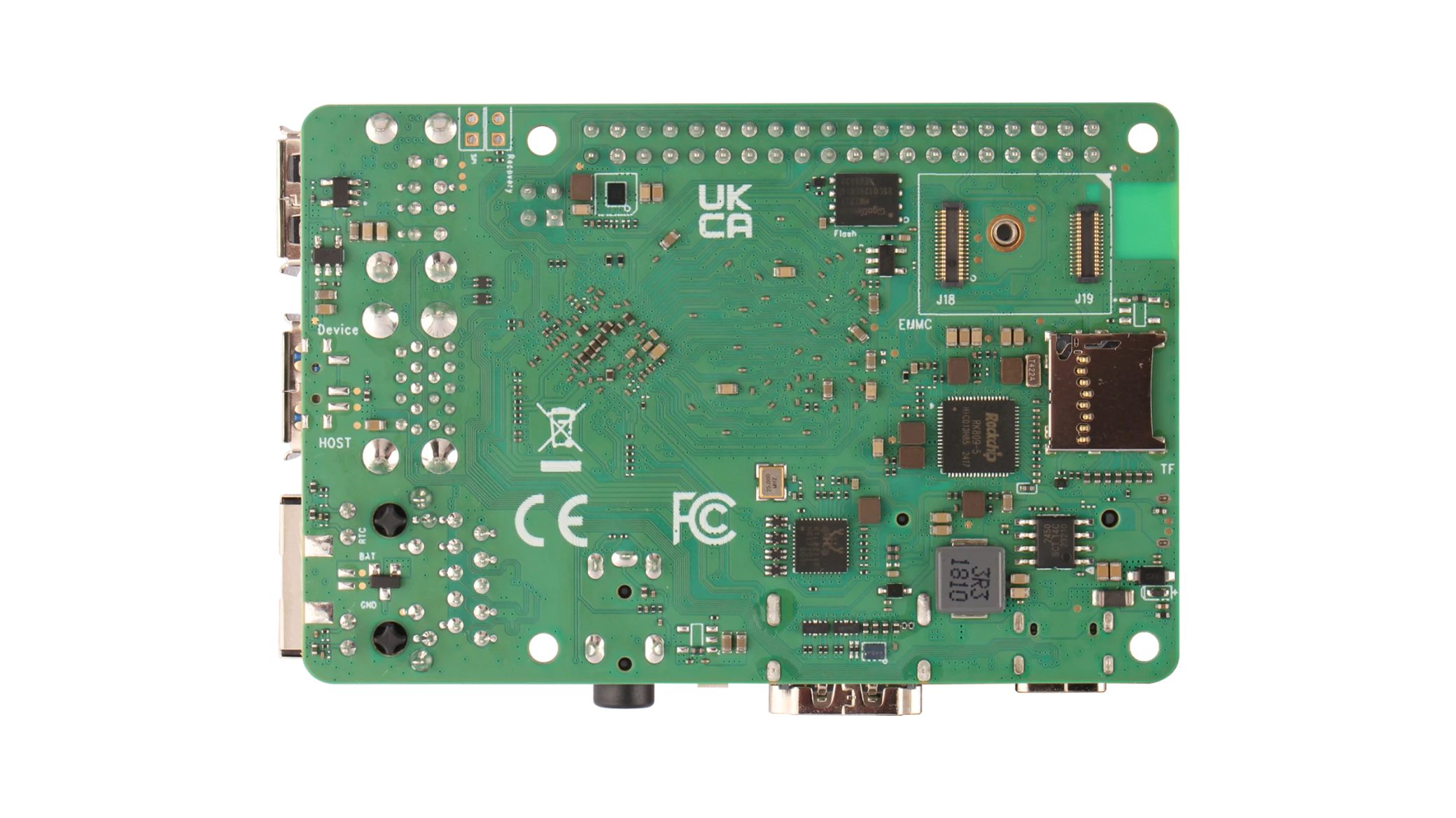

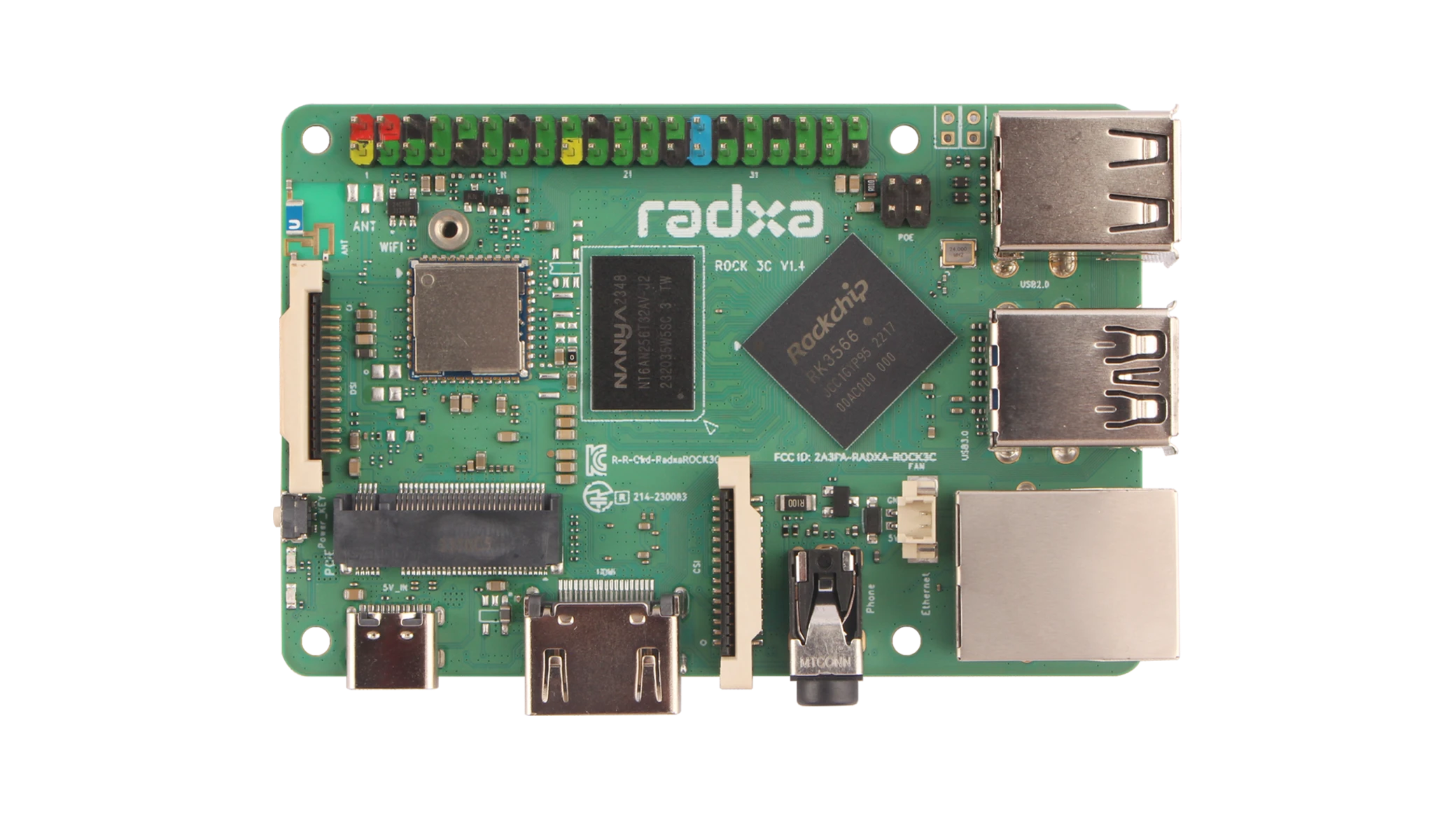

Actual photo

Interfaces

• SoC

  Rockchip RK3566

• CPU

  Quad‑core Arm® Cortex®‑A55 (ARMv8) 64‑bit @ 1.6GHz

• GPU

  Arm Mali™‑G52‑2EE

  OpenGL® ES1.1/2.0/3.2, Vulkan® 1.1, OpenCL™ 2.0

  Embedded high performance 2D image acceleration module

• RAM

  1GB / 2GB LPDDR4 available

• Storage

  Storage is supported by

  eMMC storage through the eMMC connector

  Micro SD card through the Micro SD slot

  SSD through the M.2 connector

  SATA through the Radxa Penta SATA HAT

• Audio

  1x 4‐ring 3.5mm headphone jack with mic input

• Display

  Display via HDMI or MIPI DSI. They can not work at the same time

• Video Input

  1x camera port supporting 2‑lane MIPI CSI

• Multimedia

  H.264/H.265 decoder up to 4K@60fps

  H.264/H.265 encoder up to 1080P@60fps

• USB

  2x USB2 HOST ports

  1x USB2 OTG/HOST port

  1x USB3 HOST port

• Ethernet

  1x Gigabit Ethernet port(supports PoE with add-on PoE HAT)

• Wireless

  802.11 b/g/n/ac Wireless LAN supporting WiFi 5

  BT 5.0

• Miscellaneous

  40x user GPIO supporting various interface options:

  up to 5 x UART

  1 x SPI bus

  up to 2 x I2C bus

  1 x PCM/I2S

  up to 6 x PWM

  up to 28 x GPIO

  2 x 5V DC power in

  2 x 3.3V power pin

• Power

  USB Type‑C® 5V

  5V Power from the GPIO PIN 2 & 4

• Dimension

  87 mm x 55 mm
