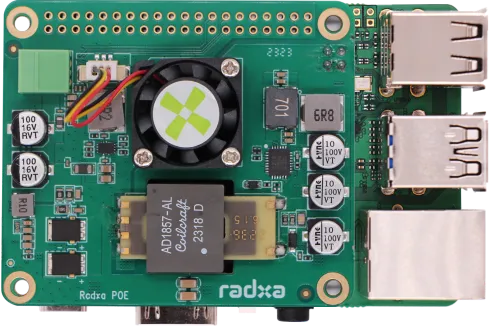

25W PoE+ HAT

Radxa 25W PoE+ HAT

Compatible with ROCK 3A / ROCK 3B / ROCK 3C / ROCK 4C+ / ROCK 5A / ROCK 5B

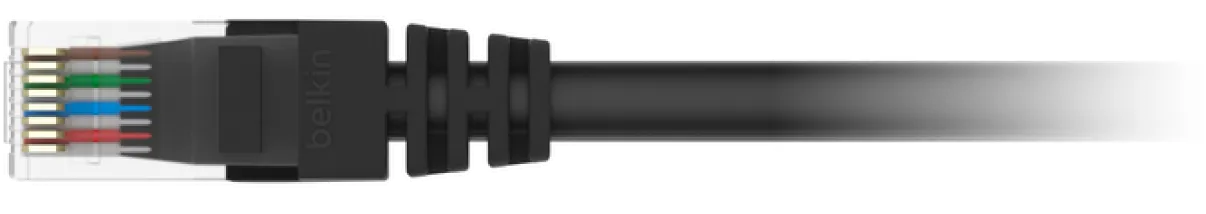

Network and Power Supply

Quick and Easy Installation

• Steps 01


  Package List

  • ・ 1x Radxa 25W PoE+ HAT
  • ・ 4x M2.5 * 5 Copper Pillars
  • ・ 4x M2.5 * 14 + 6 Copper Pillars
  • ・ 4x M2.5 * 4 + 6 Copper Pillars
• Steps 02


  Insert four M2.5 * 4 copper pillars through the four positioning holes of the Radxa SBCs, and individually secure them to four M2.5 * 14 + 6 copper pillars to ensure a sturdy fixation.

• Steps 03

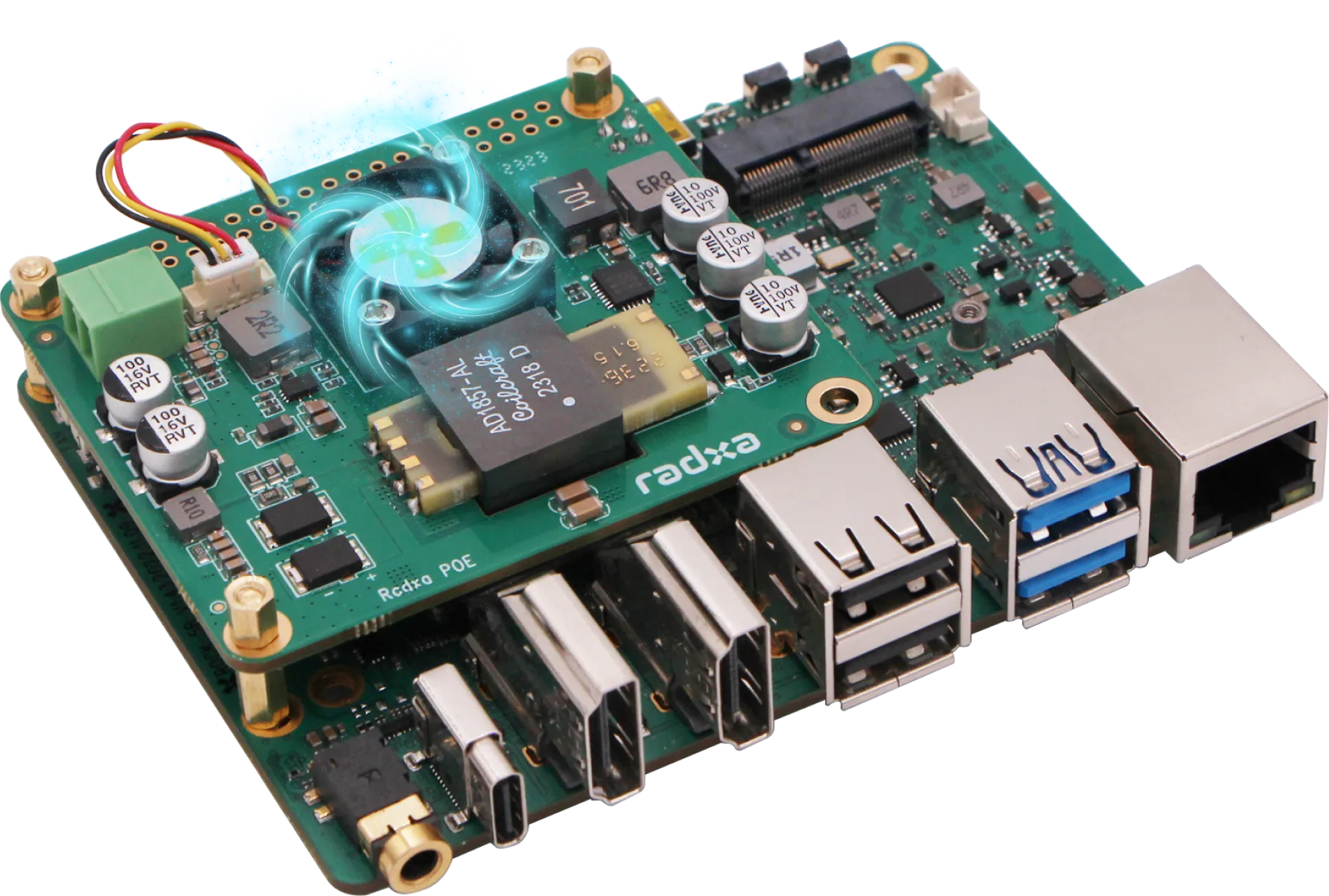

  Align the Radxa 25W PoE+ HAT with the PoE interface and the 40-Pin interface, and insert it carefully, ensuring that it passes through the four M2.5 * 14 + 6 Copper Pillars.

• Steps 04


  On top of the Radxa 25W PoE+ HAT, align the four M2.5 * 4 Copper Pillars with the four M2.5 * 14 + 6 Copper Pillars, then secure them by rotating them into place.
