ROCK 4SE
A Cost-Effective SBC with Dual Display and 4K
Radxa ROCK 4SE
- Overview
- Tech Spec
- Documentation
- Downloads
- Support
Rockchip RK3399-T
64-bit SoC
Dual Display 4K & 2K
WiFi5 & BT5
2GB / 4GB / 8GB
Rockchip RK3399-T 64-bit SoC
Arm® big.LITTLE™ technology (Dual Cortex™ A72 frequency 1.5GHz and a Quad Cortex™
A53 frequency 1.0GHz)
Arm® Mali™ T860MP4 GPU
Support OpenGL ES1.1/2.0/3.0/3.1/3.2, OpenCL1.2,DirectX11.1 etc

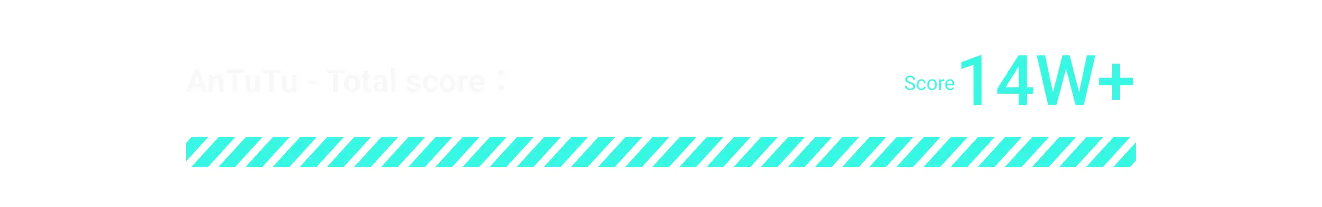

FP32 Performance in GFLOPS
Immerse in 4K Delight, Exquisite Like Reality
Support H.265/VP9 (HEVC) hardware decode (up to 4Kp60)
Support H.264 hardware decode (up to 1080p60)
Supporting mirror and extended modes for display
Standard HDMI 2.0 up to 4k@60
MIPI DSI interface support 1080p@60fps
*HDMI and MIPI DSI can work at the same time, support mirror mode or extend modeMultiple Storage and Booting OS Solution
eMMC, TF Card and M.2 M Key Connector
High Speed and Capacity to Fulfill Diverse Storage Needs
TF Card
Supports up to 256 GB TF card
eMMC
Supports up to 128 GB
M.2 M Key
Supports up to 2TB M.2 M Key NVMe SSD
Both Wired and Wireless Connectivity
Supporting 802.11 b/g/n/ac (WiFi 5) wireless LAN, BT 5.0 with BLE
Gigabit Ethernet with Power over Ethernet (PoE) support (additional HAT is required for powering from PoE)
Gigabit Ethernet with PoE
Supporting 802.11 b/g/n/ac (WiFi 5) wireless LAN
BT 5.0 with BLE
Various Accessories Support
Radxa Display 8 HD
Radxa ROCK Pi 23W PoE
Radxa M.2 Extension Board
Radxa Penta SATA HAT
Raspberry Pi Camera
Module 2
Raspberry Pi 7" Touch Screen
Comprehensive Technical Documentation,
Active Community, and Extensive OS Support
Comprehensive Technical Documentation and Active Community!
Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.
Extensive Open-Source OS Support
Experience comprehensive support for a diverse range of open-source operating systems on our SBCs. In addition to Radxa's backing, we actively collaborate with third-party OS organizations, providing you with an extensive selection of options. Empower your projects with exceptional versatility and innovation as you discover both Radxa and third-party supported OS choices here.
Additional Features
Camera
MIPI CSI 2 lanes via FPC connector
Support up to 800 MP camera
The Camera connector features a compact 1mm pitch
Headphone Jack
One 3.5mm audio jack (MIC input)
HD codec that supports up to 24-bit/96KHz audio
USB 2.0
2x USB2 Host ports
USB 3.0
1x USB3 OTG port
1x USB3 HOST port
40x Color GPIO
Supporting various interface options:
2 x UART
2 x SPI bus
3 x I2C bus
1 x PCM/I2S
1 x SPDIF
2 x PWM
1 x ADC
6 x GPIO
2 x 5V DC power pin
2 x 3.3V power pin
Radxa ROCK 4SE
Global
This product is exclusively available through our network of Approved Partners. To find out more about our trusted partner network, please visit their websites.
