Rockchip RK3566
LPDDR4
Gigabit Ethernet
Micro HDMI

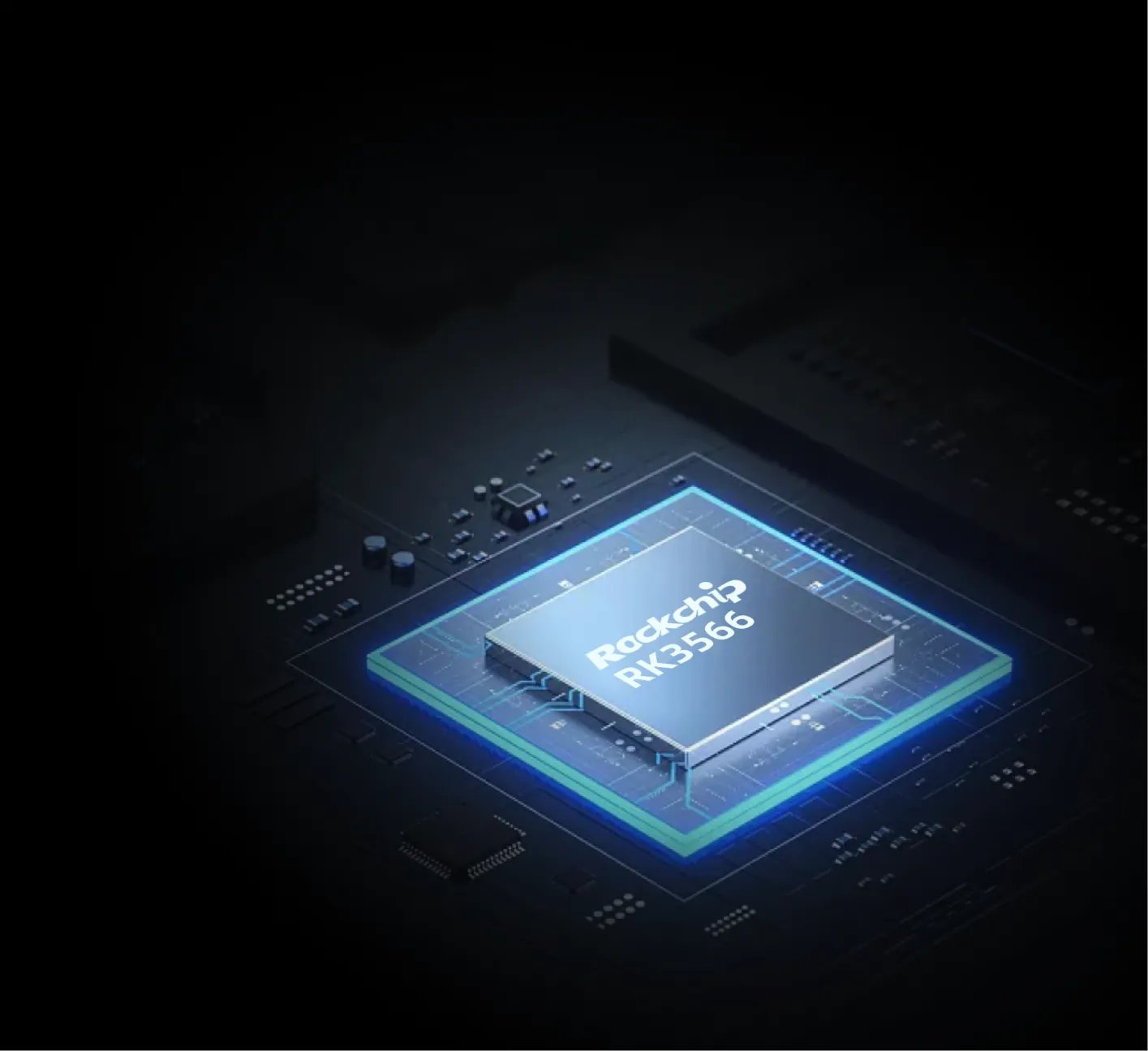

Rockchip RK3566
High Performance and Low Power Consumption
Quad-Core Arm® Cortex™-A55
Up to 1.6GHz
Arm®Mali™-G52 2EE
Support OpenGL® ES1.1/2.0/3.2, Vulkan® 1.1 and OpenCL™ 2.0
Superior Performance, Energy Efficient
Arm® Mali™-G52 2EE GPU
Compared to Arm Mali-G51
Arm Mali-G52 2EE
54.4
Arm Mali-G51 MP2
41.6
"30%"
More performance density
"15%"
Better energy efficiency
"3.6x"
ML improvements
Powerful Multimedia Processing Capability
- H.264/H.265 decoder up to 4K@60fps
- H.264/H.265 encoder up to 1080P@60fps
- 1080P@60fps via Micro HDMI

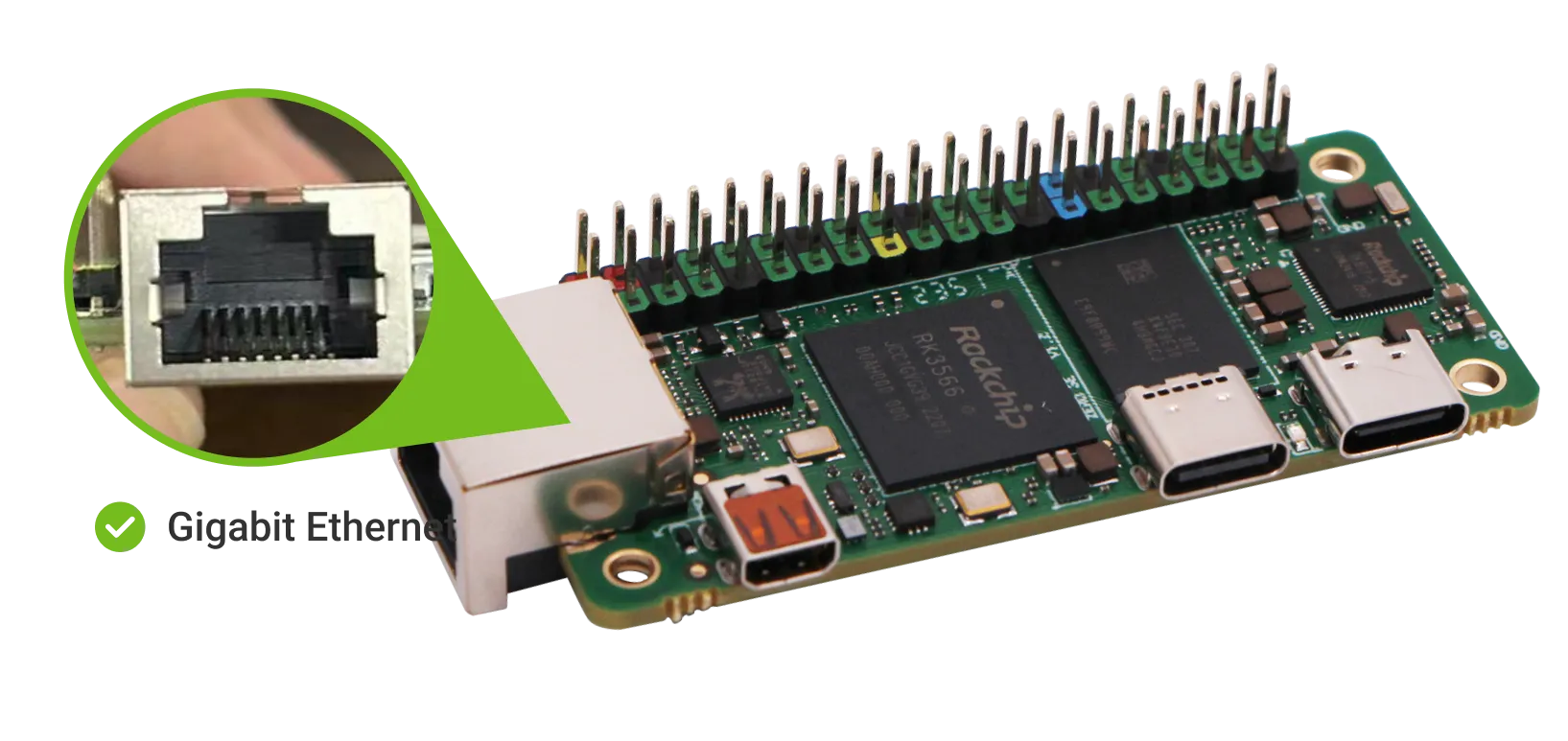

Wired Connection
More Stable and Low Latency
One Cable Integration of Power and Networking

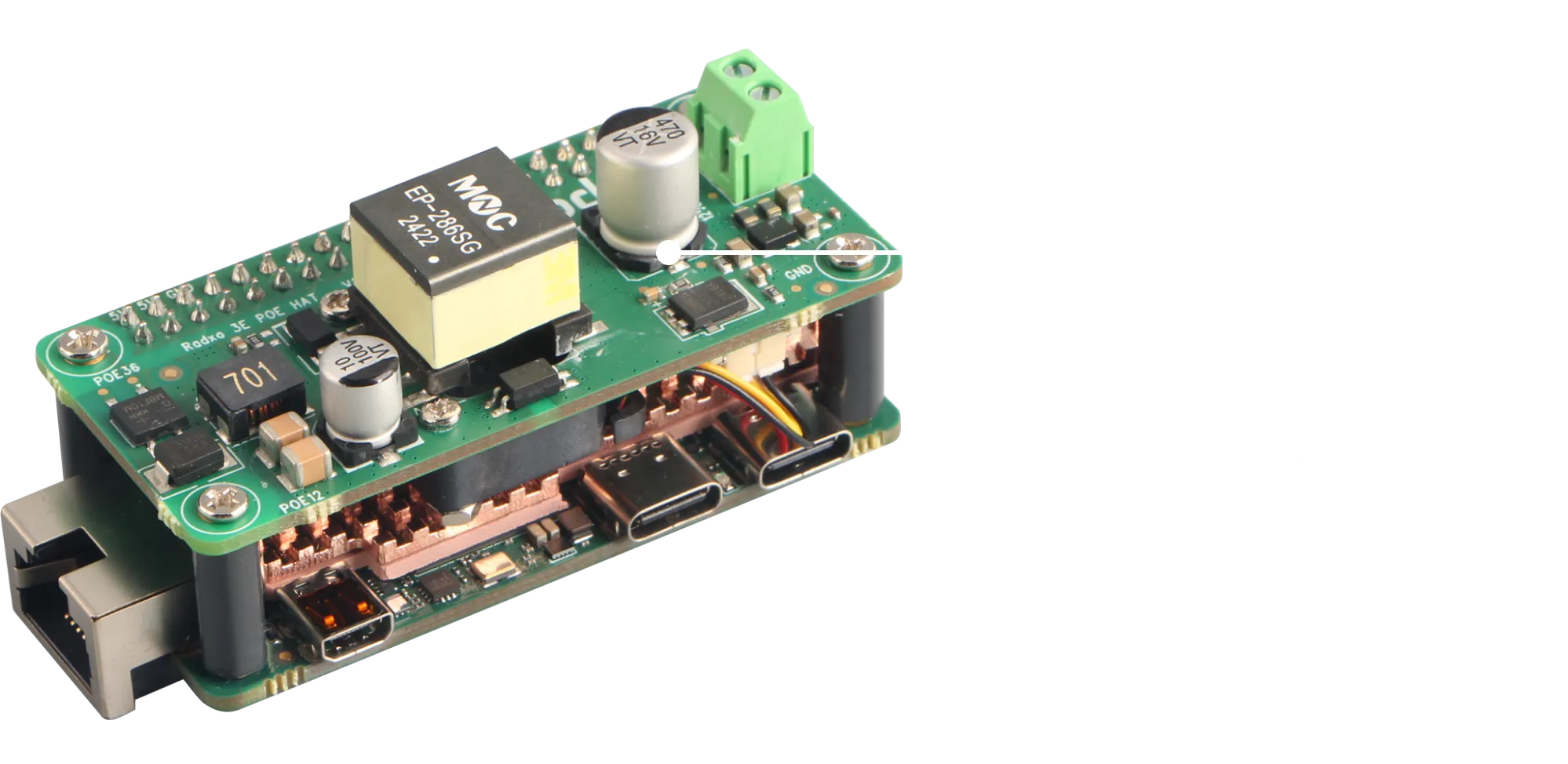

Radxa ZERO 3E with Radxa ZERO 3E PoE HAT
Radxa ZERO 3E PoE HAT
Gigabit Ethernet with PoE support
(Additional PoE HAT Required)
Comprehensive Technical Documentation,
Active Community, and Extensive OS Support
Comprehensive Technical Documentation and Active Community!
Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.
Extensive Open-Source OS Support
Experience comprehensive support for a diverse range of open-source operating systems on our SBCs. In addition to Radxa's backing, we actively collaborate with third-party OS organizations, providing you with an extensive selection of options. Empower your projects with exceptional versatility and innovation as you discover both Radxa and third-party supported OS choices here.
Additional Features

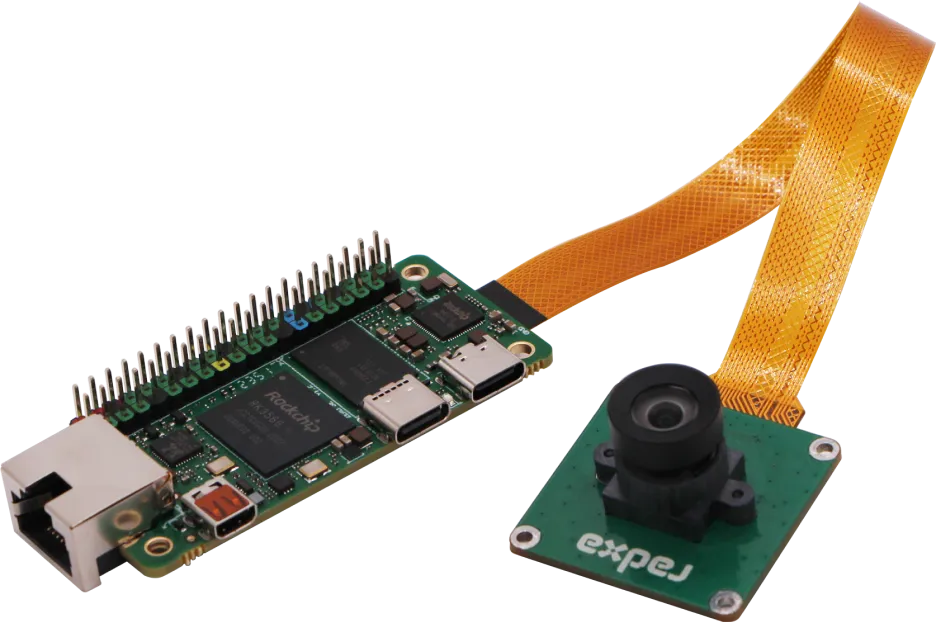

Camera
1x MIPI CSI with 22-Pin and 0.5mm pitch.

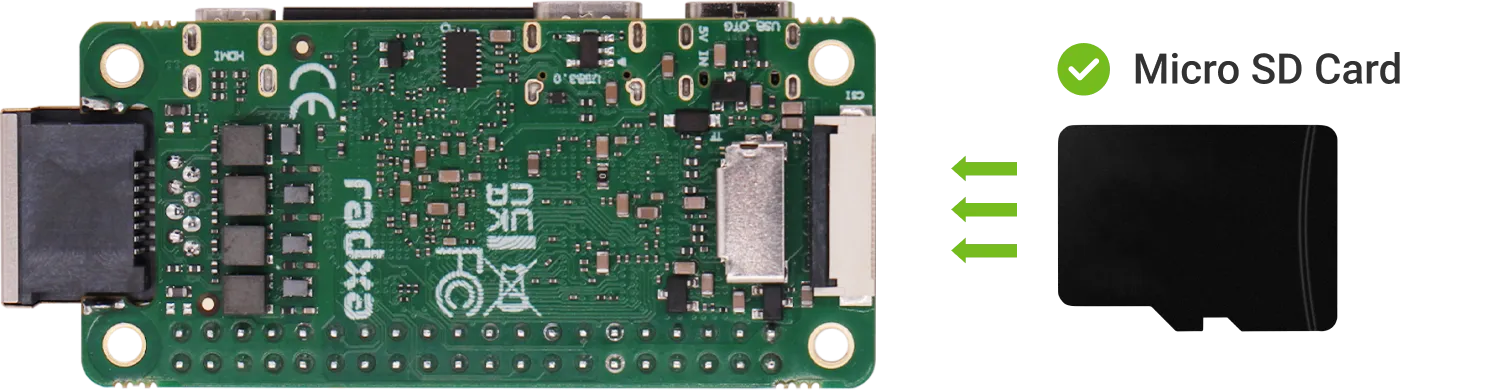

Storage
1x Micro SD Card supporting OS booting
USB Port
1x USB 2.0 OTG Type C Port for power and data
1x USB 3.0 Host Type C Port
40x User GPIO
Supporting various interface options
1 x SPI bus
1 x PCM/I2S
up to 5 x UART
up to 2 x I2C bus
up to 6 x PWM
up to 28 x GPIO
2 x 5V DC power pin
2 x 3.3V power pin
Radxa ZERO 3E
