NX5

Radxa mEdge-RK3588S

NX5
  • Rockchip RK3588S

    Rockchip RK3588S

  • HDMI 8K

    HDMI 8K

  • NPU 6TOPs

    NPU 6TOPs

  • eMMC

    Onboard eMMC

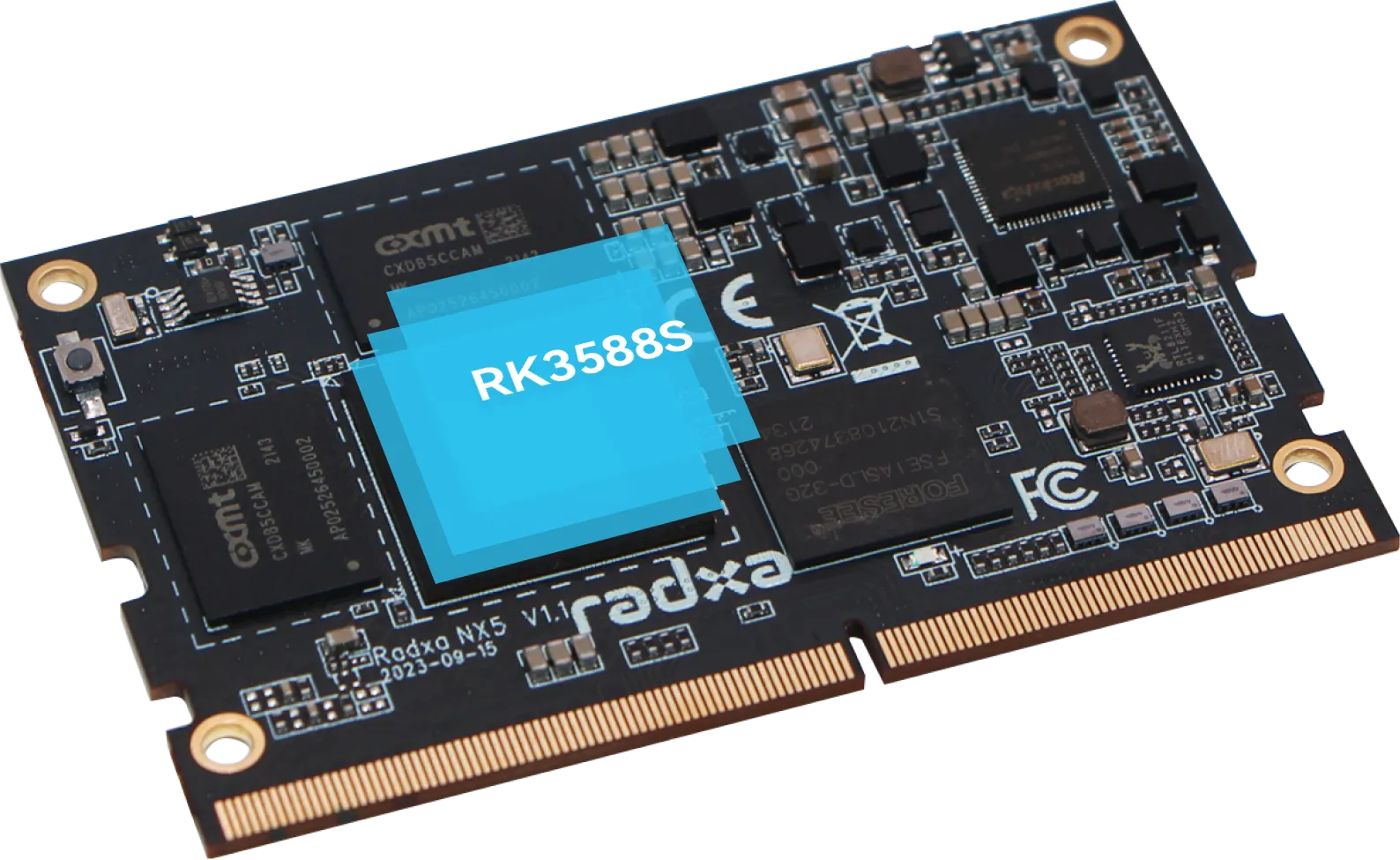

Rockchip RK3588S

Experience Outstanding Performance, Explore Endless Possibilities

Rockchip RK3588S
cpu

Quad Core

A76

Quad Core

A55

Caches 2MB L2 in A76, 512KB L2 in A55, and a Shared 3MB L3 Cache

CPU Improvement

+3.8X

Up to
gpu

ARM

Mali-G610MP4

Deliver smooth performance in complex graphics processing and gaming.

GPU Improvement

+6X

up to

Empower Various Scenarios with
Strong AI Processing Power of 6TOPs

Make AI Easy with Support for Popular Deep Learning Frameworks
TensorFlow, Caffe, Tflite, PyTorch, ONNX NN, Android NN, and More!

tensorflowcaffemxnetpytorchonnx
Empower Various Scenarios with Strong AI Processing Power of 6TOPs

Ample Memory for Effortless Multitasking

LPDDR4X RAM: 2GB / 4GB / 8GB / 16GB

Onboard eMMC: 8GB / 16GB / 32GB / 64GB

Ample Memory for Effortless Multitasking

Ample Memory for Effortless Multitasking

H.265 / AVS2 / VP9 multivideo decoder up to 8K@60fps

H.264 multivideo decoder up to 8K@30fps

H.264 / H.265 multivideo encoder up to 8K@30fps

Ample Memory for Effortless Multitasking

Support for Multiple Displays and
8K Ultra HD Screens

Simultaneous 8K, 4K, and 2K Support!

Simultaneous 8K, 4K, and 2K Support

260 Pins SODIMM Interface Offer
a Wealth of Functionality

Connectivity Interface

Connectivity Interface

  • 2 × USB 2.0 Host Port
  • 1 x USB 3.0 Host Port
  • 1 x USB 3.0 OTG Port
  • 2 × PCIe 1‑lane
  • one shared with USB3 and SATA
  • one shared with SATA
  • 2 x SATA ports
  • one shared with USB3 and PCIe2.0
  • one shared with PCIe2.0
  • Supports SDMMC interface
  • Up to 10x UART
  • Up to 5x SPI
  • Up to 3x CAN
  • Up to 7x I2C
  • Up to 15x PWM
Display Interface

Display Interface

  • 1x HDMI up to 8K@60hz
  • 1x eDP up to 4K@60hz
  • 1x DP up to 8K@30Hz
  • 1x 2-lane MIPI DSI
Audio Interface

Audio Interface

  • SPDIF TX
  • I2S
  • PDM, support mic array
HDMI Interface

Camera Interface

  • 2x 2-lane or 1 x 4-lane MIPI CSI for Camera
  • 1x 2-lane MIPI D/C-PHY RX
  • 1x 4-lane MIPI D/C-PHY RX

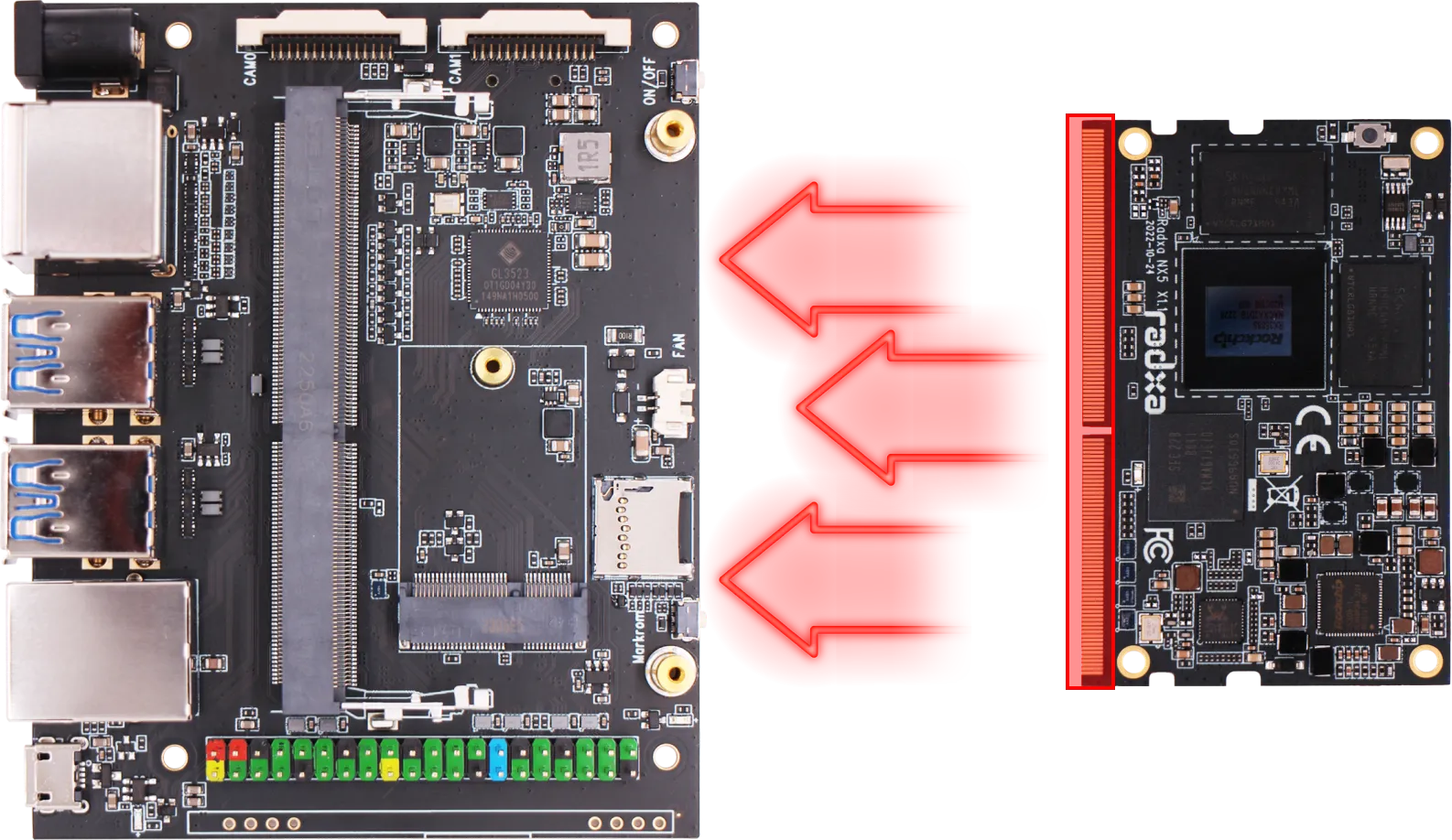

Standard and Conveniently Pluggable
SODIMM Connector

Easy-to-Remove and Install 260-Pin SODIMM Connector

Standard and Conveniently Pluggable SODIMM Connector

Quick Functional Verification with Radxa NX5 IO Board

Accelerate your testing process with the convenience of Radxa NX5 IO board, ensuring swift and efficient functional verification.

Quick Functional Verification with Radxa NX5 IO Board

*Note: Radxa NX5 does not support Jetson Nano Carrier Board.

Comprehensive Technical Documentation,
Active Community, and Extensive OS Support

  • Comprehensive Technical Documentation and Active Community!

    Comprehensive Technical Documentation and Active Community!

    Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.

    Community
  • Extensive Open-Source OS Support

    Extensive Open-Source OS Support

    Experience comprehensive support for a diverse range of open-source operating systems on our SBCs. In addition to Radxa's backing, we actively collaborate with third-party OS organizations, providing you with an extensive selection of options. Empower your projects with exceptional versatility and innovation as you discover both Radxa and third-party supported OS choices here.

    OS
Buy Radxa NX5
Buy

Radxa NX5

Choose Available Country or Region

This product is exclusively available through our network of Approved Partners. To find out more about our trusted partner network, please visit their websites.

NX5 Works with

  • Radxa Heatsink 7010

    Radxa Heatsink 7010

    Specialized for Radxa NX5(mEdge-RK3588S)

  • Radxa NX5 IO Board

    Radxa NX5 IO Board

    an Application Board for Radxa NX5(mEdge-RK3588S)
