Rockchip RK3588(J)
6 TOPs NPU
Mali G610MC4
LPDDR5 RAM
Industrial-Grade
M.2 B Key Connector with
SIM Card Slot
Dual
M.2 M Key Connector
Dual
2.5 Gigabit Ethernet
Breaking boundaries with ultimate innovation

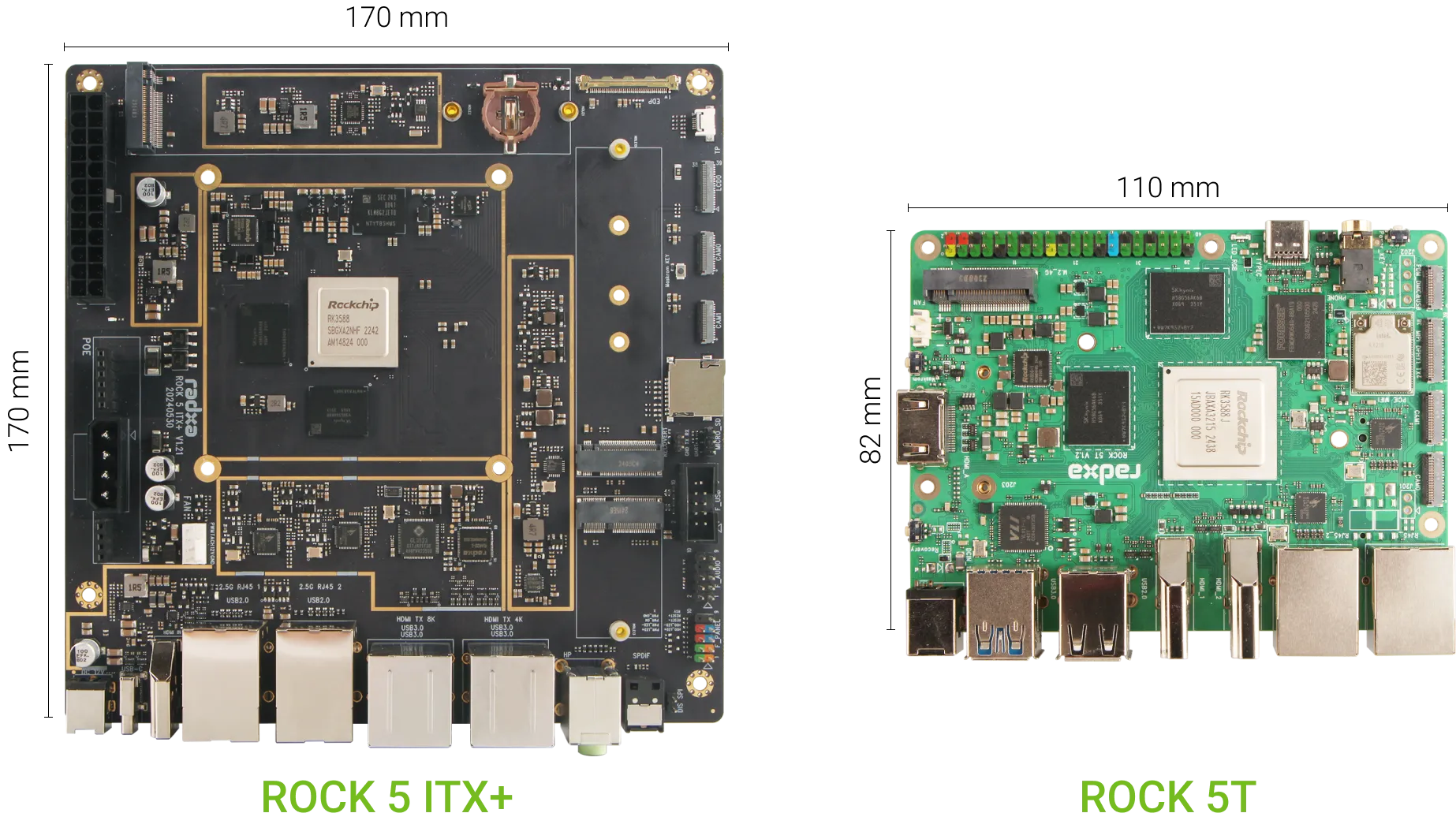

All the features and interfaces of a Mini-ITX board, now in a smaller size without any compromise
Consumer-Grade or Industrial-Grade for
Perfectly Meeting All Your Demands
Unchanged Excellence, Enhanced Capabilities!

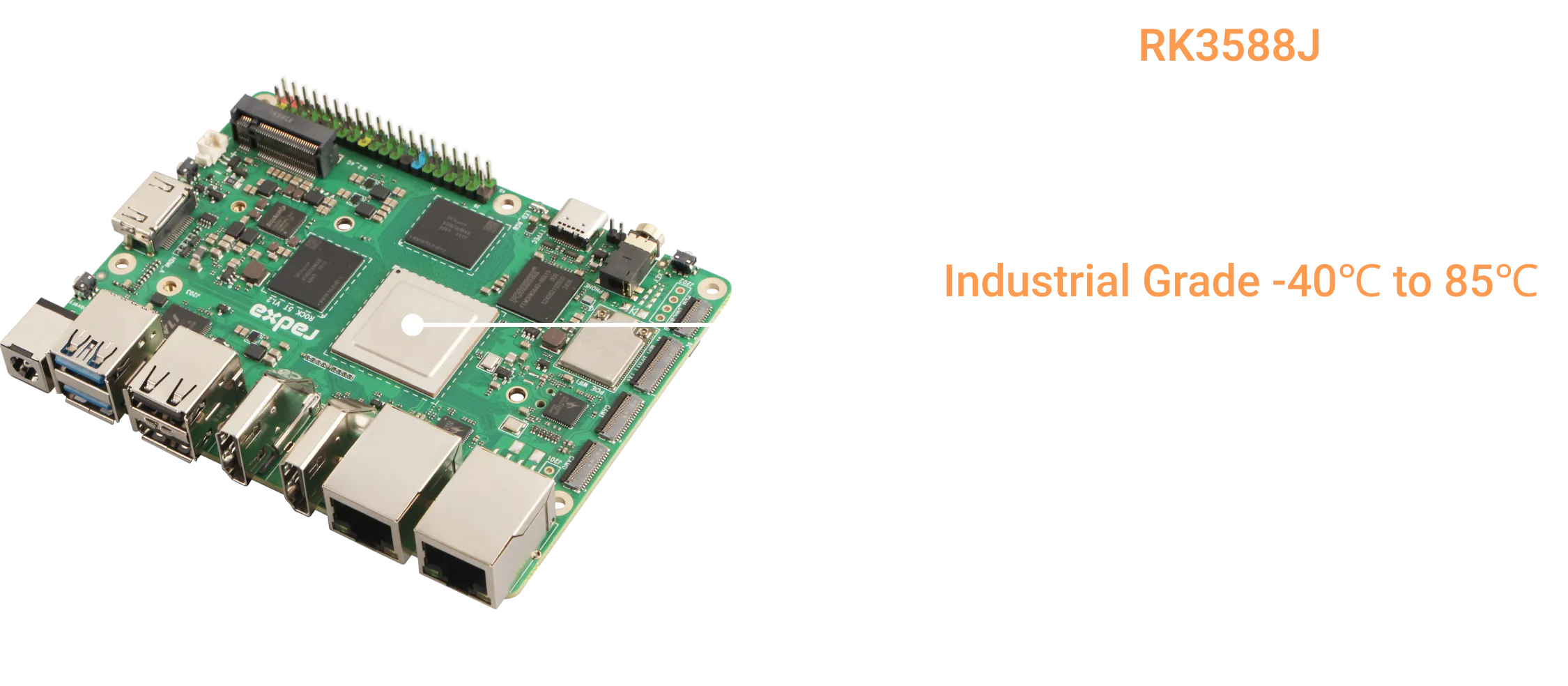

Rockchip RK3588(J)
- 4x Cortex-A76 + 4x Cortex-A55
- NPU up to 6TOPs
- ARM Mali G610MC4
- H.265/H.264/VP9/AV1/AVS2 multivideo
decoder up to 8K@60fps - H.264 / H.265 multivideo encoder up to
8K@30fps
Up to
8K@30fps
H.265/H.264
Video Encoder
Up to
8K@60fps
H.265/H.264/VP9
/AV1/AVS2
Video Decoder
4G Mobile Network:
Video Output:
- 1x HDMI Output supporting up to 8Kp60
- 1x HDMI Output supporting up to 4Kp60
- 1x DP supporting up to 4Kp60 via USB Type-C port
- 1x 4-lane MIPI DSI supporting up to 1080p60
Supports Simultaneous Output of 4 Displays
Supports Simultaneous Output of 3 Displays
LPDDR5 RAM
Onboard eMMC
HDMI Input
2x MIPI CSI (4-lane)
Wi-Fi 6 / 6E
Bluetooth 5.2 / 5.3
Ultimate Networking Performance!
Dual 2.5 Gigabit Ethernet Ports, One with PoE Support(Optional Built-in PoE)

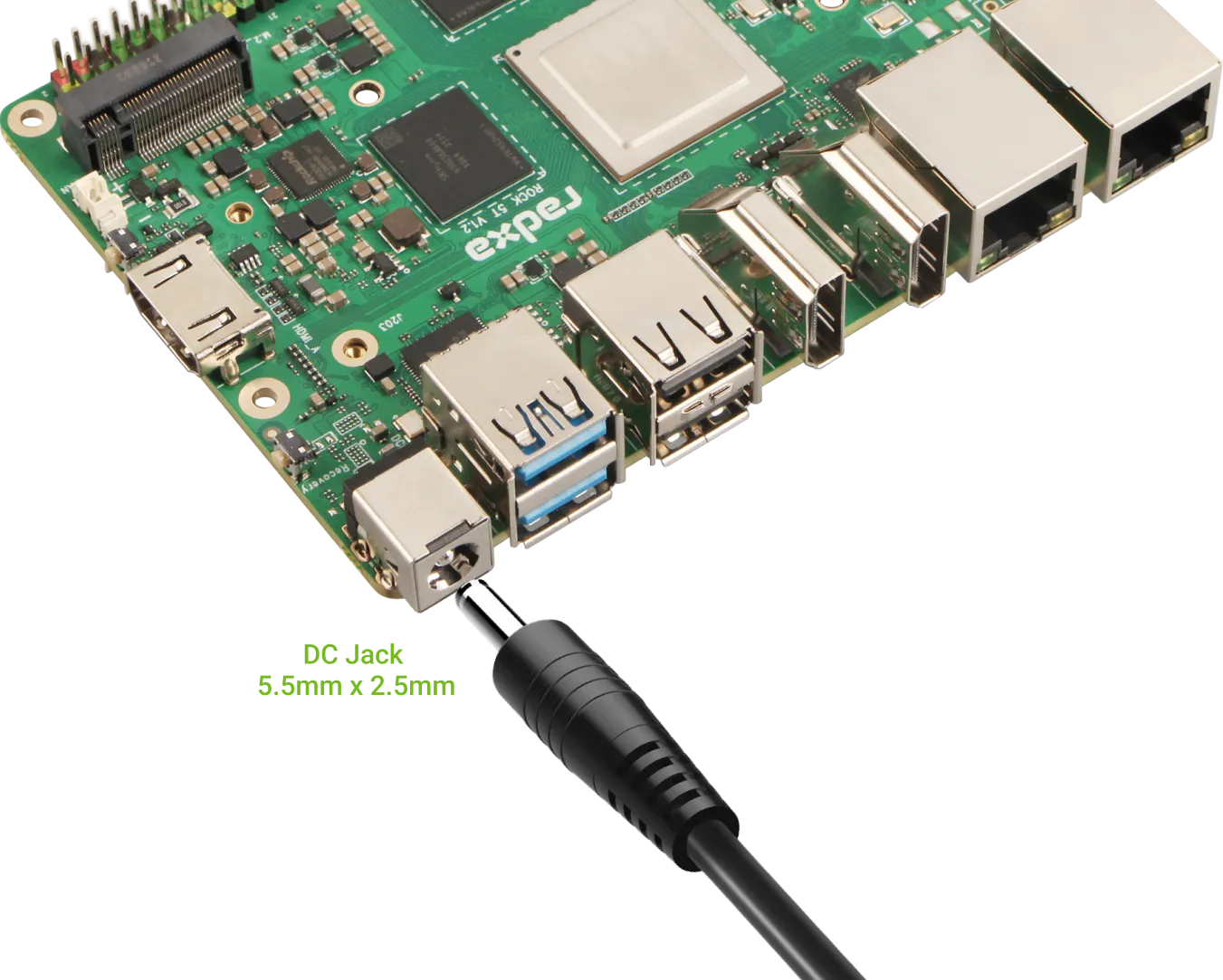

DC Jack Interface

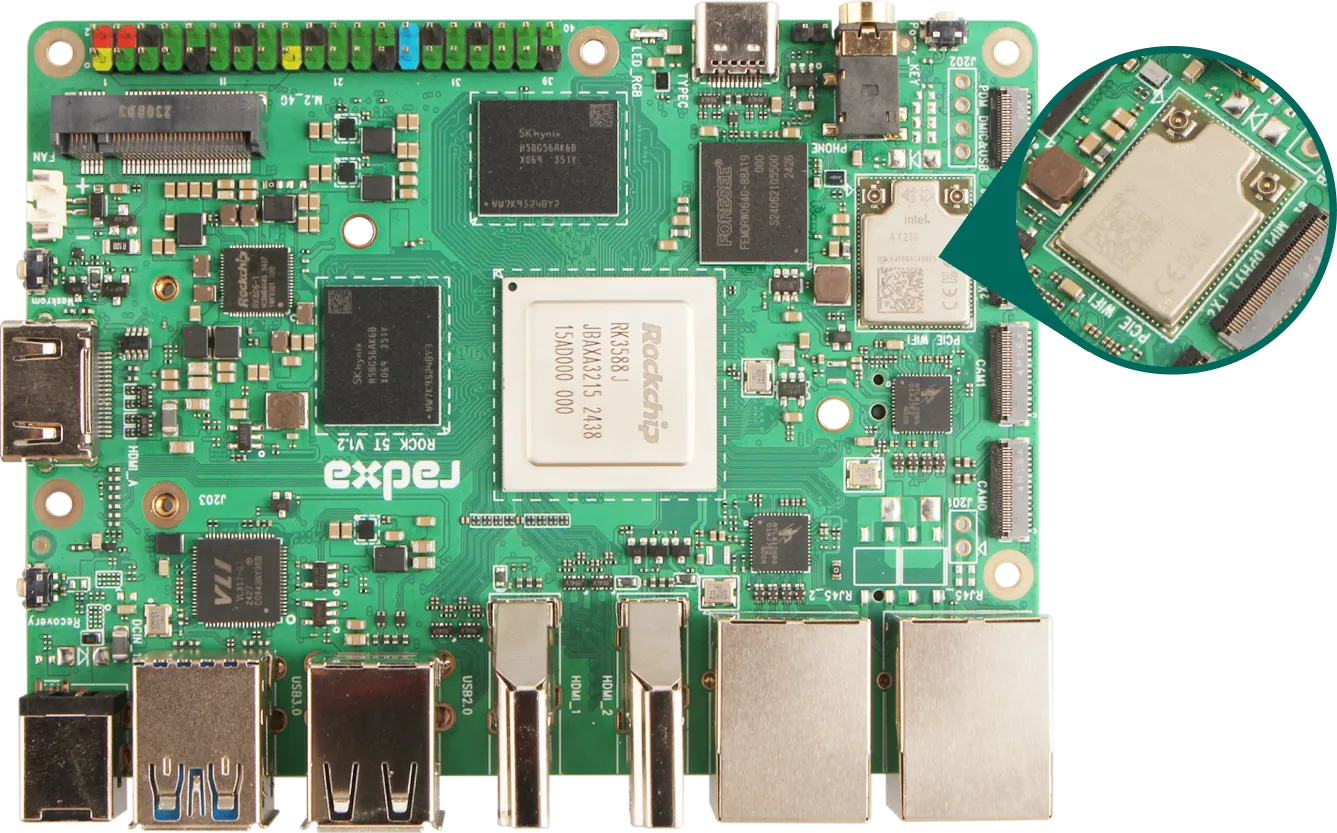

Support Industrial-Grade Wi-Fi 6
AX210
Intel® Wi-Fi 6E AX210 1216
Extended Temperature
(-40°C to +85°C) Industrial Grade
ROCK 5 Comparison
| Picture |  |  |  |
|---|---|---|---|
| Product | ROCK 5B | ROCK 5B+ | ROCK 5T |
| RAM | LPDDR4x | LPDDR5 | LPDDR5 |
| eMMC | eMMC Connector | Onboard eMMC | Onboard eMMC |
| Camera | 1x 31-Pin FPC Interface (4-lane MIPI CSI) | 2x 31-Pin FPC Interface (4-lane MIPI CSI) | 2x 31-Pin FPC Interface (4-lane MIPI CSI) |
| Wireless | 1x M.2 E Key Connector | Onboard Wi-Fi 6 & Bluetooth 2x Antenna Connectors | Onboard Wi-Fi 6 & Bluetooth 2x Antenna Connectors |
| Ethernet | 1x 2.5 Gigabit Ethernet Port with PoE Support (Additional PoE HAT Required) | 1x 2.5 Gigabit Ethernet Port with PoE Support (Additional PoE HAT Required) | 2x 2.5 Gigabit Ethernet Ports, One with PoE Support (Optional Build-in PoE) |
| Mobile Network | N/A | 1x M.2 B Key Connector 1x SIM Card Slot | 1x M.2 B Key Connector 1x SIM Card Slot |
| NVMe SSD | 1x M.2 M Key Connector with PCIe 3.0 4-lane | 2x M.2 M Key Connector each with PCIe 3.0 2-lane | 2x M.2 M Key Connector each with PCIe 3.0 2-lane |
| Power | USB Type-C PD | USB Type-C PD | 12V DC Jack 5525 |
| Form Factor | 100 mm x 75 mm | 100 mm x 75 mm | 110mm x 82mm |
| Temperature | Consumer Grade 0℃ to 60℃ | Consumer Grade 0℃ to 60℃ or Industrial Grade -40℃ to 85℃ | Consumer Grade 0℃ to 60℃ or Industrial Grade -40℃ to 85℃ |
Comprehensive Technical Documentation and
Active Community
Comprehensive Technical Documentation and Active Community !
Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.
