The Best SBC Just Got Even Better

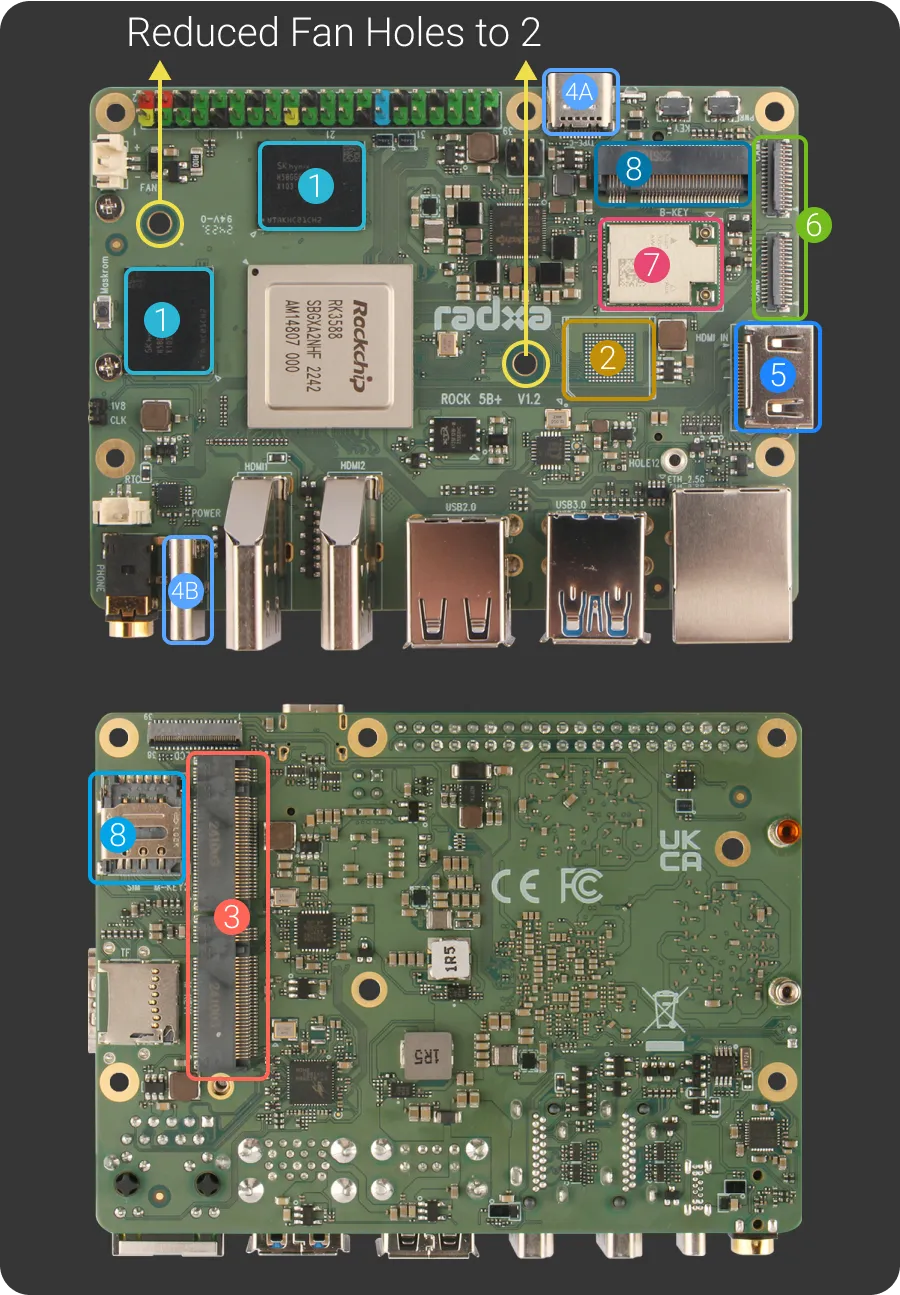

Major Upgrade for ROCK 5B
1Memory:
2eMMC:
Upgraded from eMMC Socket to Onboard eMMC
3M.2 M Key:
From one M Key(PCIe Gen3 4-lane) connector to two M Key(PCIe Gen3 2-lane) connector
4USB Type-C Interfaces:
Add a dedicated USB C PD power input
5HDMI Input:
From Micro HDMI connector to full size HDMI connector
6Camera Interface:
Add one more 4-lane MIPI CSI connector, up to 4x cameras(2-lane) simultaneously
7Wireless Connection:
Onboard RTL8852BE WiFi 6 / BT 5.2 module
8Mobile Network:
Added M.2 B Key Interface and SIM Card Slot for Cellular Mobile Network Support
![Major Upgrade for ROCK 5B](/rock5/rock_5b+/overview/compare-view.webp)

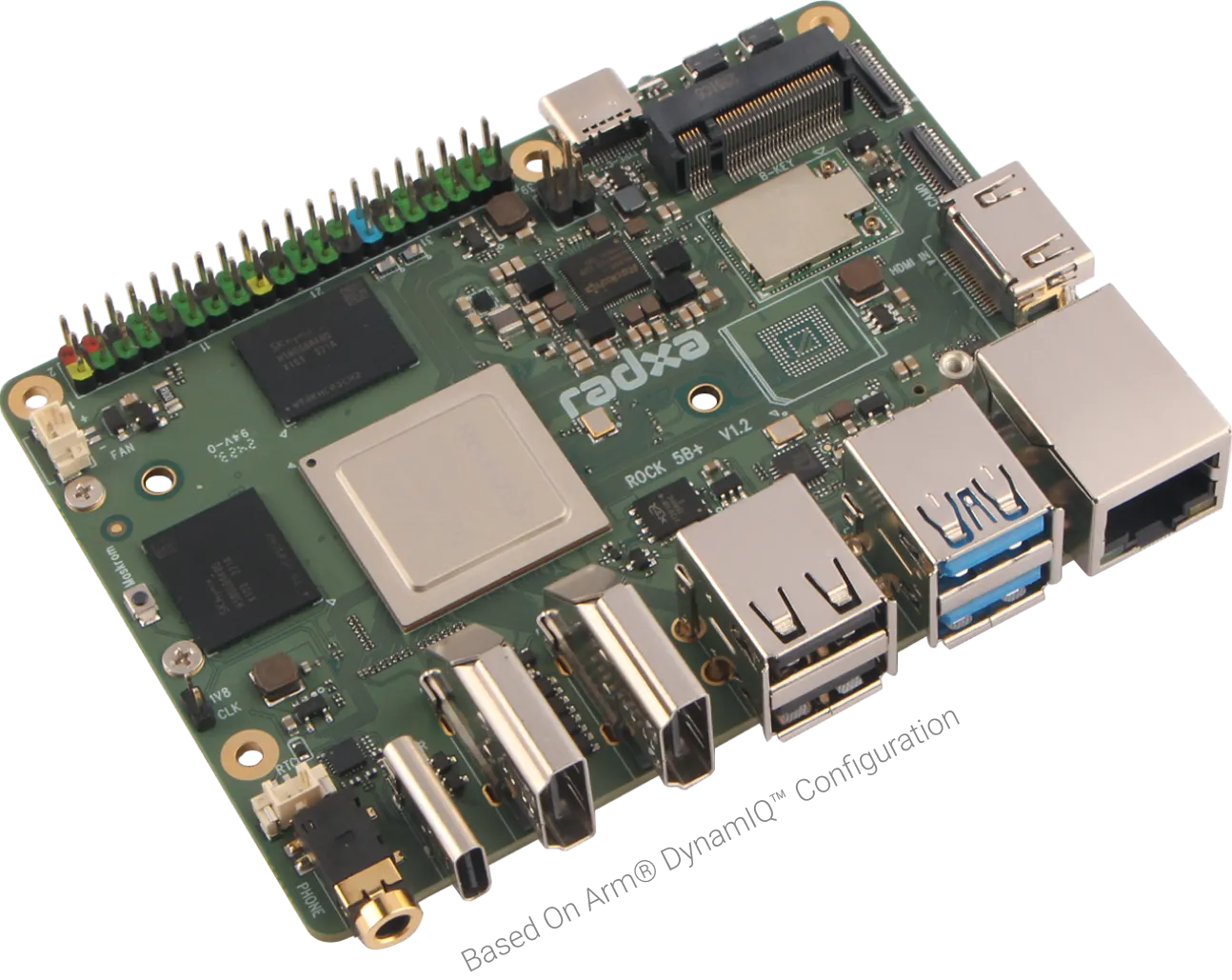

Robust Performance
Rockchip RK3588
![Robust Performance Rockchip RK3588](/rock5/rock_5b+/overview/rock5bp-chip-view.webp)
Quad ARM Cortex®
A76
@ 2.2 ~ 2.4GHz
Quad ARM Cortex®
A55
@ 1.8GHz
Made by
8nm
advanced process
Memory Upgrade
High Bandwidth, Large Capacity, Low Power Consumption
![Up to 32GB](/rock5/rock_5b+/overview/lpddr5.webp)
High Performance Graphics Processing Unit
Arm® Mali™ G610MC4
![game](/rock5/rock_5b+/overview/game-view2.webp)
- OpenGL® ES1.1, ES2.0, and ES3.2
- OpenCL® 1.1, 1.2 and 2.2
- Vulkan® 1.1 and 1.2
Embedded high performance 2D image VAcceleration module
High Computing Power NPU
6TOPs
AI computing power
Various
learning frameworks
Face Recognition
Voice Recognition
Instant visual translation
![Support OS](/rock5/rock_5b+/overview/support-os.webp)
Supporting Multiple Data Types
INT4 / INT8 / INT16 / FP16 / BF16 / TF32

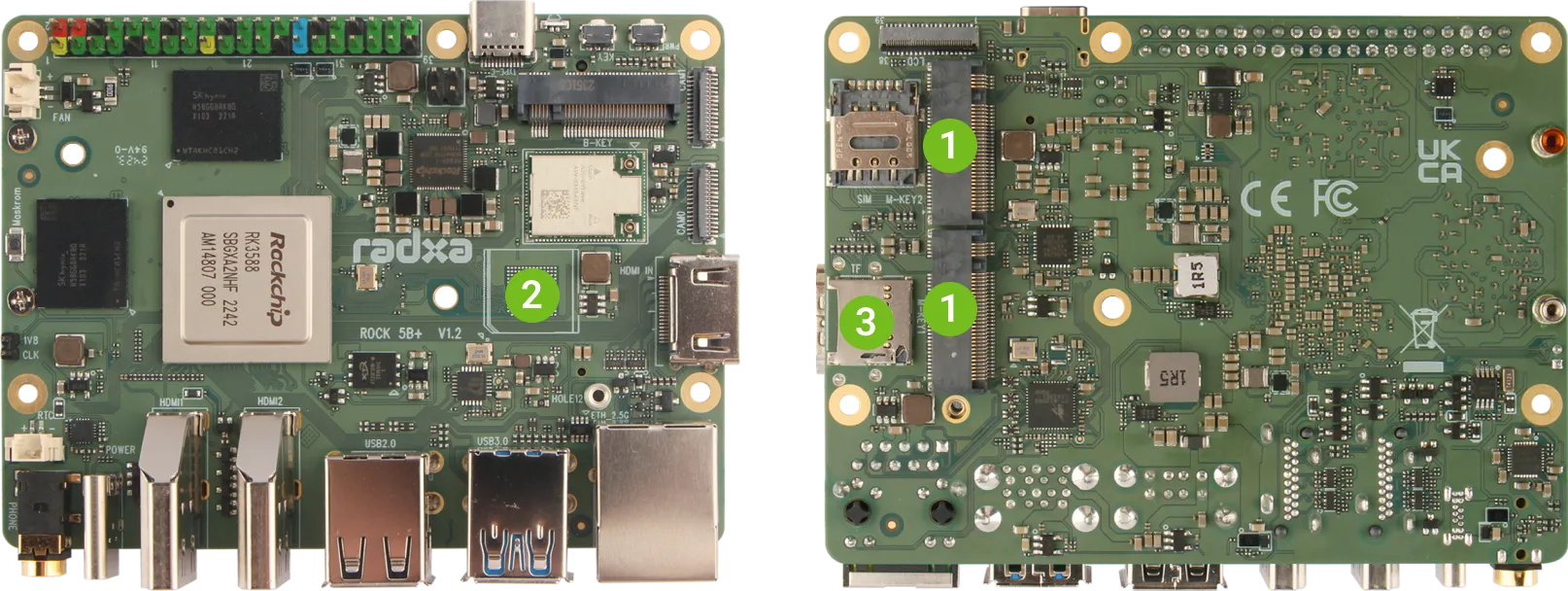

Flexible Storage Options
![Flexible Storage Options](/rock5/rock_5b+/overview/storage-view.webp)
- 1
Dual M.2 M Key Connector each with PCIe 3.0 2-lane
- 2
Onboard eMMC Up To 128GB
- 3
microSD Card Slot
8K Video Encoding and Decoding Technology
- H.265 / H.264 / VP9 / AV1 / AVS2 video decoder up to 8K@60fps
- H.264 / H.265 video encoder up to 8K@30fps
![8K Video Encoding and Decoding Technology](/rock5/rock_5b+/overview/support-video.webp)
Support for Multiple Displays
Smooth and Fluent Video Input
- Supports 4K@60fps HDMI2.0 RX
- Supports 2x 4-lane MIPI CSI or 4x 2-lane MIPI CSI
![Smooth and Fluent Video Input](/rock5/rock_5b+/overview/video-input.webp)

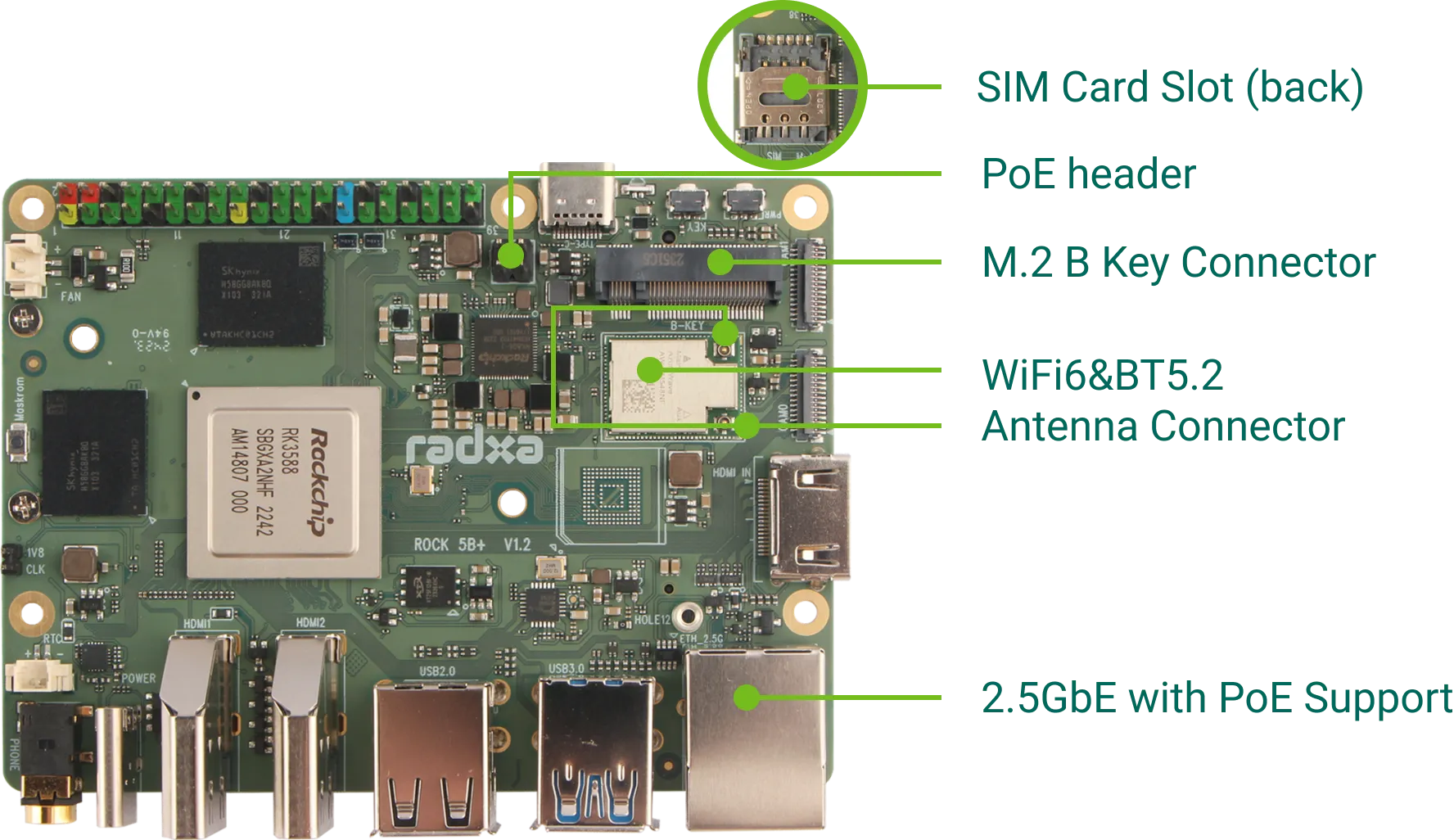

High Bandwidth, High Stability
WiFi 6 & BT5.2 with Dual Antenna Connector
2.5 Gigabit Ethernet with PoE Support(Additional PoE HAT Required)
![WIFI6](/rock5/rock_5b+/overview/interface-icon1.webp)
![BT5.2](/rock5/rock_5b+/overview/interface-icon2.webp)
![2.5GbE](/rock5/rock_5b+/overview/interface-icon3.webp)
![Interface](/rock5/rock_5b+/overview/interface-view.webp)

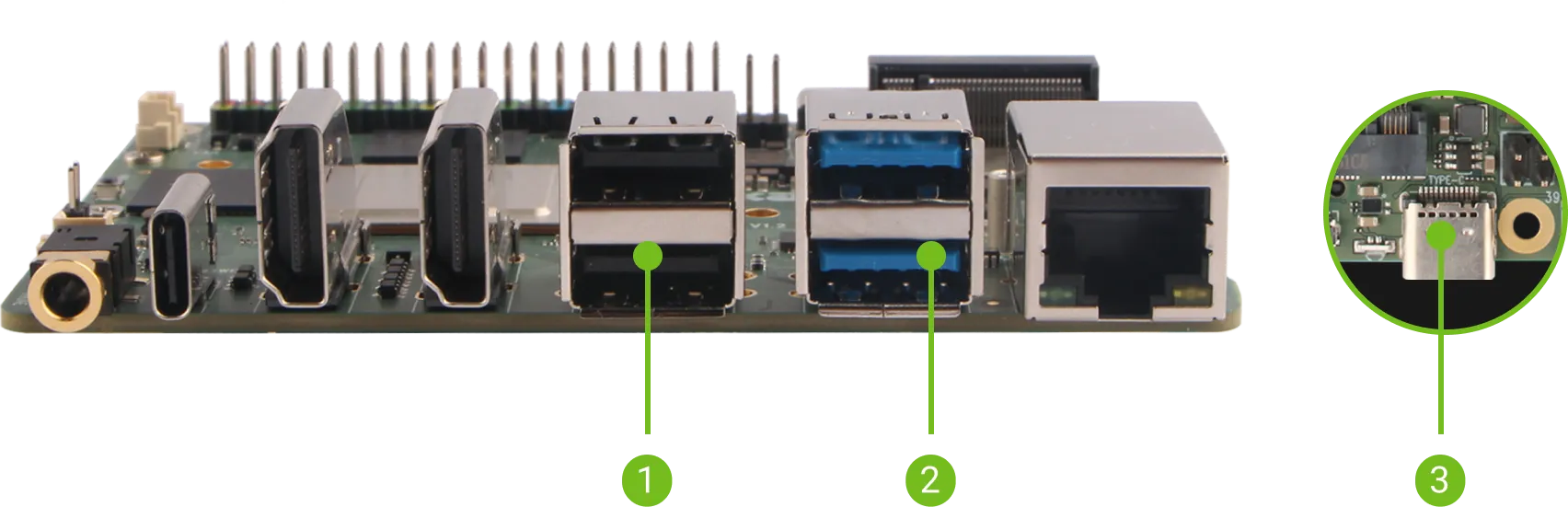

USB Interfaces
Extensive USB extensions and up to 5Gbps rates
![Interface](/rock5/rock_5b+/overview/usb-interfaces.webp)
1
2x USB 2.0 HOST Ports
2
Up: USB 3.1 Gen 1 OTG Port
Down: USB 3.1 Gen 1 HOST Port3
1x Full function USB Type-C port
• DP display up to 4Kp60
• USB 3.1 Gen 1 OTG

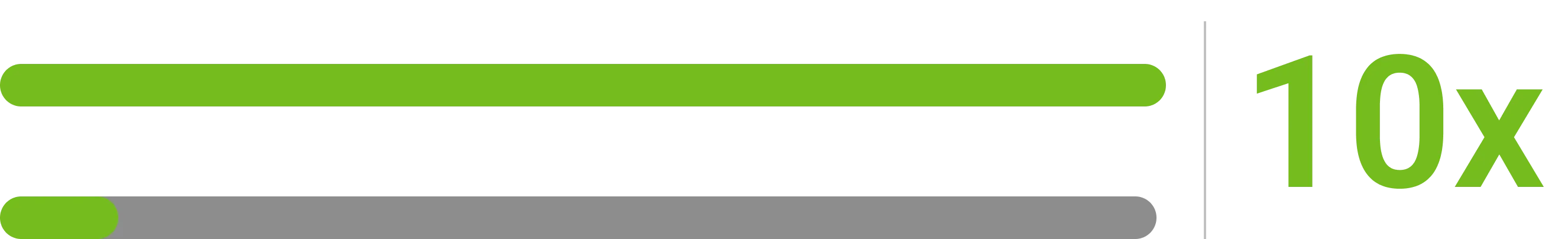

5Gbps Data Transfer
![Chart](/rock5/rock_5b+/overview/chart.webp)
