4x A78 +4x A55
ARM Mali-G57 MC5
Dual-core AI Processor
LPDDR4x up to 16GB
UFS up to 512GB
Dual Displays
HiFi 4 Audio Engine DSP
WiFi 6
Bluetooth 5.2
USB 3.0 HOST / OTG
HDMI RX
Gigabit Ethernet
High performance,
Low Power Consumption

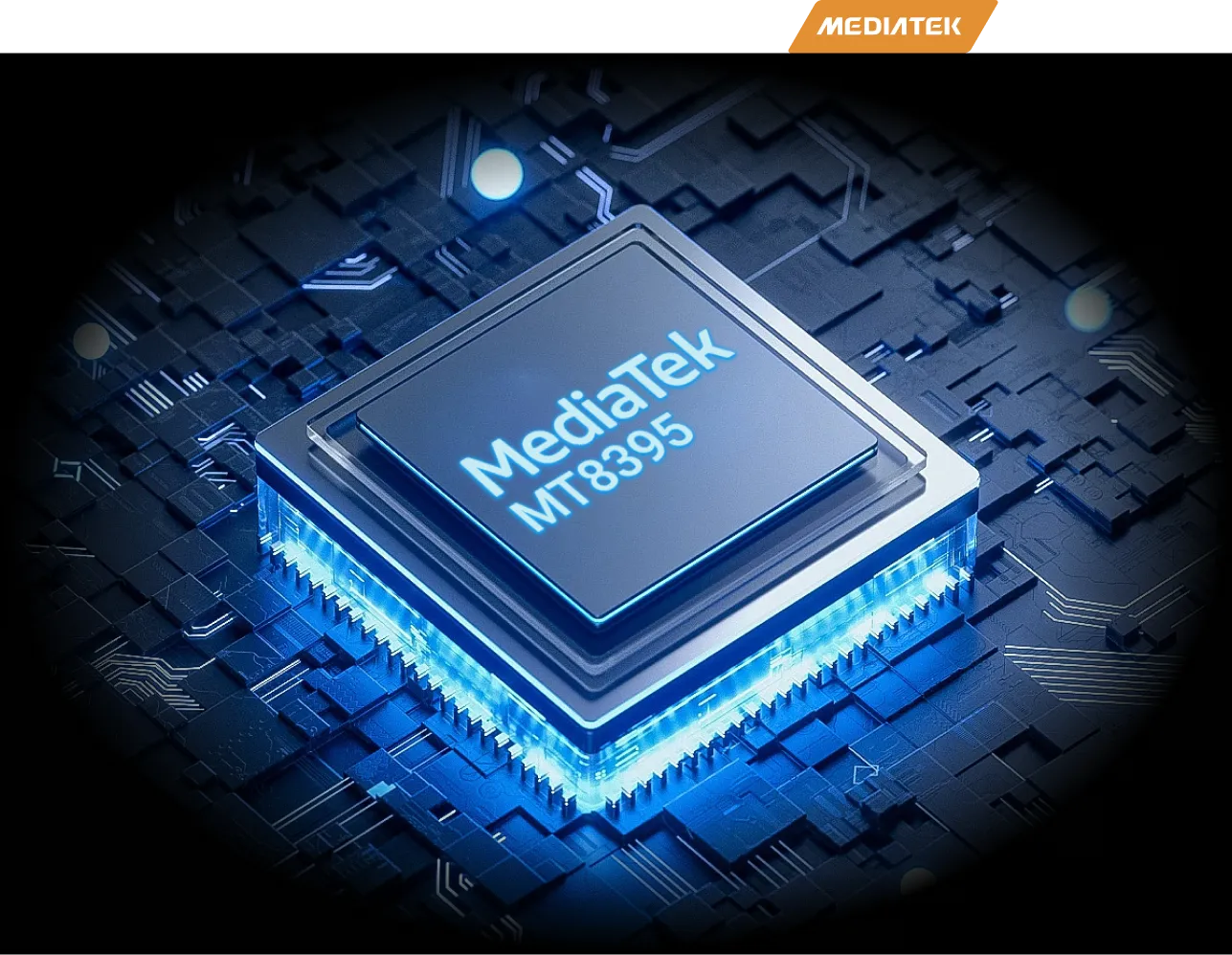

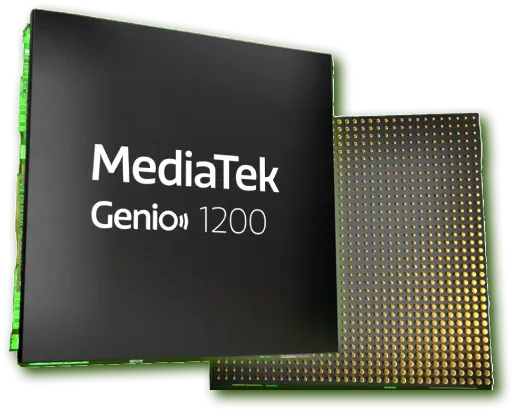

Quad-core ARM Cortex-A78 and Quad-core ARM Cortex-A55 Processor
ARM Mali G57 MC5 GPU
- OpenGL® ES1.1, ES2.0, and ES3.2
- OpenCL® 1.0, 1.1, 1.2, 2.0, 2.1 and 2.2
- Vulkan® 1.1 and 1.2
Programmable APU and
Deep Learning Accelerator
Bridging AI, Computer Vision, and High-Performance Neural Network Computing
HiFi 4 Audio Engine Digital
Signal Processor
Optimized for Efficient Audio/Voice Codec Processing and Pre-/Post-Processing
LPDDR4x RAM up to 16GB
Catering to Diverse User Requirements
Reliable Network Connectivity
Gigabit Ethernet Port and WiFi 6 & BT 5.2 with three antenna connectors
Onboard UFS up to 512GB
Big Storage Capacity, High Bandwidth

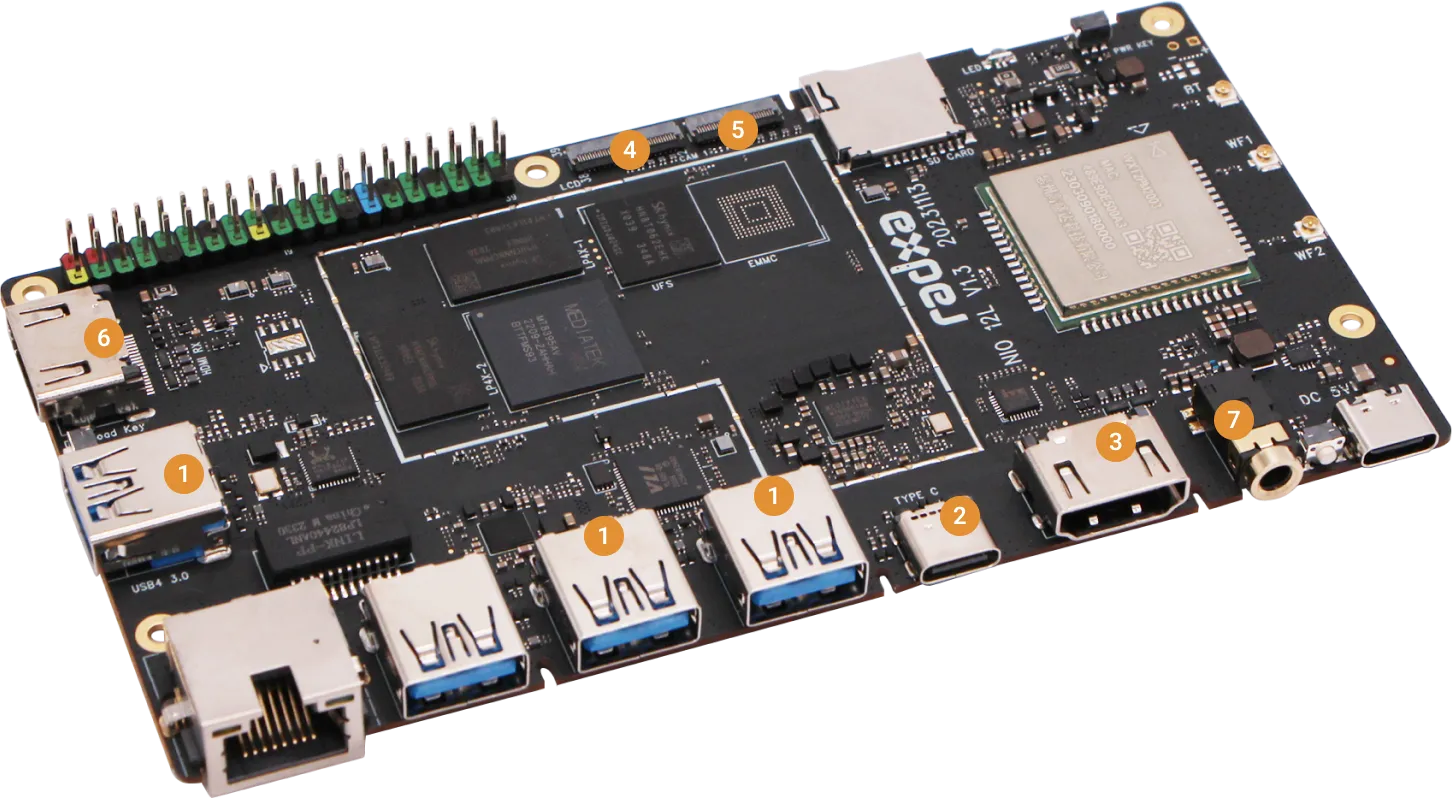

Rich Interfaces for Easy Expansion
Gathering USB 3.0 HOST Type-A, USB 3.0 OTG / HOST Type-C, DP(USB Type-C), HDMI 2.0 TX,
HDMI 2.0 RX, MIPI DSI, MIPI CSI and Headphone Jack for function expansion.
- 1
USB 3.0 Type-A
- 2
USB 3.0 Type-C and DP
- 3
HDMI 2.0 TX
- 4
MIPI DSI
- 5
MIPI CSI
- 6
HDMI 2.0 RX
- 7
Headphone Jack
Dual Display Output Support
Dual display outputs are available via any two of the following options:
HDMI up to 4Kp60, DP (Type C) up to 4Kp60, and MIPI DSI up to 2Kp60.
Support for Multiple Operating Systems
Supporting Yocto, Android, and Ubuntu operating systems for
enhanced security, stability, and efficiency.
security
stability
efficiency
Official Ubuntu Support
Up to 10 Years of Security Updates and Support
Run Ubuntu on your Radxa NIO 12L. Pick the OS image, flash it onto internal onboard UFS, and away you go. All images are 64-bit builds of Ubuntu.
Application Scenarios
smart home
smart city
Industrial Internet of Things
Agricultural Internet of Things
Smart retail
Intelligent medical care

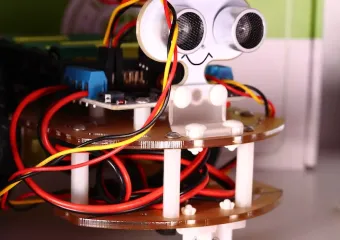

mechanical person
Video Conference
unmanned aerial vehicle
artificial intelligence (AI)
AR / VR
intelligent transport
