Credit Card Size, Big Performance: Intel N100 and RP2040 Inside

X4
01
  • Alder Lake N

  • WiFi 5 or WiFi 6

  • LPDDR5

  • 40-Pin GPIO Header

Alder Lake N

Performance Meets Power

CPU:

  1. 4 Cores, 4 Threads

  2. 3.40 GHz

    Max Turbo Frequency

  3. 6 MB Intel® Smart Cache

    Cache

Intel® UHD Graphics GPU :

  1. DirectX 12.1

  2. OpenGL 4.6

  3. OpenCL 3.0

  4. 750 MHz

    Graphics Max Dynamic Frequency

Amston Lake

Alder Lake N Extension

  1. Upgrade from
    Commercial Grade
    (0℃ to 105 °C) to
    Industrial Grade (-40℃ to 105 ℃)

    Operating Temperature

  2. Upgrade from
    4 cores to
    up to 8 cores with higher frequency

    CPU

  3. Upgrade the
    GPU's
    Execution Units
    to 32EUs

    GPU

  4. Supports 2.5Gb Time-Sensitive Networking Ethernet

    TSN

  5. Up to 10 Years of Lifecycle

    Lifecycle

LPDDR5

Higher Bandwidth and Lower Latency

Higher Bandwidth and Lower Latency

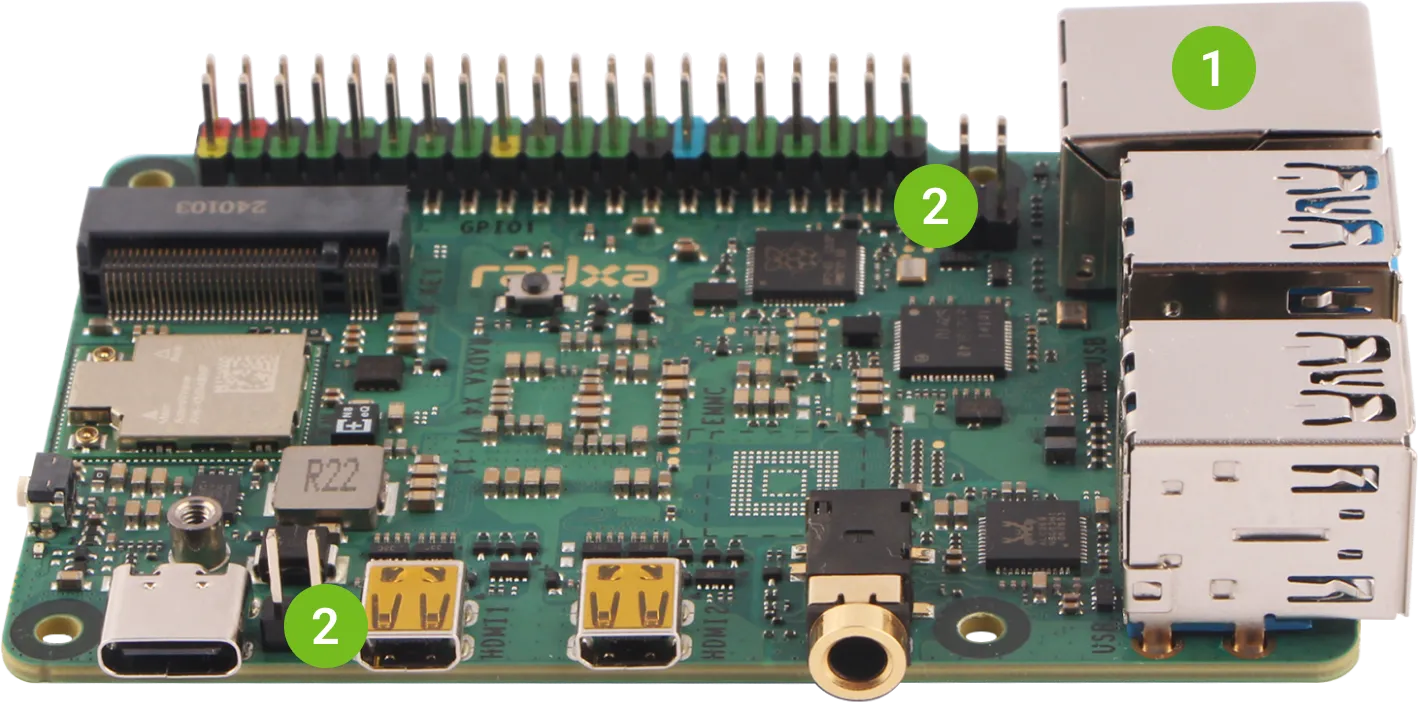

2.5G Ethernet Port with PoE Support

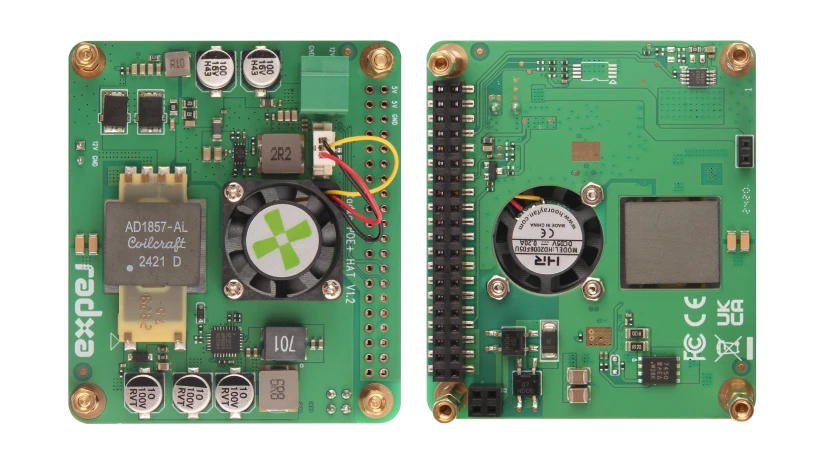

High-Speed Network and Power Supply(Additional PoE HAT Required)

High-Speed Network and Power Supply
1

2.5G Ethernet Port

2

PoE Header

1 Gbps

2.5 Gbps

Video Output and Audio Support

Video Output and Audio Support

Immersive Visual Experience with Dual 4K Output

High-Fidelity Audio Experience with Headphone Jack Supporting Microphone Input

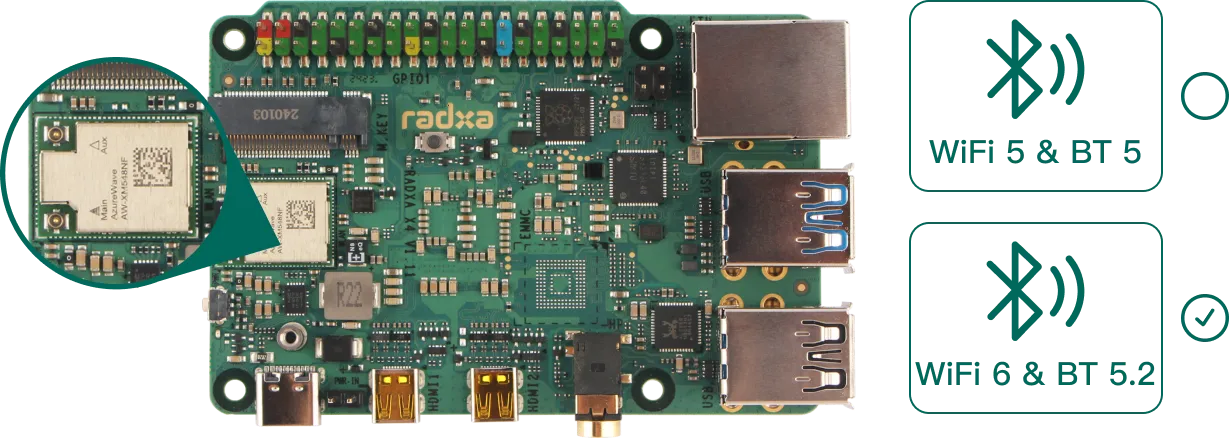

Wireless Connectivity

WiFi 5 & BT 5 or WiFi 6 & BT 5.2

WiFi 5 & BT 5 or WiFi 6 & BT 5.2

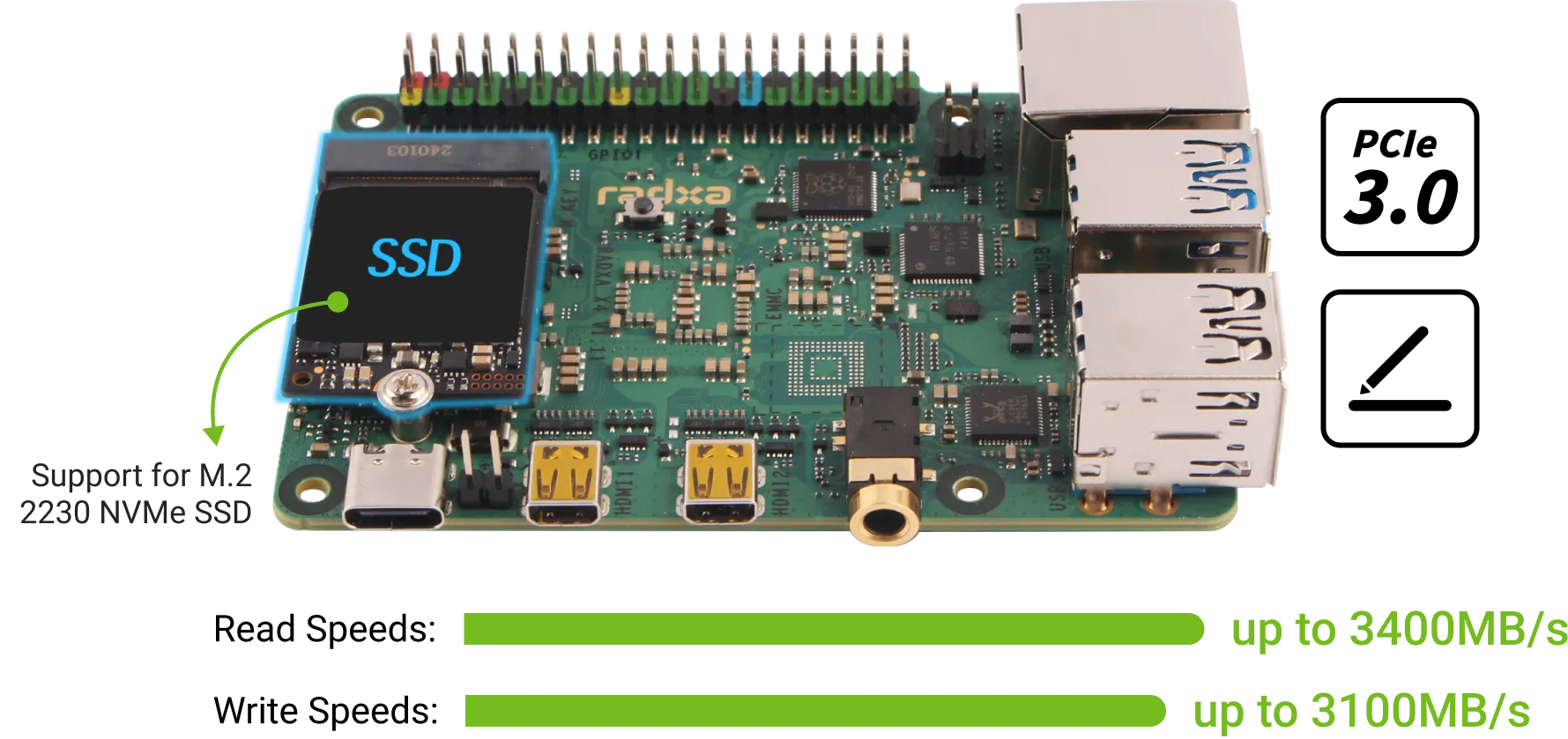

M.2 M Key Connector with PCIe 3.0 4-lane

Support for Storage Expansion and OS Boot

Support for Storage Expansion and OS Boot

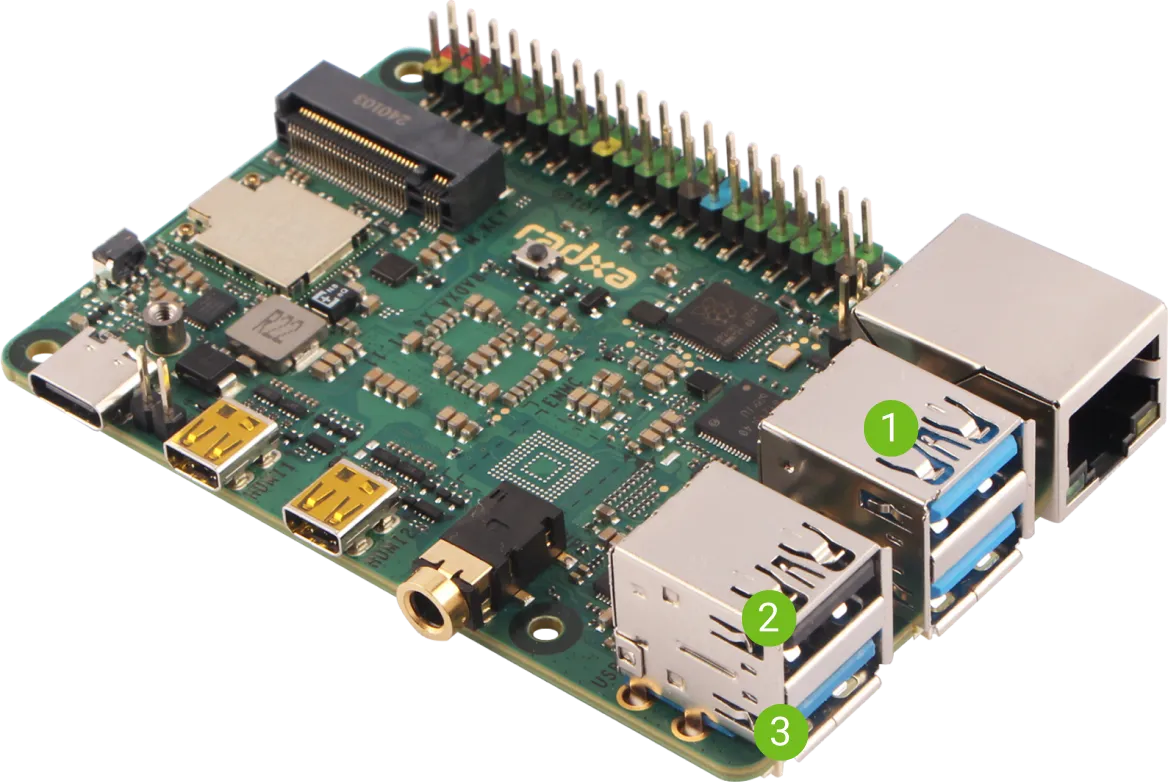

More Peripheral Connectivity

Provides 3x USB 3.2 Gen 2 and 1x USB 2.0 Ports

Provides 3x USB 3.2 and 1x USB 2.0 Ports
  1. 12x USB 3.2 Gen 2 HOST Type-A Ports
  2. 21x USB 2.0 HOST Type-A Port
  3. 31x USB 3.2 Gen 2 HOST Type-A Port

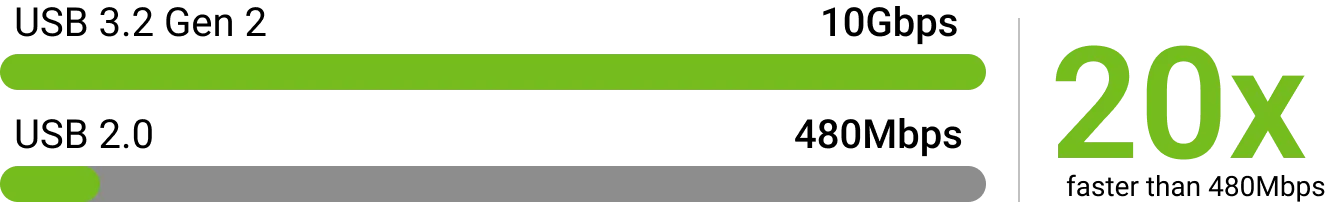

10Gbps Data Transfer

10Gbps Data Transfer

40-Pin GPIO Header

Integrated RP2040 Co-Processor for Enhanced Peripheral Control

40-Pin GPIO Header

SPI

UART

I2C

PWM

GPIO

BIOS Features

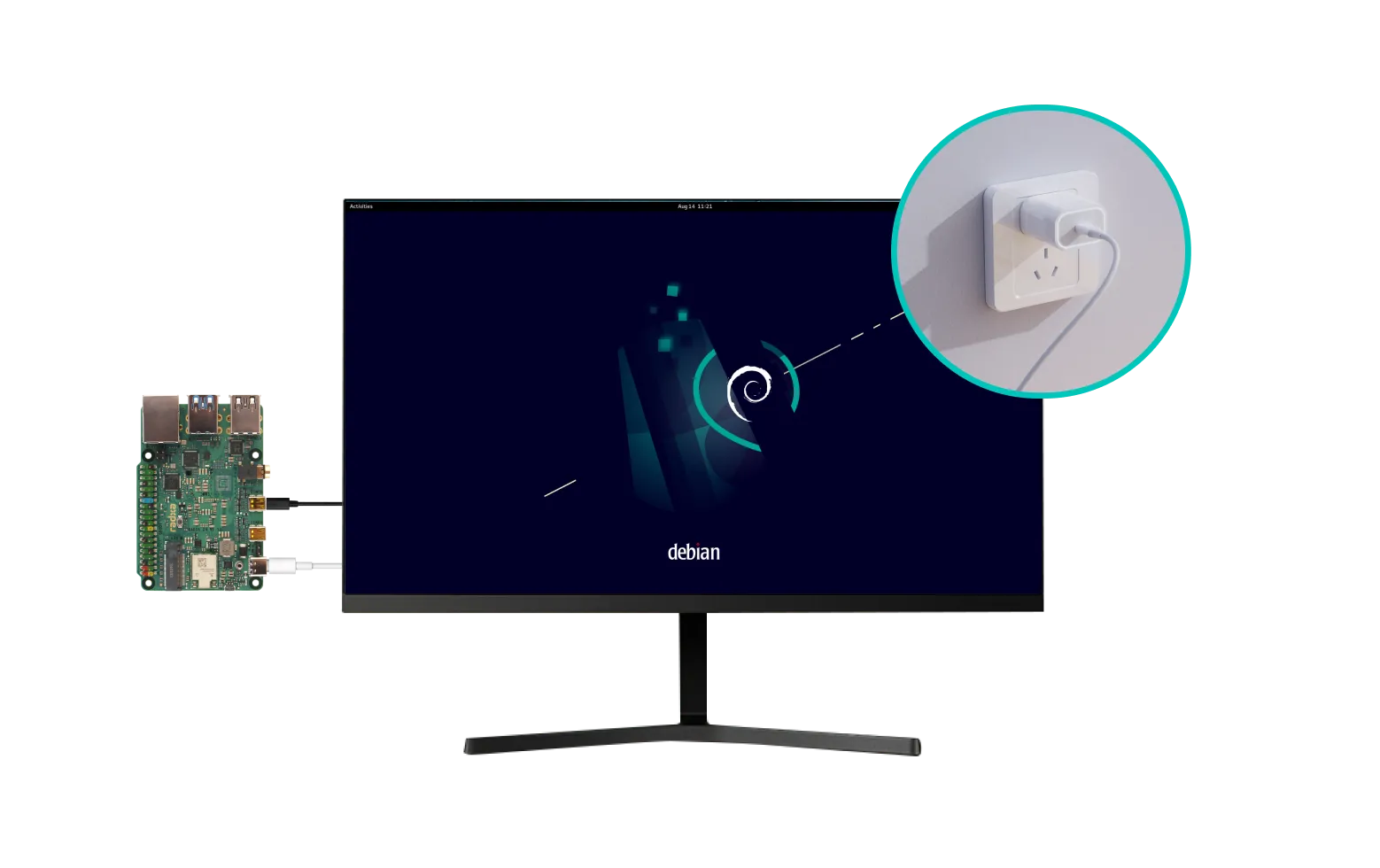

  • Supports Auto Power-On at Startup!

    Supports Auto Power-On at Startup!

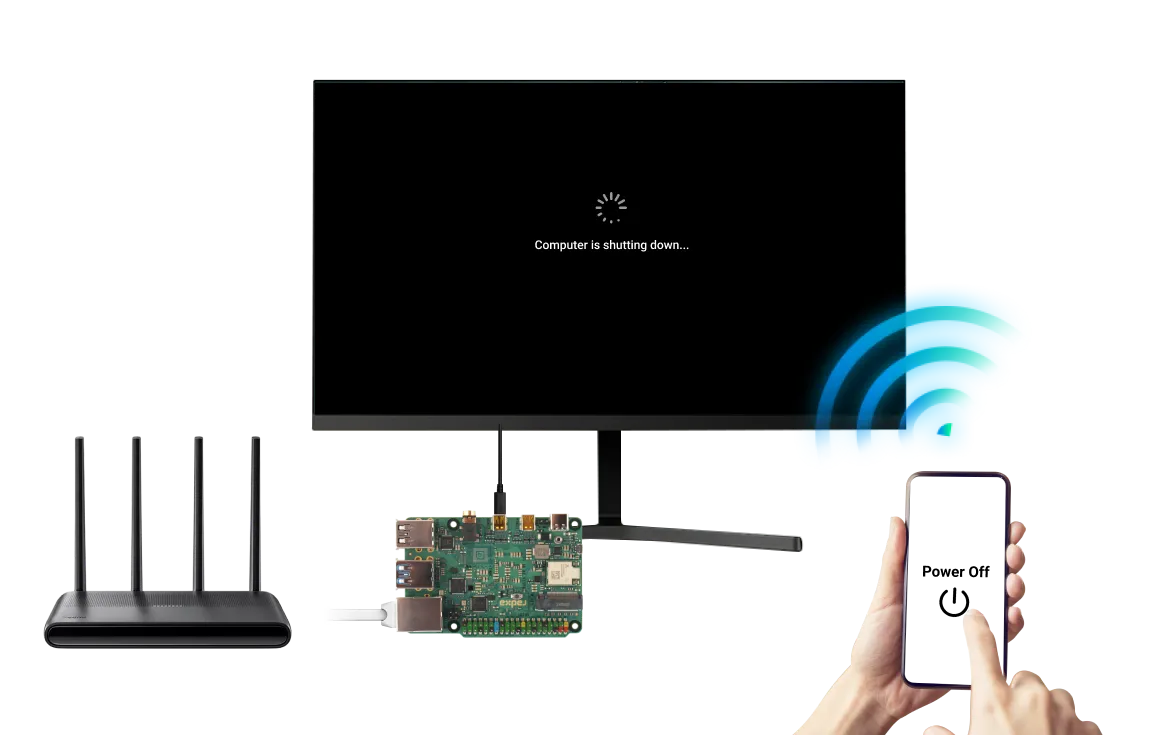

  • Wake on LAN (WoL)

    Wake Up and Shutdown Radxa X4 Remotely via LAN.

    Wake on LAN (WoL)

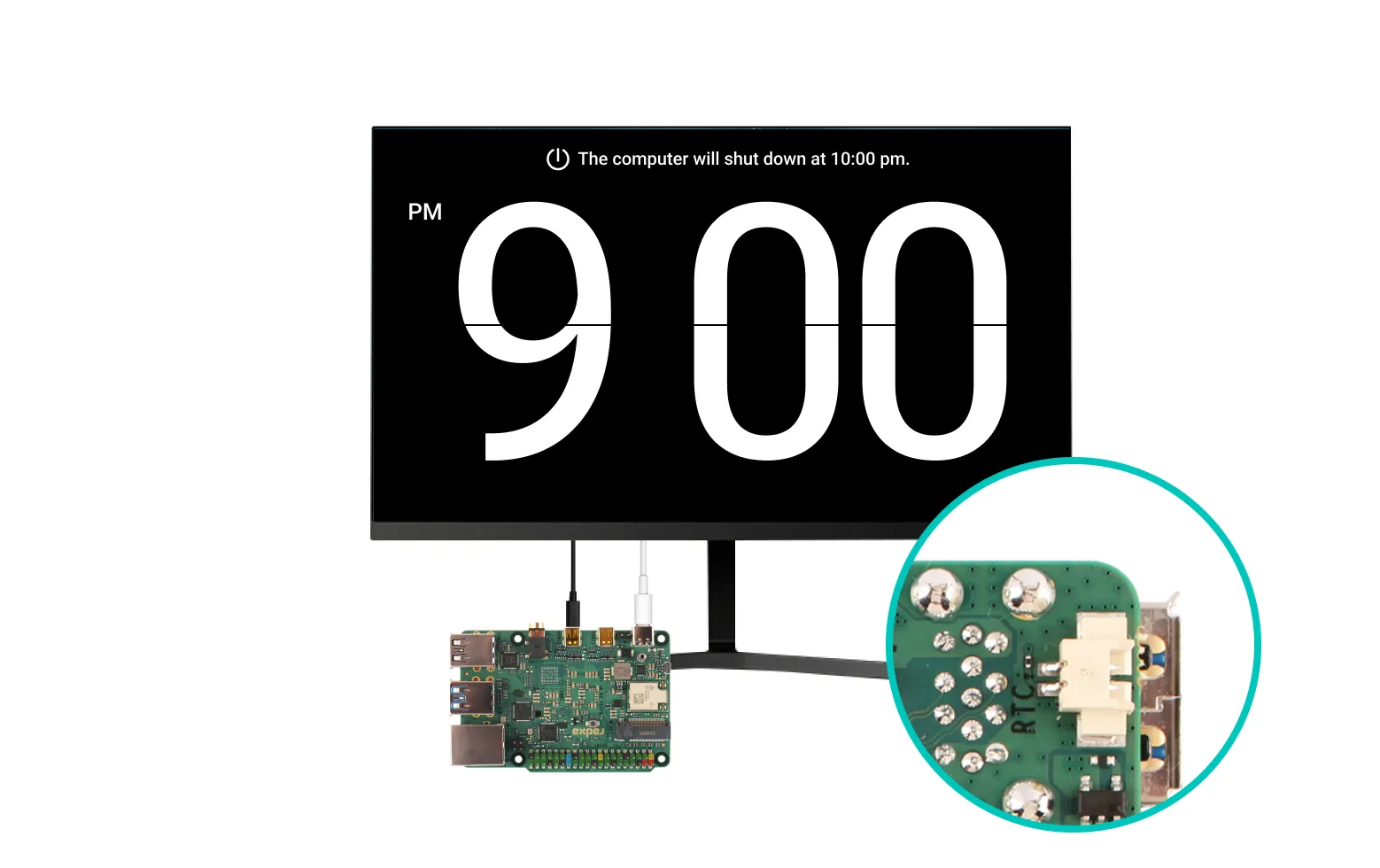

  • RTC Timed Wakeup

    Intelligent Wake-Up and Shutdown Support.

    RTC Timed Wakeup

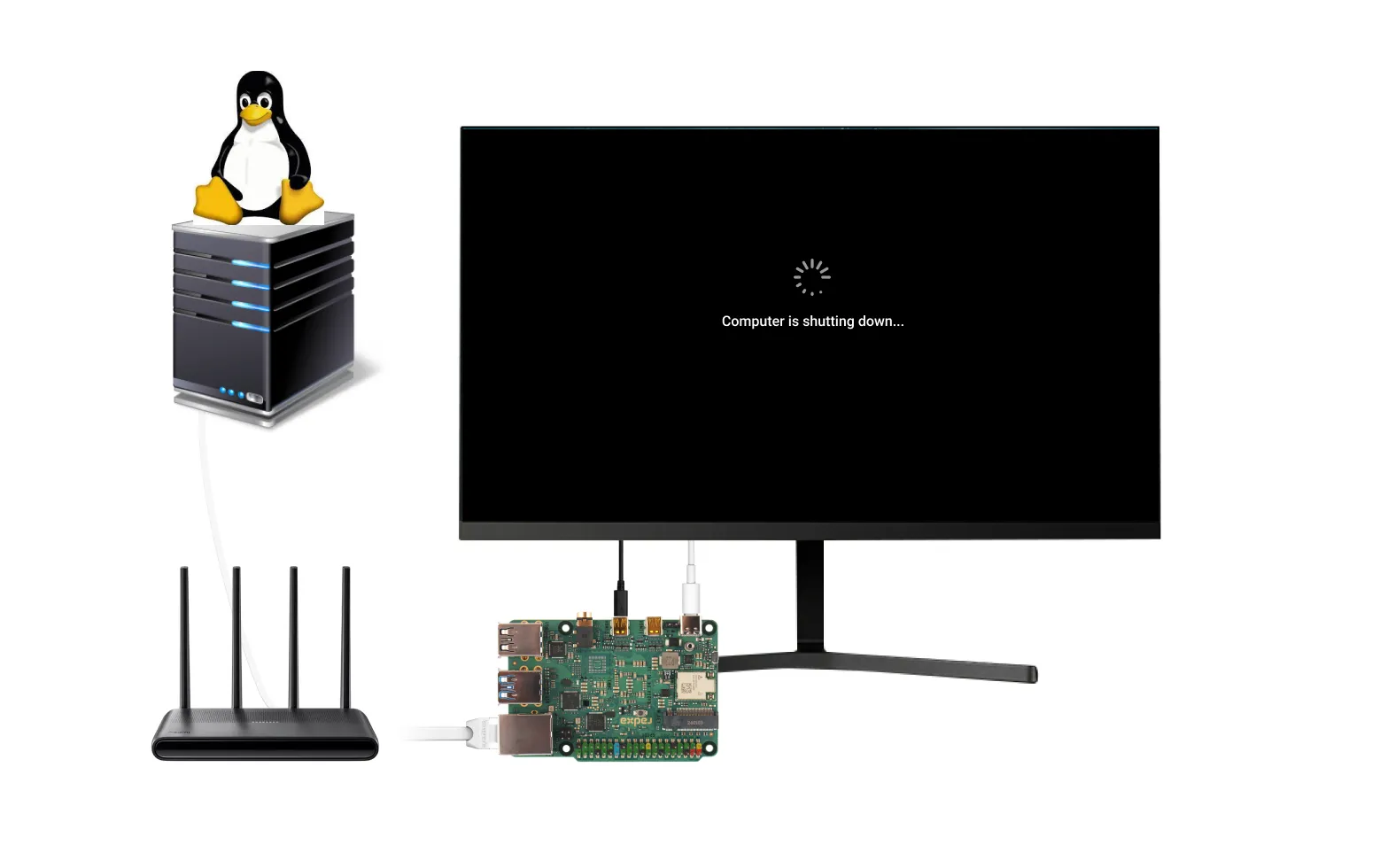

  • Preboot Execution Environment (PXE)

    OS firmware can be not only local, but also in the network.

    Preboot Execution Environment (PXE)

Comprehensive Technical Documentation and
Active Community

  • Comprehensive Technical Documentation and Active Community!

    Comprehensive Technical Documentation and Active Community !

    Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.

    Community
