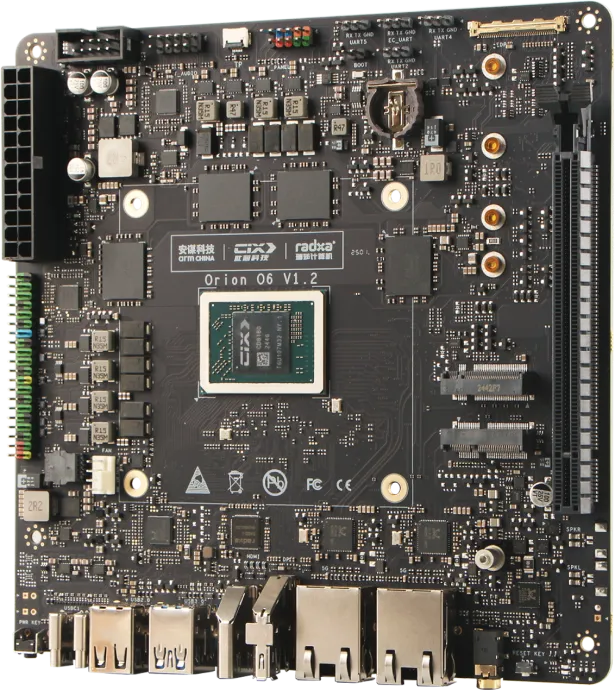

World's First Open Source
ARM V9 Motherboard
- Powered by the Cix CD8180 SoC
- ARMv9.2 Architecture
- Efficient Power Consumption Management
- Comprehensive Security Engine
- Higher Performance, Lower Power Consumption, Better Security
12-Core CPU
The Engine of Powerful
Computing
Efficient Multitasking and Smart
Resource Allocation
- Quad Big Cortex®-A720 Up to 2.8GHz
- Quad Medium Cortex®-A720 Up to 2.4GHz
- Quad Little Cortex®-A520 1.8GHz
- 12MB L3 shared across all cores
Arm® Immortals™ G720
MC10 GPU - High-
Performance Desktop GPU
Powered by Arm's 5th Generation Architecture
- Hardware-Based Ray Tracing Technology Enhances Graphic Authenticity by Creating Realistic Lighting Effects.
- Multi-API Standards Showcase Superior Graphics Processing
- Efficient Rendering and Parallel Computing for Professional Performance
Arm® Immortals™ G720
MC10 GPU - High-
Performance Desktop GPU
Powered by Arm's 5th Generation Architecture
- Hardware-Based Ray Tracing Technology Enhances Graphic Authenticity by Creating Realistic Lighting Effects.
- Multi-API Standards Showcase Superior Graphics Processing
- Efficient Rendering and Parallel Computing for Professional Performance
High-Performance NPU
with Up to 30 TOPS
Fast and Accurate Neural Network Processing
- NPU supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration and computing power is up to 30TOPs
Heterogeneous Computing Power
- Multiple Computing Power Frameworks, Consolidating the Foundation of Edge AI
- Multiple Inference Engines, Driving the Efficient Operation of Edge AI
- Comprehensive Model Adaptation, Expanding the Application Boundaries of Edge AI
- Supporting models with parameters within ten billion, it has a processing capacity of 30 tokens per second (based on Qwen2 - 1.5B).
Heterogeneous Comprehensive
45 TOPS
Peak Computing Power
128bit LPDDR5
- Frequency 5500MT/s
- Up to 64GB
- 100GB/s Memory Bandwidth
Impressive Video
Processing Capabilities
Experience 8K Ultra-High Definition with Multiple Codec Support
- AV1 / H.265 / H.264 / VP9 / VP8 / H.263 / MPEG-4 / MPEG-2 video decoder up to 8K@60fps
- MH.265 / H.264 / VP9 / VP8 video encoder up to 8K@30fps

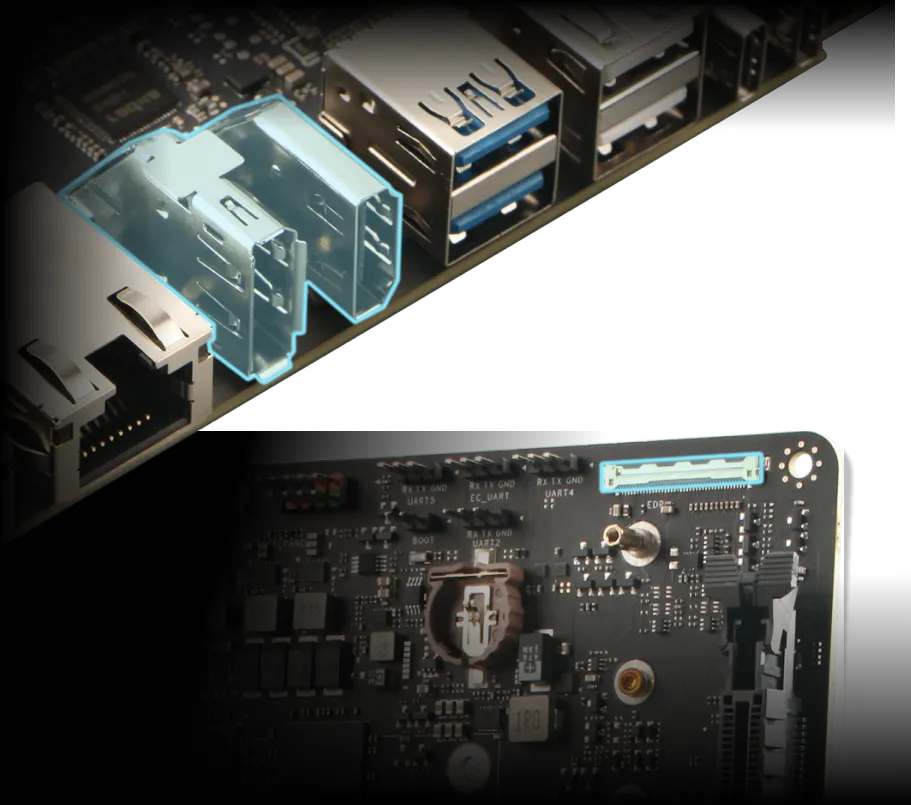

Versatile Multi-Display
Interfaces
Catering to Diverse Multi-Screen Needs for Enhanced Work and Entertainment Experience
- HDMI up to 4Kp60 display output
- DP up to 4Kp120 display output with MST (Multi-Stream Transport) support
- eDP with Touch Panel Interface
- USB Type-C with DisplayPort Alt Mode
Up to 4x Display, DP Display Up to 4K@120Hz
Dual 5Gbps Ethernet Ports

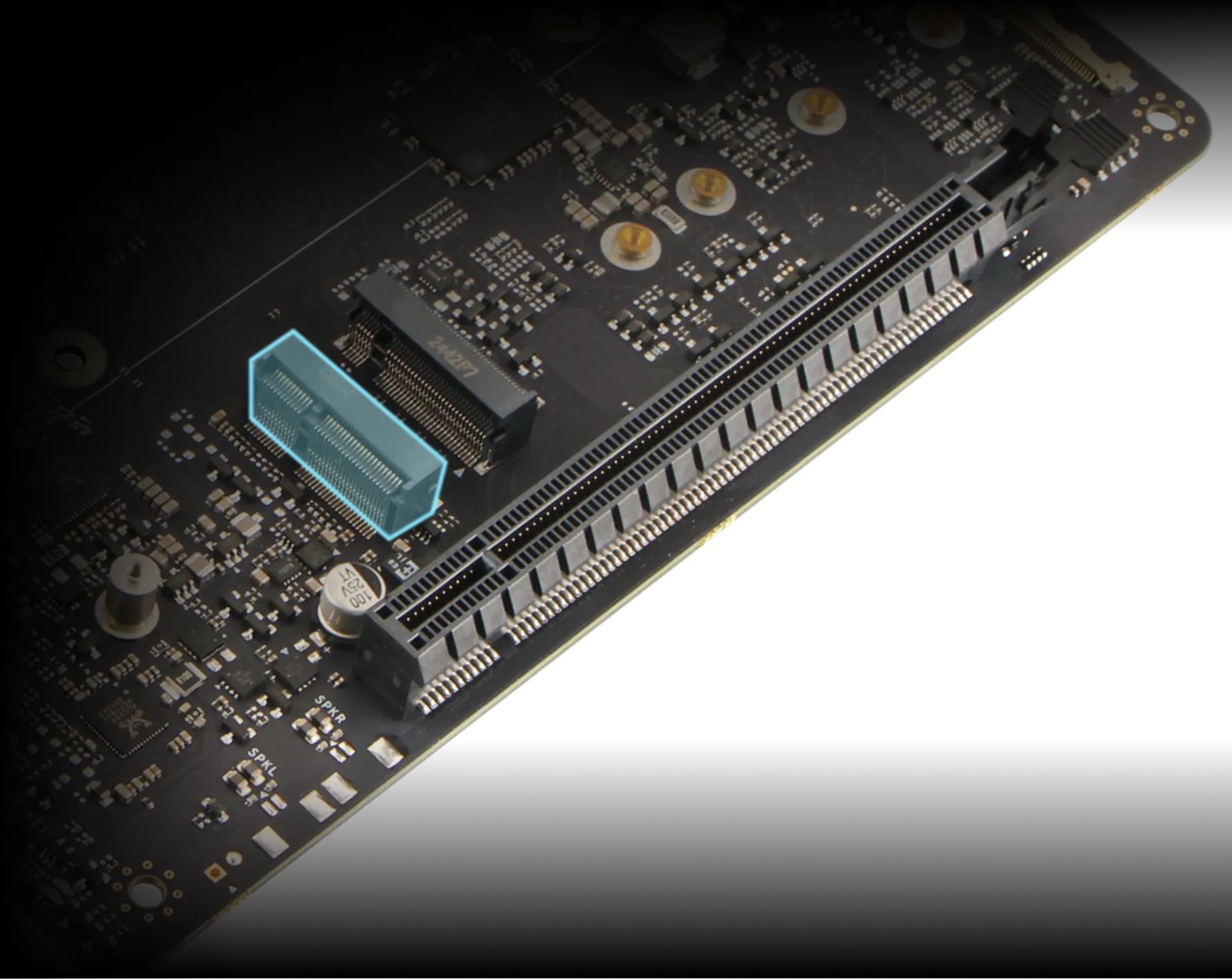

Supports The Latest Wi-Fi 7
Wireless Module
M.2 E Key Connector with PCIe Gen4x2 and USB
Applicable to AI Accelerator
Cards, Graphics Processors,
Storage and Network
Expansion

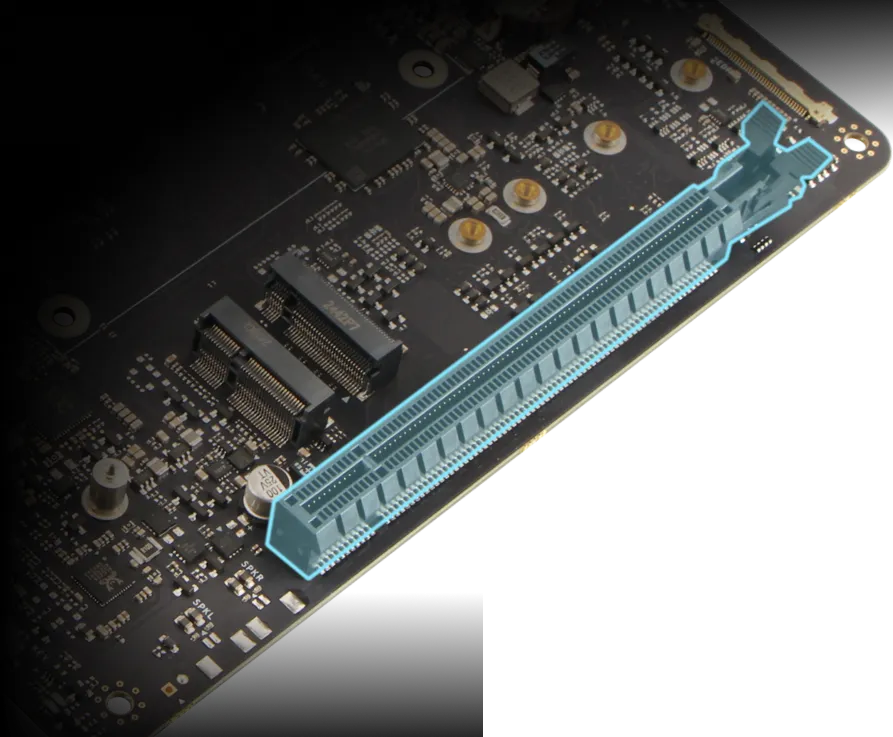

PCIe x16 Physical Slot with PCIe Gen 4 8-lane

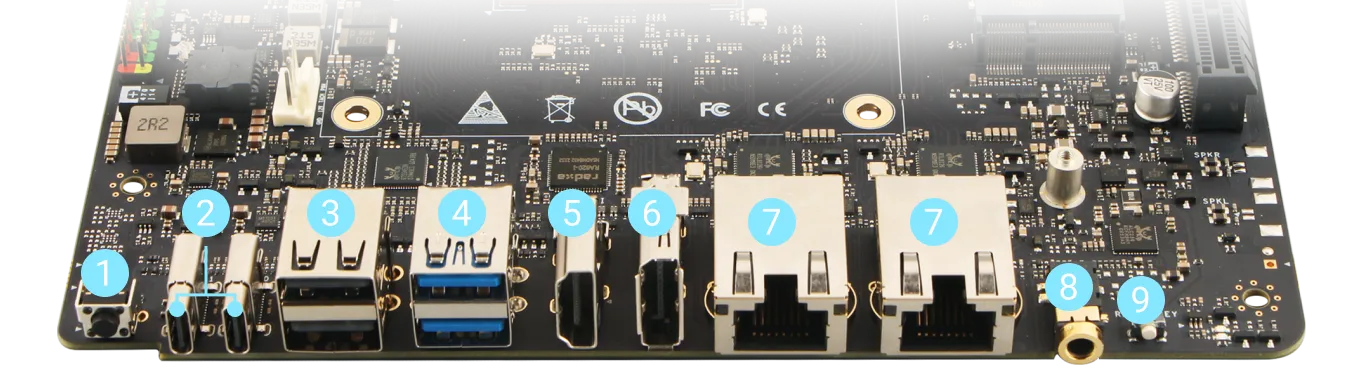

Extensive Interface Configuration
Compatible with Various External Devices for High Expandability
- 1Power Button
- 2USB Type-C Port 1
· DP up to 4Kp60
· USB 3.2 HOST
· PD Power Supply
USB Type-C Port 2
· USB 3.2 HOST
· PD Power Supply
- 32x USB 2.0 HOST Type-A Ports
- 42x USB 3.2 HOST Type-A Ports
- 5HDMI up to 4Kp60
- 6DP up to 4Kp120 with MST Support
- 75 Gigabit Ethernet Ports
- 8Headphone Jack with
Microphone Input - 9Reset Button

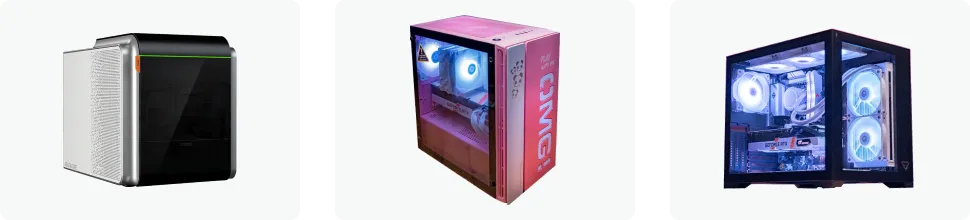

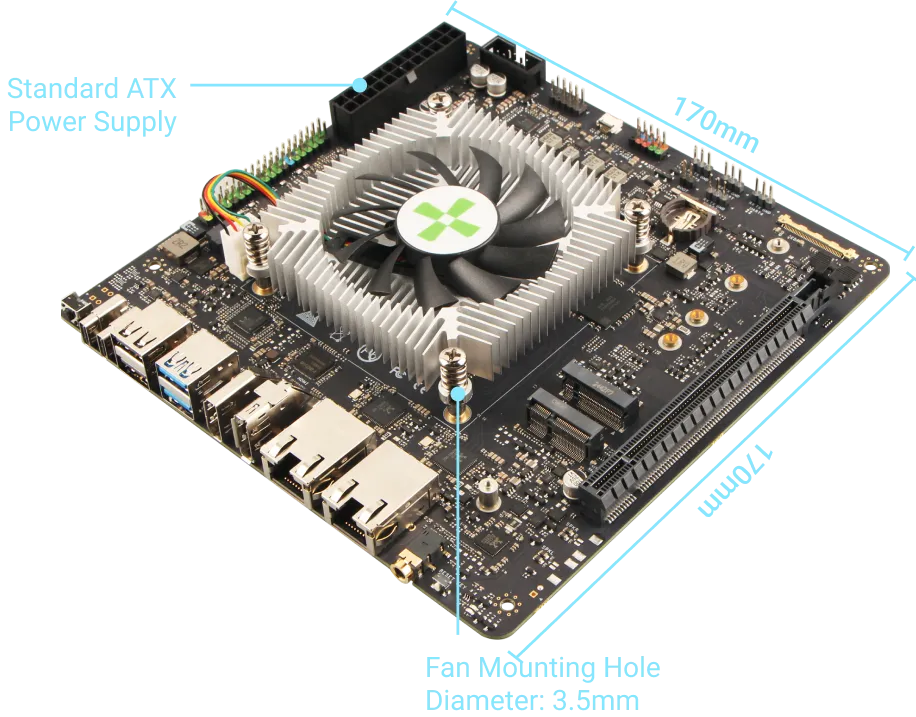

Standard Mini ITX Size,
Compatible with Standard
Cases
Ensuring Good Compatibility and Cooling Performance in Standard Cases
Native Linux / Debian
support with UEFI / BIOS
- PC Boot-up in Line with X86 Conventions
- Support UEFI(EDKII) and Various Commercial BIOS
- Debian 12 Native, Integrated with CD8180 Kernel Package and Extensions
Multiple Operating Systems
Support is Coming Soon
Supported OS:
Upcoming Support OS:
The Perfect Choice for Linux Office Use
Enhanced Security Through Linux System Collaboration
Enjoy Linux's Extensive Software Ecosystem with Full Compatibility
LibreOffice
Thunderbird
Chromium
Gitlab
Visual Studio Code
World's First Open Source
ARM V9 Motherboard
- Powered by the Cix CD8180 SoC
- ARMv9.2 Architecture
- Efficient Power Consumption Management
- Comprehensive Security Engine
- Higher Performance, Lower Power Consumption, Better Security
12-Core CPU The
Engine of Powerful
Computing
Efficient Multitasking and Smart
Resource Allocation
- Quad Big Cortex®-A720 Up to 2.8GHz
- Quad Medium Cortex®-A720 Up to 2.4GHz
- Quad Little Cortex®-A520 1.8GHz
- 12MB L3 shared across all cores
Arm® Immortals™ G720
MC10 GPU - High-
Performance Desktop GPU
Powered by Arm's 5th Generation Architecture
- Hardware-Based Ray Tracing Technology Enhances Graphic Authenticity by Creating Realistic Lighting Effects.
- Multi-API Standards Showcase Superior Graphics Processing
- Efficient Rendering and Parallel Computing for Professional Performance
High-Performance NPU
with Up to 30 TOPS
Fast and Accurate Neural Network Processing
- NPU supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration and computing power is up to 30TOPs
Heterogeneous Computing Power
- Multiple Computing Power Frameworks, Consolidating the Foundation of Edge AI
- Multiple Inference Engines, Driving the Efficient Operation of Edge AI
- Comprehensive Model Adaptation, Expanding the Application Boundaries of Edge AI
- Supporting models with parameters within ten billion, it has a processing capacity of 30 tokens per second (based on Qwen2 - 1.5B).
Heterogeneous Comprehensive
45 TOPS
Peak Computing Power
128bit LPDDR5
- Frequency 5500MT/s
- Up to 64GB
- 100GB/s Memory Bandwidth
Impressive Video
Processing Capabilities
Experience 8K Ultra-High Definition with Multiple Codec Support
- AV1 / H.265 / H.264 / VP9 / VP8 / H.263 / MPEG-4 / MPEG-2 video decoder up to 8K@60fps
- MH.265 / H.264 / VP9 / VP8 video encoder up to 8K@30fps
Versatile Multi-Display
Interfaces
Catering to Diverse Multi-Screen Needs for Enhanced Work and Entertainment Experience
- HDMI up to 4Kp60 display output
- DP up to 4Kp120 display output with MST (Multi-Stream Transport) support
- eDP with Touch Panel Interface
- USB Type-C with DisplayPort Alt Mode
Up to 4x Display, DP Display Up to 4K@120Hz
Dual 5Gbps Ethernet Ports
Supports The Latest Wi-Fi 7
Wireless Module
M.2 E Key Connector with PCIe Gen4x2 and USB
High-Speed Power for
Graphics, Storage and
Network.
PCIe x16 Physical Slot with PCIe Gen 4 8-lane
Extensive Interface Configuration
Compatible with Various External Devices for High Expandability
- 1Power Button
- 2USB Type-C Port 1
· DP up to 4Kp60
· USB 3.2 HOST
· PD Power Supply
USB Type-C Port 2
· USB 3.2 HOST
· PD Power Supply
- 32x USB 2.0 HOST Type-A Ports
- 42x USB 3.2 HOST Type-A Ports
- 5HDMI up to 4Kp60
- 6DP up to 4Kp120 with MST Support
- 75 Gigabit Ethernet Ports
- 8Headphone Jack with
Microphone Input - 9Reset Button
Standard Mini ITX Size,
Compatible with Standard
Cases
Ensuring Good Compatibility and Cooling Performance in Standard Cases
Native Linux / Debian
support with UEFI / BIOS
- PC Boot-up in Line with X86 Conventions
- Support UEFI(EDKII) and Various Commercial BIOS
- Debian 12 Native, Integrated with CD8180 Kernel Package and Extensions
Multiple Operating Systems
Support is Coming Soon
Supported OS:
Upcoming Support OS:
The Perfect Choice for Linux Office Use
Enhanced Security Through Linux System Collaboration
Enjoy Linux's Extensive Software Ecosystem with Full Compatibility
LibreOffice
Thunderbird
Chromium
Gitlab
Visual Studio Code
Comprehensive Technical Documentation and
Active Community
Comprehensive Technical Documentation and Active Community !
Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.
