Metal Case for ROCK 5A

Radxa Metal Case for ROCK 5A

Metal Case Specialized for ROCK 5A

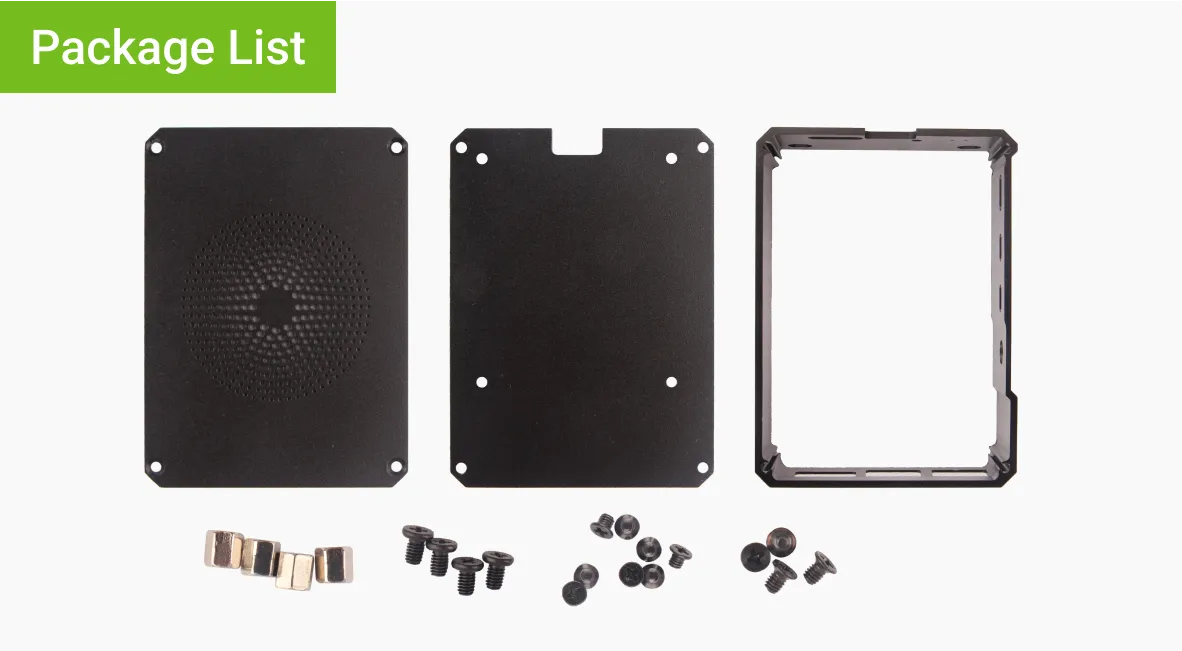

• Package List

  • ・ 1x Top Cover
  • ・ 1x Bottom Cover
  • ・ 1x Middle Frame
  • ・ 4x M2.5x5 Copper Pillars
  • ・ 8x KM2.5x3 Screws
  • ・ 4x KM2.5x4 CD Pattern Screws
  • ・ 4x CM2.5x4 Screws

  Please identify the outer surface of the top/bottom cover (the side facing outward), which features recessed or angled screw holes.

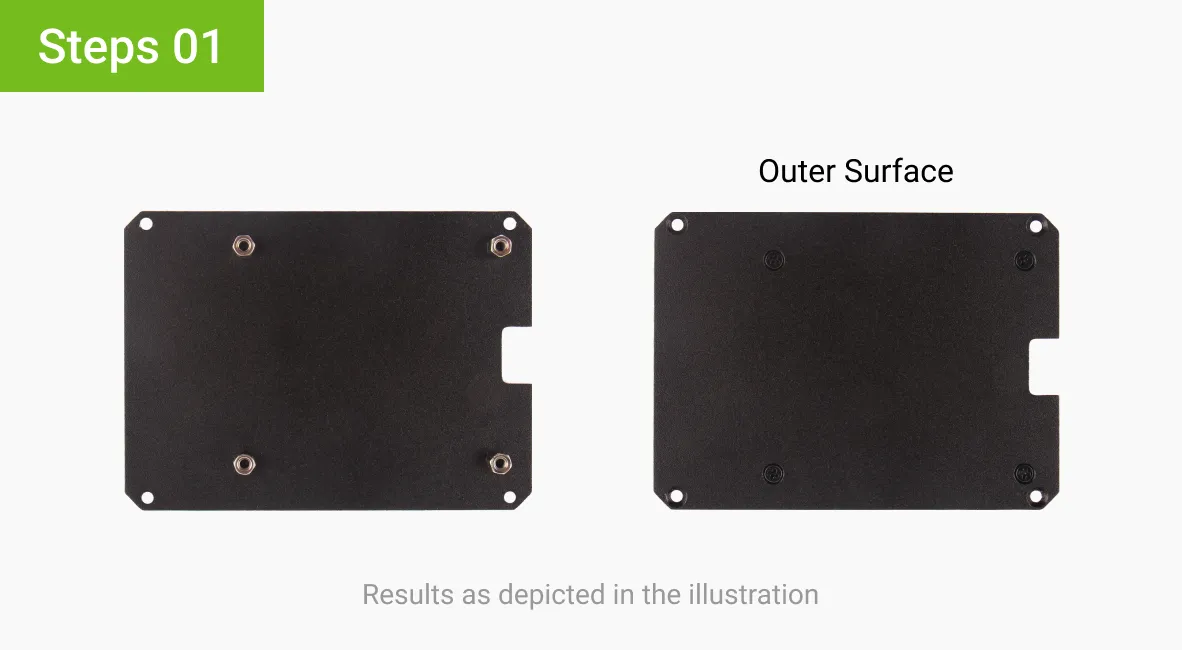

• First, as shown, use four KM2.5x3mm screws to attach the four M2.5x5 copper pillars to the bottom cover.

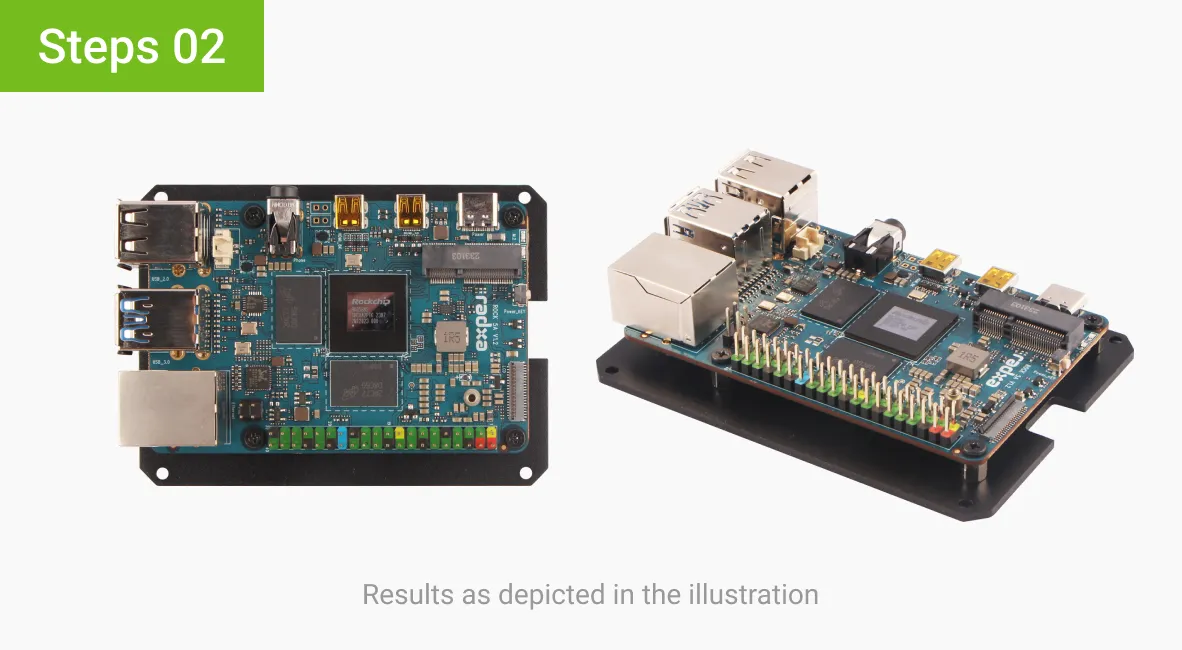

• Next, as shown, secure the ROCK 5A with four CM2.5x4mm screws.

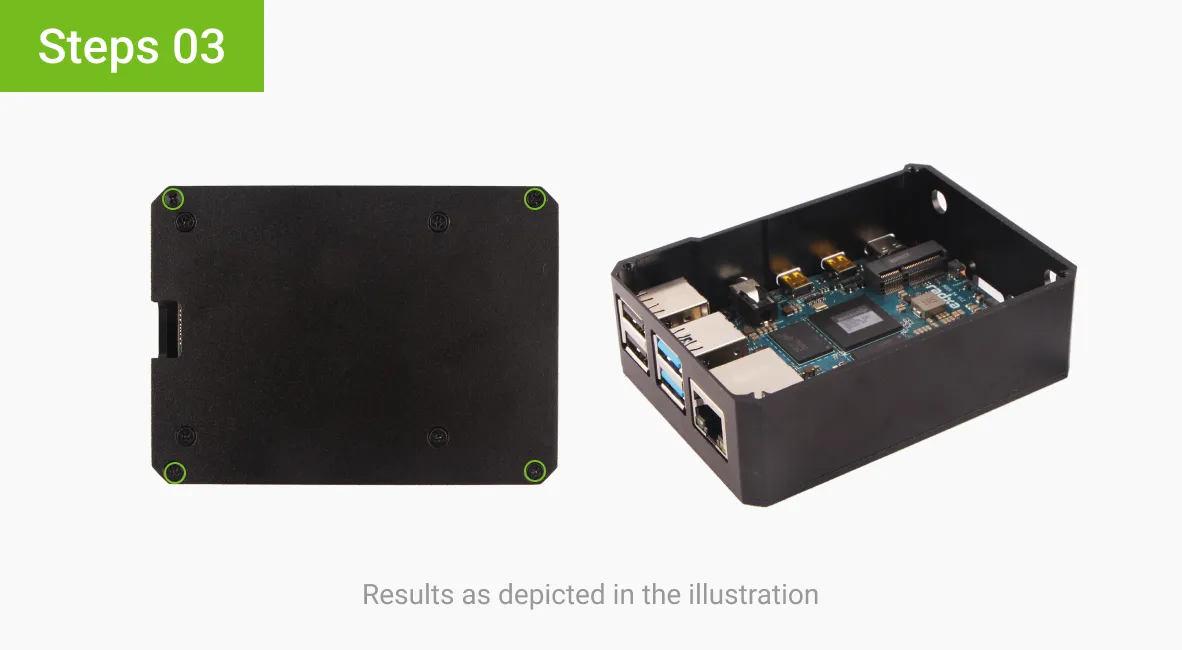

• Then, align and install the middle frame as shown. Use four KM2.5x3mm screws from the bottom cover side to attach the middle frame, connecting it to the bottom cover.

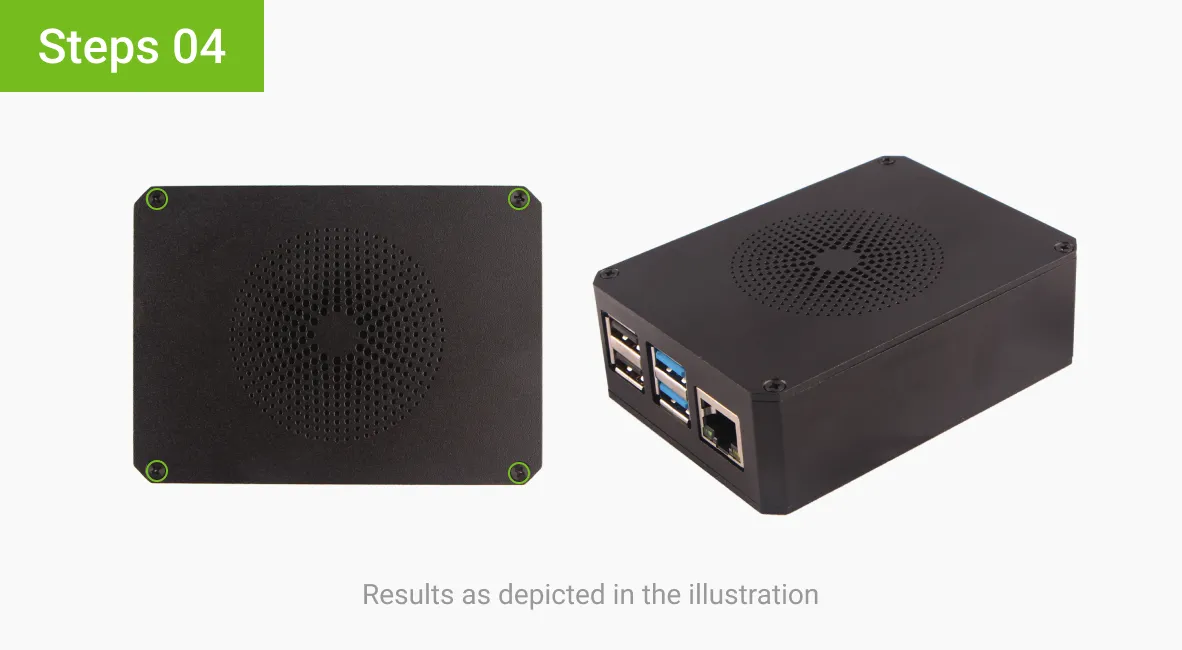

• Finally, secure the top cover to the middle frame with four KM2.5x4mm screws with a CD pattern, completing the assembly.
