RK3528A
AES Encryption
RJ45
USB 2.0
Debug & OTG
HDMI
M.2 M Key Connector
Aluminum Alloy Case

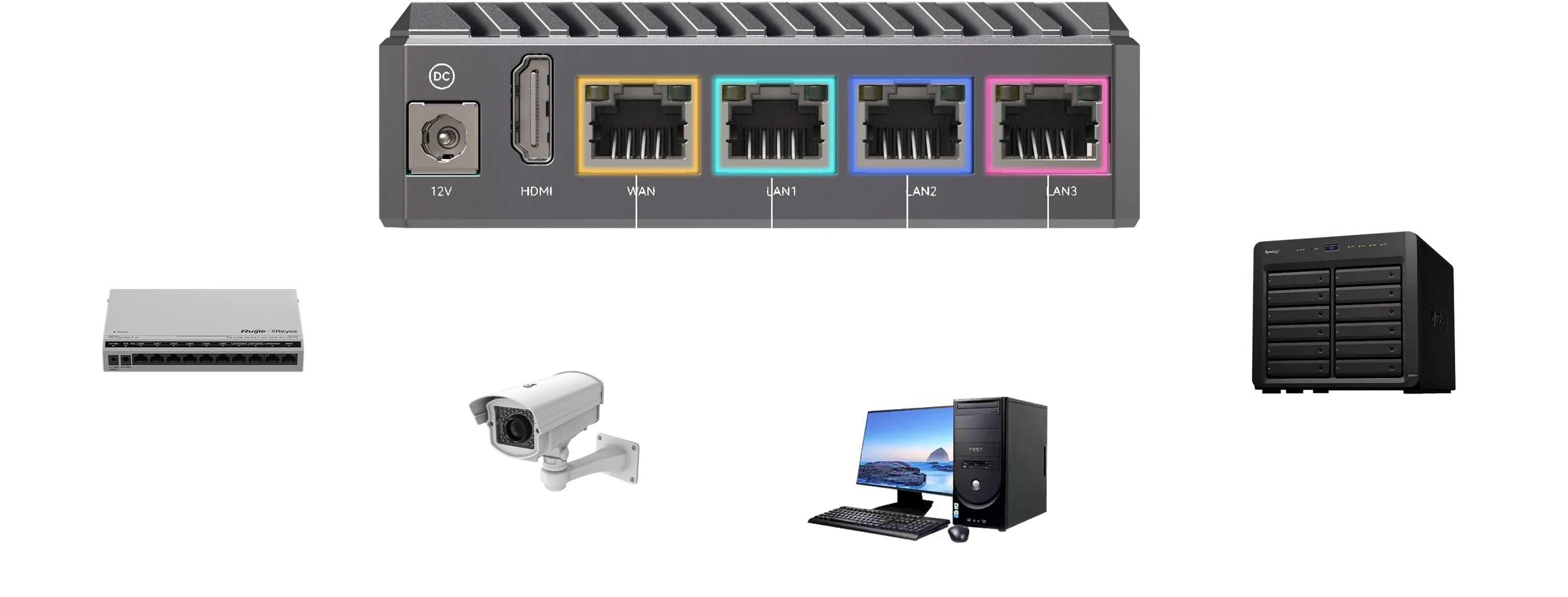

4× Gigabit Ethernet Ports for Flexible Networking
With four 10/100/1000 Mbps RJ45 ports, the E24C supports dynamic WAN/LAN configurations under
OpenWrt, making it ideal for soft routers, firewalls, and VPN gateways.
Supports link aggregation, load balancing, and redundancy to ensure
stable and efficient network performance.
Efficient and Low-Power ARM Computing Platform
Powered by a quad-core Cortex-A53 CPU and Mali-450 GPU, the E24C delivers sufficient processing power
for networking, encryption, lightweight AI inference, and edge computing tasks.
Supports 4K video decoding and 1080p encoding, enabling light multimedia applications.
Quad Core
A53
ARM
Mali-G450

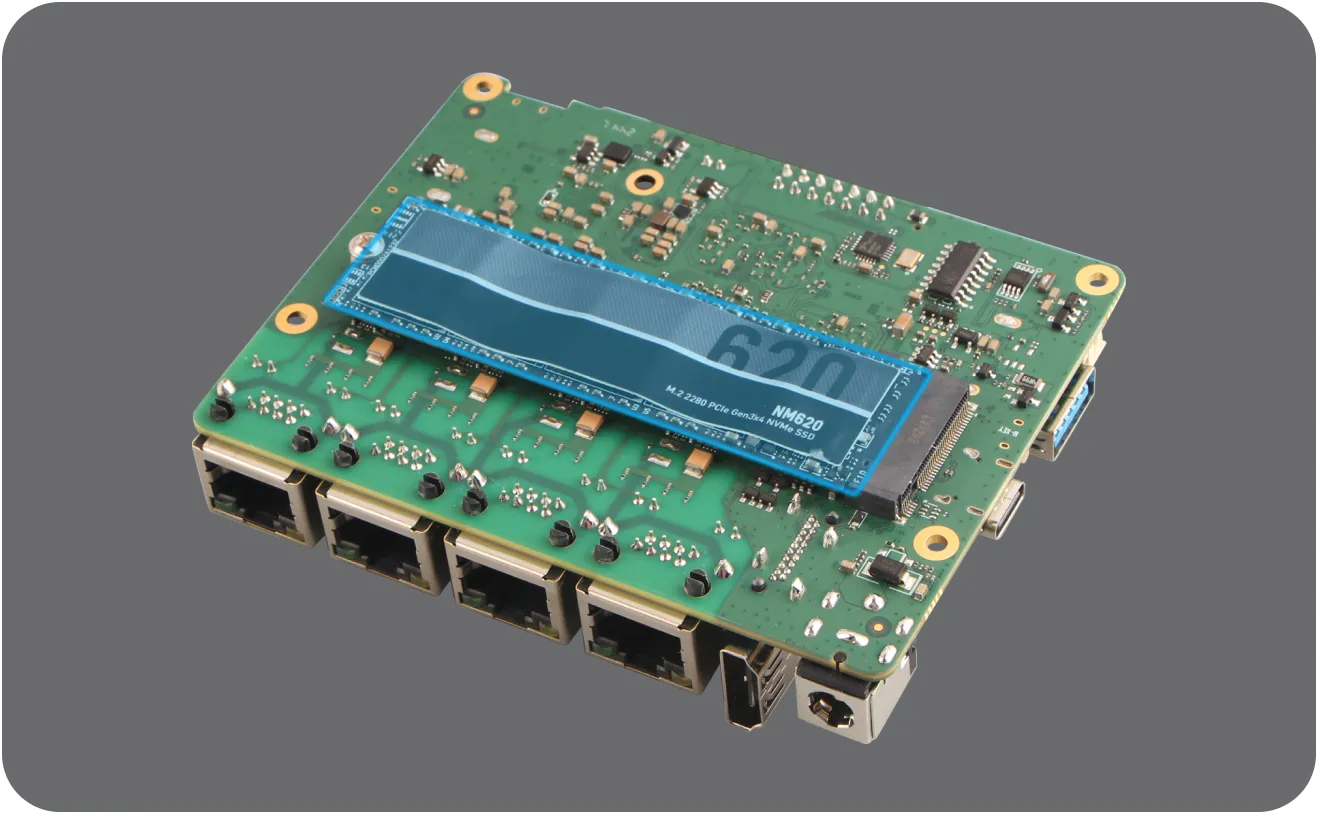

High-Speed NVMe SSD Storage Expansion
The onboard M.2 M-Key slot supports standard 2280 NVMe SSDs via a PCIe 2.1 x1 interface,
meeting high-speed read/write requirements.
Supports up to 4GB RAM
Storage Expansion up to 4TB NVMe SSD
Rich I/O for Flexible Integration
Features HDMI 2.1 output, USB 2.0 ports, microSD slot, debug Type-C port, and a 14-pin GPIO header for
versatile application needs.

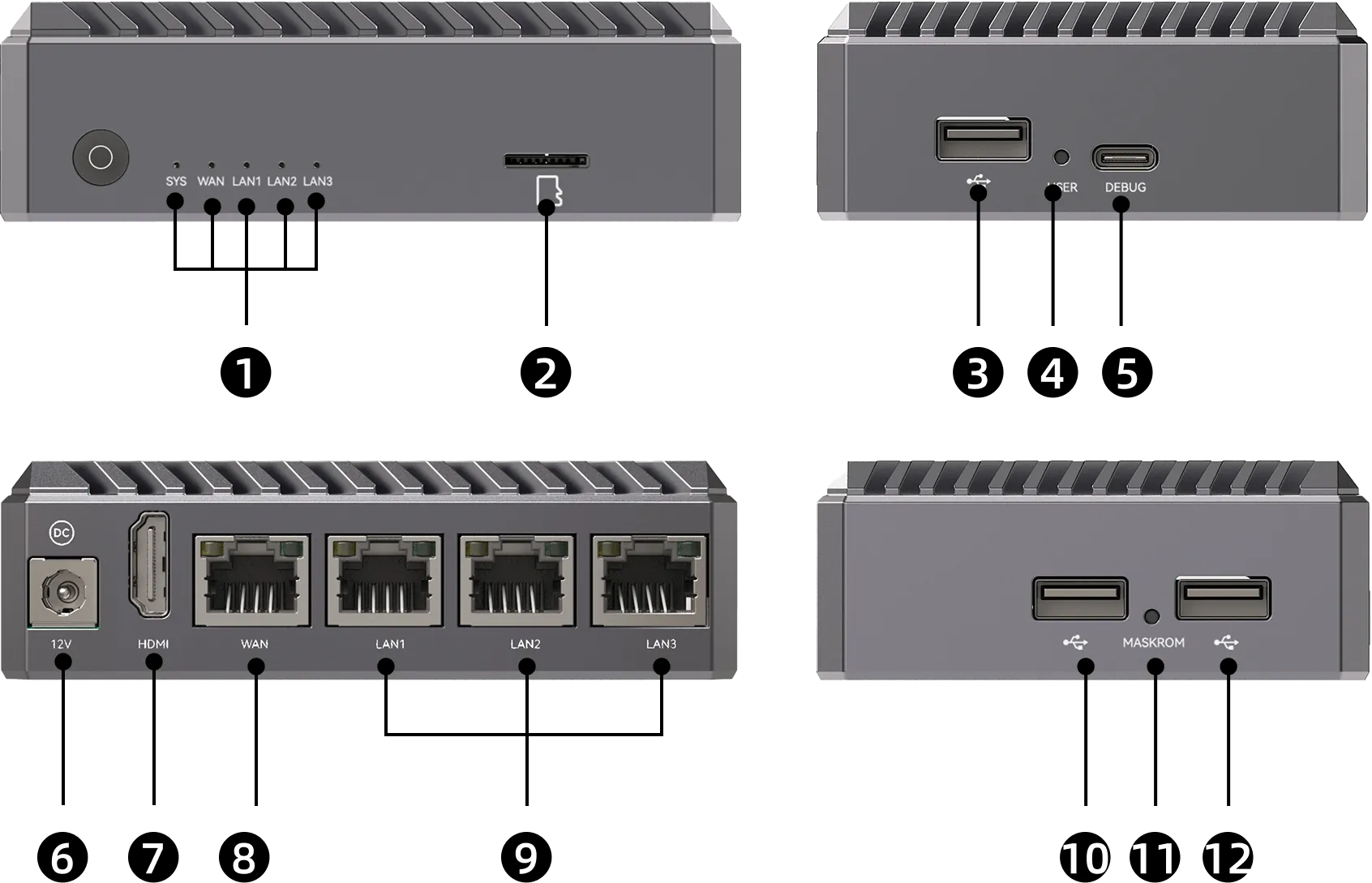

- 1
LED Indicator
- 2
microSD Slot
- 3
USB 2.0 Type-A Port
- 4
User Key
- 5
USB 2.0 Type-C device and debug combo port
- 6
12V DC (5.5x2.5mm) Port
- 7
HDMI Port
- 8
GbE WAN Port
- 9
3x GbE LAN Port
- 10
USB 2.0 Port
- 11
Maskrom Emergency Download Key
- 12
USB 2.0 Port
Supports fan power supply and RTC battery headers for extended industrial applications.

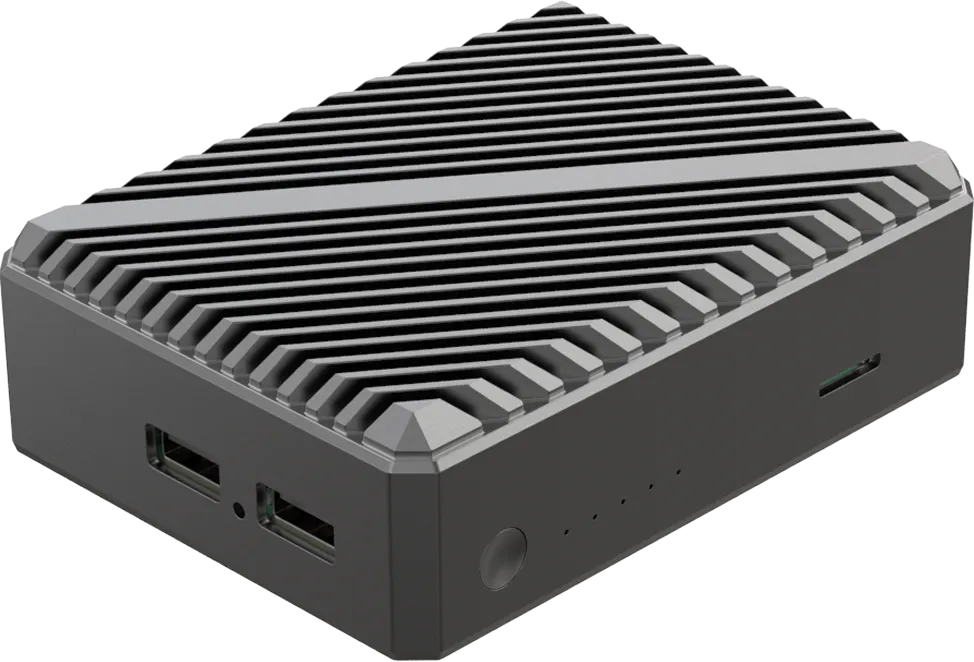

Industrial-grade Design
The high thermal conductivity aluminum enclosure enables fanless and silent cooling, ideal for
continuous 24/7 industrial deployments.
Excellent
Thermal Conductivity
Exquisite
Diamond-Cut Design
Unique
CD Pattern Screws
High
Durability

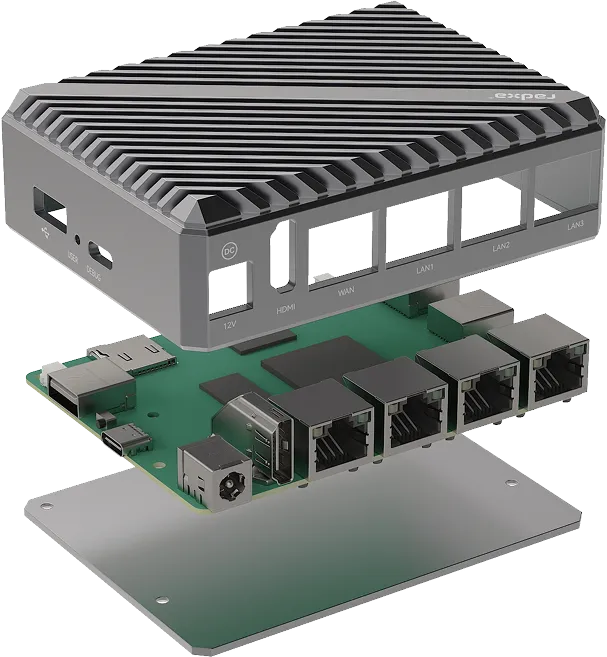

Top Cover
Radxa E24C
Bottom Cover
Compact design suitable for wall-mounting or rack integration for flexible deployment.
Native Support for Linux and OpenWrt
Official Debian Linux and OpenWrt images are provided, ensuring compatibility with mainstream networking
protocols and easy deployment.

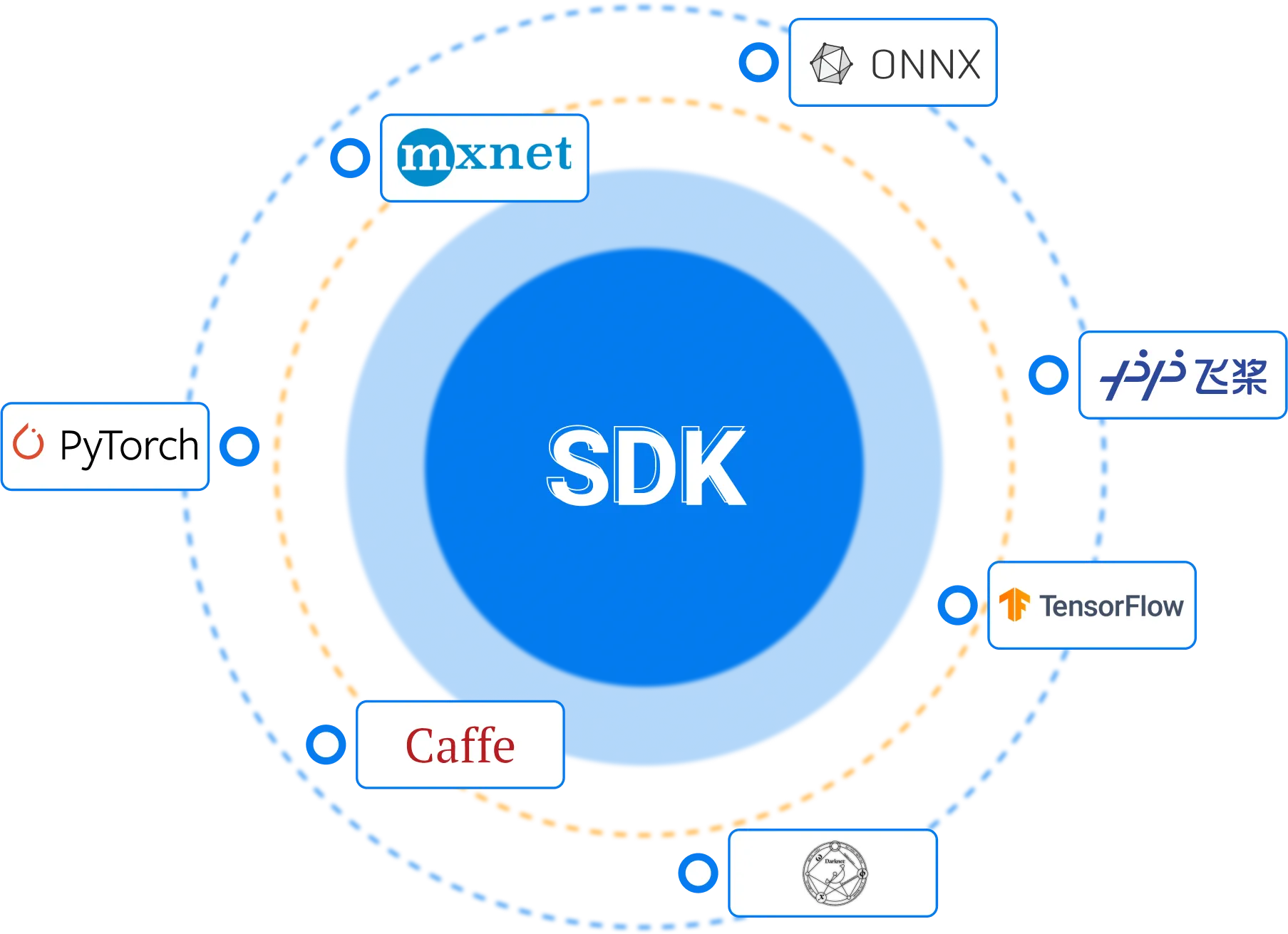

Comes with hardware access libraries and open SDKs, developer-friendly.

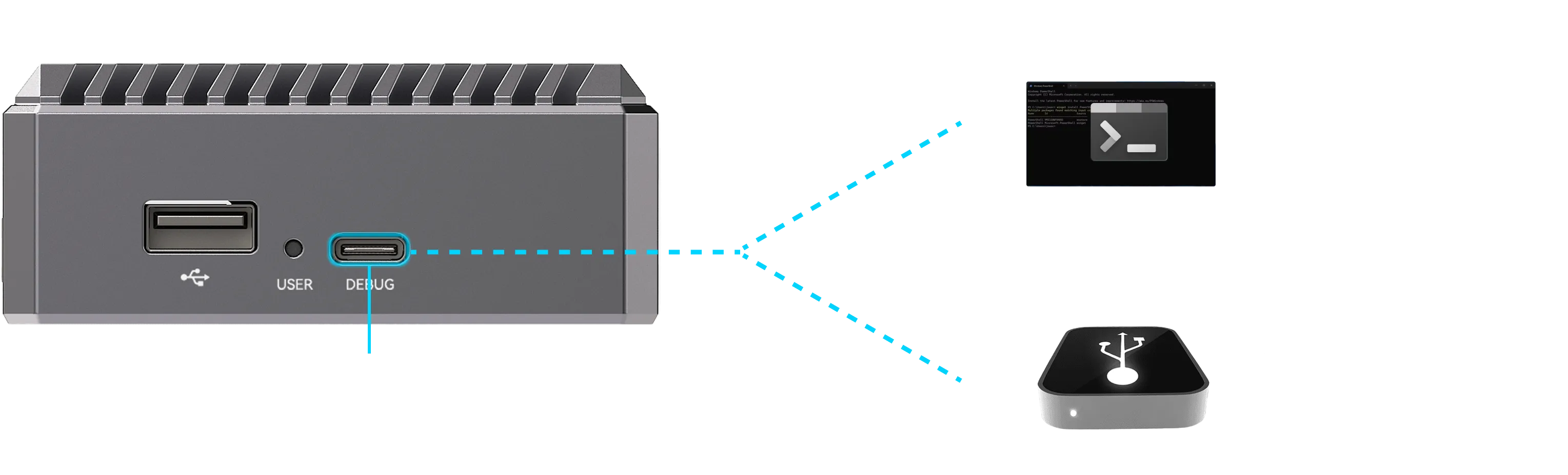

Debugging Without Disassembly via
Dual-Purpose Type-C Port
Equipped with a dual-purpose Type-C port combining USB 2.0 OTG and UART debugging, allowing direct
data access and serial console without disassembling the device, greatly improving development and
on-site maintenance efficiency.
Guaranteed Supply Until 2030
Ideal for enterprise, government, and industrial-grade applications.
Operates from
0°C to 50°C
guaranteed availability
until at least 2030
Radxa guarantees supply of the E24C until at least September 2030, ensuring stability for long-term
deployments and volume projects.
Comprehensive Technical Documentation and
Active Community
Comprehensive Technical Documentation and Active Community !
Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.
