Cubie A7Z

Tiny Size, Mighty AI

Buy Now
Cubie A7Z

Radxa Cubie A7Z

Buy

  • Micro HDMI

  • USB 3.1

  • GPIO

  • PCIe

  • BT 5.4

  • WiFi 6

  • 0°C - 50°C

  • Tiny 65 × 30 mm size

Exceptional Performance, Flagship Experience

High-performance hybrid
octa-core SoC

CPU: 2× Cortex-A76 + 6× Cortex-A55, The
maximum main frequency is 2.0 GHz.

GPU: Imagination BXM-4-64
MC1, Efficient Graphics and Rendering

High-performance hybrid octa-core SoC

NPU: 3 TOPS@INT8, Integrated
Vivante VIP9000 NPU, native INT8 /
INT16 / FP16 / BF16, multi-precision
mixed computing

NPU

MCU: RISC-V E902 (200MHz) Coprocessor, Real-time tasks and low power management

MCU

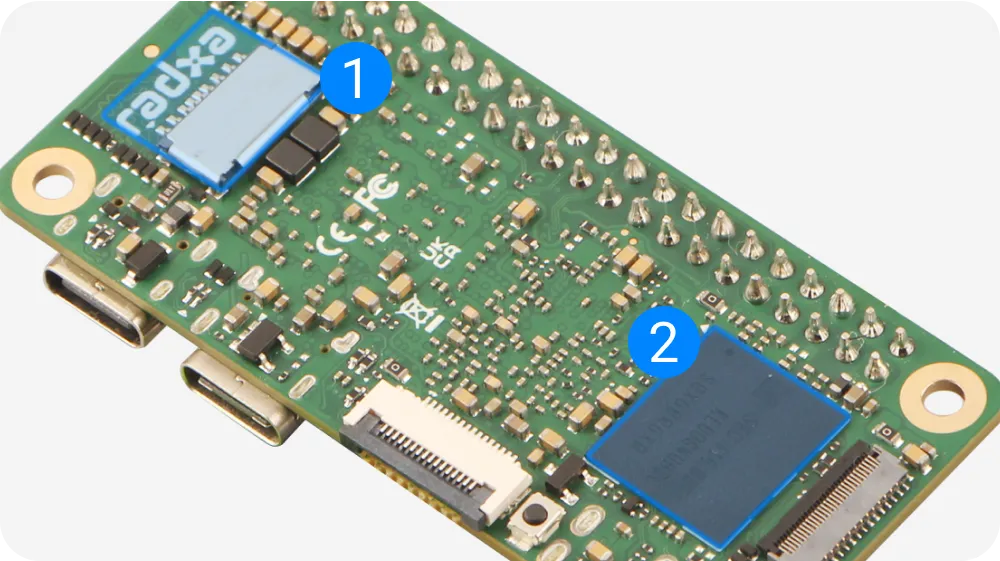

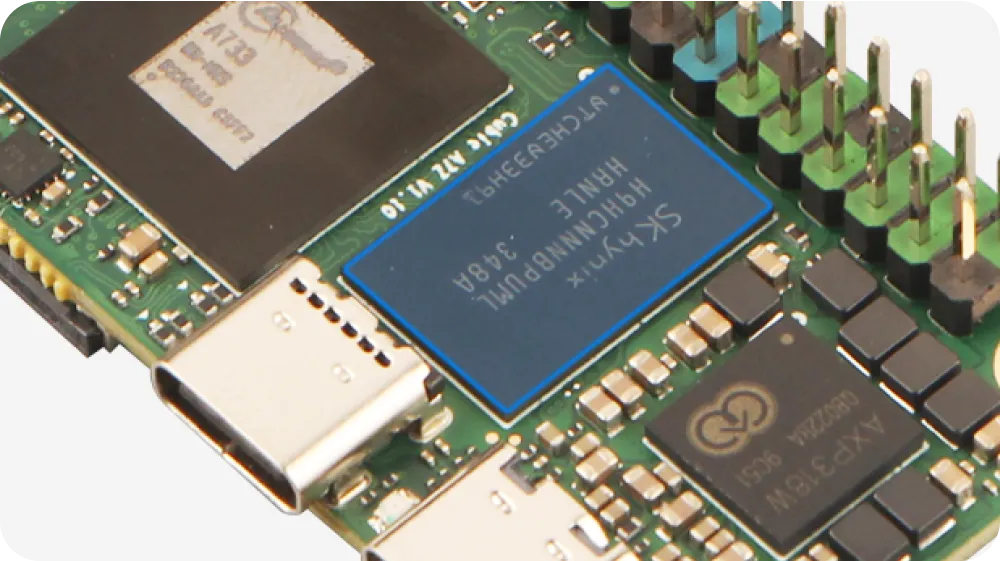

High-Speed Storage

High bandwidth, low latency, meeting the demands of large-scale data and model loading

  1. Up to 16GB

    Memory:
    Onboard LPDDR4/4x, up to 16GB

  2. Up to 512GB optaional

    Storage:

    1MicroSD slot for flexible storage expansion

    2Onboard UFS 3.0, up to 512GB optional

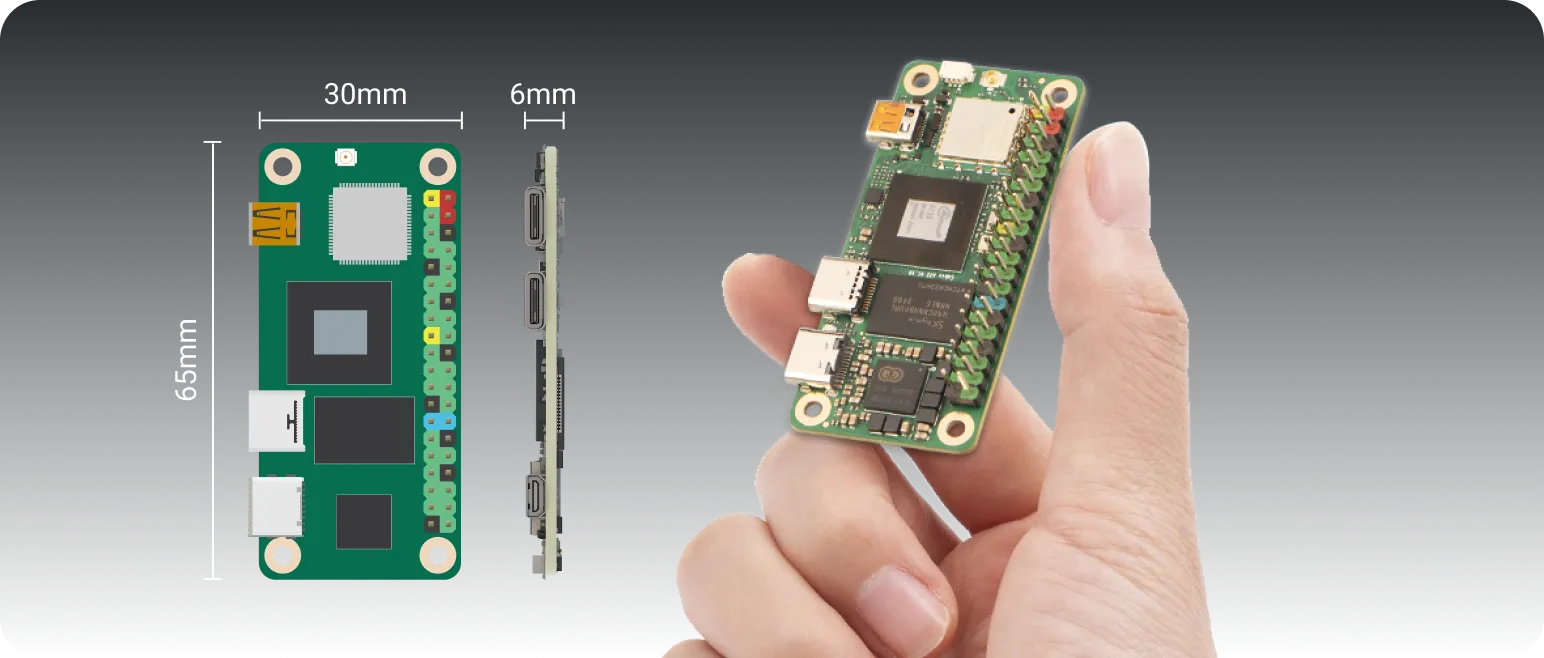

Ultra-Compact Design

Tiny 65 × 30 mm size, Perfect for Seamless Integration into Diverse Applications.

Ultra-Compact Design

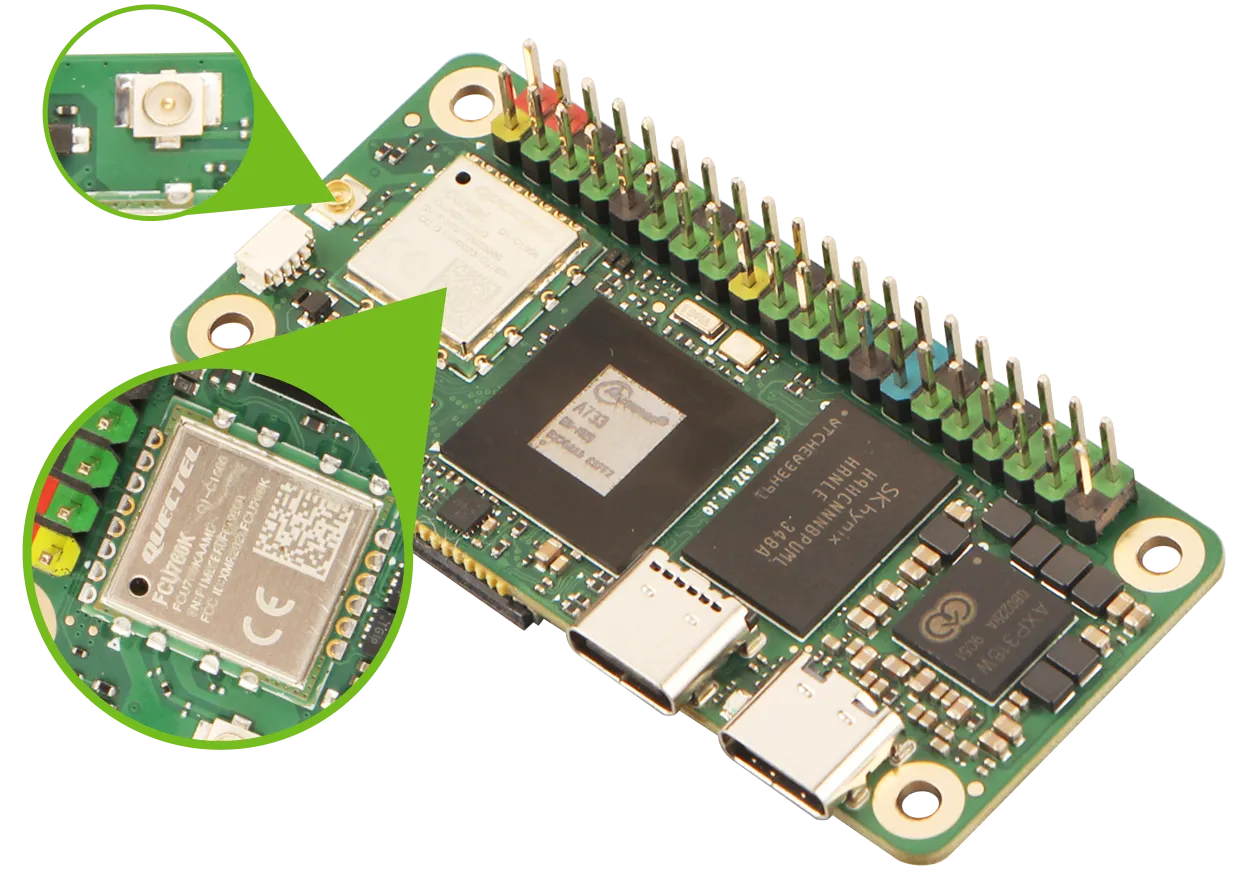

Wi-Fi 6 & Bluetooth 5.4 Connectivity

High-speed Wireless Communication with External Antenna Support Ensures Reliable Edge Connectivity.

Wi-Fi 6 & Bluetooth 5.4 Connectivity
Wi-Fi 6BT 5.4
  • iconExternal Antenna (Included)
  • iconIEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
  • iconBluetoothe 5.4 with BLE

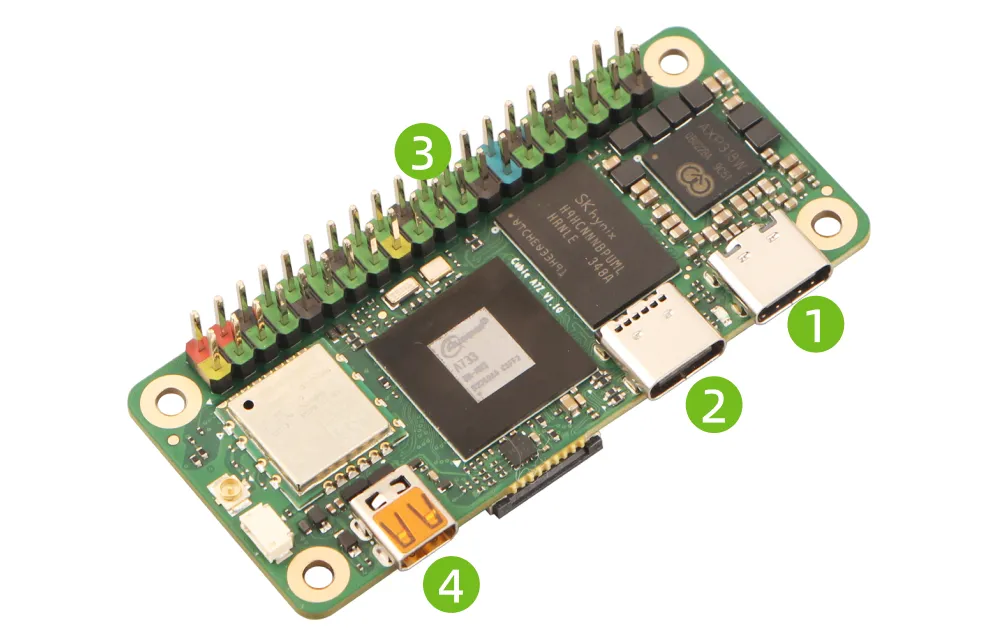

Premium Interfaces & Ultimate Expandability

PCIe 3.0 Expansion for NVMe SSDs and 2.5G Ethernet, Plus high-speed USB 3.0, Micro HDMI, and GPIO for
Ultimate Flexibility.

  1. 1

    USB-C 2.0:
    Support power supply + data transmission

  2. 2

    USB-C 3.0:
    High-speed data, compatible with DisplayPort Alt mode for external monitors

  3. 3

    Standard 40-Pin GPIO：
    Supports UART, I2C, SPI, PWM and other functions

  4. 4

    Micro HDMI:
    Supports up to 4Kp60 output

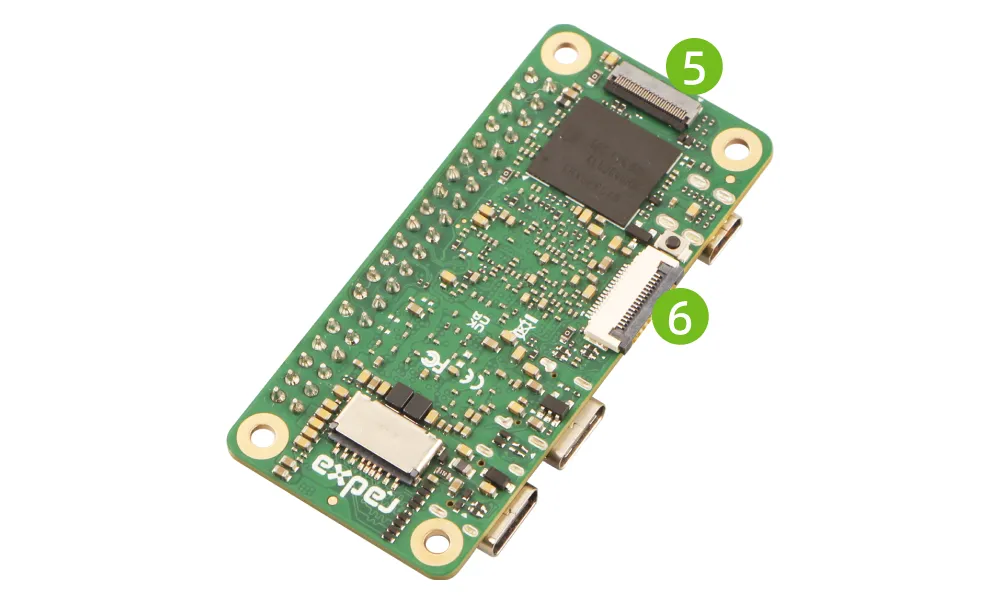

  1. 5

    MIPI CSI（4-lane）:
    - Support external HD camera
    - Can be split into 2 MIPI CSI (2-lane) cameras for multi-camera input

  2. 6

    PCIe Gen3.0 x1 FPC:
    High-speed expansion interface, capable of connecting to external NVMe SSDs, AI accelerator cards, etc.

RISC-V E902 Always-On Co-Processor

Low Power · Instant Response · Secure by Design

  1. Open Architecture

    GCC/LLVM, VS Code toolchain support

  2. Ultra low Power Consumption

    Runs tasks independently while main core sleeps

  3. Security

    Secure Boot & Root-of-Trust verification

  1. Real-time

    For motor control and sensor data collection

  2. Cost Optimization

    Lower BOM by $1-2

  3. Direct Peripheral Connection

    Supports Multiple Interfaces

Complete AI Development Ecosystem

From model import to cross-platform deployment — in minutes

Compatible with all major AI frameworks

Compatible with all major AI frameworks

Cross-platform deployment

Linux/Android universal NBG binary

10 minutes

Run Yolov8, Mobile-SAM, Whisper instantly

  1. Zero-Copy API

    Zero-Copy API

  2. Custom Operator

    Custom Operator

  3. Multi-thread

    Multi-thread

Advanced Multimedia and 4K Display

Integrated Imagination BXM-4-64 GPU Supports OpenGL ES 3.2, Vulkan 1.3, OpenCL 3.0,
and 4K@60Hz Video Output.

Display View

Support:

SupportsVideo Icon
  1. Decoding: H.265 / VP9 / AVS2, up to 8K@24fps
  2. Encoding: H.264 / H.265, up to 4K@30fps
  3. Supports dual-screen display
    (Micro HDMI 4K + USB-C 3.0 DP Alt mode)

Open-Source Ecosystem

Building a Stable & Efficient Software Ecosystem for Faster Development & Problem-Solving

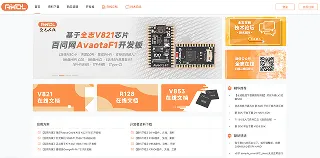

  1. Allwinner Online Developer Community

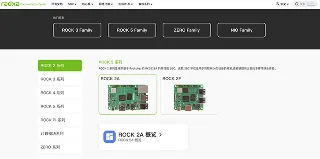

  2. Radxa Docs

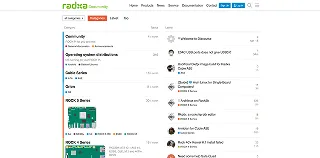

  3. Radxa Community

Deep Collaboration to Ensure Ecosystem Stability
Radxa and Allwinner are working together to create a highly compatible, high-performance software
and hardware ecosystem. Through close collaboration, we continuously optimize system stability
and driver support, ensuring developers enjoy a hassle-free development experience.

Multiple OS Support for Flexible Development

Open software environment supporting Debian Linux and Android, ideal for both rapid prototyping and deployment.

Multiple OS Support for Flexible Development

Comprehensive Technical Documentation and
Active Community

  • Comprehensive Technical Documentation and Active Community!

    Comprehensive Technical Documentation and Active Community !

    Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.

    Community

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Cubie A7Z Works with
