Rockchip RK3588S
HDMI 8K
NPU 6TOPs
Onboard eMMC

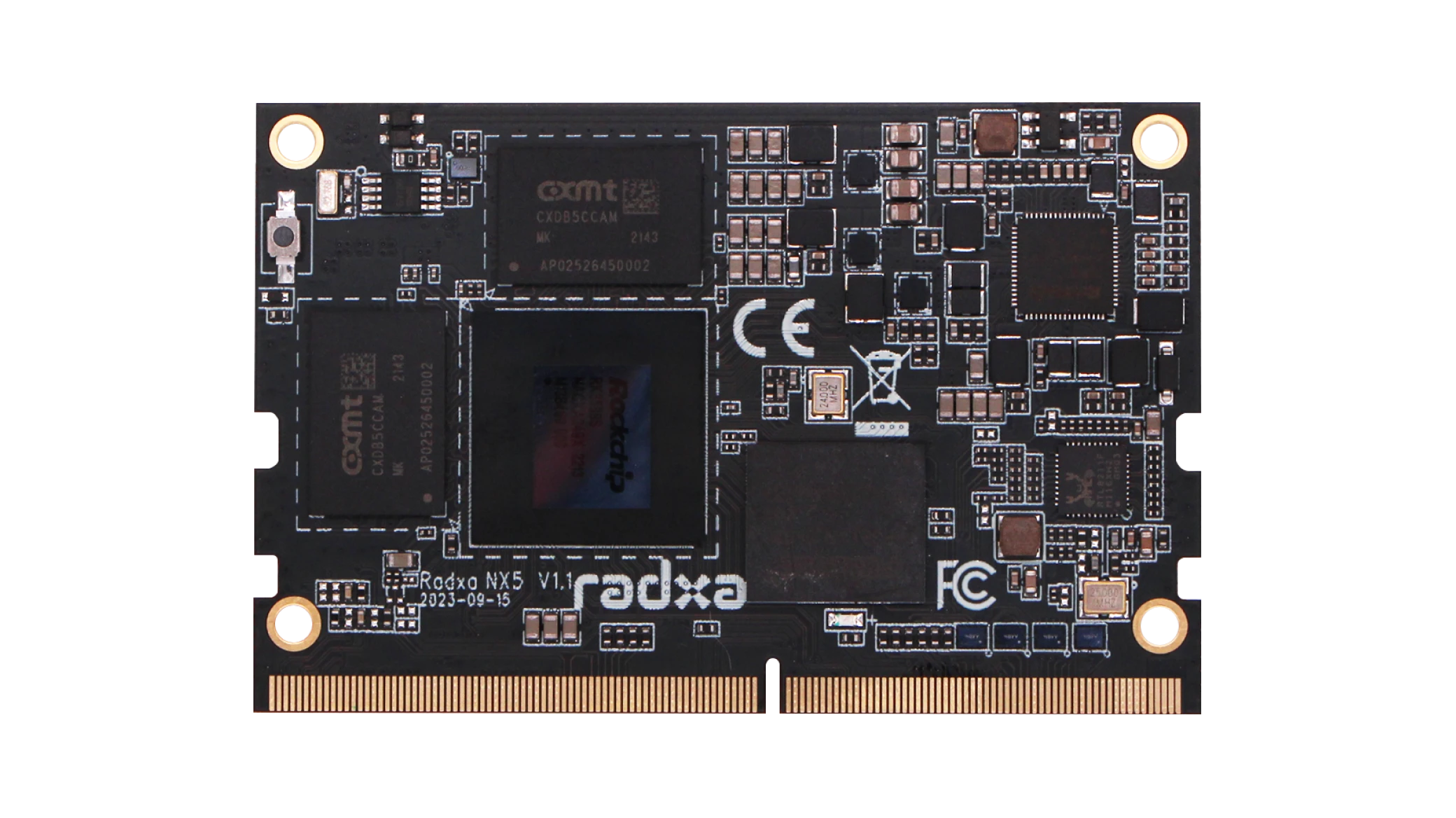

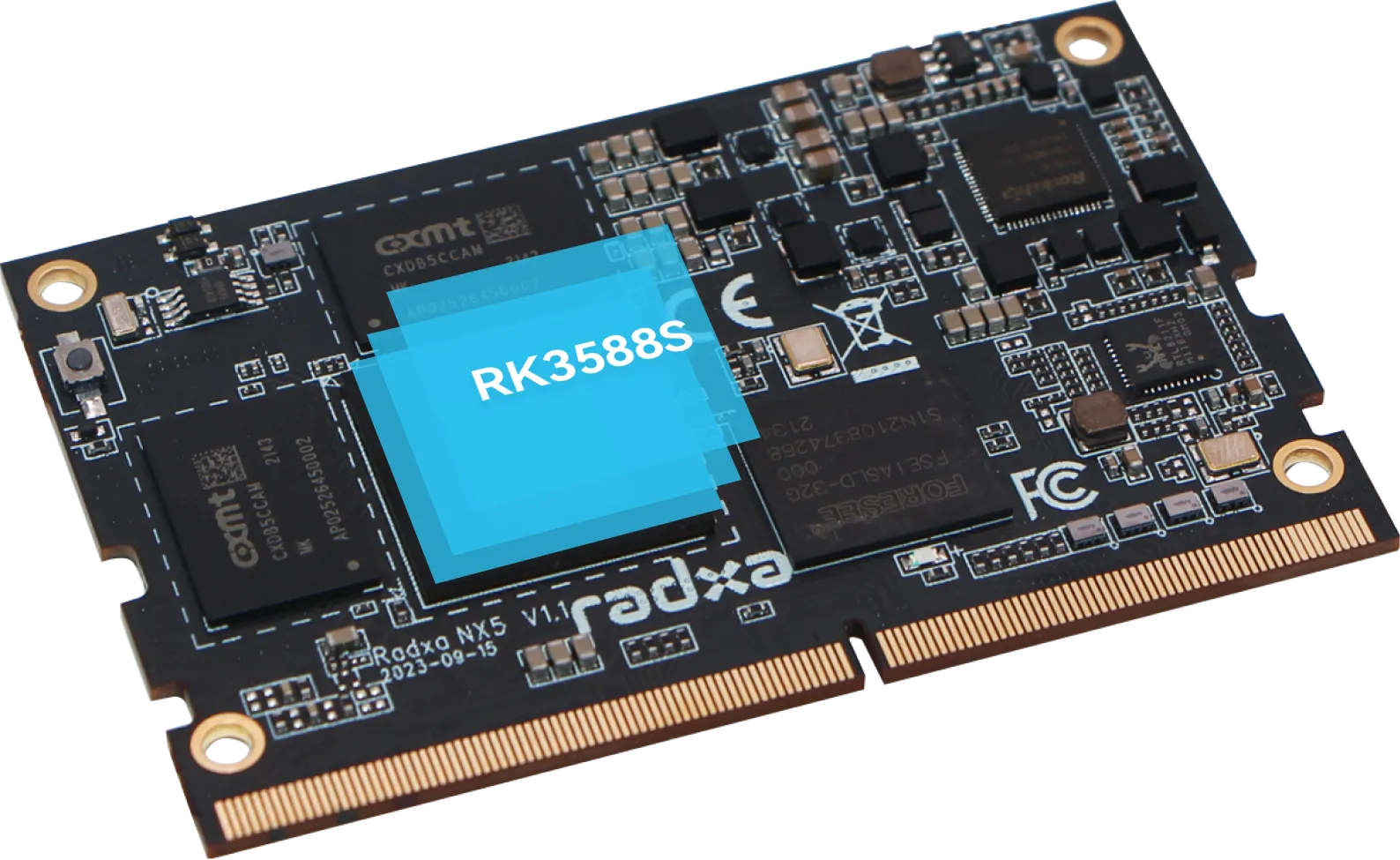

Rockchip RK3588S
Experience Outstanding Performance, Explore Endless Possibilities
Quad Core
A76
Quad Core
A55
Caches 2MB L2 in A76, 512KB L2 in A55, and a Shared 3MB L3 Cache
CPU Improvement
+3.8X
Arm
Mali-G610MP4
Deliver smooth performance in complex graphics processing and gaming.
GPU Improvement
+6X
Empower Various Scenarios with
Strong AI Processing Power of 6TOPs
Make AI Easy with Support for Popular Deep Learning Frameworks
TensorFlow, Caffe, Tflite, PyTorch, ONNX NN, Android NN, and More!

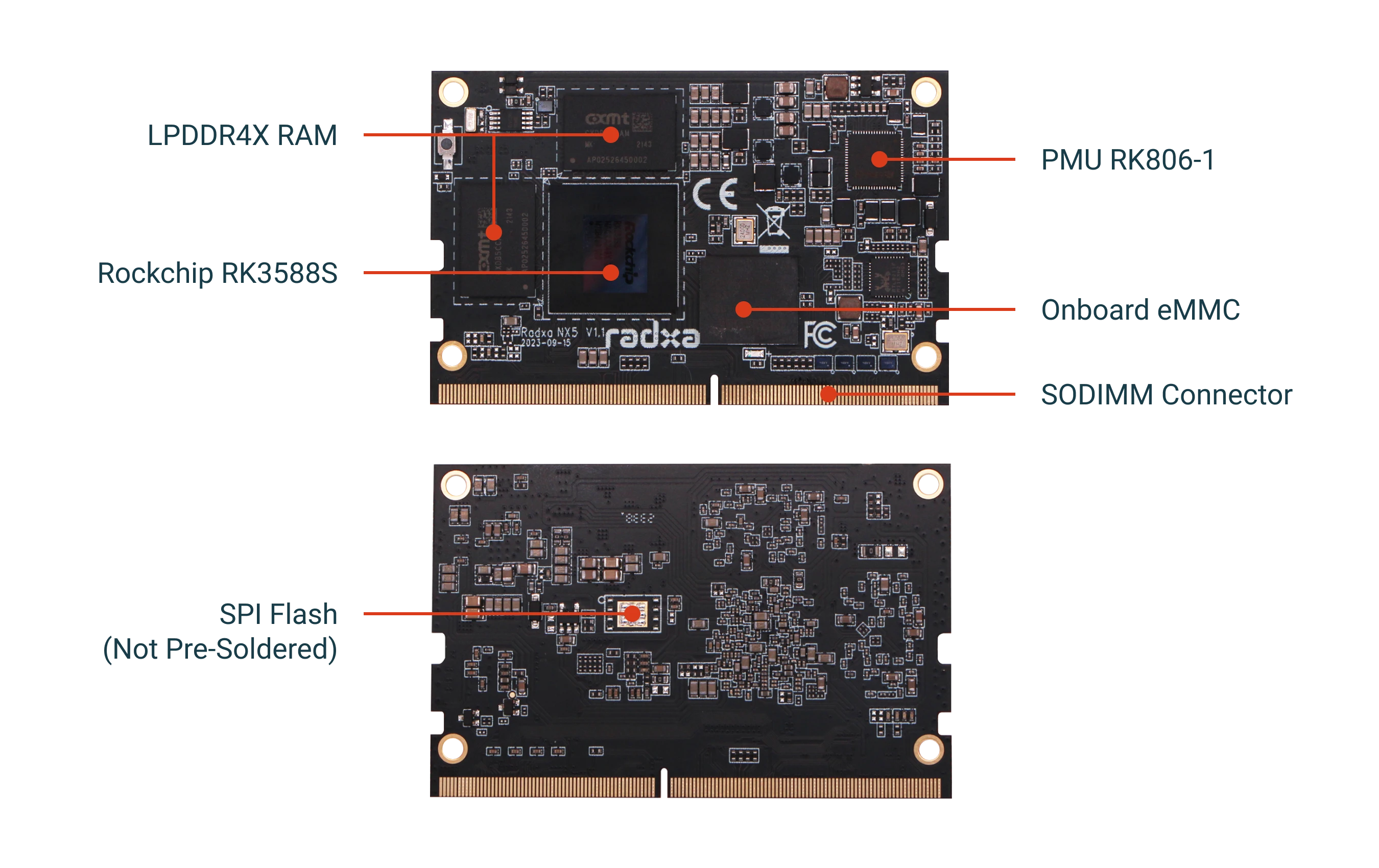

Ample Memory for Effortless Multitasking
LPDDR4X RAM: 2GB / 4GB / 8GB / 16GB
Onboard eMMC: 8GB / 16GB / 32GB / 64GB
Ample Memory for Effortless Multitasking
H.265 / AVS2 / VP9 multivideo decoder up to 8K@60fps
H.264 multivideo decoder up to 8K@30fps
H.264 / H.265 multivideo encoder up to 8K@30fps
Support for Multiple Displays and
8K Ultra HD Screens
Simultaneous 8K, 4K, and 2K Support!
260 Pins SODIMM Interface Offer
a Wealth of Functionality
Connectivity Interface
- 2 × USB 2.0 Host Port
- 1 x USB 3.0 Host Port
- 1 x USB 3.0 OTG Port
- 2 × PCIe 1‑lane
- one shared with USB3 and SATA
- one shared with SATA
- 2 x SATA ports
- one shared with USB3 and PCIe2.0
- one shared with PCIe2.0
- Supports SDMMC interface
- Up to 10x UART
- Up to 5x SPI
- Up to 3x CAN
- Up to 7x I2C
- Up to 15x PWM
Display Interface
- 1x HDMI up to 8K@60hz
- 1x eDP up to 4K@60hz
- 1x DP up to 8K@30Hz
- 1x 2-lane MIPI DSI
Audio Interface
- SPDIF TX
- I2S
- PDM, support mic array
Camera Interface
- 2x 2-lane or 1 x 4-lane MIPI CSI for Camera
- 1x 2-lane MIPI D/C-PHY RX
- 1x 4-lane MIPI D/C-PHY RX

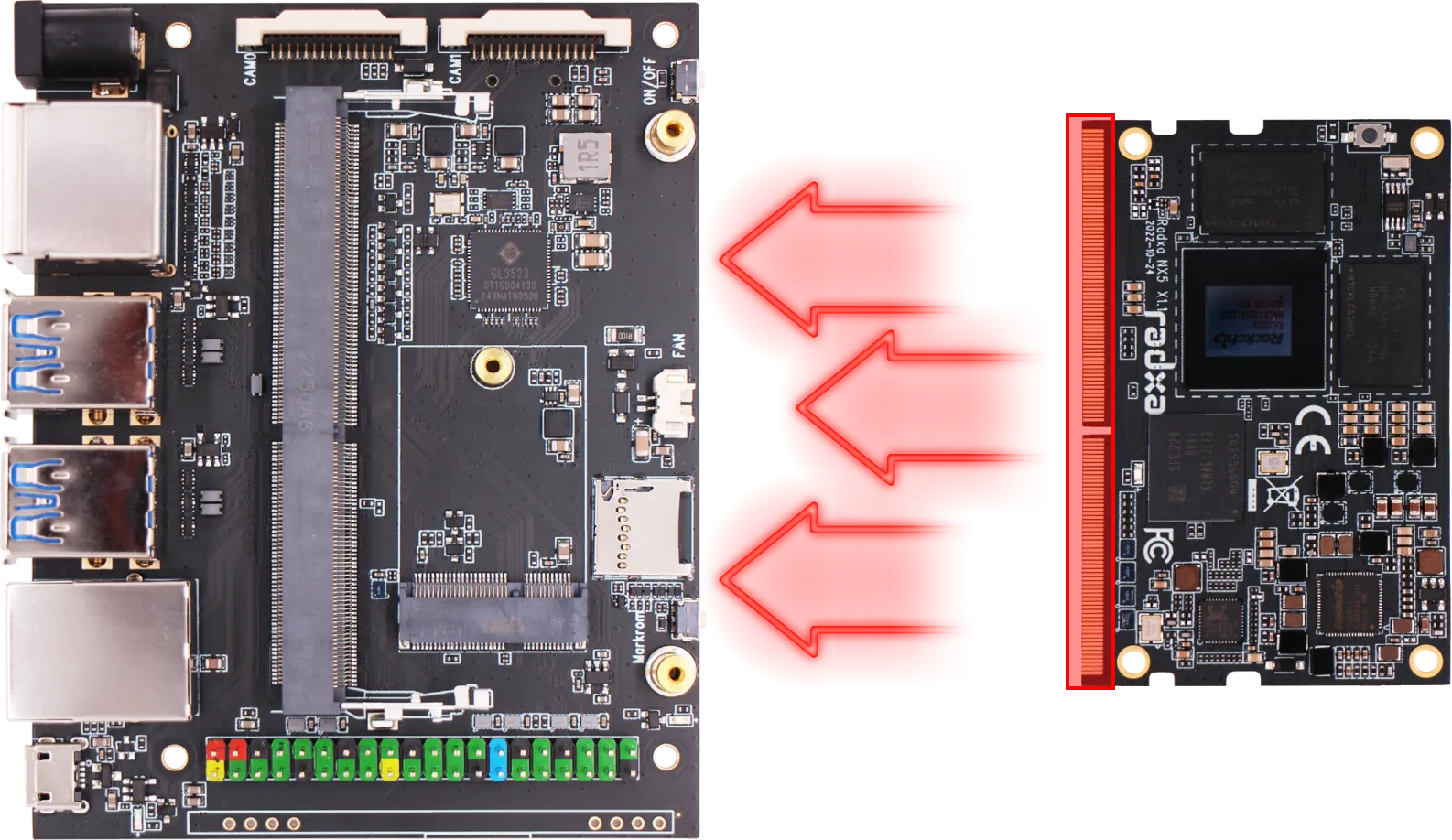

Standard and Conveniently Pluggable
SODIMM Connector
Easy-to-Remove and Install 260-Pin SODIMM Connector

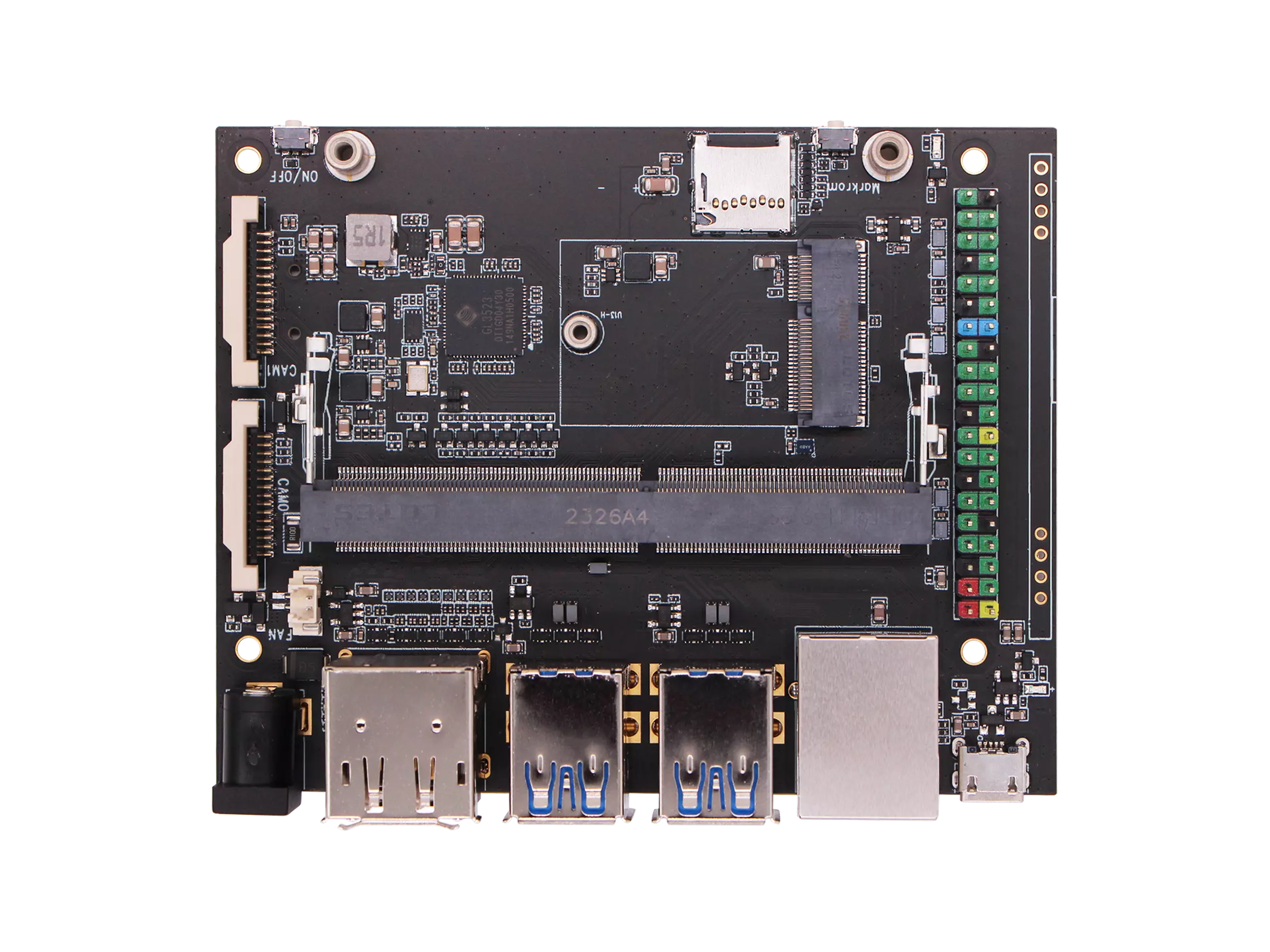

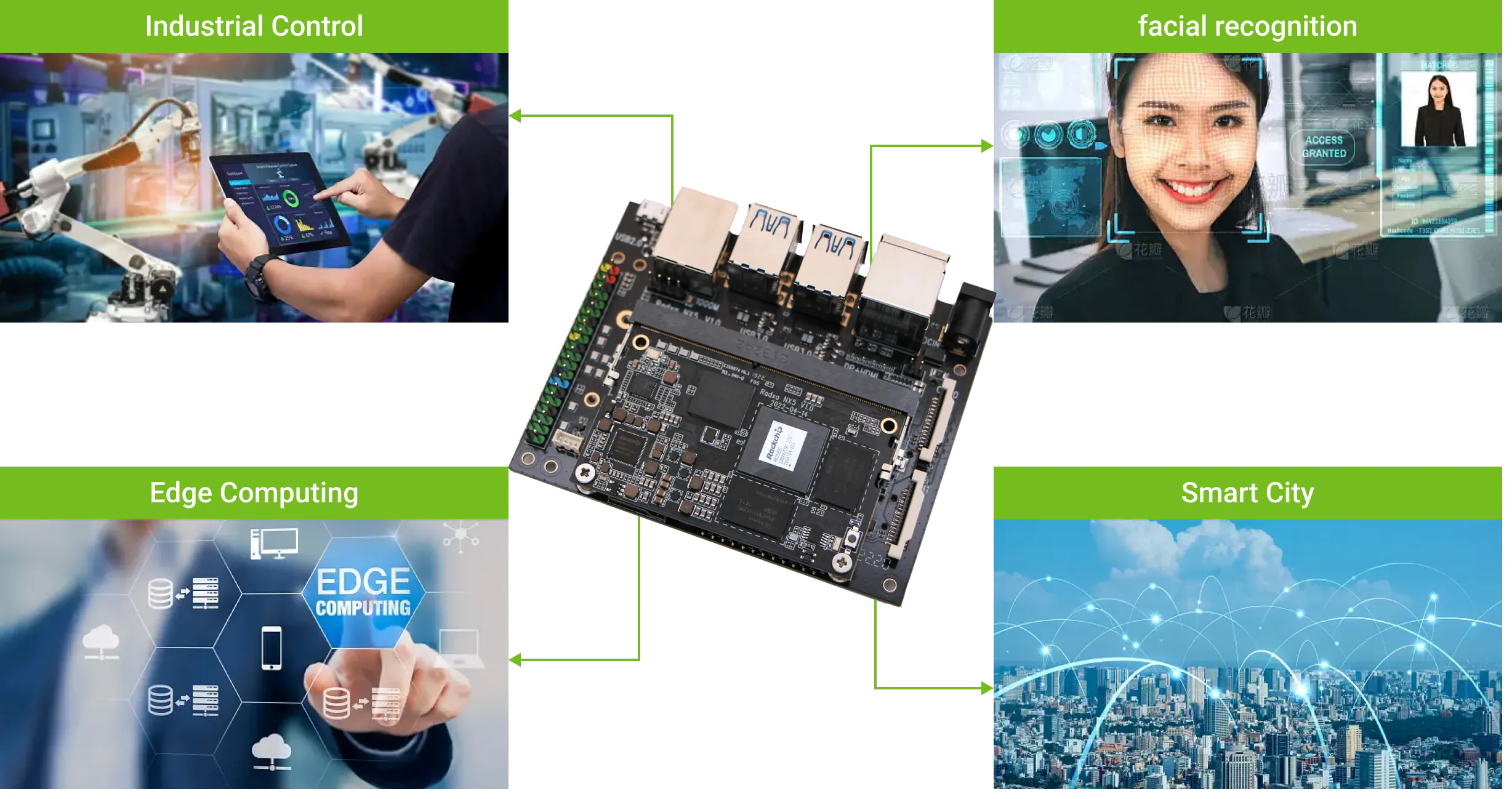

Quick Functional Verification with Radxa NX5 IO Board
Accelerate your testing process with the convenience of Radxa NX5 IO board, ensuring swift and efficient functional verification.
*Note: Radxa NX5 does not support Jetson Nano Carrier Board.
Comprehensive Technical Documentation and
Active Community
Comprehensive Technical Documentation and Active Community !
Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.
