Heatsink 2012B

Compact Adhesive-Mount Active Heatsink

Buy Now
Heatsink 2012B

Radxa Heatsink 2012B

Buy

Heatsink 2012B

Compact Adhesive-Mount Active Heatsink

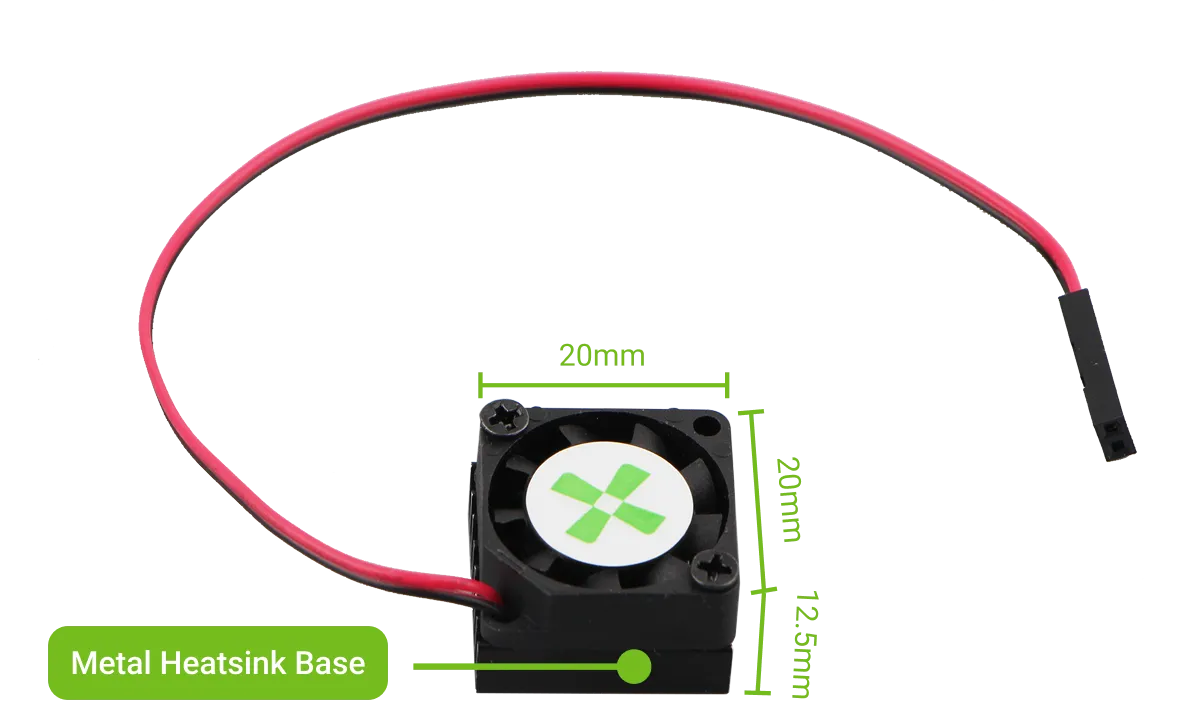

Compact Design

・ 20 x 20 x 12.5 mm

Heatsink 2012B

High-Efficiency Cooling

Rapidly dissipates core heat

High-Efficiency Cooling

Tool-Free Installation

Adhesive design, 3-step quick setup

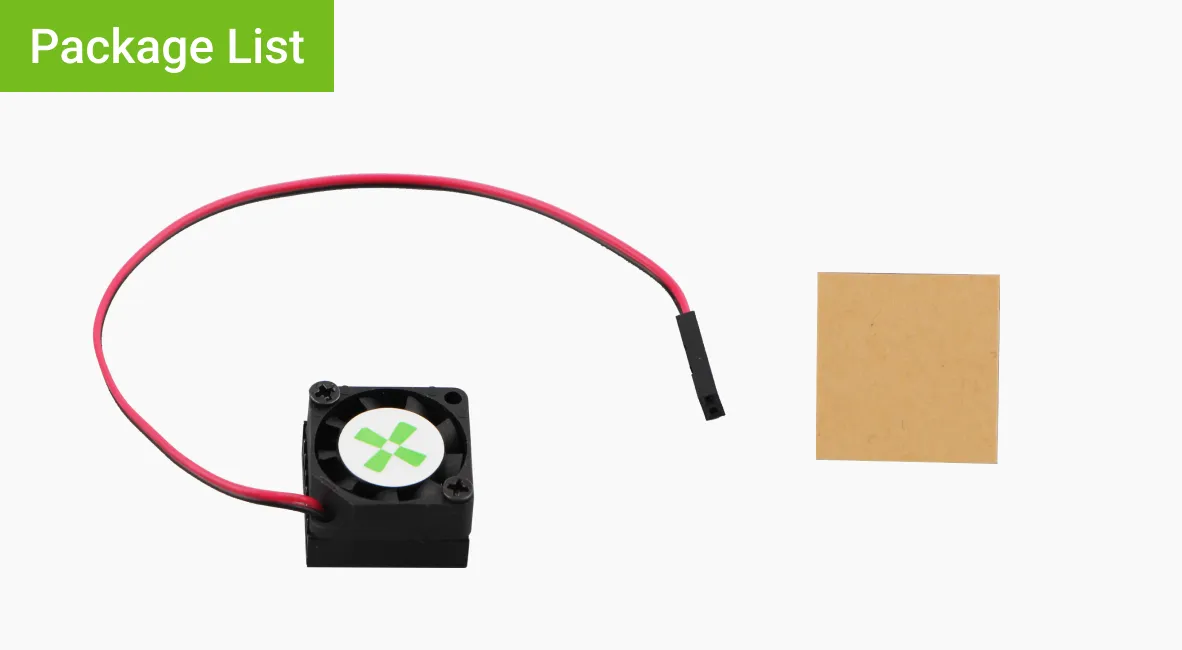

    • Package List
    • ・ 1x Heatsink 2012B
    • ・ 1x Thermal Pad
    Package List

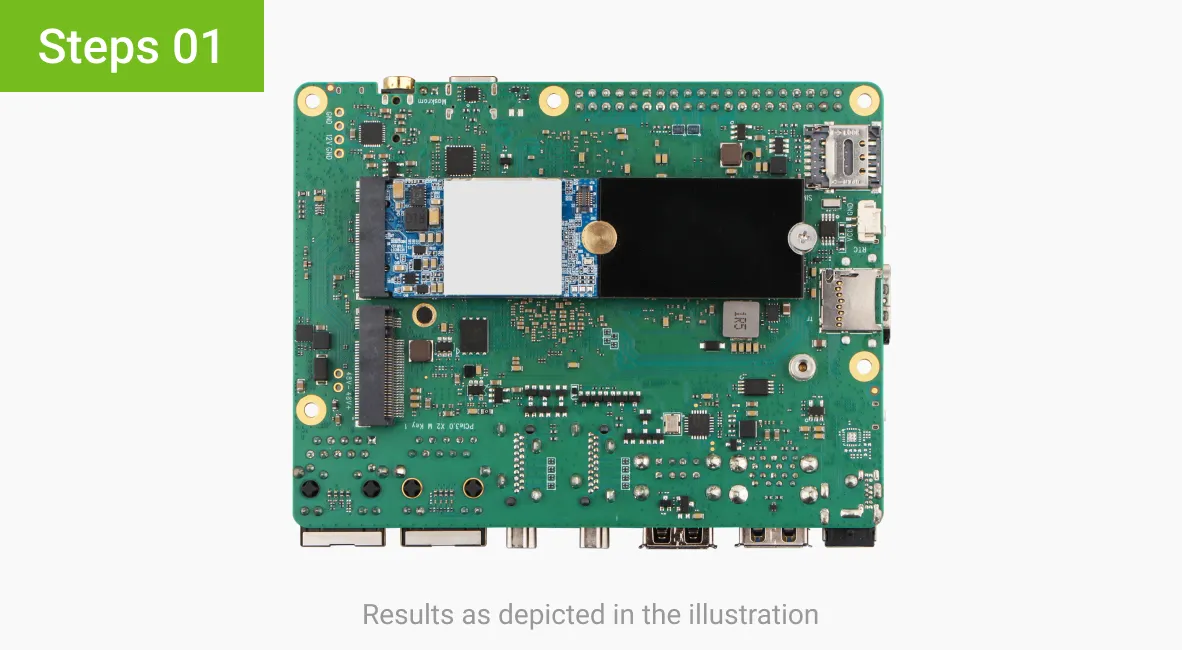

  • Peel off the protective film from both sides of the thermal pad and attach it to the SoC on the board or module.

    Steps 1

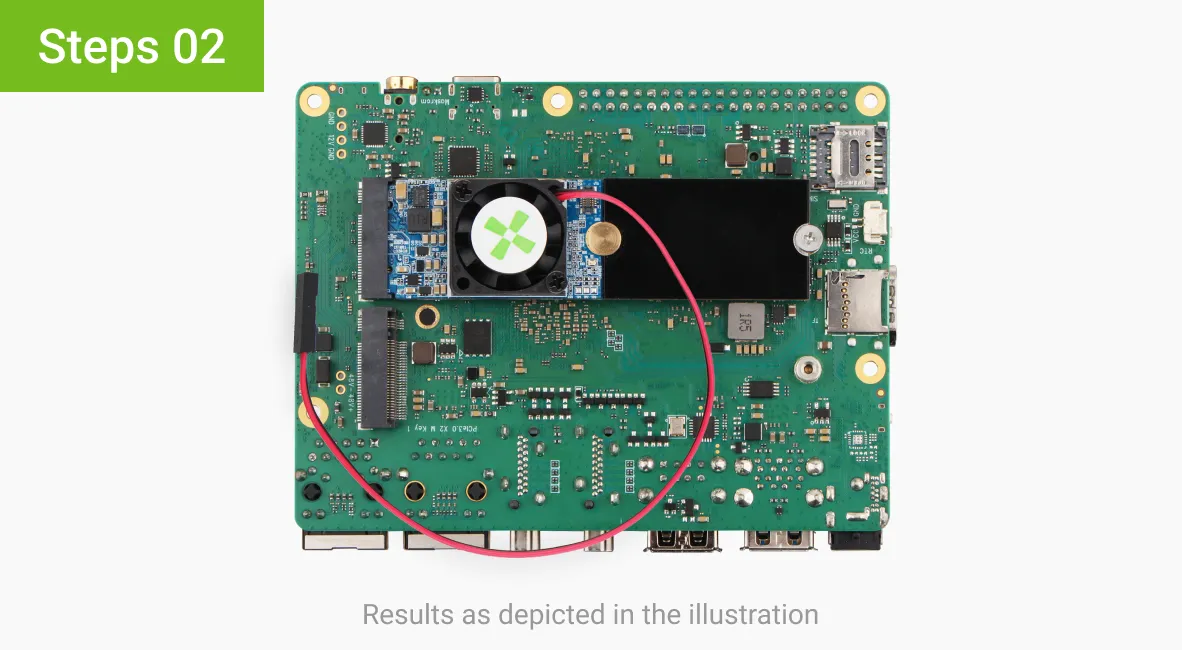

  • Align heatsink and press firmly onto the thermal pad

    Steps 2

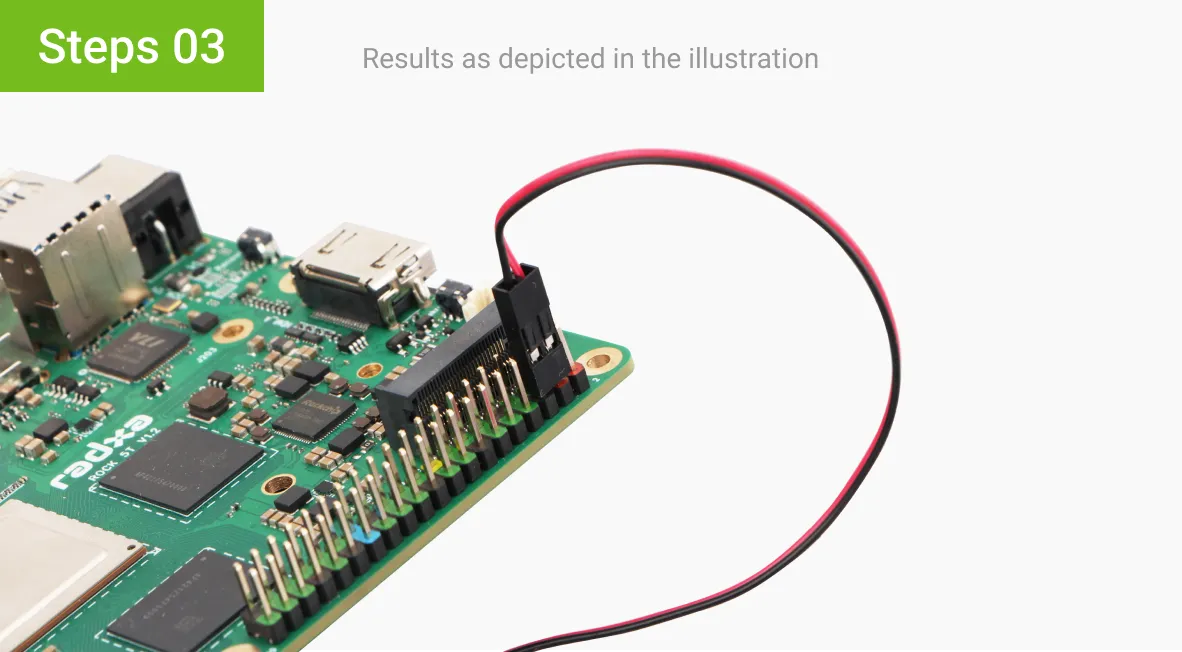

  • Connect fan cable to 5V and GND power headers on board

    Steps 3

Heatsink 2012B Works with
