Cubie A7S

Pocket-sized Power for AI

Buy Now
Cubie A7S

Radxa Cubie A7S

Buy

  • Allwinner A733

  • Octa-core CPU

  • 3 TOPS

  • LPDDR5

  • USB-C

  • WiFi 6

  • BT 5

  • PCIe 3.0

High-Performance Octa-Core AI Platform SoC

Powerful performance meets exceptional efficiency for smooth multitasking and advanced edge AI applications.

CPU:Octa-Core Heterogeneous Architecture, 2x
Cortex-A76 + 6× Cortex-A55, up to 2.0GHz

GPU:Efficient Graphics and Compute Engine,
Imagination PowerVR BXM-4-64 MC1
Ideal for UI rendering, graphics acceleration,
and compute workloads

High-performance hybrid octa-core SoC

NPU: 3 TOPS@INT8 on-device AI performance, Supports INT4 / INT8 / INT16 / FP16 / BF16 computation precision

NPU

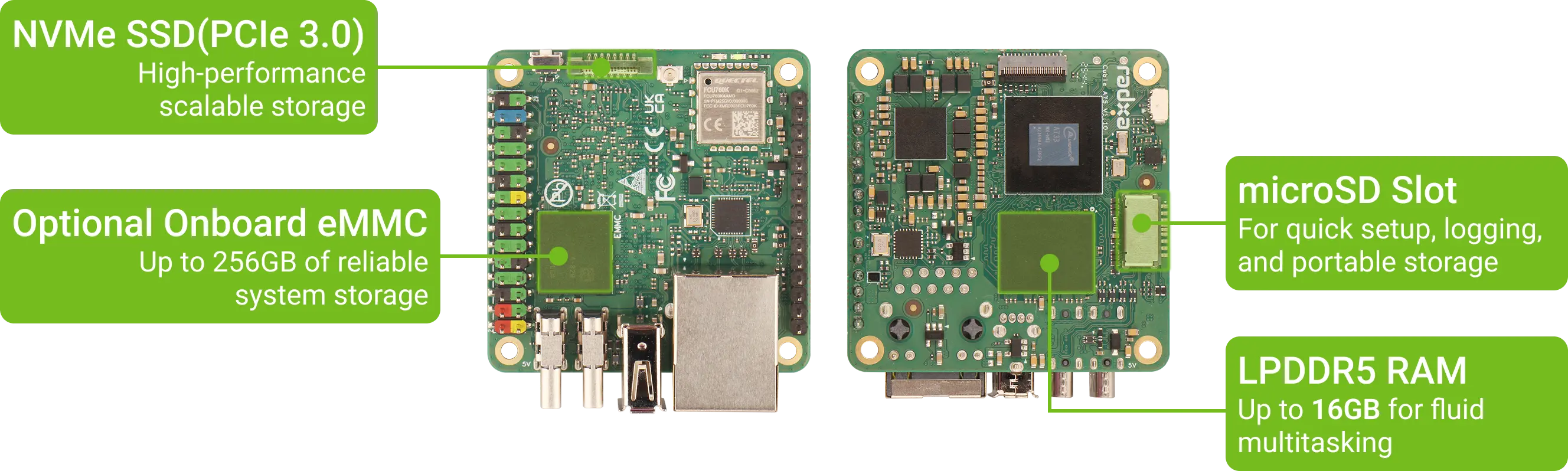

Complete & Scalable Storage

High-speed, flexible options for any workload.

Complete & Scalable Storage

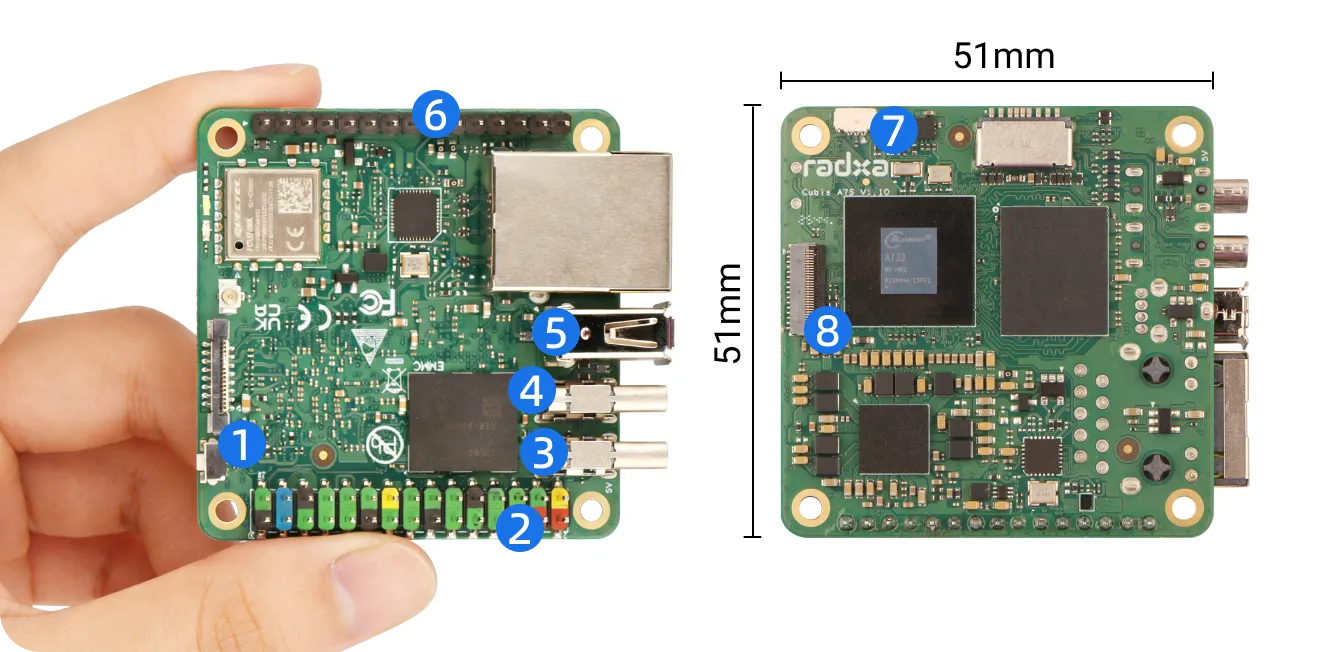

Pocket-Sized Design, Endless Possibilities

Ultra-compact yet fully capable — engineered to fit in the tightest embedded environments.

Pocket-Sized Design, Endless Possibilities
  1. 1USB BOOT Button
  2. 230-Pin GPIO Header
  3. 3USB-C：USB 2.0, 5V Power & OTG
  4. 4USB-C：USB 3.2, DP Alt Mode & OTG
  5. 5USB 2.0 Type-A
  6. 615-Pin GPIO Header
  7. 7FAN Connector
  8. 8MIPI CSI (4-lane)

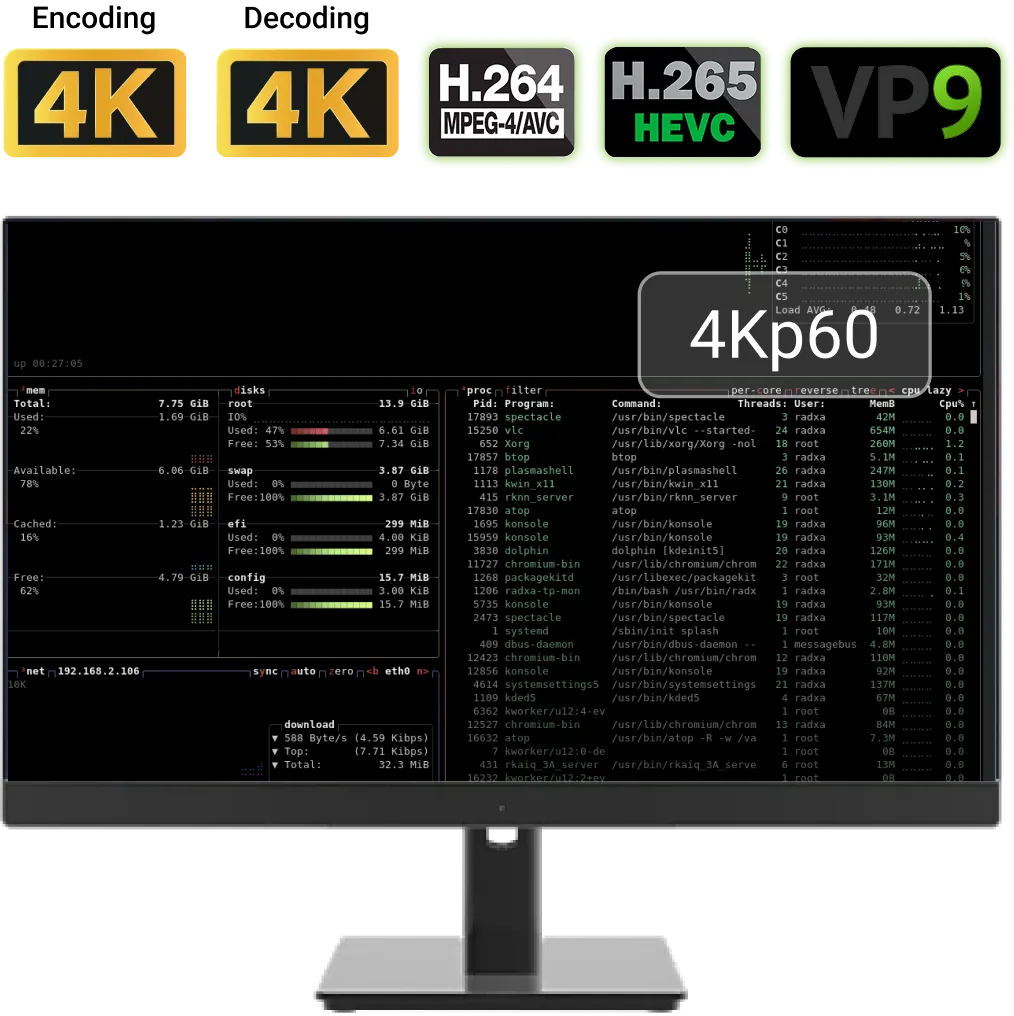

All-in-One 4K Multimedia Hub

Capture, process, and display 4K content in real time — from camera input to video output — all integrated
in one compact, high-efficiency platform.

All-in-One 4K Multimedia Hub

  1. Display

    ·USB-C with DisplayPort Alt Mode

    ·Outputs up to 4Kp60 with crisp detail and vibrant color

  2. Camera

    ·1x MIPI CSI (4-lane)

    ·Supports a wide range of camera sensors for AI vision, robotics, and imaging systems

  3. Video Encoder

    ·H.264 / H.265 encoder up to 4K@30fps

  4. Video Decoder

    ·H.265 / VP9 / AVS2 decoder up to 4K@60fps

    ·H.264 decoder up to 4K@30fps

High-Speed Networking, Without Limits

Combines Gigabit Ethernet with onboard Wi-Fi 6 and Bluetooth 5.4 to deliver fast, stable, and versatile
connectivity for a wide range of edge and IoT applications.

Complete & Scalable Storage

Complete AI Development Ecosystem

From model import to cross-platform deployment — in minutes

Compatible with all major AI frameworks

Compatible with all major AI frameworks

Cross-platform deployment

Linux/Android universal NBG binary

10 minutes

Run Yolov8, Mobile-SAM, Whisper instantly

  1. Zero-Copy API

    Zero-Copy API

  2. Custom Operator

    Custom Operator

  3. Multi-thread

    Multi-thread

Open-Source Ecosystem

Building a Stable & Efficient Software Ecosystem for Faster Development & Problem-Solving

  1. Allwinner Online Developer Community

  2. Radxa Docs

  3. Radxa Community

Deep Collaboration to Ensure Ecosystem Stability
Radxa and Allwinner are working together to create a highly compatible, high - performance software
and hardware ecosystem.Through close collaboration, we continuously optimize system stability
and driver support, ensuring developers enjoy a hassle - free development experience.

Multiple OS Support for Flexible Development

Open software environment supporting Debian Linux and Android, ideal
for both rapid prototyping and deployment.

Multiple OS Support for Flexible Development

Comprehensive Technical Documentation and
Active Community

  • Comprehensive Technical Documentation and Active Community!

    Comprehensive Technical Documentation and Active Community !

    Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.

    Community
