Heatsink 6530B

Heatsink Specialized for Radxa Cubie A7Z

Buy Now
Heatsink 6530B

Radxa Heatsink 6530B

Buy

High-Efficiency Cooling Design

Aluminum alloy material with excellent thermal conductivity, 3D fin structure effectively increases heat
dissipation area

Heatsink 6530B

Smart PWM Speed Control

Real-time fan speed adjustment, Enhances airflow efficiency while balancing cooling performance
and noise

Heatsink 6530B

Easy to Install

    • ・ 1x Heatsink
    • ・ 2x Thermal pads（16 * 16 * 1.5 mm）
    • ・ 4x Screws (CM2 * 4 * 4 mm)
    Package List

  • Apply the thermal pad onto the SoC of the board

    Steps 1

  • Place the heatsink onto the board

    Steps 2

  • Secure the heatsink with 4 screws

    Steps 3

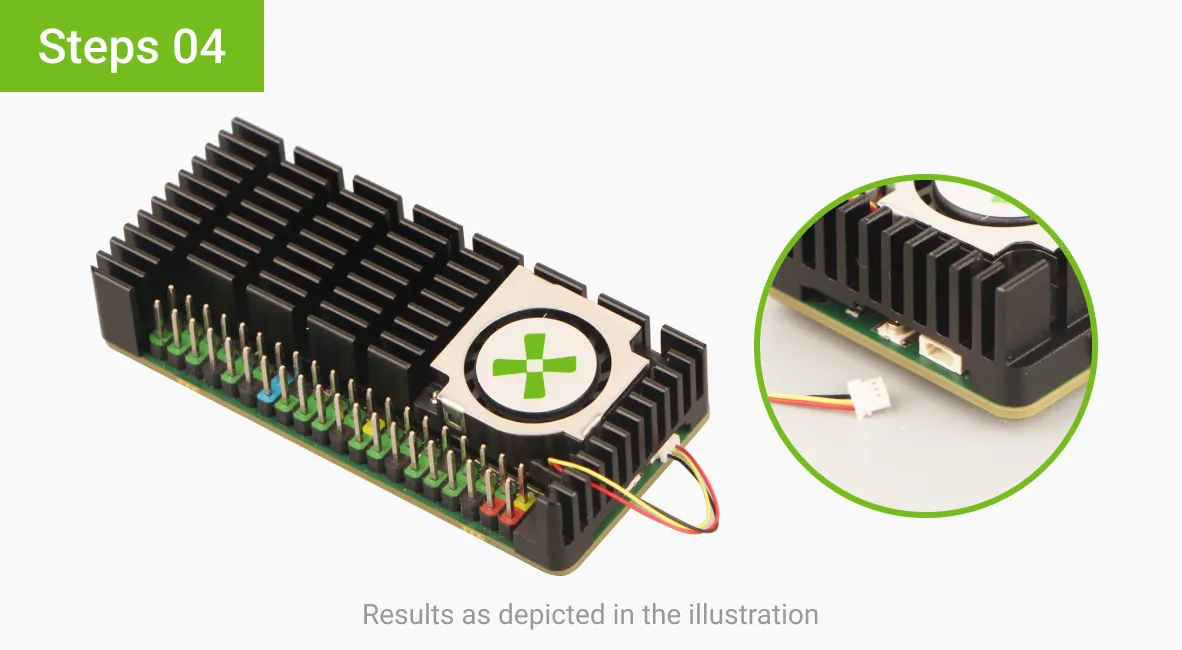

  • Connect the fan cable to the board fan header

    Steps 4

Heatsink 6530B Works with
