CM-Q64

Edge AI SoM for Vision & Robotics

CM-Q64

CM-Q64

  • Features
  • Product Details

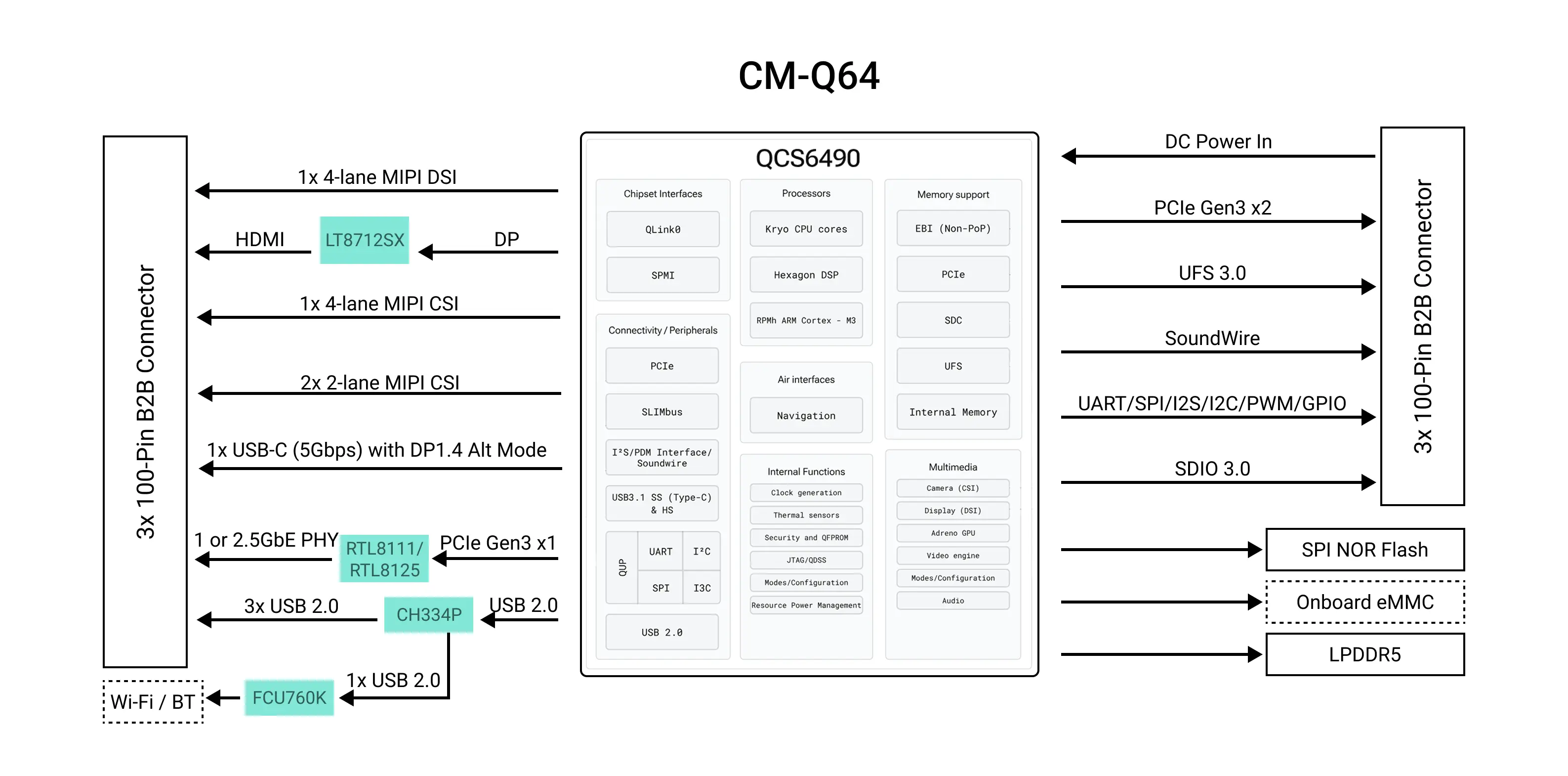

  • Block Diagram

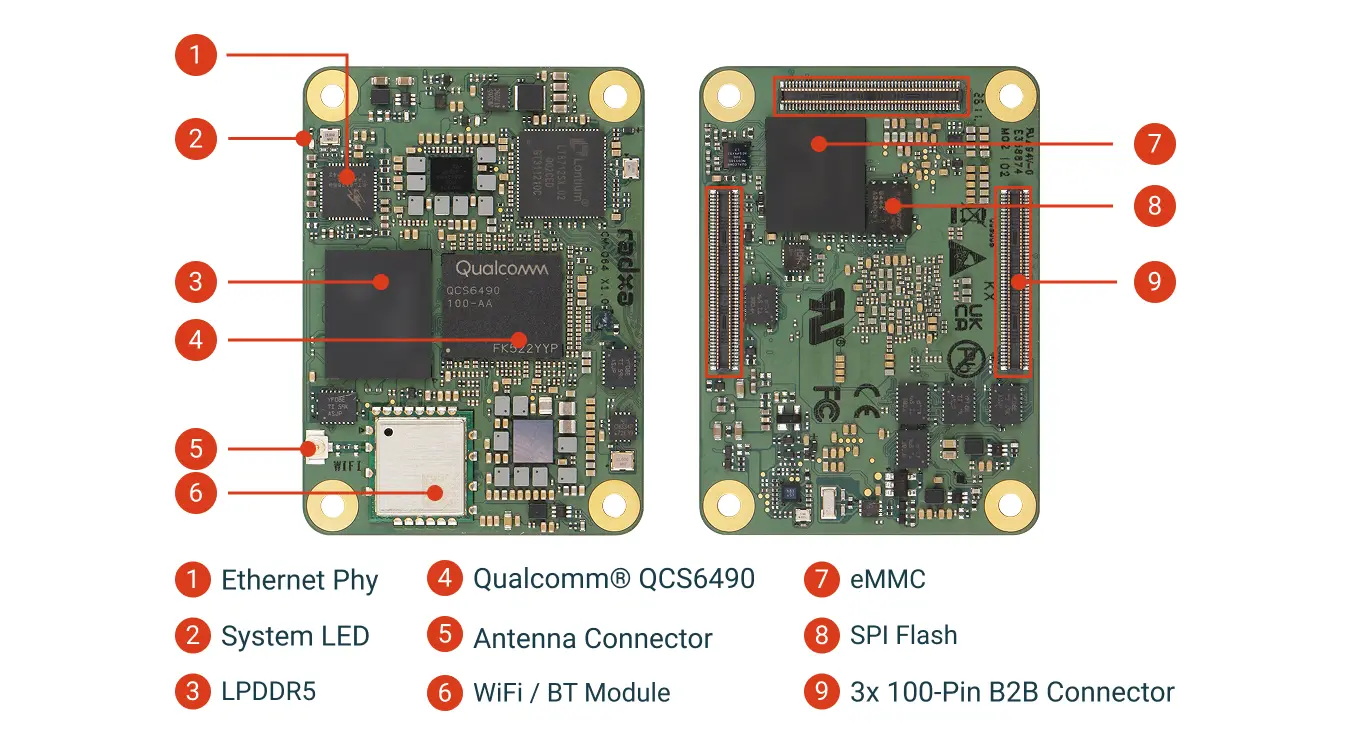

  • Interfaces
  • Hardware Spec
  • Documentations
  • Accessories
Buy
  • Qualcomm® Dragonwing™ QCS6490

  • 12 TOPS

  • 2.5GbE

  • HDMI 4K

  • Optional On-Module eMMC

  • LPDDR5

  • WiFI 6

  • 55 mm x 40 mm

Flagship Heterogeneous Computing

8-core Kryo™ CPU

(up to 2.7 GHz), balanced performance and power efficiency

  1. 1x Kryo Gold Prime

    @ 2.7 GHz

  2. 3x Kryo Gold

    @ 2.4 GHz

  3. 4x Kryo Silver

    @ 1.9 GHz

  4. 6nm

    Process

Adreno™ 643 GPU

Desktop-class graphics processing

Hexagon™ 770 AI Engine

Up to 12 TOPS AI computing power

12 TOPS

Dual HVX + Tensor Accelerator for complex AI inference at low power

Rich Multimedia Capabilities

Offers HDMI and a 4-lane MIPI DSI interface for embedded display applications

  1. video icon

    High-Definition
    Video Processing

  2. video icon

    Dual High-
    Definition Display

Video
video icon

Supports up to 4K60 video decoding, 4K30 video encoding, compatible with HDR10/HDR10+,
and high-speed video capture (1080p@240fps or 720p@480fps).

Multi-camera Support

A 4-lane MIPI CSI interface for embedded vision applications
Camera integration requires a compatible carrier board and software support

camera

Qualcomm® Spectra™ 570L ISP (Triple ISP)

  • 1x 4-lane MIPI CSI

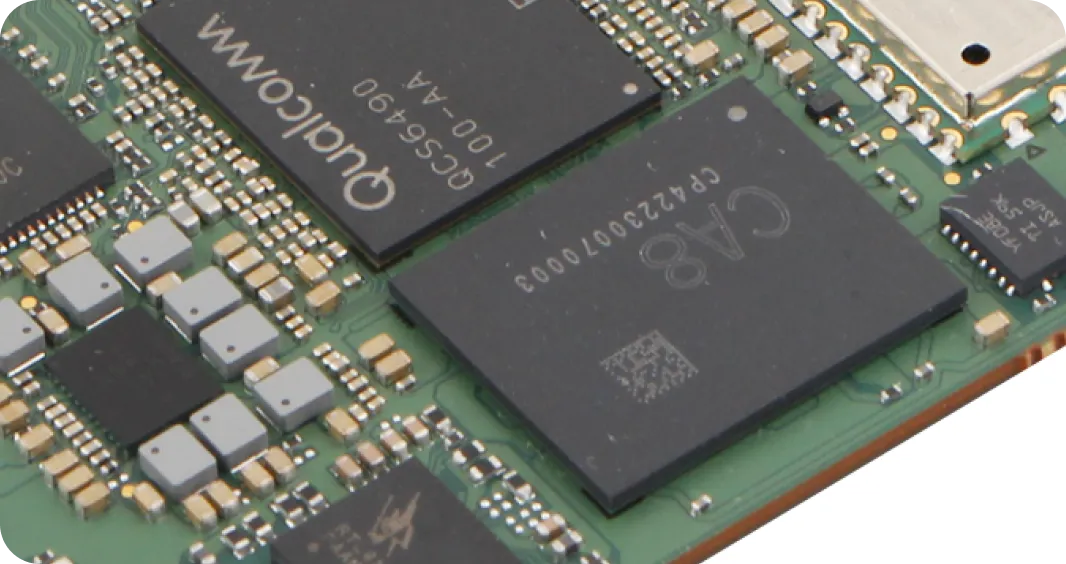

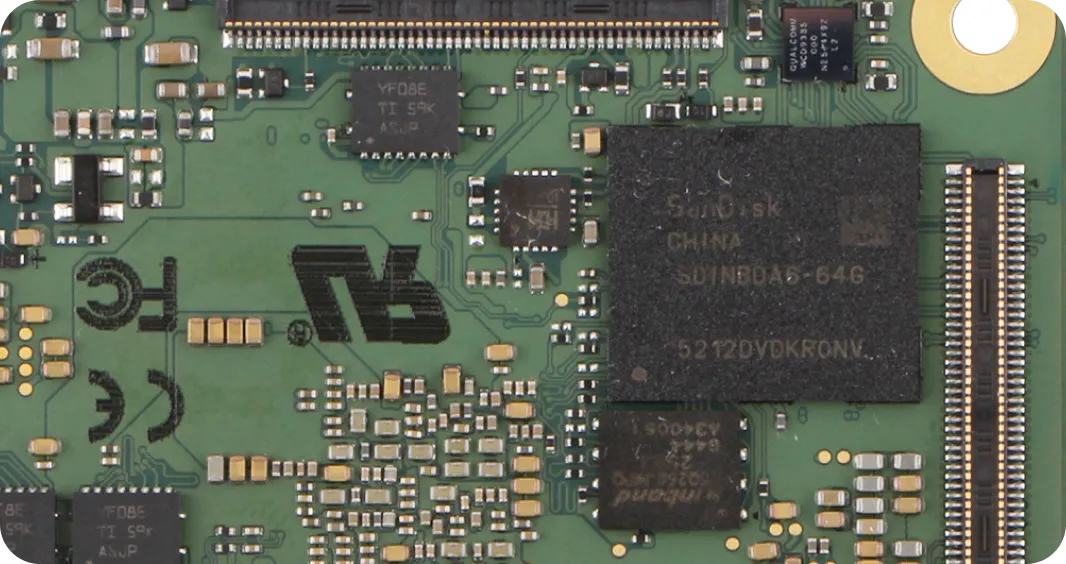

Ultra-Fast Storage

LPDDR5, up to 16GB

Optional On-Module eMMC 5.1

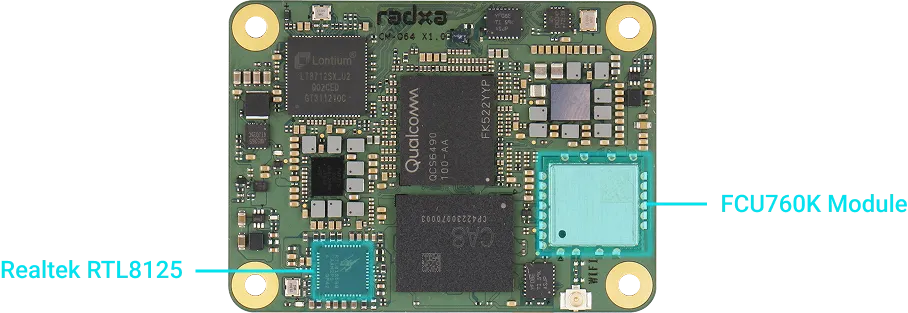

Network Connectivity

Wireless IconsWireless

Onboard Wi-Fi 6 and Bluetooth 5.4 modules
with optional Gigabit / 2.5GbE Ethernet configuration for flexible connectivity

Rich Interfaces, Flexible Expansion

Discover Abundant Functionality with 2x 100-Pin B2B Connectors

rich-icon

Connectivity Interface

  • 1x PCIe Gen3 x1
  • USB (USB 3.2 Gen 1, USB 2.0)
  • Support UART / I2C / SPI / PWM / GPIO

Display Interface

  • 1x HDMI 2.0
  • 1x 4-lane MIPI DSI

Camera Interface

  • 1x 4-lane MIPI CSI

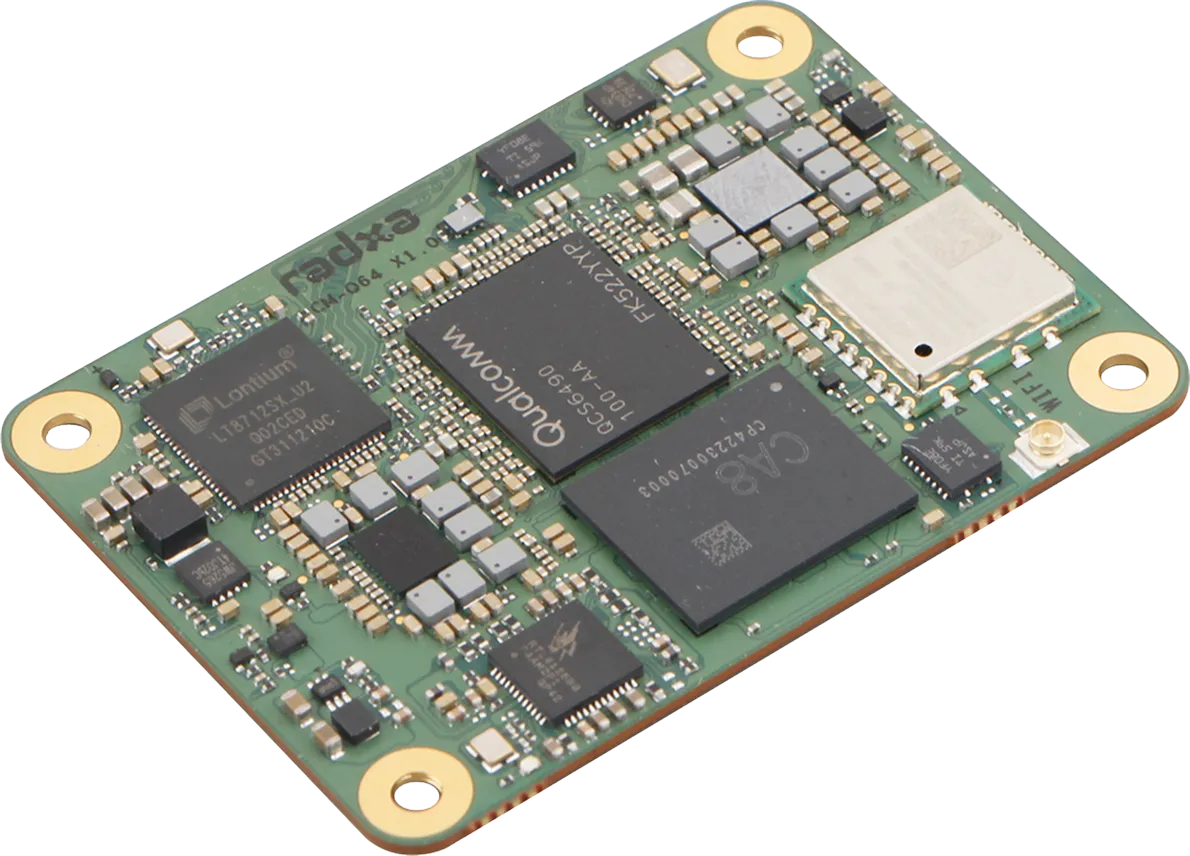

Industrial-Grade Quality

  1. Operating Temp
    0 ºC - 60 ºC

  2. 55mm × 40mm
    2× 100-pin B2B connector

  3. Longevity until July
    2036

Robust Software Ecosystem, Flexible Multi-System
Adaptation

The Qualcomm® QCS6490 platform offers long-term support, compatible with various operating systems
including Linux (Yocto, Ubuntu, Deepin, Fedora, Armbian, Arch), and Windows 11 IoT Enterprise, meeting the
needs of different application scenarios.

System

Through the Qualcomm® AI Hub, developers can access a library of pre-optimized AI models, simplifying on-
device AI deployment, maximizing hardware performance, and delivering an exceptional user experience.

Product Ecosystem

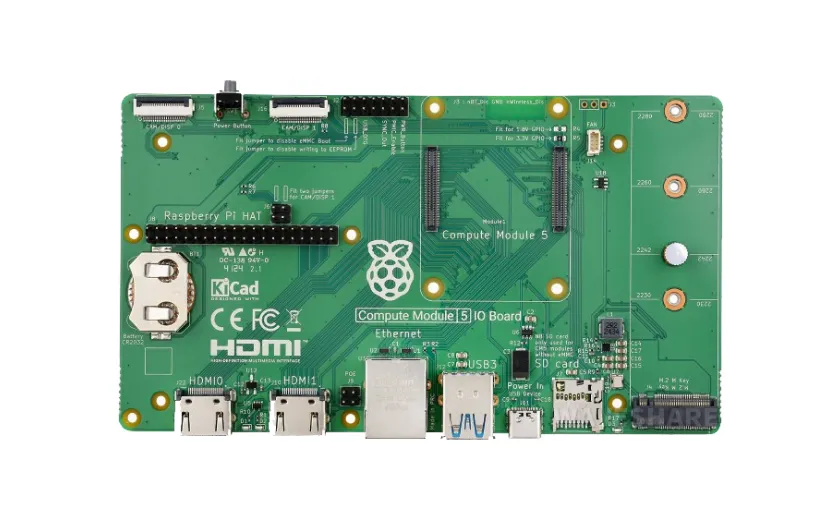

  1. Raspberry Pi CM5 IO Board

  2. Radxa Display 8 HD / 10 FHD

  3. Radxa Camera 8M 219

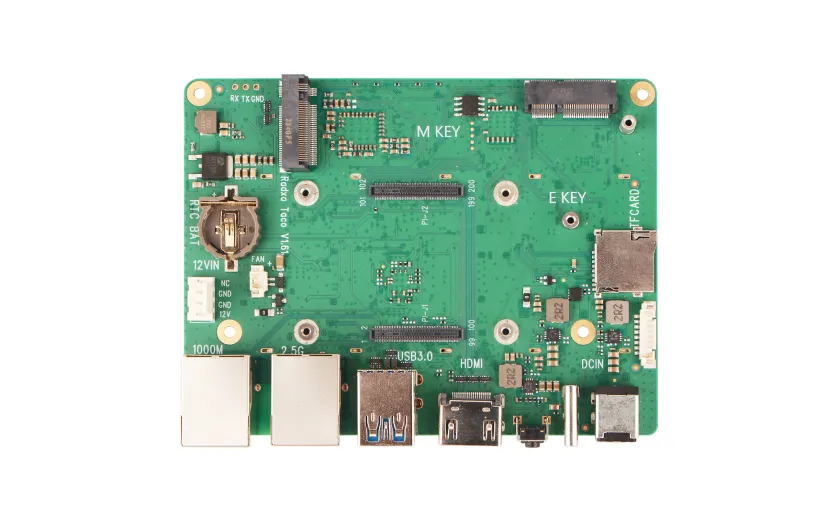

  4. Radxa Taco

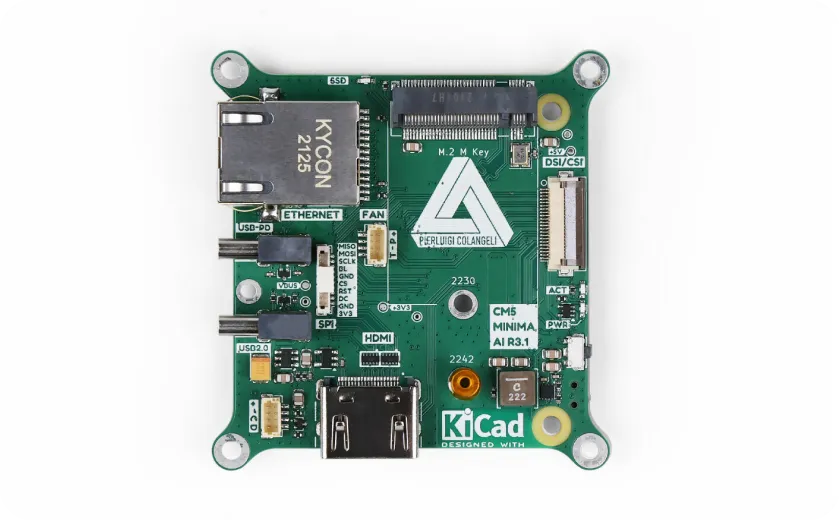

  5. Seeed Studio CM5 MINIMA

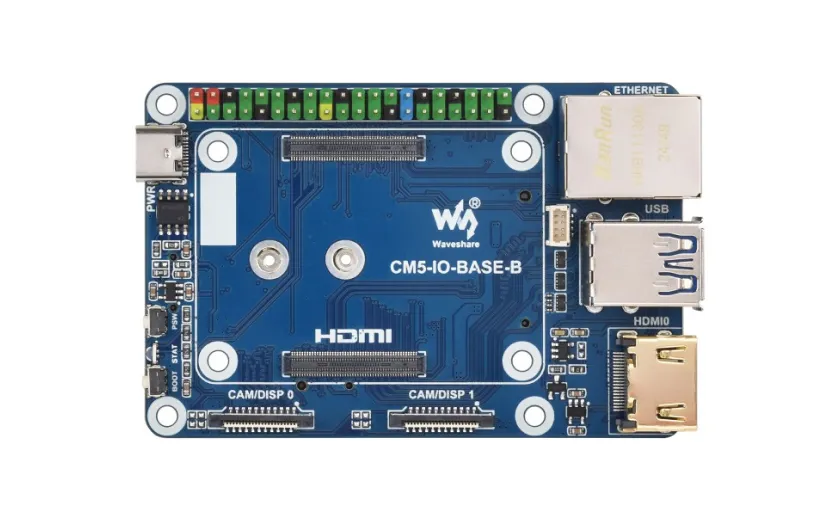

  6. Waveshare Mini Base Board

Comprehensive Technical Documentation and
Active Community

  • Comprehensive Technical Documentation and Active Community!

    Comprehensive Technical Documentation and Active Community !

    Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.
