Flagship Edge AI SBC for Intelligent Connectivity
8cx Gen 3
Octa-core
29+ TOPS
128-bit LPDDR4X
PCIe Gen3
Display
2.5GbE
UFS 3.1
Flagship Arm Motherboard for Intelligent Edge
Powered by Qualcomm® Snapdragon® 8cx Gen 3
5nm Process Technology- Qualcomm® AI Engine, Up to 29+ TOPS
- Triple 4K120 Display Output
- Rich PCIe Expansion
The Engine of Responsive Computing
Fast multitasking and efficient workload scheduling for edge AI, local services, and embedded applications.

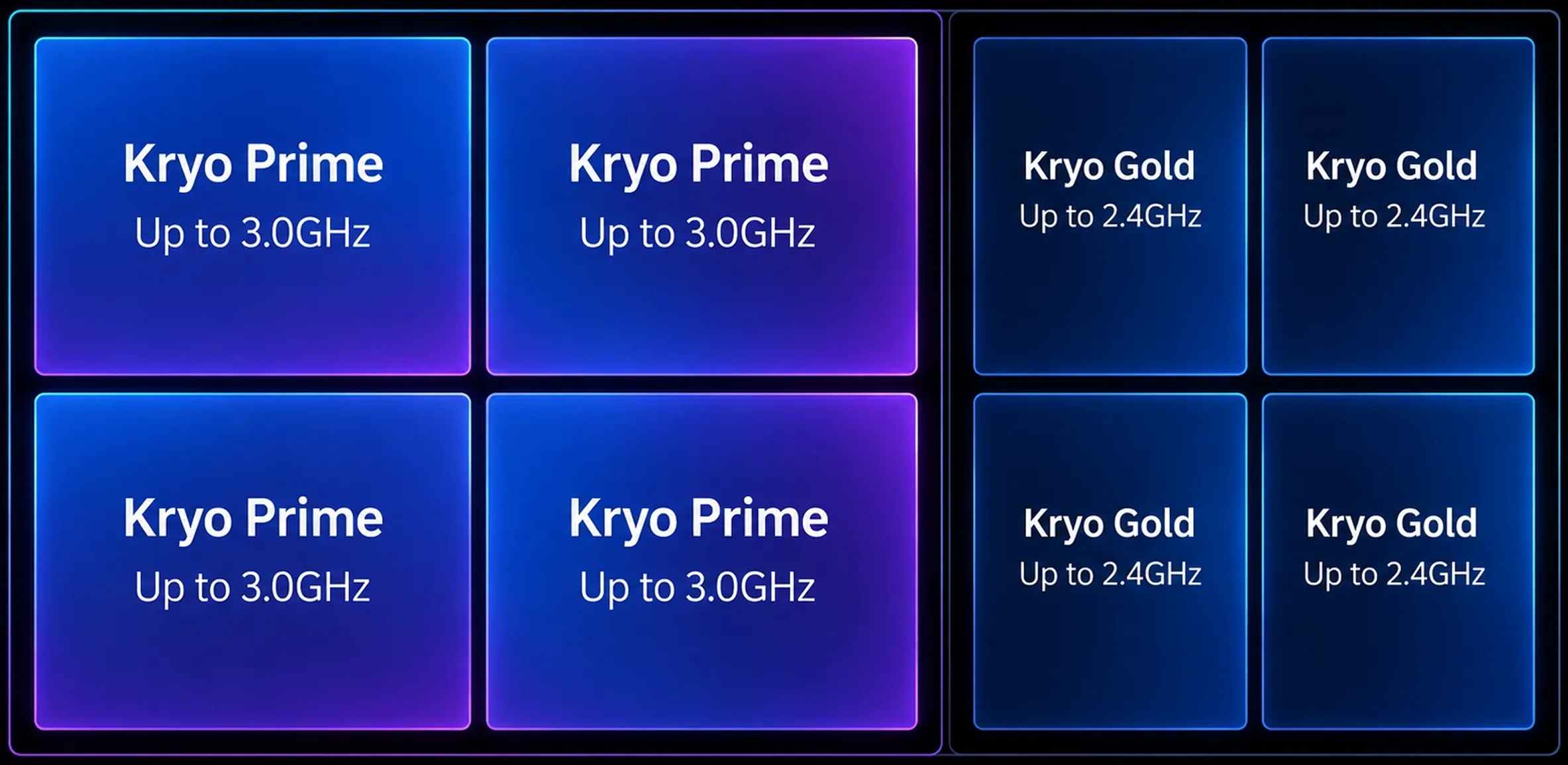

8 Cores
Kryo™ CPU
3.0 GHz
4x Kryo Prime
2.4GHz
4x Kryo Gold
64-bit
CPU Architecture
Up to 85% faster CPU multitasking performance than the previous generation
Up to 2.5x higher multi-core performance than typical quad Cortex-A76 platforms
Smooth Graphics and Visual Computing
Powerful integrated graphics for high-resolution display, responsive UI, and visual workloads.
- Qualcomm® Adreno™ 690 GPU
- 2.7 TFLOPS FP32 compute performance
- Supports:
Up to 60% Faster GPU Performanc (Compared with Snapdragon® 8cx Gen 2)
AI — Up to 29+ TOPS
On-Device Intelligence, Fast local inference for vision, speech, automation, and intelligent edge applications.
Qualcomm® AI Engine, up to 29+ TOPS
- Accelerates machine vision, voice interaction, and generative AI workloads
- Supports commercial deployment of compact LLMs up to 3B parameters
- Enables on-device inference with lower latency and better data privacy
Qualcomm® AI Hub support
- Pre-optimized AI model library
- One-click deployment for on-device inference
128-bit LPDDR4X
High-Bandwidth Memory, Fast memory bandwidth for multitasking, AI applications, and local services.
- 8x 16-bit, 128-bit memory interface
- Up to 32GB RAM
Advanced 4K Media Processing
Hardware acceleration for playback, capture, and visual AI.
- Up to 4K120 video decoder
- H.265 / H.264 / VP9 codec support
- Up to 4K60 video encoder
- 4K HDR video playback support

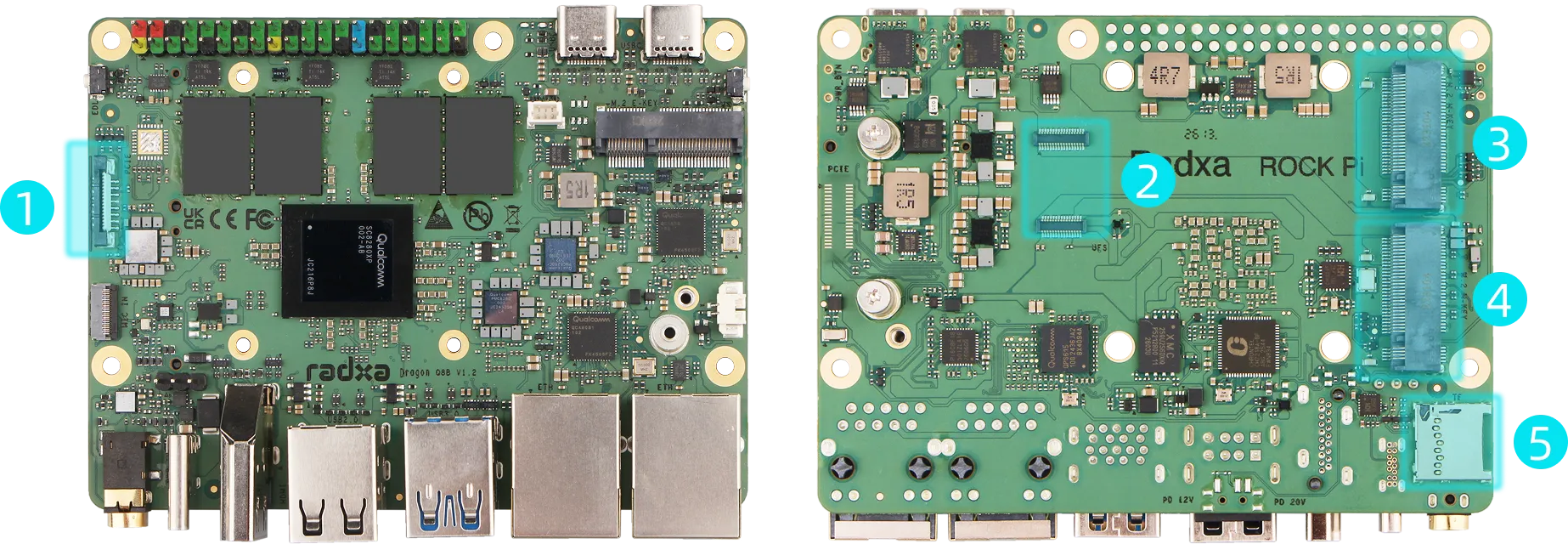

Ultra Fast Storage & PCIe Expansion
Flexible storage and PCIe connectivity for high-speed data and custom expansion

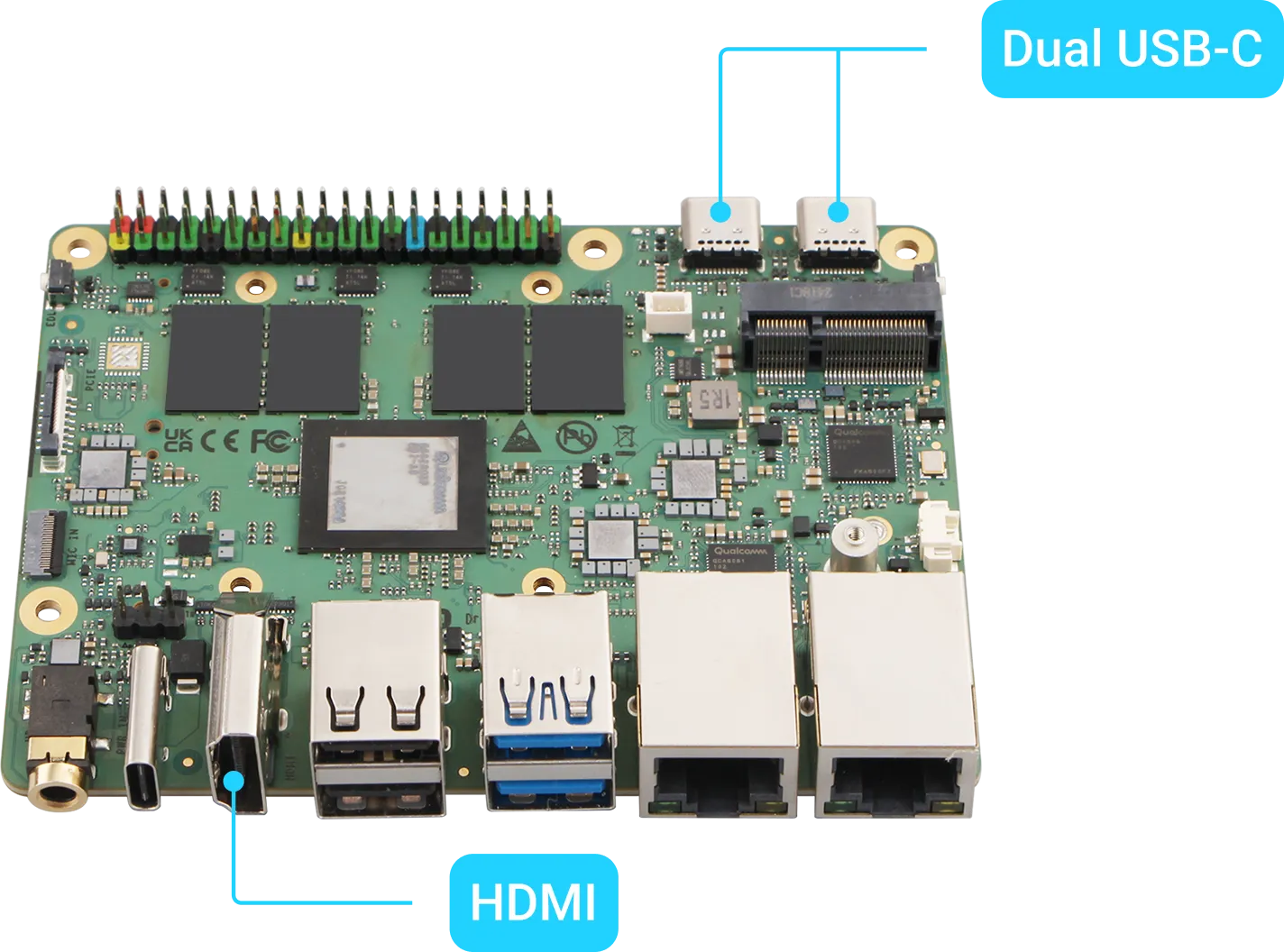

Rich Display & Video Interfaces
Multi-display output and camera expansion for visual edge applications.
- HDMI 2.1 FRL (Standard Type-A), up to 4K@120
- Dual USB-C with DisplayPort 1.4, up to 4K@120
- Up to triple 4K120 display output
- Qualcomm Spectra™ ISP with multi-camera capability at SoC level

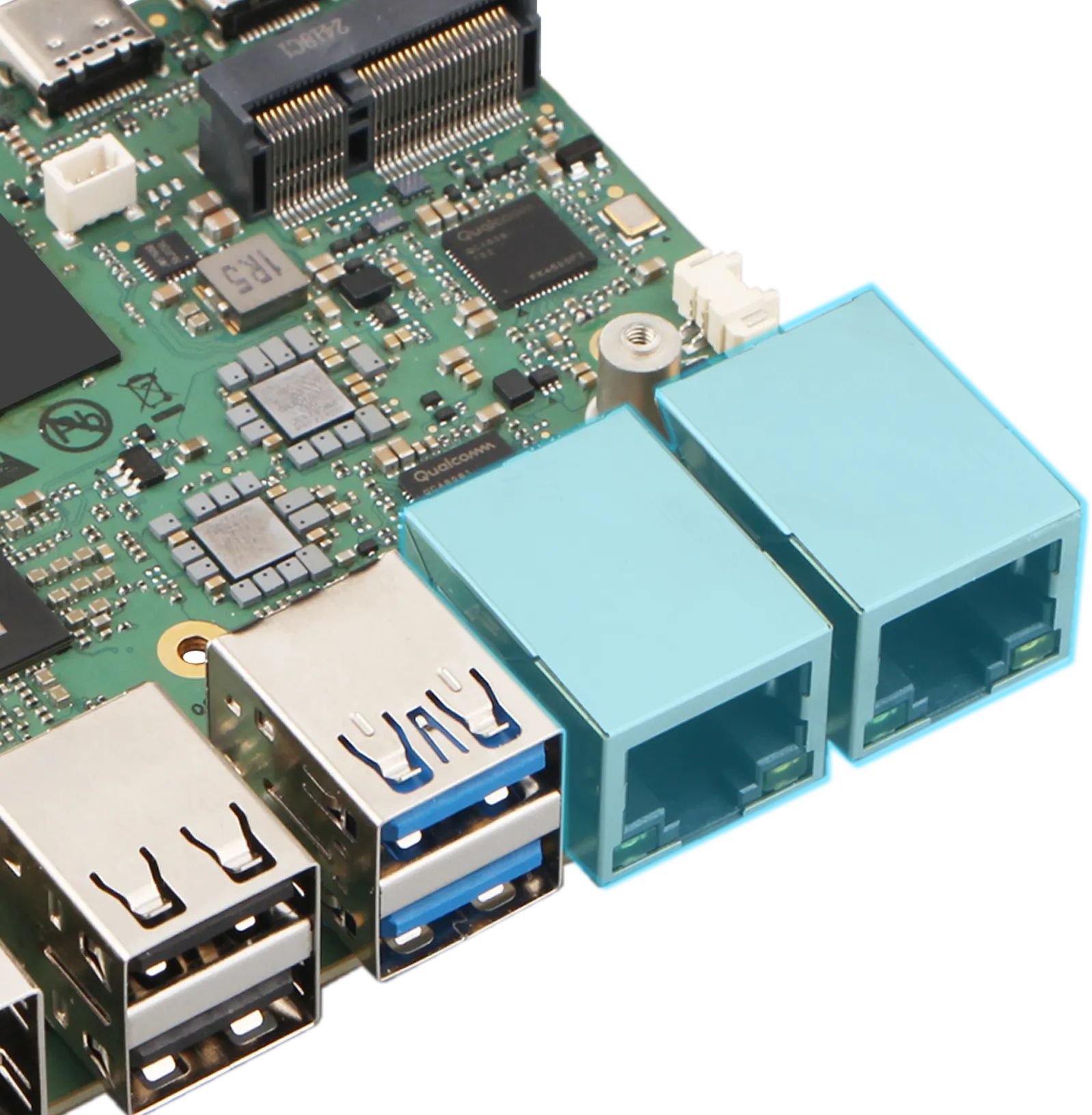

Dual Ethernet Ports with AVB/TSN Support
Deterministic networking for real-time edge applications.
- 2x 2.5GbE RJ45 ports
- Powered by QPS615 Ethernet-AVB/TSN bridge IC over PCIe Gen3
- Supports IEEE 802.1AS-rev, 802.1Qav, 802.1Qbv, 802.3br, and 802.1Qbu
- Designed for robotics, industrial control, AVB, and time-sensitive networking applications

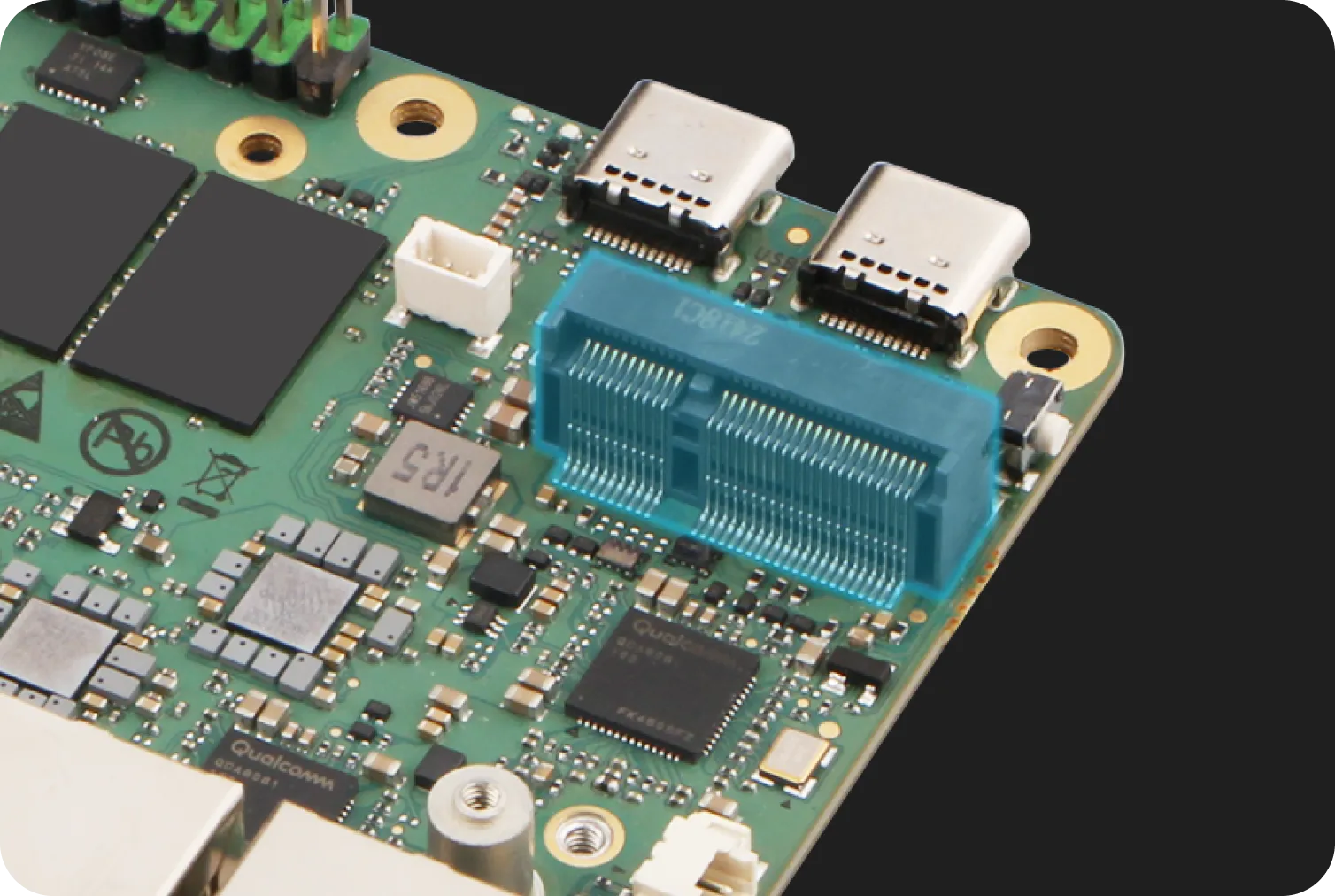

Supports The Latest Wi-Fi 7 Wireless Module
M.2 E Key Connector with PCIe Gen3 x1
Note: Wi-Fi 7 support via the E Key interface requires motherboard version V1.3 or later.

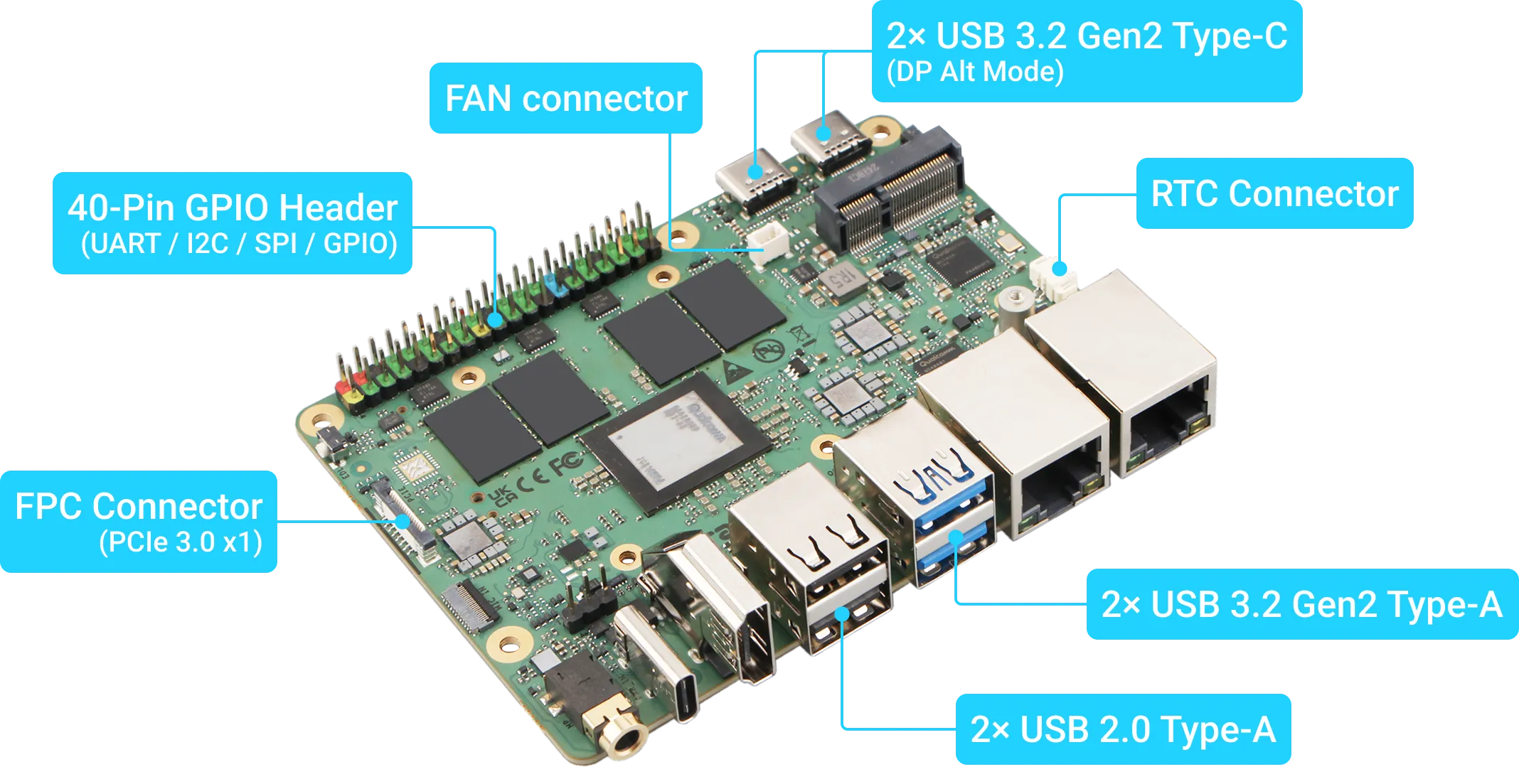

Powerful Expansion, Endless Possibilities
Rich interfaces for custom hardware and sensor expansion

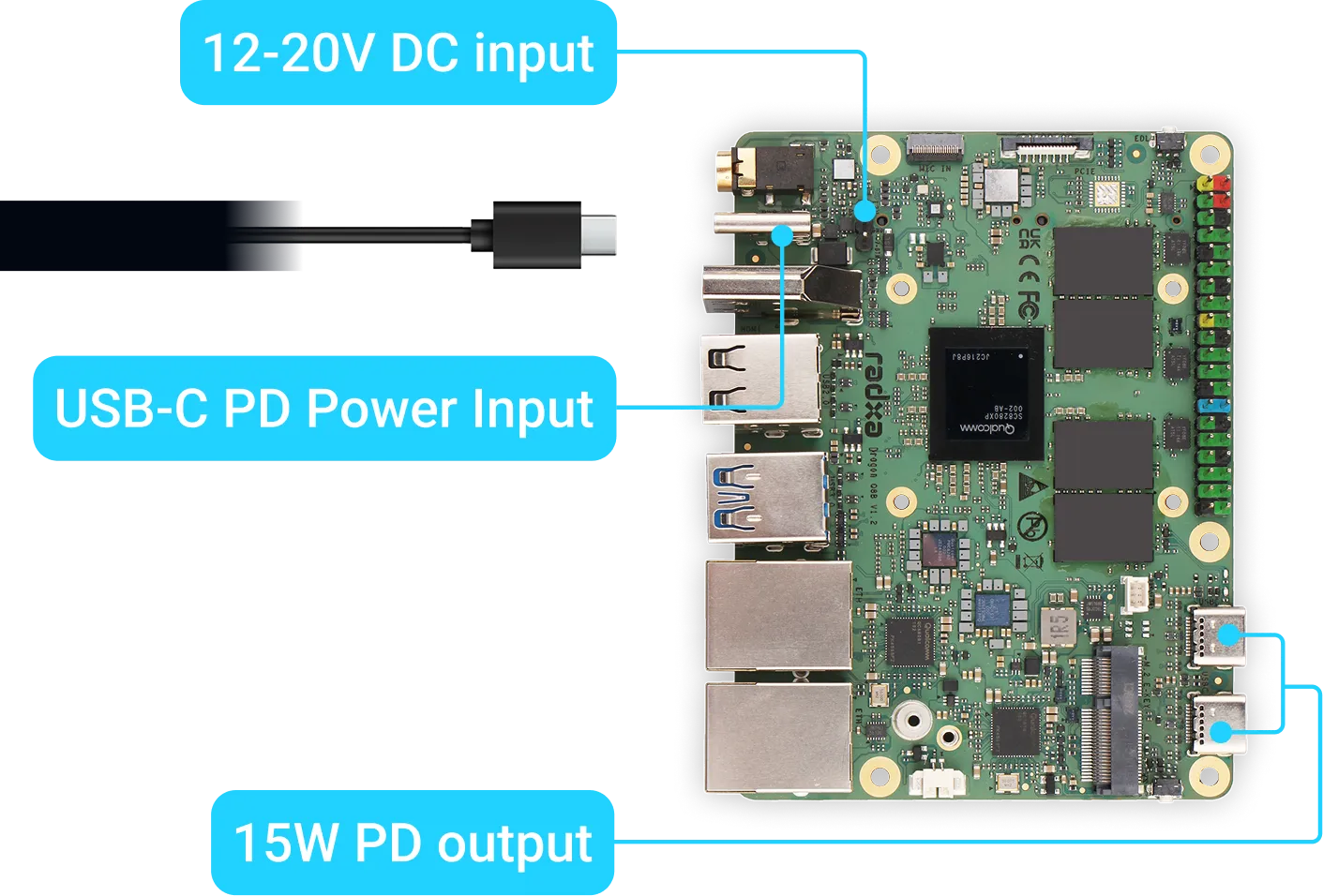

Flexible Power, Easy Integration
Multiple power options for enclosures, prototypes, and embedded deployments.
- USB Type-C PD power
- 12-20V DC power input
- 15W PD output
Unified ARM ISO Boot with Standard UEFI Support
- Standard UEFI boot support
- Built-in default Device Tree for simplified system adaptation
- Direct boot from unified ARM ISO images for easier OS installation and deployment

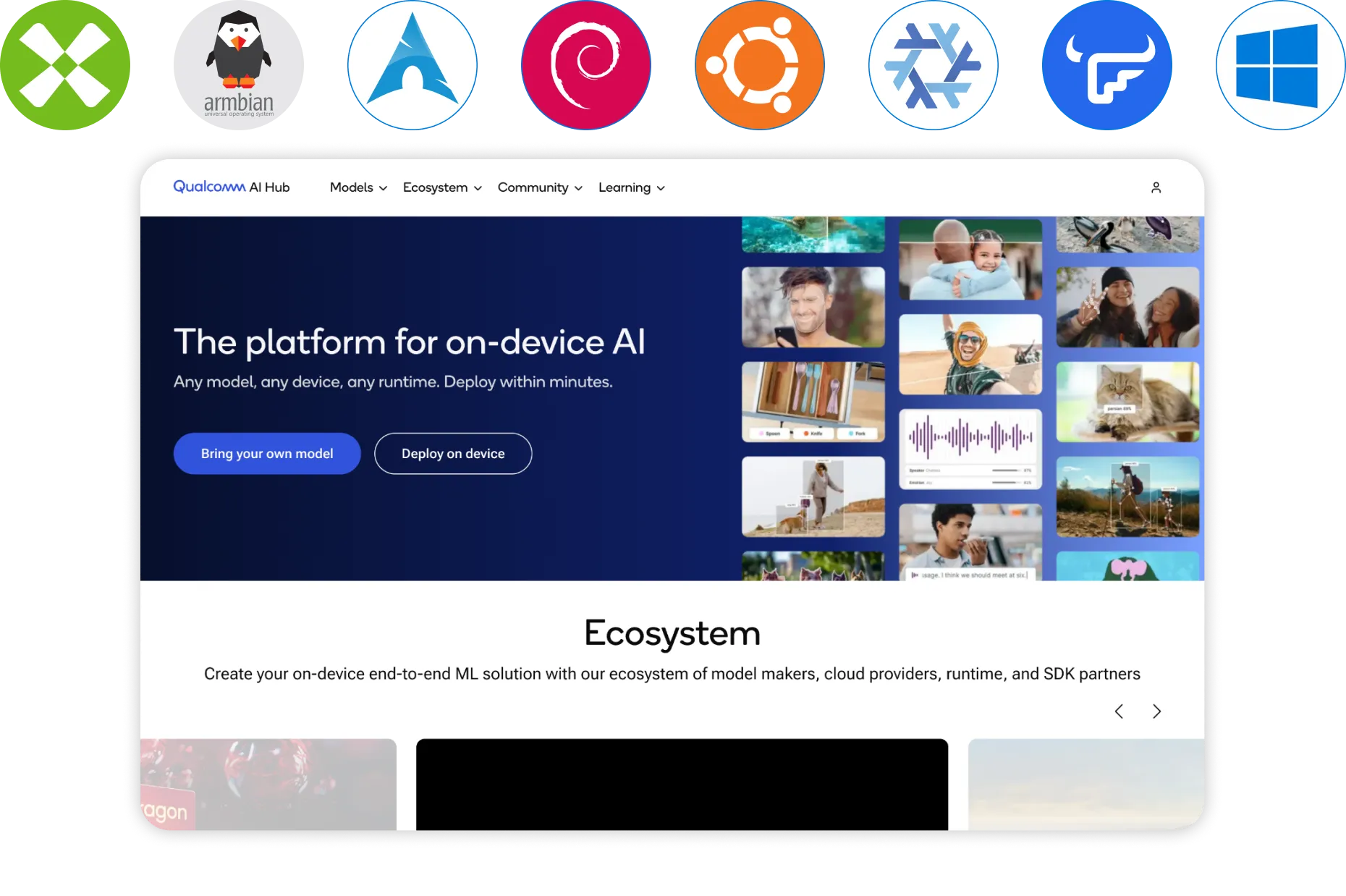

Robust Software Ecosystem, Flexible Multi-System Adaptation
The Qualcomm® Snapdragon® 8cx Gen 3 platform offers long-term support, compatible with various
operating systems including Linux (Ubuntu, Armbian, Arch Linux, Nix OS), and Windows, meeting the needs
of different application scenarios.
Through the Qualcomm® AI Hub, developers can access a library of pre-optimized AI models, simplifying
on-device AI deployment, maximizing hardware performance, and delivering an exceptional user experience.
Compact Form Factor, Wide Applications
Compact size with rich interfaces for intelligent edge systems.
Industrial Robot Arms
Autonomous Mobile Robots
Edge Servers
Drones
AIoT Devices
Smart Camera ModulesComprehensive Technical Documentation and
Active Community
Comprehensive Technical Documentation and Active Community !
Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.
