Radxa C201

A Feature-Rich IO Board for Radxa VMARC-Q9075

Radxa C201

Radxa C201 VMARC IO Board

VMARC-Q9075 with Radxa C201 VMARC IO Board

Quick Functional Verification of Radxa VMARC-Q9075

Note: The maximum data rates and lane configurations of some interfaces depend on the installed SoM.

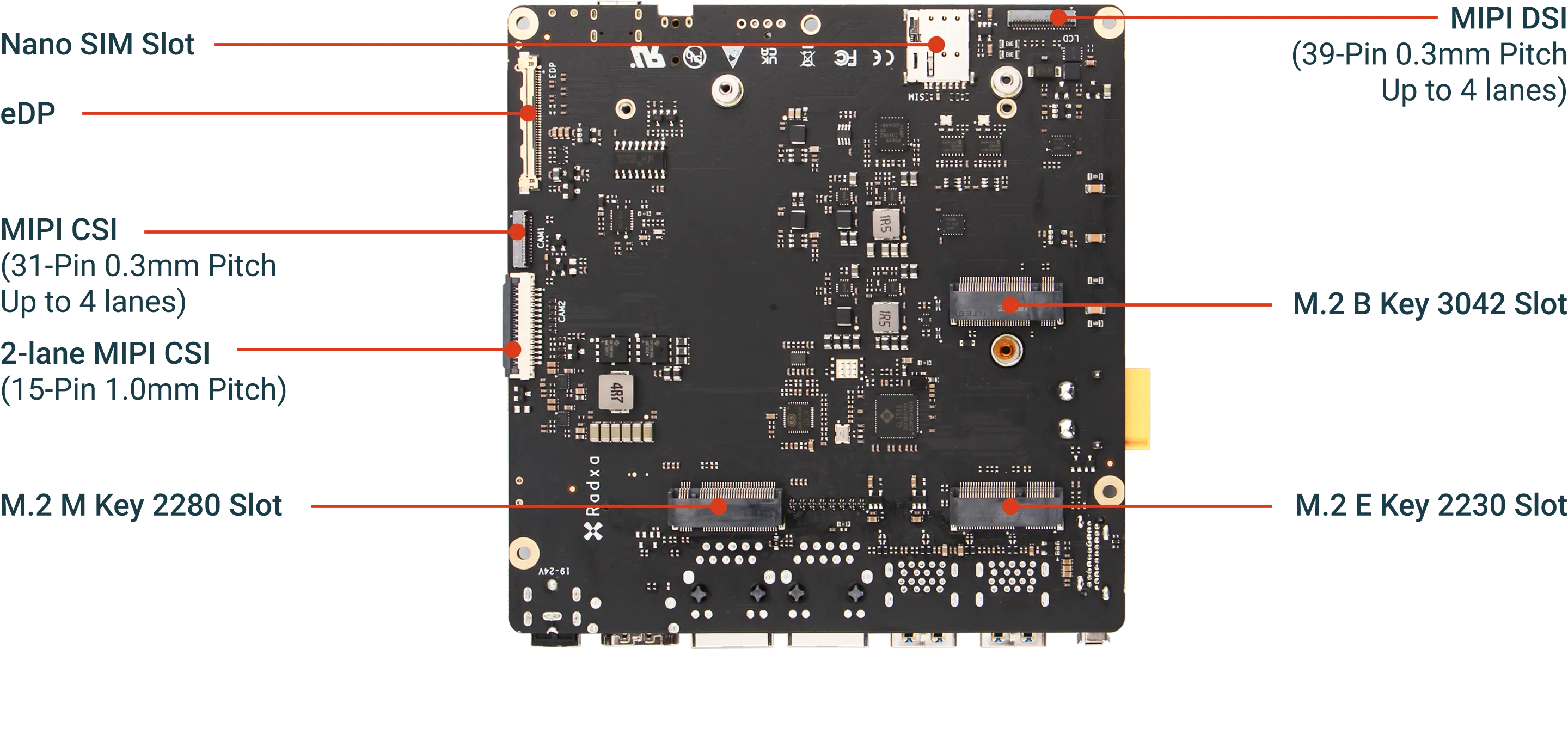

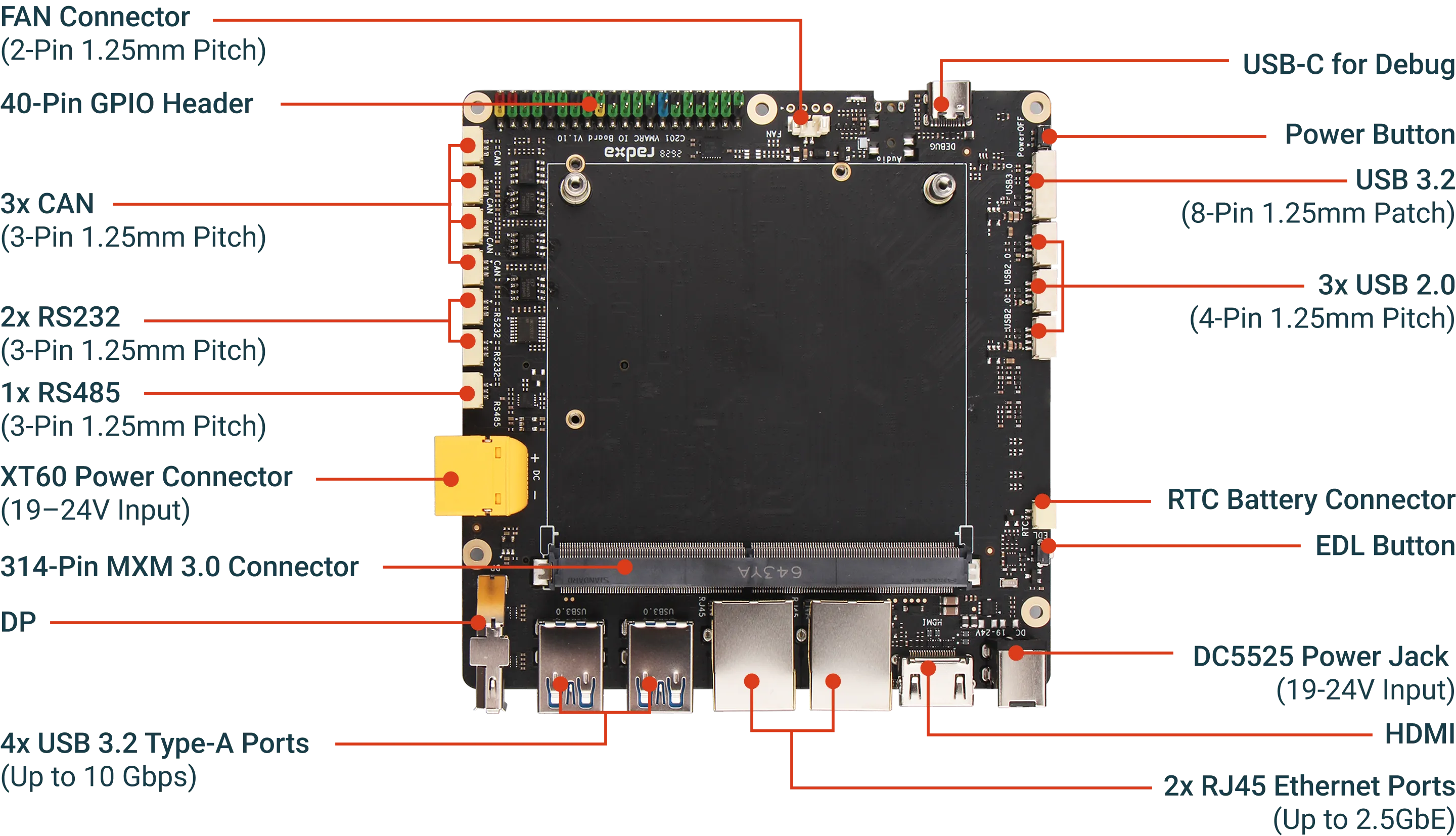

Interface Details

  • Video

    1x DP

    1x eDP

    1x HDMI

    1x MIPI DSI, up to 4 lanes

  • Camera

    1x MIPI CSI, up to 4 lanes

    1x MIPI CSI, up to 2 lanes

  • USB

    1x USB 3.2 Connector

    3x USB 2.0 Connector

    1x USB Type-C for Debug

    4x USB 3.2 Type-A Ports, up to 10 Gbps

  • Storage

    1x M.2 M Key 2280 Slot

  • Networking

    2x RJ45 Ethernet Ports, up to 2.5GbE

    1x M.2 E Key 2230 Slot for Wi-Fi & BT Module

    1x M.2 B Key 3042 Slot for 4G/5G Cellular Modules

    1x Nano-SIM Card Slot

  • RTC

    1x RTC Battery Connector

  • Other

    40-Pin GPIO Header
    · I2C / SPI / UART / GPIOs

    3x CAN

    2x RS232

    1x RS485

    1x Power Button

    1x EDL Button
