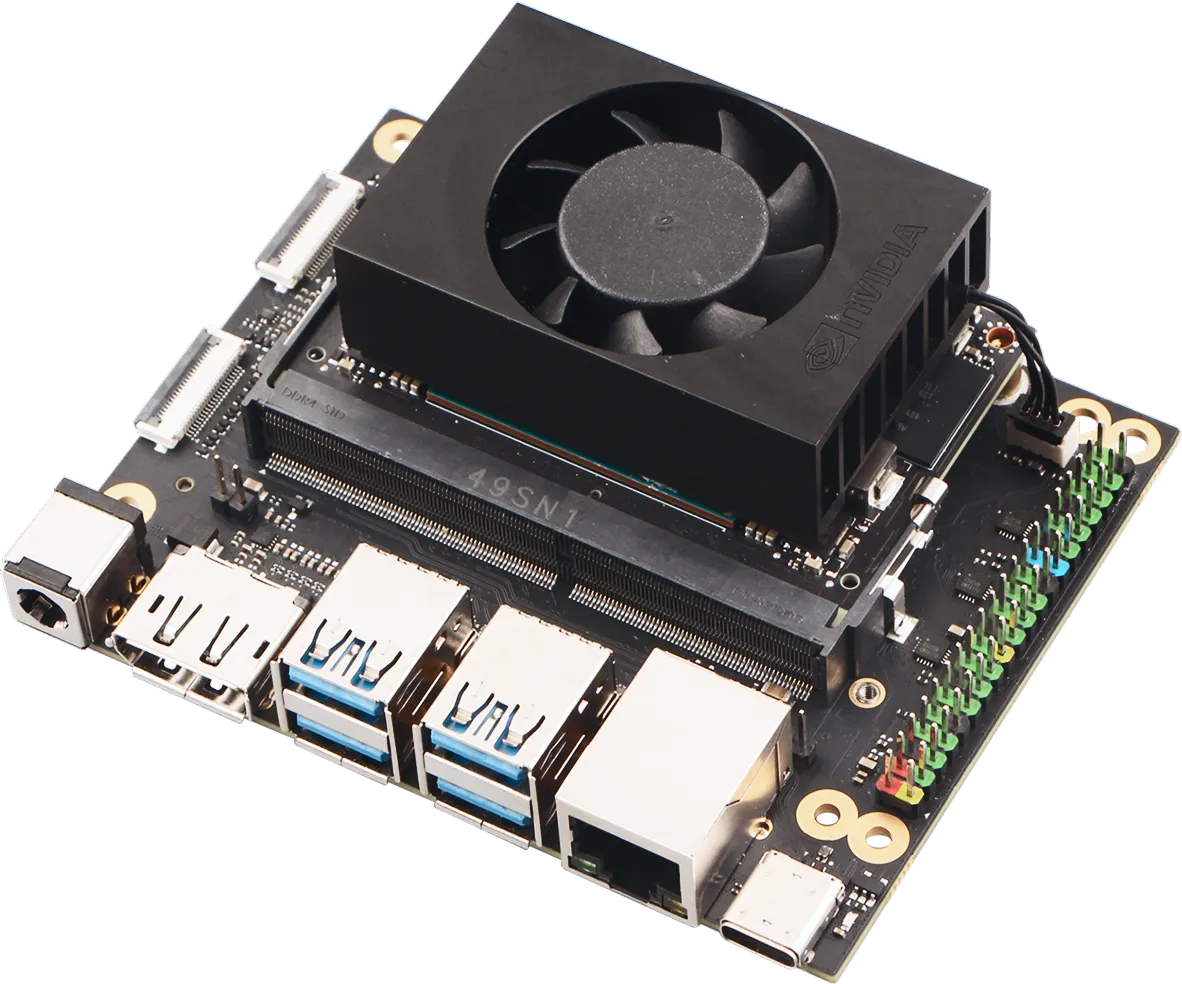

Radxa C200 Orin Developer Kit
Next-level AI Performance for Next-gen Robotics and Edge Solutions.
Buy Now
Powered by

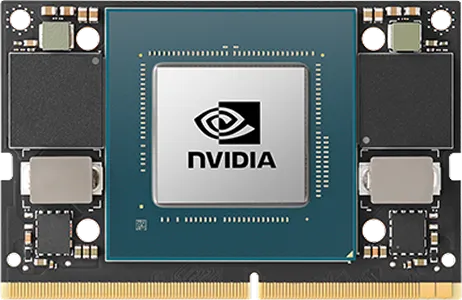

NVIDIA JETSON ORIN NX 8GB
DP 1.4
PCIe 4.0
40-Pin GPIO
USB 3.2
GbE
LPDDR 5
117 TOPS
CPU
- 6-core Arm® Cortex®-A78AE v8.2 64-bit @ 2 GHz
- 1.5MB L2 + 4MB L3
Ampere architecture GPU
1024 NVIDIA® CUDA® cores + 32 Tensor cores
- GPU Max Frequency：Up to 1173 MHz
- End-to-end lossless compression
- DLA + PVA for faster AI and guaranteed real-time response
- CUDA Core Performance：Up to 4.80 FP16 TFLOPS
Supports:
LPDDR5
- 8GB 128-bit LPDDR5
- 6400MT/s

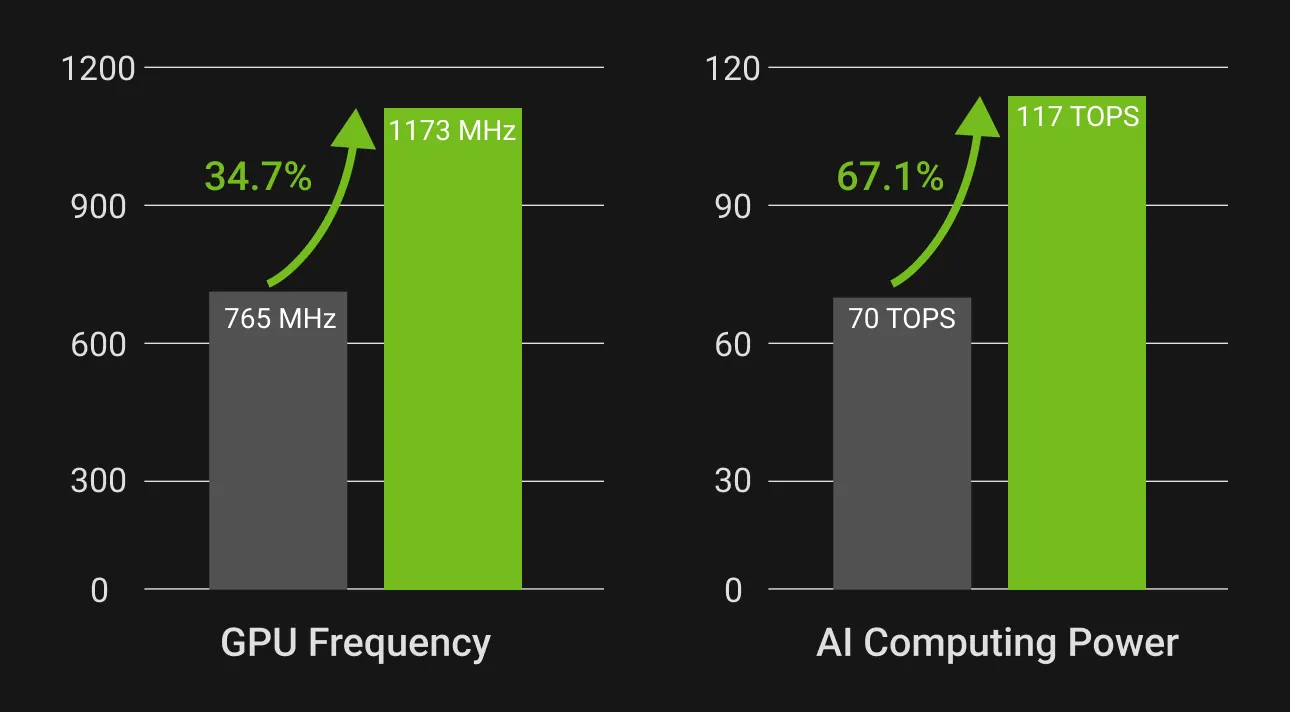

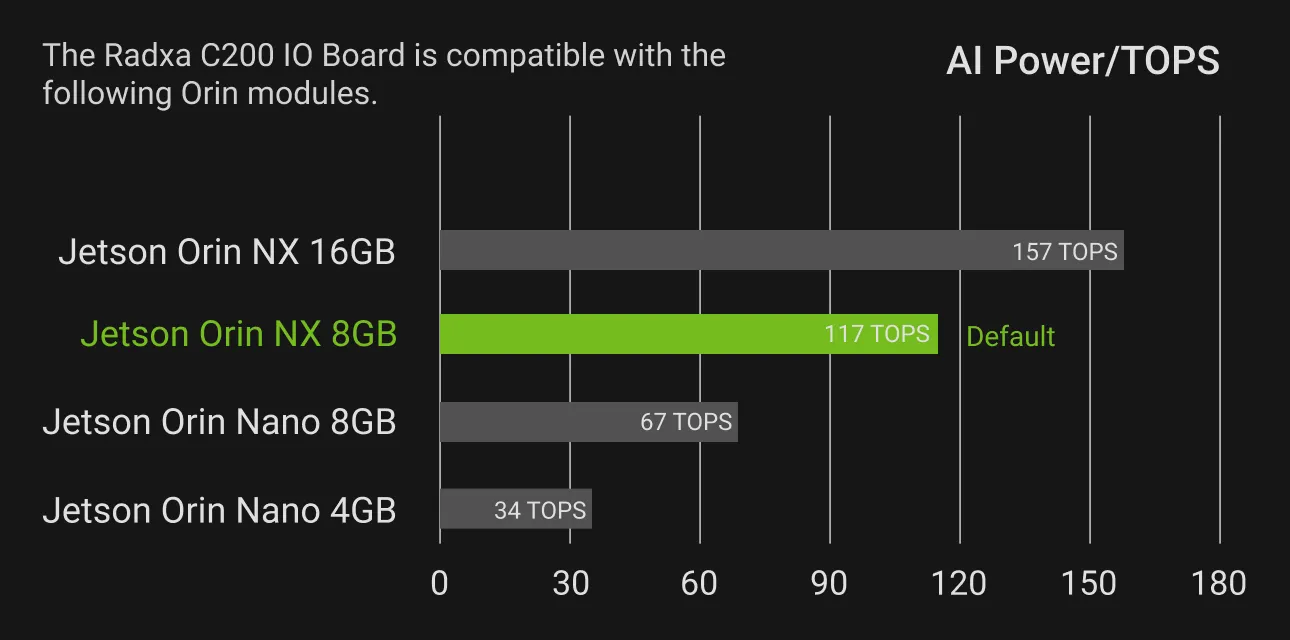

AI Performance (Orin NX 8GB)
- Super Mode Upgrade (Up to 117 TOPS)
- GPU Frequency: Increased by 34.7%
- AI Computing Power: Increased by 67.1%
Codec
Encode:
- Supports H.265 (HEVC) / H.264 / AV1 formats
- 1x 4K60 / 3x 4K30 (H.265) / 6x 1080p60 (H.265) / 12x 1080p30 (H.265)
Decode:
- Supports H.265 (HEVC) / H.264 / VP9 / VP8 / AV1 / MPEG-4 / MPEG-2 / VC-1 formats
- 1x 8K30 / 2x 4K60 / 4x 4K30 / 9x 1080p60 / 18x 1080p30 (H.265)
PCIe 4.0 High-Speed Expansion
Leveraging high-speed PCIe 4.0 expansion lanes, it seamlessly supports NVMe storage and wireless network expansion, balancing storage speed with network flexibility.
Comprehensive Connectivity
Provides full interface compatibility with the official Jetson Orin NX DevKit carrier board

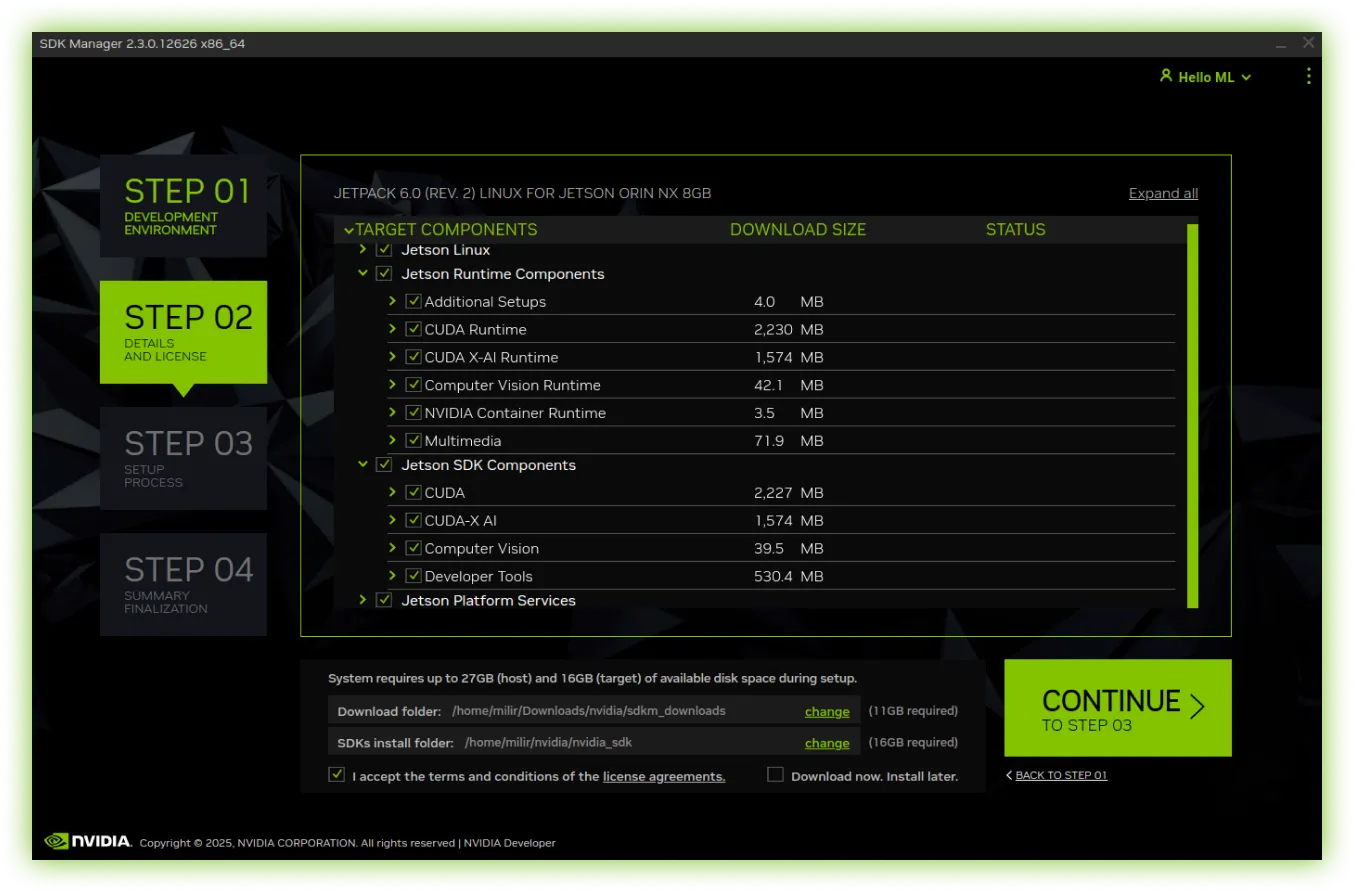

JetPack SDK
Expedite and simplify AI environment deployment to reduce the barrier to entry for developers
Jetson AI Lab
Provides full interface compatibility with the official Jetson Orin Nano DevKit carrier board
Supports
Ubuntu 20.04 & 22.04 LTS

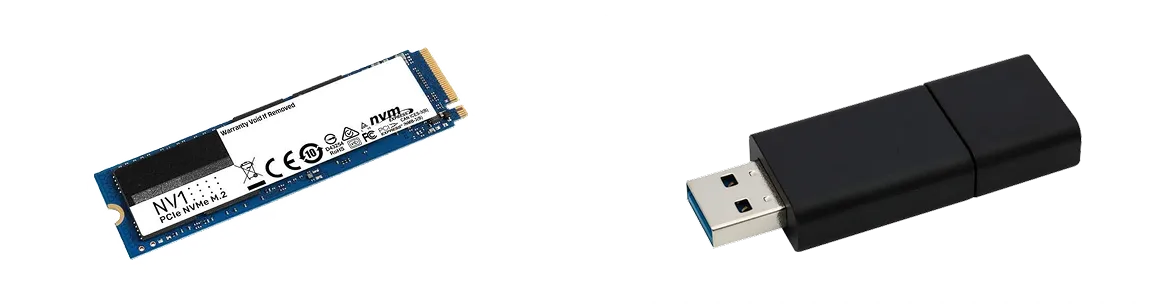

Supports
Booting from NVMe SSD or USB
NVIDIA Isaac ROS
Accelerate AI robot development from perception to action
Humanoid robots
Robot learning
Robot simulation
Synthetic data generation
Package List
- Radxa C200 IO board
- Jetson Orin NX 8GB Module
- Jetson Orin NX Heatsink (Pre-installed on module)
