CIX P1 officially becomes the world's second system-on-chip (SoC) to
be certified at SBSA Level 6 (Server Base System Architecture Level 6).
CIX P1
45 TOPS
2.5GbE
4G LTE
PCIe Gen4
UFS
BT 5.4
WiFi 6
ARM v9 Architecture Open-Source

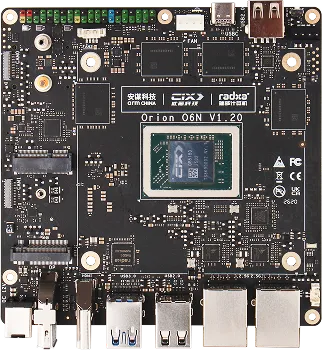

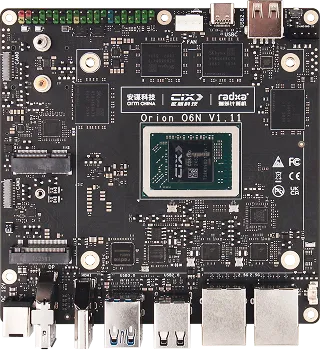

Nano SBC

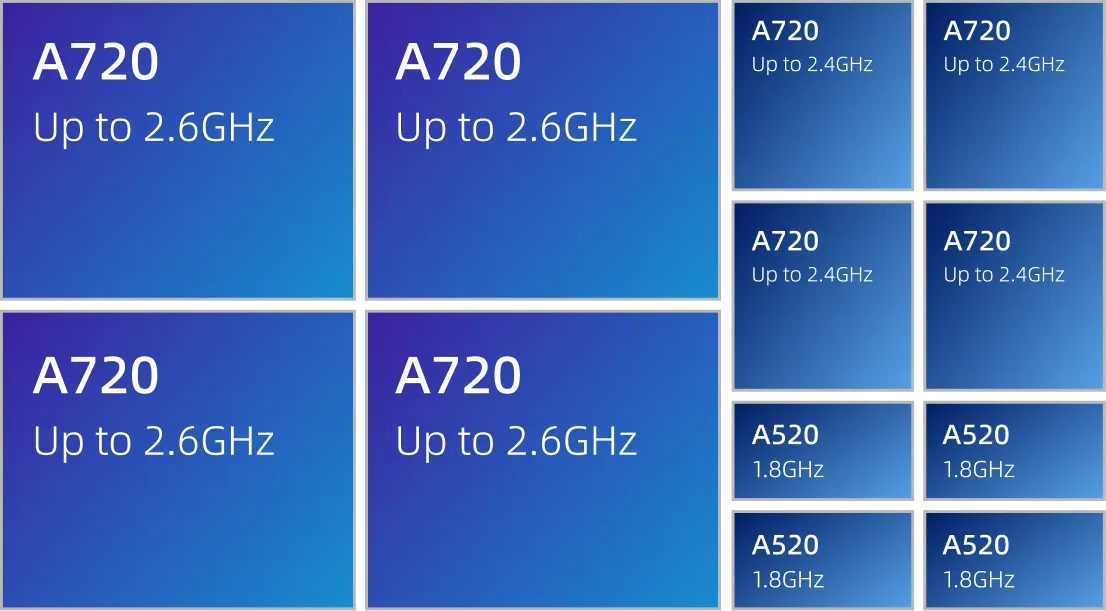

Based on CIX P1 SoC, built on 6nm process technology, 12-Core CPU with tri-cluster architecture, up to 2.6GHz

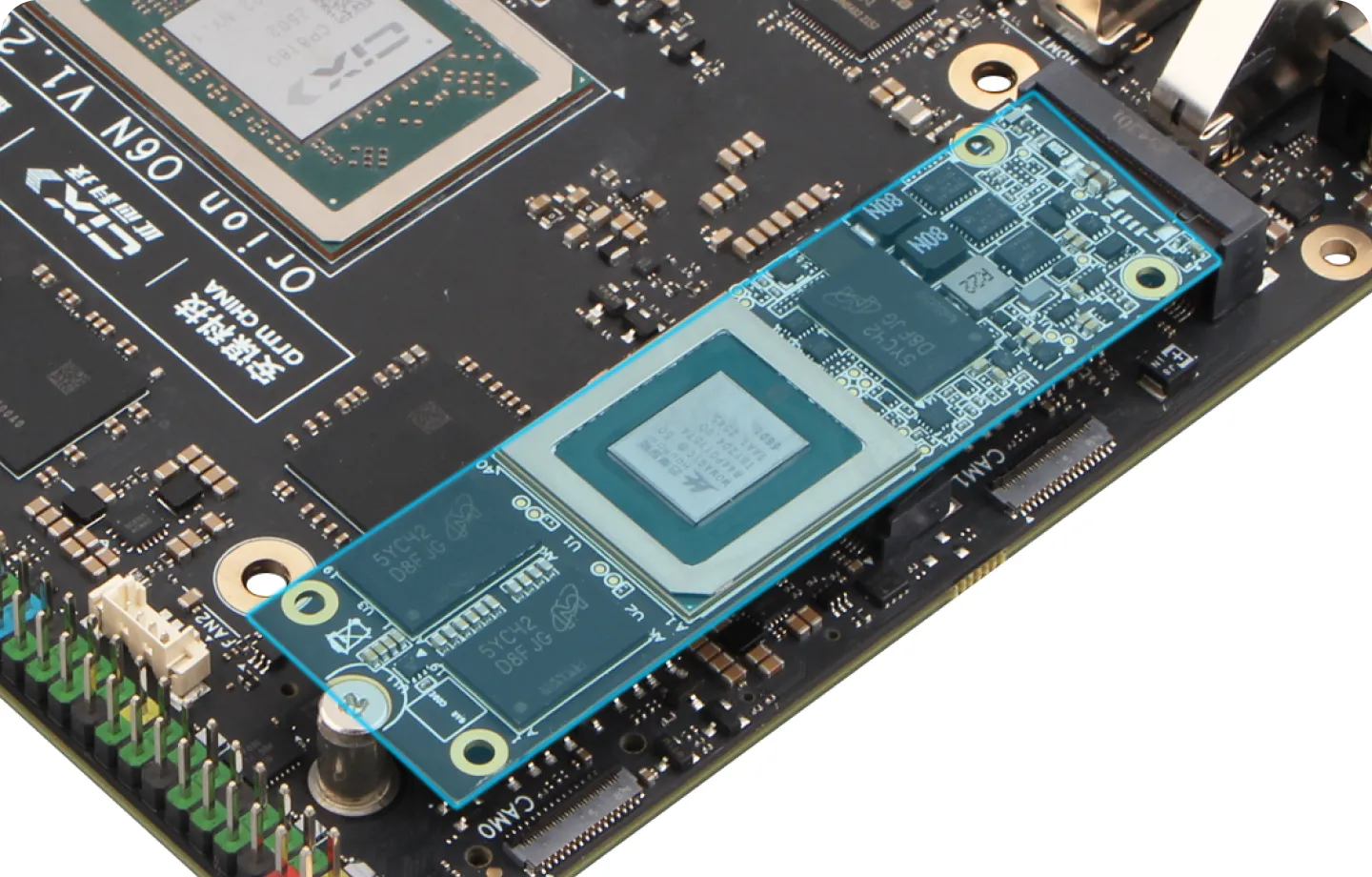

10-Core GPU with hardware-accelerated ray tracing
Arm® Immortals™ G720 MC10 GPU
- Hardware-Based Ray Tracing Technology Enhances Graphic Authenticity by Creating Realistic Lighting Effects.
- Multi-API Standards Showcase Superior Graphics Processing
- Efficient Rendering and Parallel Computing for Professional Performance

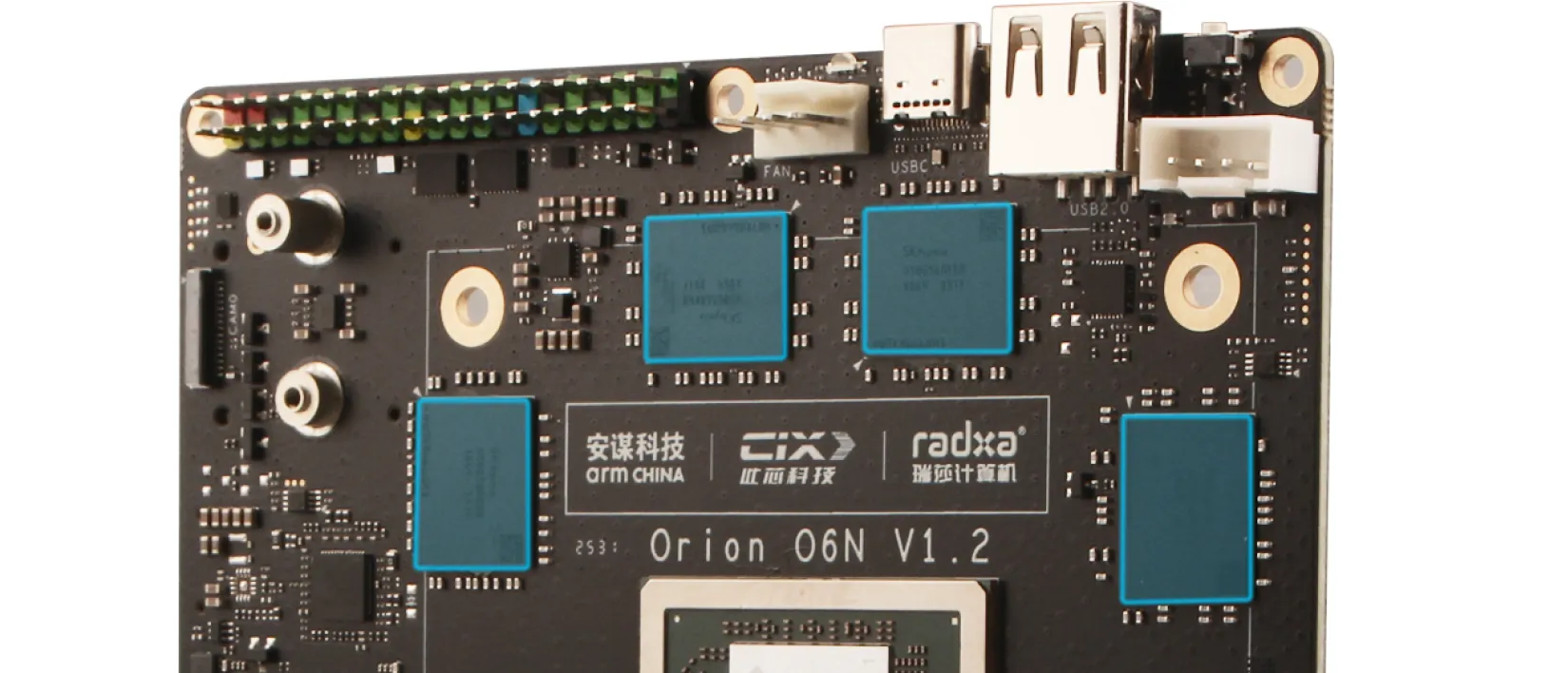

Supports up to 64GB LPDDR5 memory
- 128bit
- Optional 5000MT/s or 6000MT/s

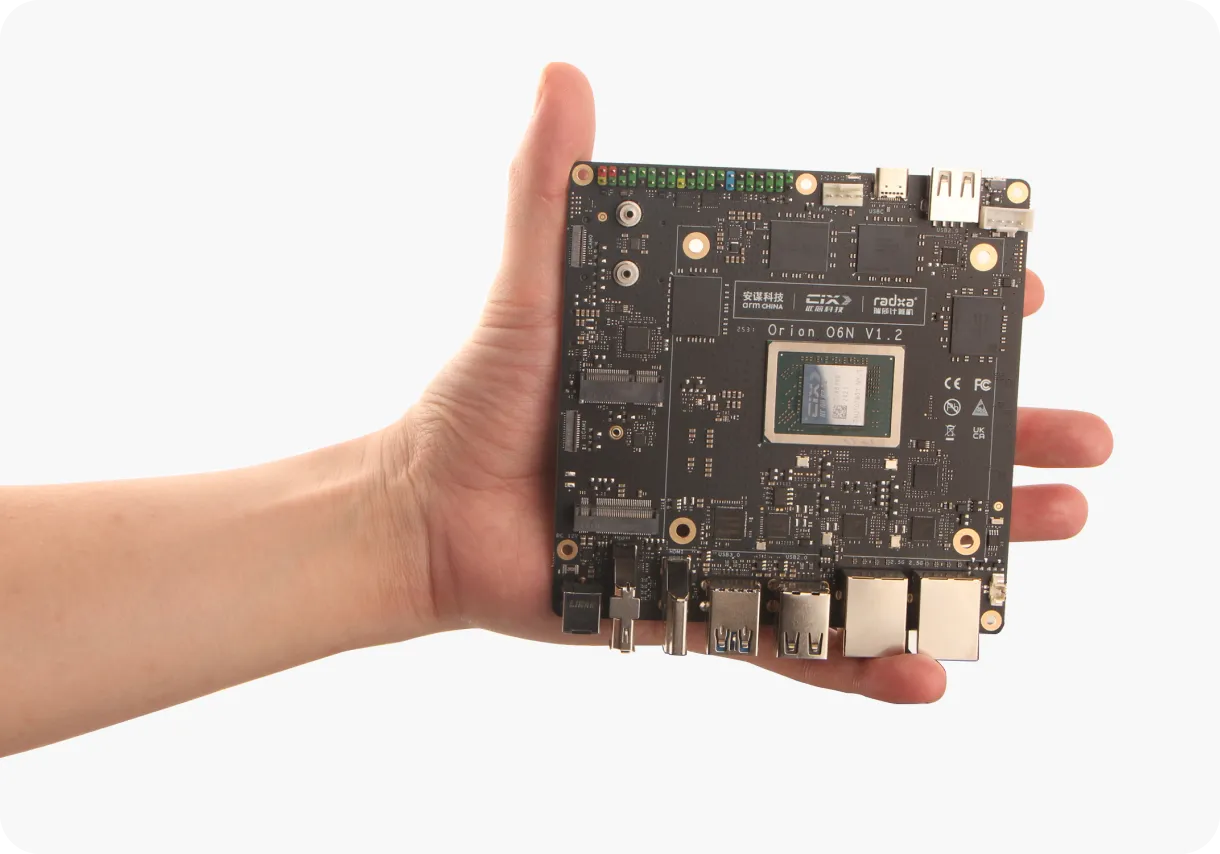

Ultra-Compact · Standard Form Factor
120mm x 120mm standard Nano-ITX form factor

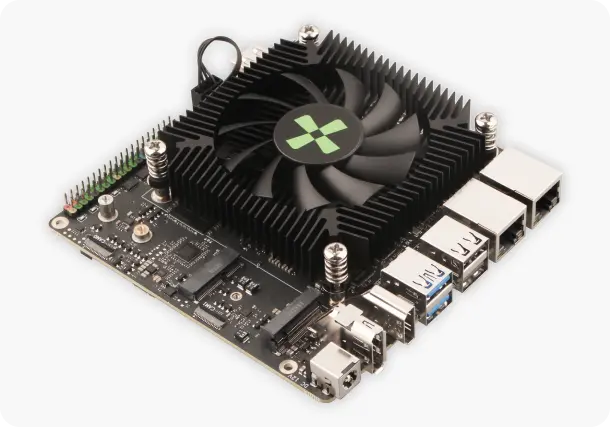

Smart Cooling · Silent Efficiency
Dynamically balances performance and noise
HyperSpeed Connectivity · Ultimate Networking

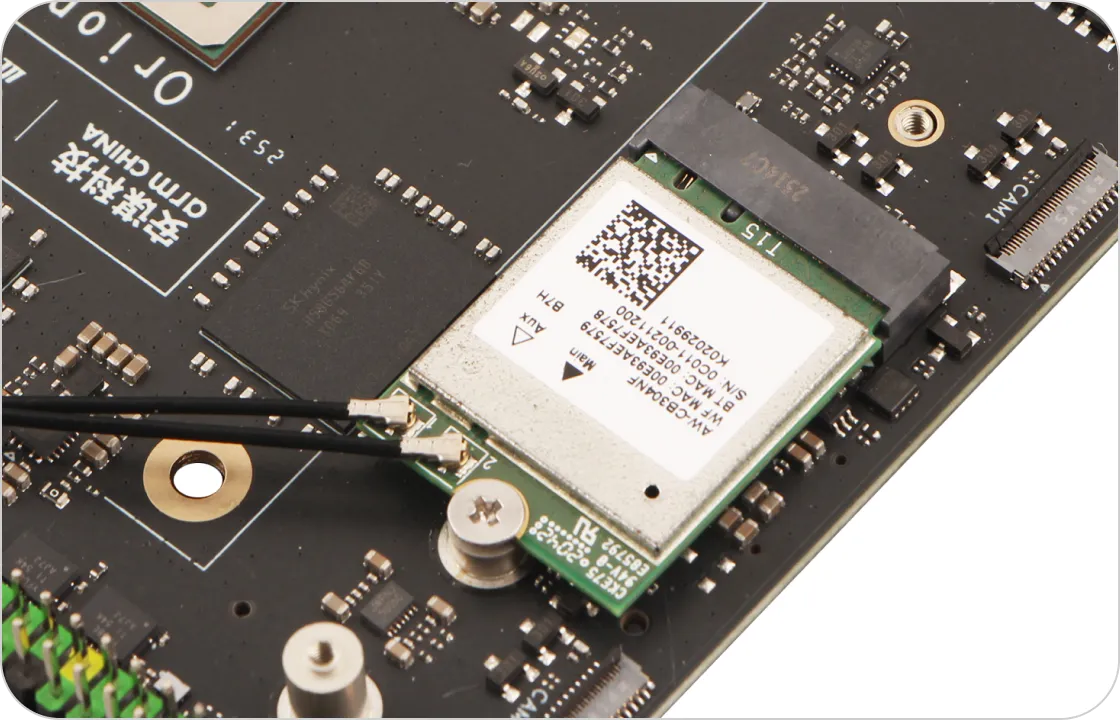

Wireless Boost:
Supports WiFi 6 & BT 5.4

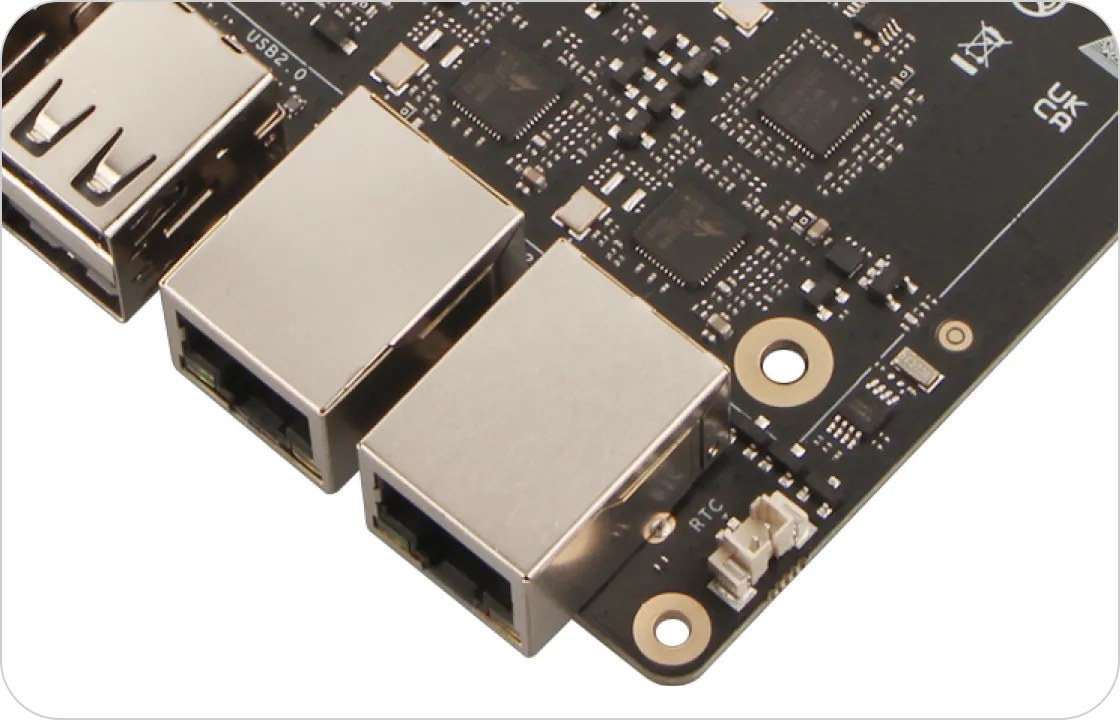

Wired Overdrive:
Dual 2.5G high-speed
Ethernet portsMobile Ready:

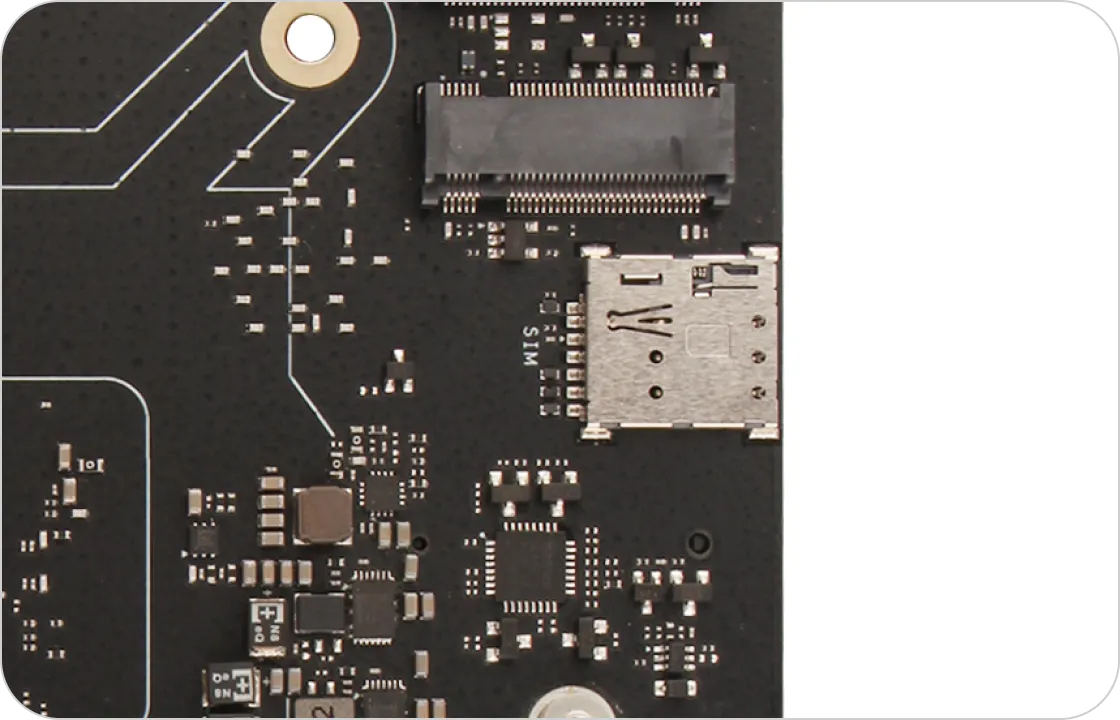

Onboard SIM slot with 4G
module support(Additional 4G Module is required)

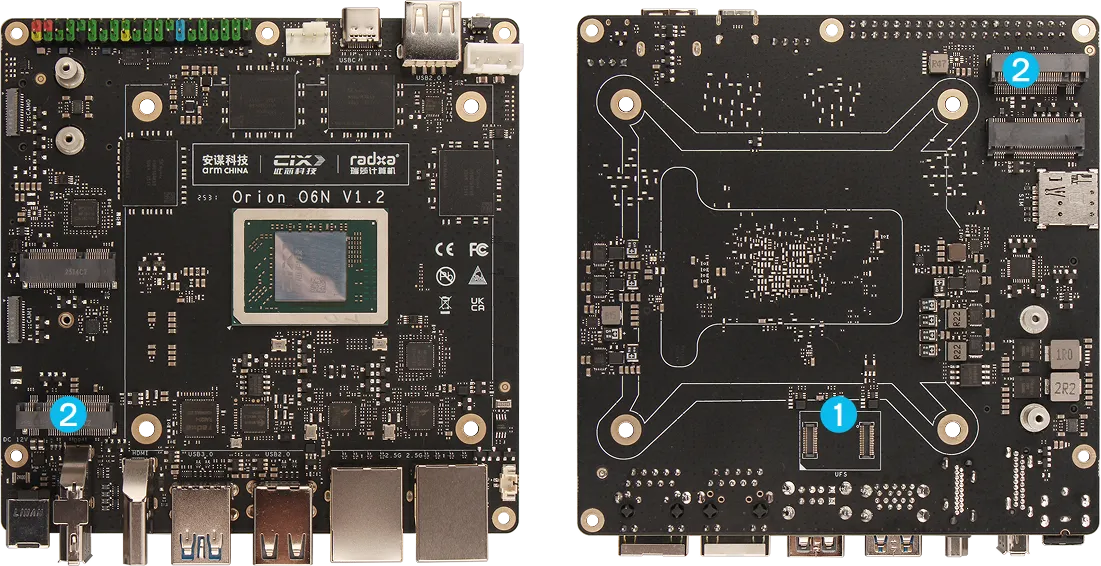

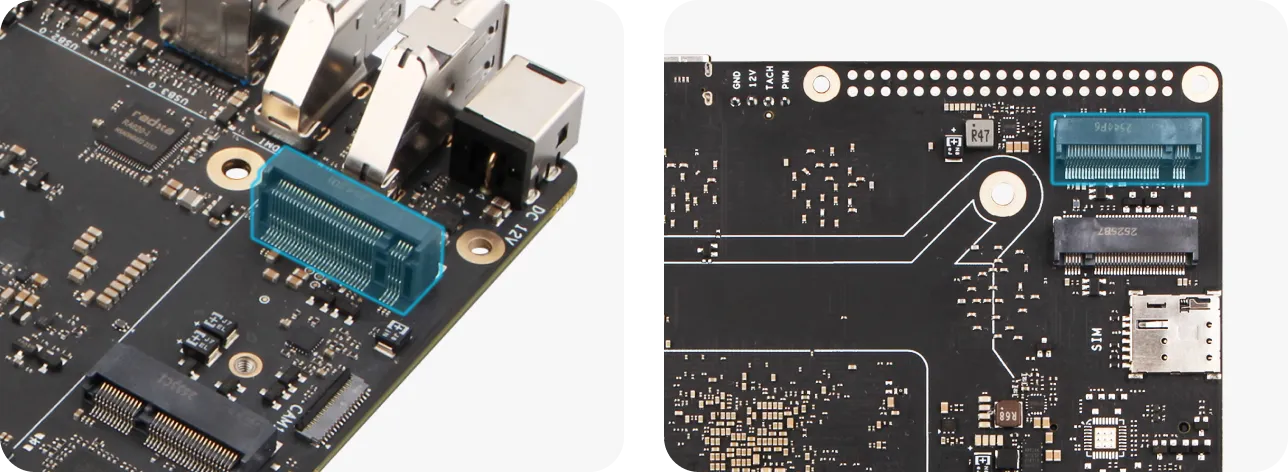

Ultra-fast Storage · Versatile Expansion

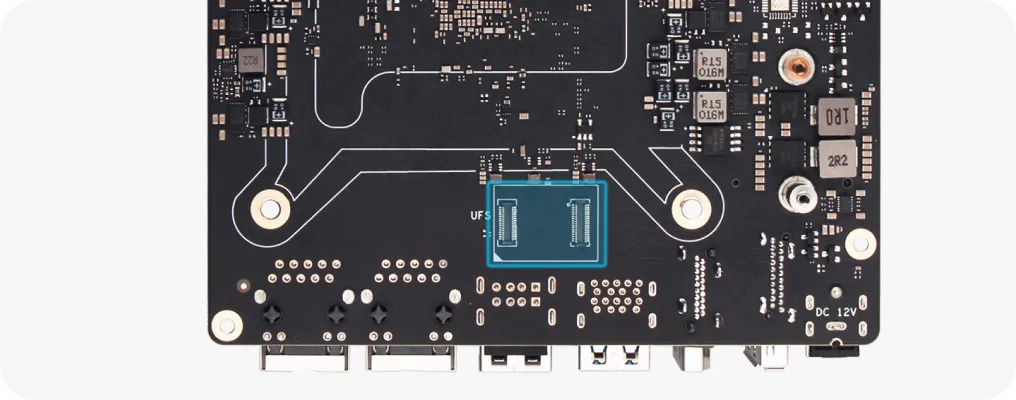

Pluggable UFS Module design, plug-and-play, convenient for system backup
Dual M.2 M Key PCIe Gen4 x4 NVMe slots for high speed and large capacity requirements

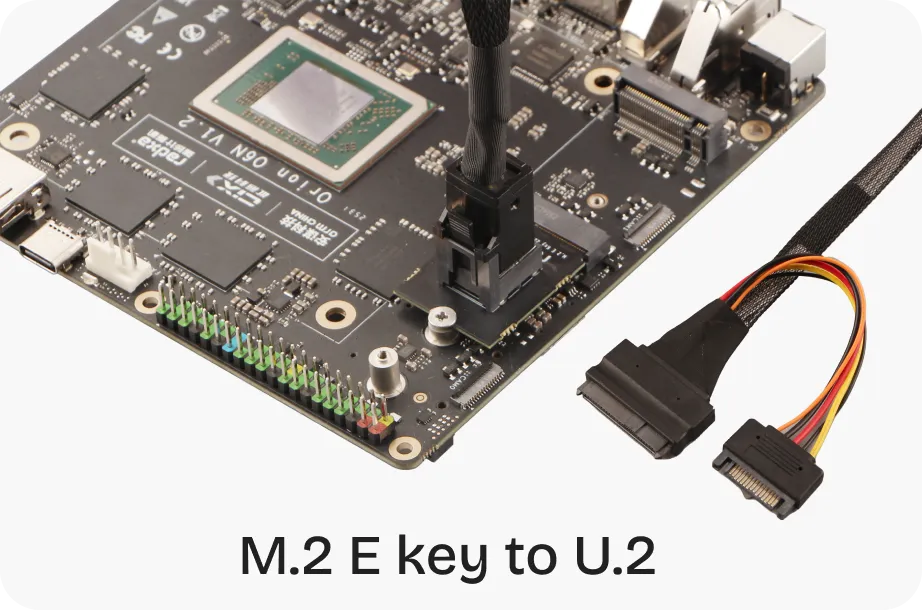

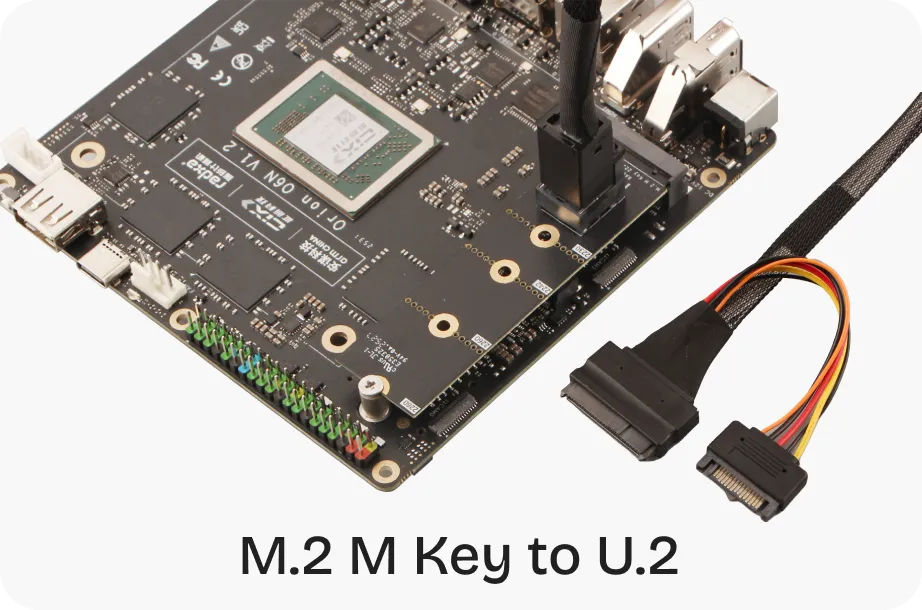

Compatible with
U.2 SSD
(Additional adapter board required)

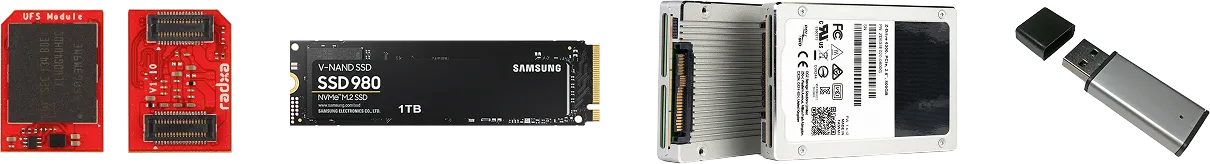

Supports booting from USB drive / UFS
Module / M.2 NVMe / U.2 SSD
Universal Display · Multi-Screen Output
Supports up to 8K hardware encoding and decoding, Supports up to4K@120Hz

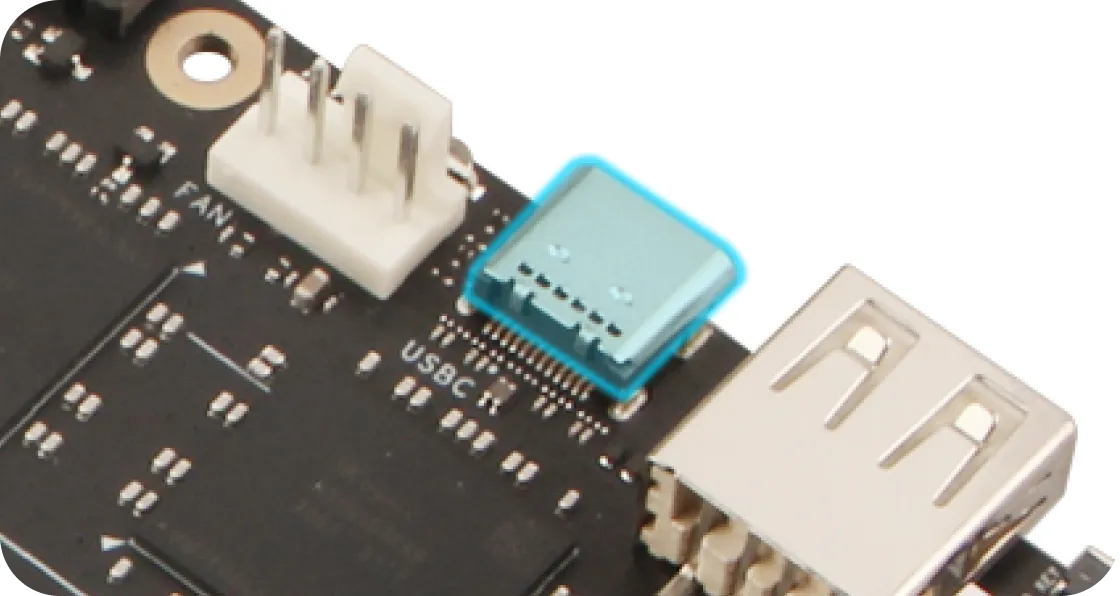

USB-C supports DP Alt Mode for video and data with one cable

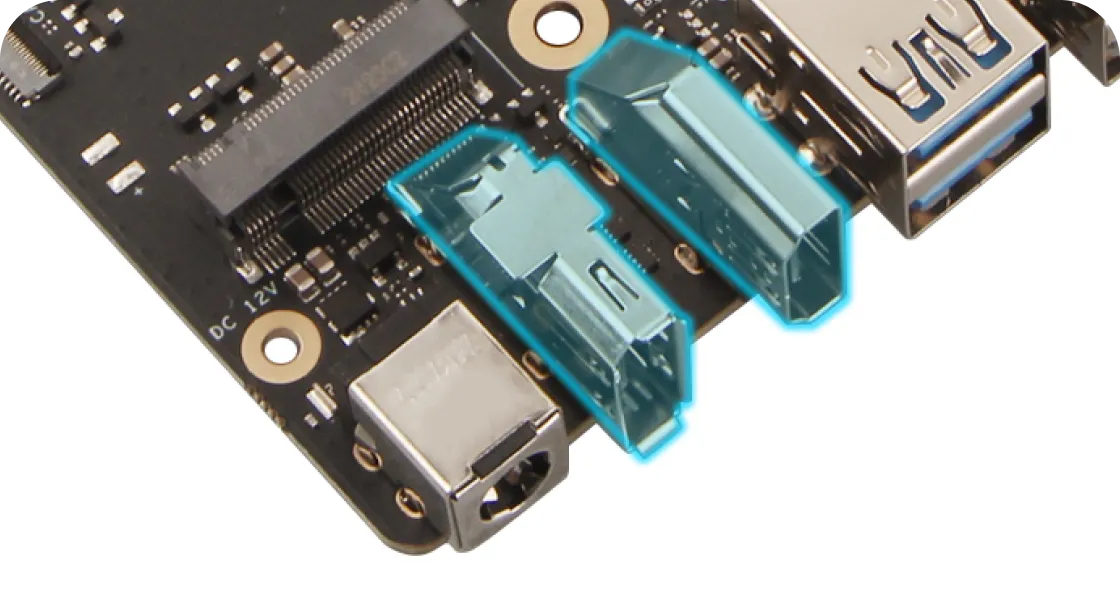

Supports simultaneous output
via DP / HDMI interfaces
Diverse Ecosystem · Full Empowerment
CIX EBP:
Unlock the Power of P1
CIX EBP (Early Bird Program) is a developer-oriented initiative that gives early access to the latest CIX P1 software.
Paired with the Radxa Orion O6N, it enables rapid prototyping and innovation.
Start building with cutting-edge software, full docs, and early support for your P1-powered projects.
Join CIX EBP
GO Graphics Engine
High-performance Linux graphics stack with OpenGL, Vulkan, OpenCL support
NeuralONE Al SDK
Full Al toolchain with NPU docs and moolel optimization tools
Al Model Hub
Pretrained models for LLMs and multimodal tasks
DSP SDK
Tools and libraries for real-time signal and multimadia processing

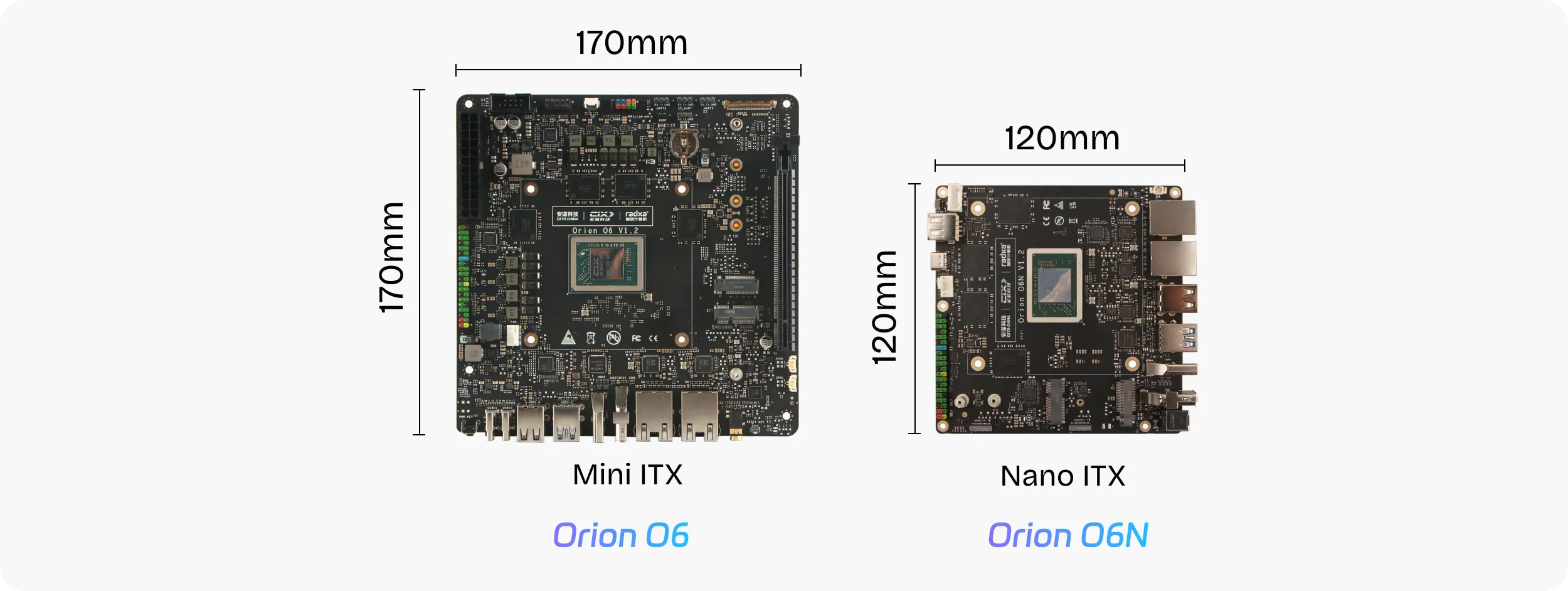

Orion O6 vs Orion O6N
 |  | |
|---|---|---|
| Model | Orion O6 | Orion O6N |
| Form Factor | 170x170mm, Mini ITX | 120x120, Nano ITX |
| Power | ATX Power, USB C PD(20V) | 12V DC 5525 |
| CPU | CIX P1 | CIX P1 |
| DRAM | 6000MT/s | Optional 5000MT/s or 6000MT/s |
| PCIe | PCIe x16 Slot | N/A |
| M.2 | 1x M.2 E Key 2230 1x M.2 M Key | 1x M.2 E Key 2230 2x M.2 M Key 2280 1x M.2 B Key 3042 |
| USB-C | 2x USB C with PD / DP Alt Mode | 1x USB C with DP Alt Mode |
| Audio | 3.5mm HP | N/A |
| UFS | N/A | Supports Radxa UFS module |
| Ethernet | 2x 5GbE | 2x 2.5 GbE |
| Front Panel | F_USB, F_Audio, F_Panel | N/A |
| 40-Pin GPIO | YES | YES |
| Display | - 1x DP - 1x HDMI - 2x USB C DP Alt Model - 1x eDP | - 1x DP - 1x HDMI - 1x USB C DP Alt Model |
| EC CHIP | YES | N/A |
Comprehensive Technical Documentation and
Active Community
Comprehensive Technical Documentation and Active Community !
Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.
