rCore-Q8750
Qualcomm Q-8750
8-Core Kryo
Adreno 830
Up to 77 TOPS
LPDDR5X
On-Module 128GB
Display
8K Video Decoding
PCIe Gen 3
36 × 32 mm
Powered by the Qualcomm Dragonwing™ Q-8750 processor platform, rCore-Q8750 brings high-performance computing, advanced multimedia, multi-camera awareness, and optional on-device AI acceleration into a compact 36 × 32 mm form factor.
Built on an advanced 3nm process, rCore-Q8750 combines an 8-core Qualcomm Oryon CPU, Adreno 830 GPU
CPU4.32 GHz
GPUAdreno 830
NPUHexagon™The Qualcomm Adreno 830 GPU delivers high-performance graphics, visualization, and parallel computing capabilities for immersive displays, AI media devices, and interactive systems.
OpenGL ES 3.2
Vulkan® 1.3
OpenCL 3.0An integrated Adreno 8-series multimedia pipeline enables high-resolution video decode, encode, and display output for smart displays, media stations, collaboration systems, and edge video devices.
Six 4-lane MIPI CSI interfaces and the Qualcomm Spectra ISP enable high-resolution, multi-camera perception for robotics, intelligent imaging, and machine vision.

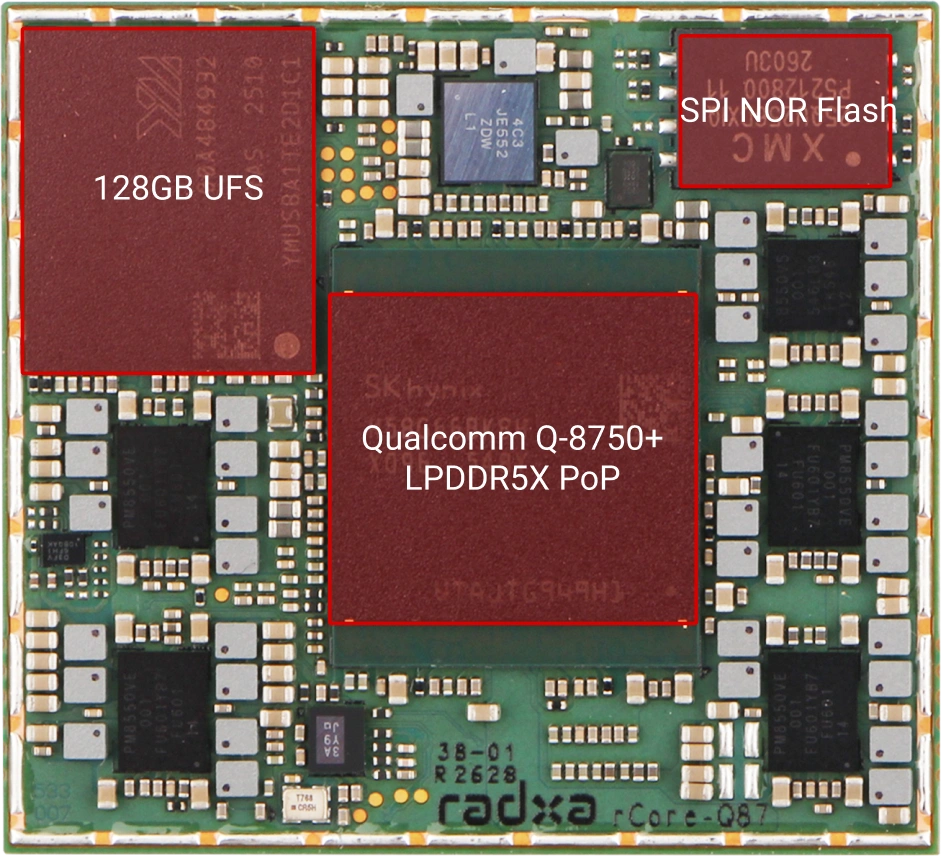

Up to 24GB LPDDR5X and 128GB on-module UFS provide fast memory bandwidth, responsive boot, and quick data access for video, AI, and edge workloads.

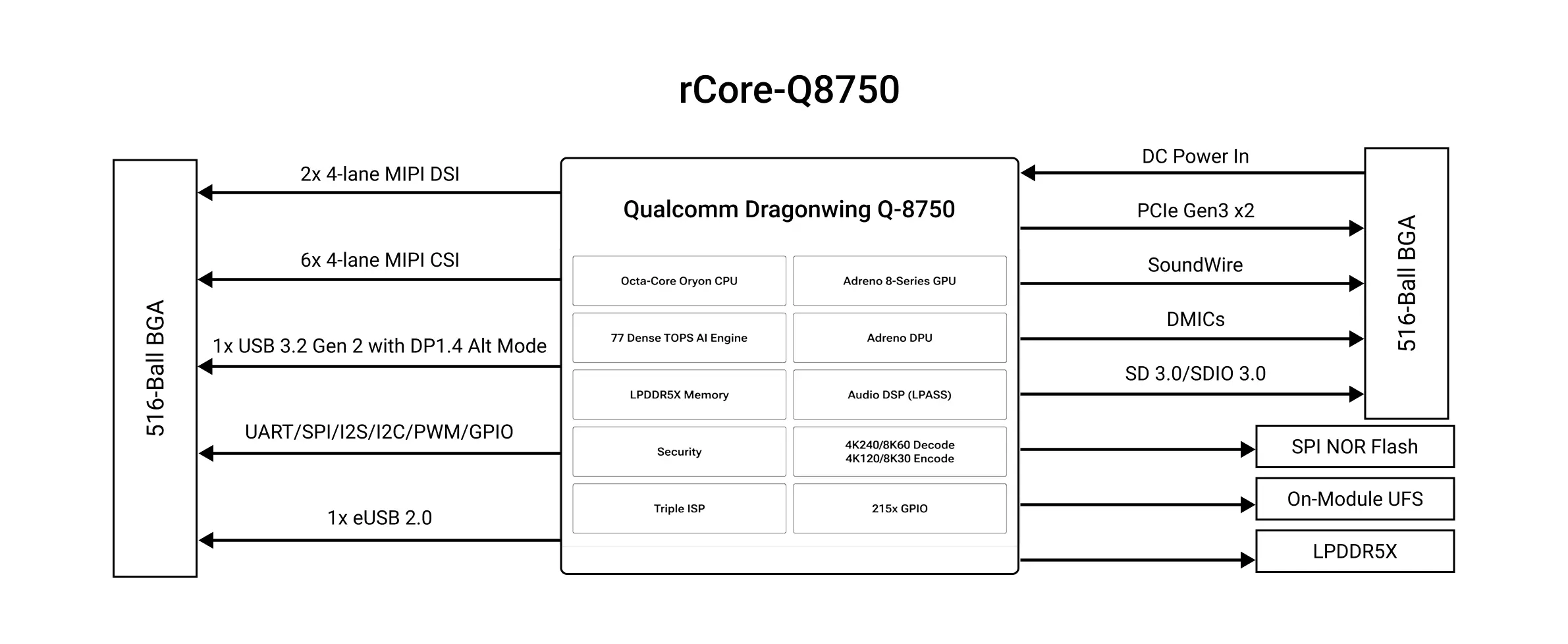

High-speed interfaces and flexible I/O buses simplify integration with displays, cameras, storage, sensors, and industrial peripherals.

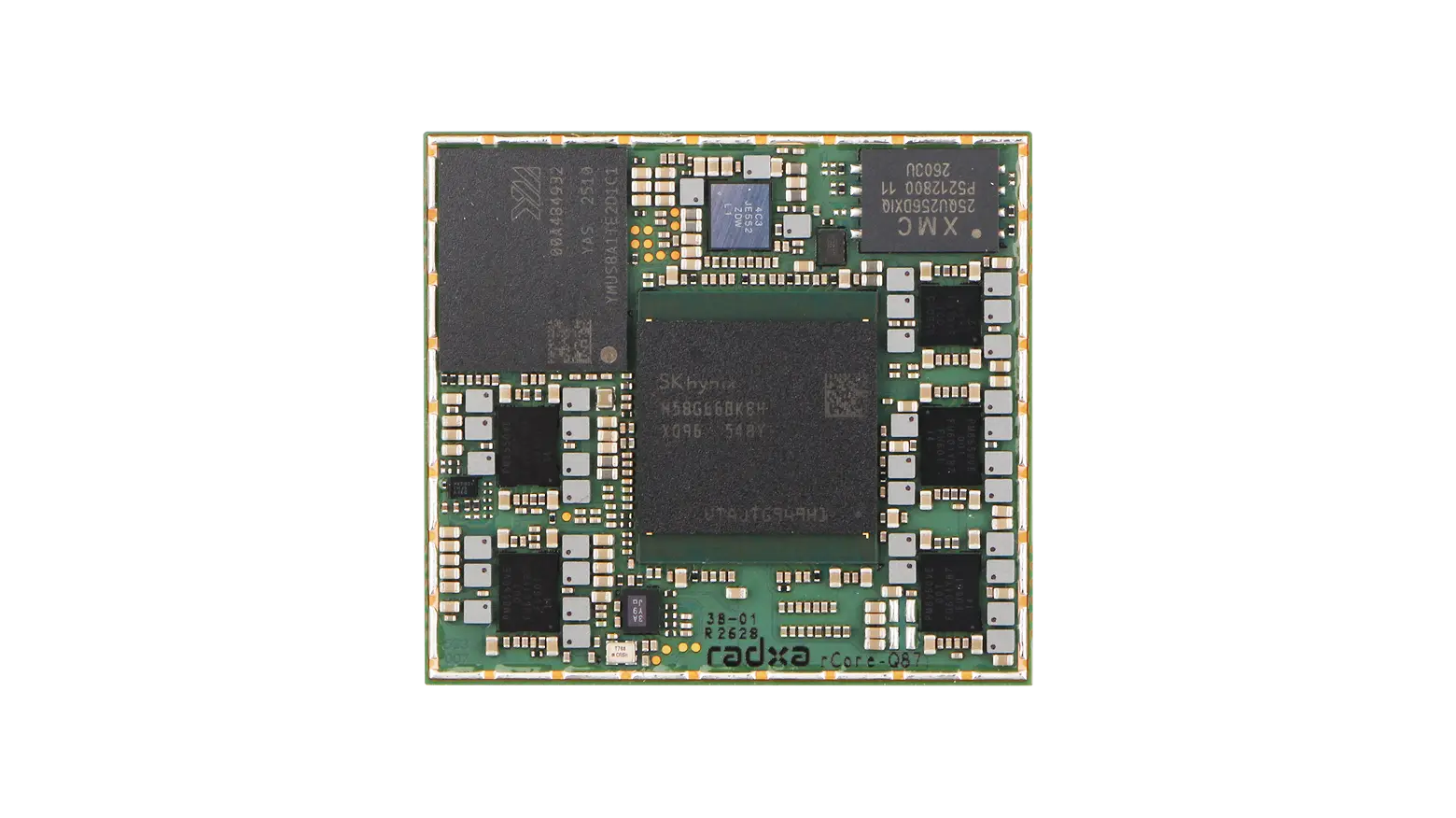

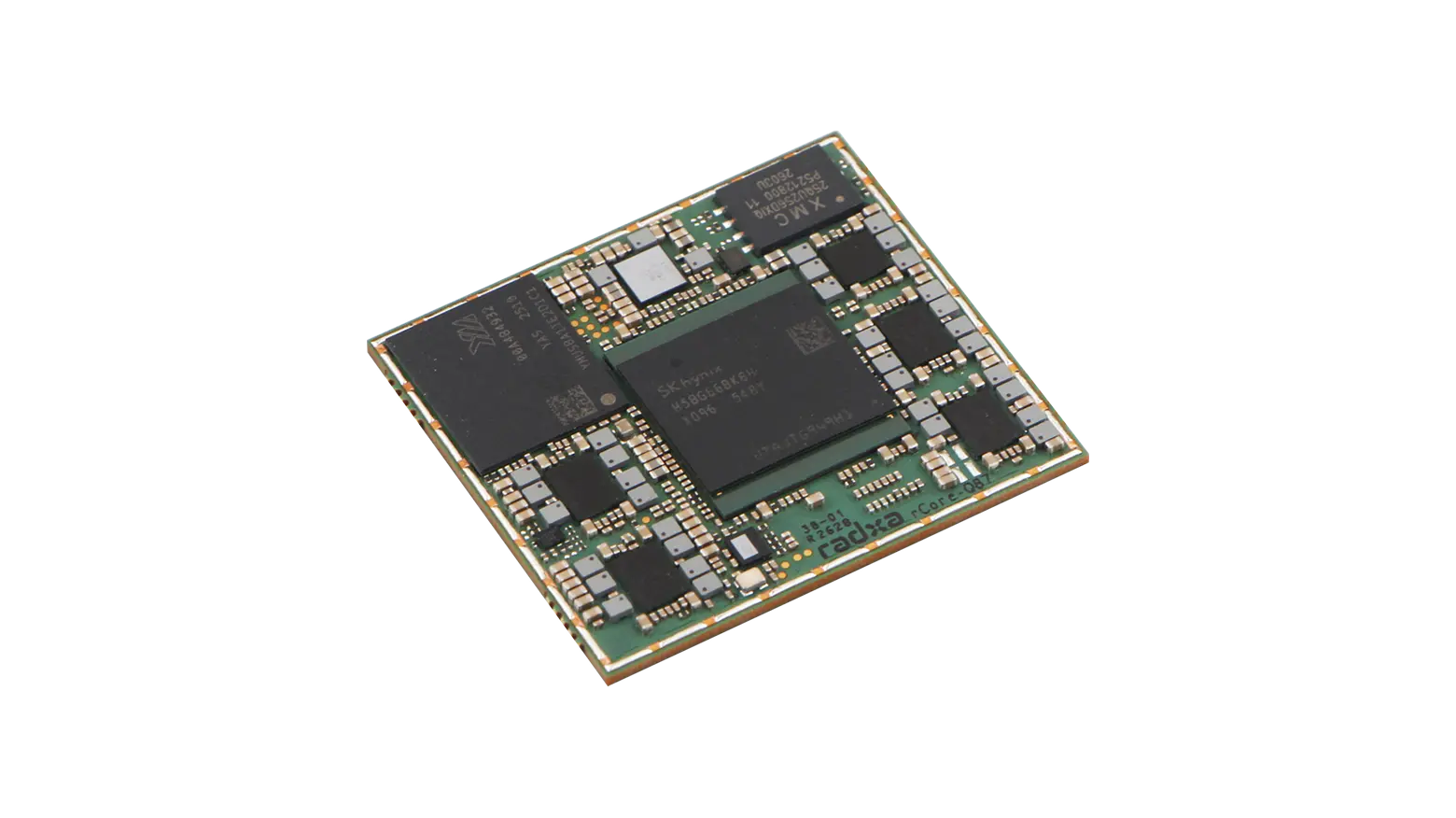

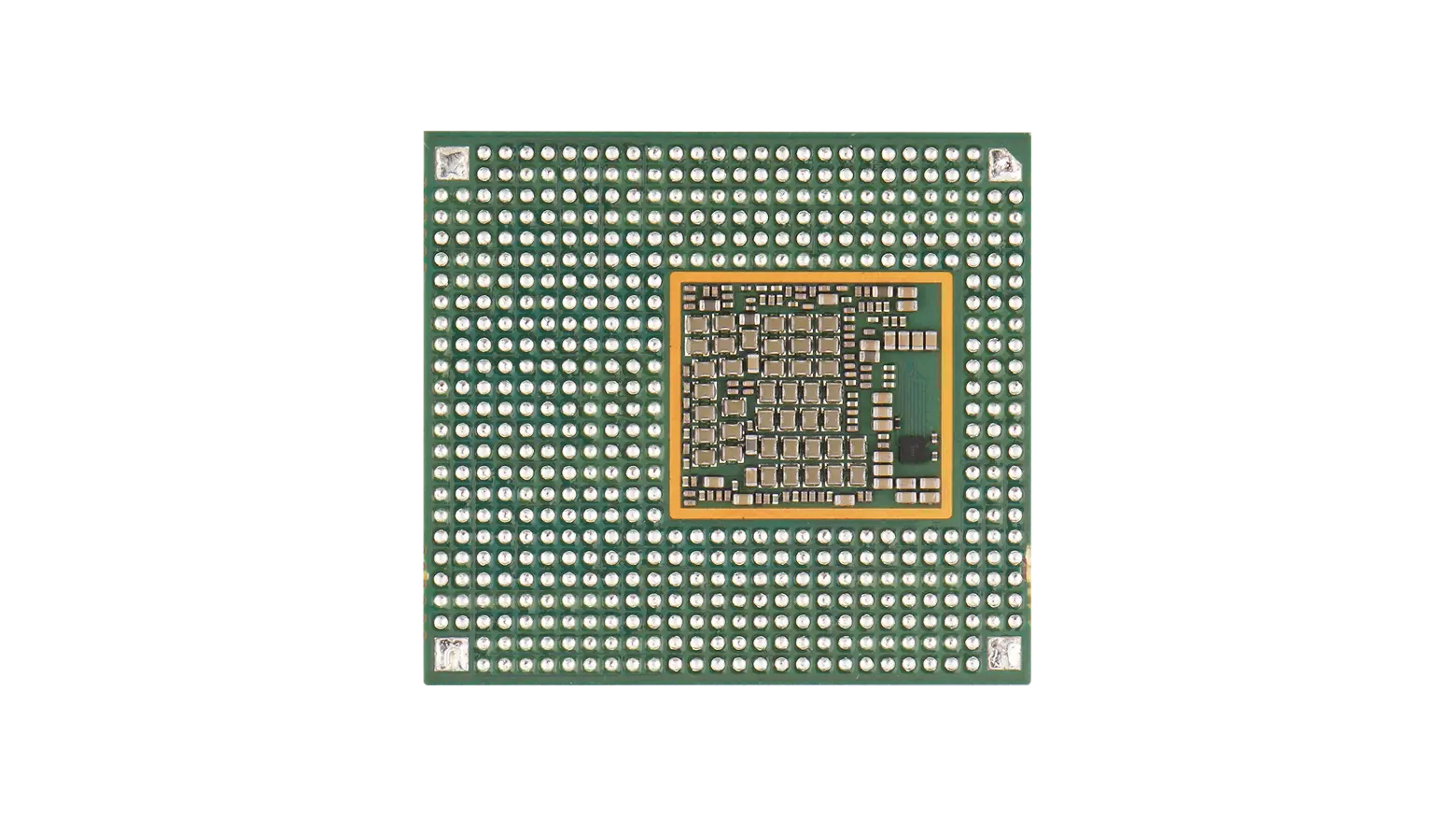

With a compact 36 × 32 mm form factor, 516-ball BGA package, and industrial-ready processor platform, rCore-Q8750 is built for high-performance edge AI, vision, and multimedia products that require stable integration in space-constrained systems.
Supports Radxa OS, Windows, Ubuntu, Debian, fnOS, and more, with Qualcomm AI Hub available to accelerate AI model deployment and application development.
Through the Qualcomm® AI Hub, developers can access a library of pre-optimized AI models, simplifying on-device AI deployment, maximizing hardware performance, and delivering an exceptional user experience.
We support custom carrier board development with solution evaluation, reference design, and technical guidance to help customers accelerate product integration
Powerful computing, vision, and expansion capabilities enable a wide range of edge intelligent products.
Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.
