rCore-RK3308
(Formerly known as ROCK Pi S Core)
The rCore-RK3308 combines high performance, low power consumption, and ultra-compact size, making
it ideal for IoT devices, smart voice applications, and industrial controls.

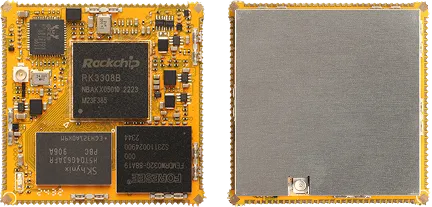

rCore-RK3308
is a highly integrated System-on-Module (SoM) based on the Rockchip RK3308B, featuring CPU, RAM, storage, and wireless connectivity in a compact 35mm x 35mm stamp-sized footprint, ideal for versatile embedded applications.
Extensive Expansion Interface
120 Pin available for extensive embedded development needs
Rockchip RK3308B
Quad-core ARM Cortex-A35 CPU
- - Full implementation of ARM architecture
v8-A instruction set - - ARM Neon Advanced SIMD support for
accelerated media and signal processing
computation - - Include VFP v3 hardware supporting single and double-precision operations
Low Power Consumption
ARM Instruction Set
Cryptography Extensions
Neon SIMD
FPU
TrustZone
Flexible RAM Configuration
Available in 256MB / 512MB RAM options
Rich Storage Options
- - On-board eMMC storage,
available from 8GB to 128GB - - Support Micro SD card expansion,
up to 128GB
Wireless Connectivity
- - Integrated 802.11 a/b/g/n Wi-Fi
- - Bluetooth BT 2.1 / 4.2
(Realtek RTL8723DS)
Typical Applications
Making it ideal for IoT devices, smart voice applications, and industrial controls
IoT devices
smart voice
industrial controls
Comprehensive Technical Documentation and
Active Community
Comprehensive Technical Documentation and Active Community !
Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.
