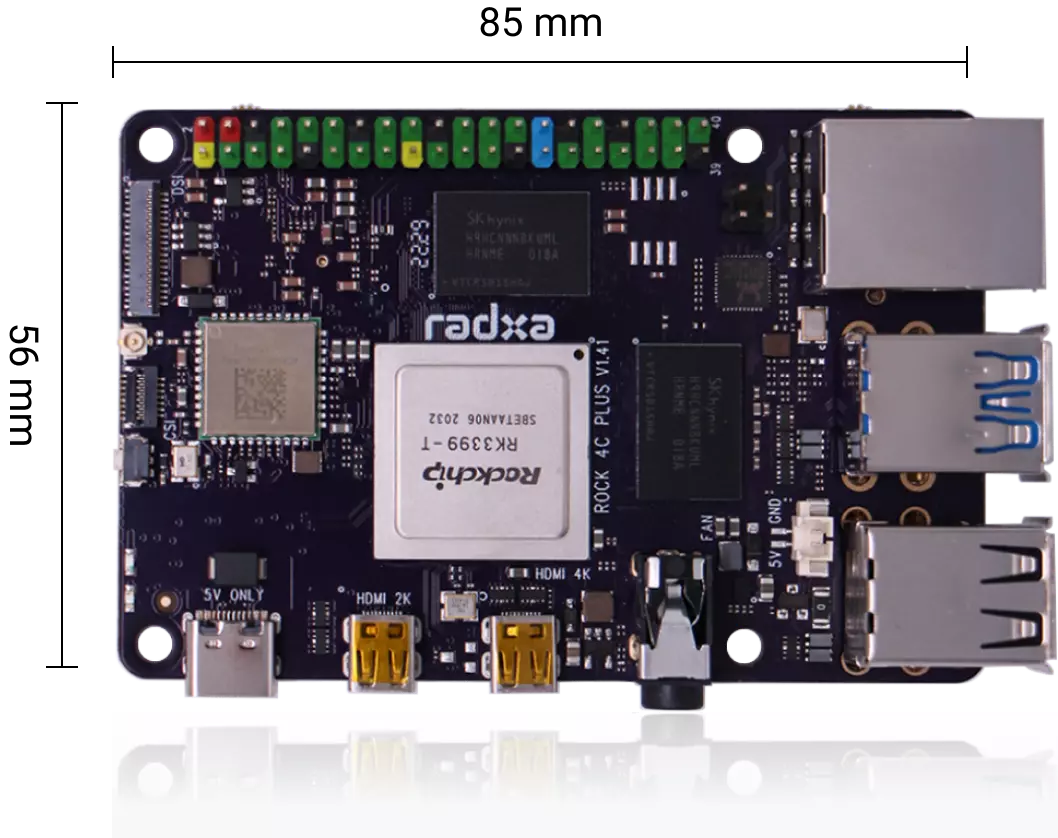

Rockchip RK3399-T
64-bit SoC
4GB
Dual Display 4K & 2K
WiFi5 & BT5
Arm® big.LITTLE™ technology
up to 1.5GHz
up to 1.0GHz
Support OpenGL ES1.1 / 2.0 / 3.0 / 3.1 / 3.2, Vulkan 1.0, OpenCL1.1, 1.2, DX11 etc
Support OpenGL ES1.1 / 2.0 / 3.0 / 3.1 / 3.2, Vulkan 1.0, OpenCL1.1, 1.2, DX11 etc
Support H.265/VP9 (HEVC) hardware decode (up to 4Kp60)
Support H.264 hardware decode (up to 1080p60)
Dual Micro HDMI ports support displays up to 4K@60fps resolution and 2K@60fps
MIPI DSI interface support 1080p@60fps
*Only two of HDMI 2K, HDMI 4K and MIPI DSI can work at the same time.
Supporting 802.11 b/g/n/ac (WiFi 5) wireless LAN, BT 5.0 with BLE
Gigabit Ethernet with Power over Ethernet (PoE) support (additional HAT is required for powering from PoE)
Gigabit Ethernet with PoE
Supporting 802.11 b/g/n/ac (WiFi 5) wireless LAN
BT 5.0 with BLE
Radxa Display 8 HD
Radxa 25W PoE+ HAT
Radxa Camera 4K
Raspberry Pi Camera
Module 2
Raspberry Pi 7" Touch Screen
Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.
eMMC Connector and Micro SD Card Slot
Dual Storage and Booting OS Solution
MIPI CSI 2 lanes via FPC connector
Support up to 800 MP camera
The Camera connector features a compact 0.3mm pitch
One 3.5mm audio jack (MIC input)
HD codec that supports up to 24-bit/96KHz audio
2x USB2 Host ports
1x USB3 OTG port
1x USB3 HOST port
1x 2 pins 1.25mm header
Supporting various interface options:
2 x UART
2 x SPI bus
3 x I2C bus
1 x PCM/I2S
1 x SPDIF
2 x PWM
1 x ADC
6 x GPIO
2 x 5V DC power pin
2 x 3.3V power pin
