CM3

A Feature Rich Embedded SoM

CM3

CM3

  • Features
  • Product Details
  • Block Diagram
  • Interfaces
  • Hardware Spec
  • Design Resources
  • Documentations
  • Rockchip RK3566

    Rockchip RK3566

  • RAM

    LPDDR4 RAM

  • eMMC

    Optional Onboard
    eMMC

  • BT5

    Optional WiFi5 & BT5

Unleashing Power, Embracing Affordability

RK3566

Quad-Core Arm® Cortex™-A55

up to 1.8Ghz

Arm®Mali™-G52 2EE

Support OpenGL ES 1.1/2.0/3.0/3.1/3.2, OpenCL 2.1,Vulkan 1.1

NPU: 0.8 TOPs@INT8 performance

TensorFlowPyTorchONNXMxnetCaffe

Superior Performance, Energy Efficient
Arm Mali-G52 2EE GPU

arm

FP32 Performance in GFLOPS

Arm Mali-G52 2EE

54.4

Arm Mali-G51 MP2

41.6

  • "30%"

    More performance density

  • "15%"

    Better energy efficiency

  • "3.6x"

    ML improvements

Powerful AI Acceleration

Enables fast AI inference and edge computing tasks
Support Deep Learning frameworks: TensorFlow, Pytorch, Caffe, ONNX etc

npu

0.8 TOPs@INT8

performance

TensorFlowPyTorchCaffe

Unleash the Full Potential of 4K

Radxa CM3 features an advanced video decoder
supporting popular formats like H.265, H.264, and VP9, delivering unmatched 4K viewing.

Unleash the Full Potential of 4K

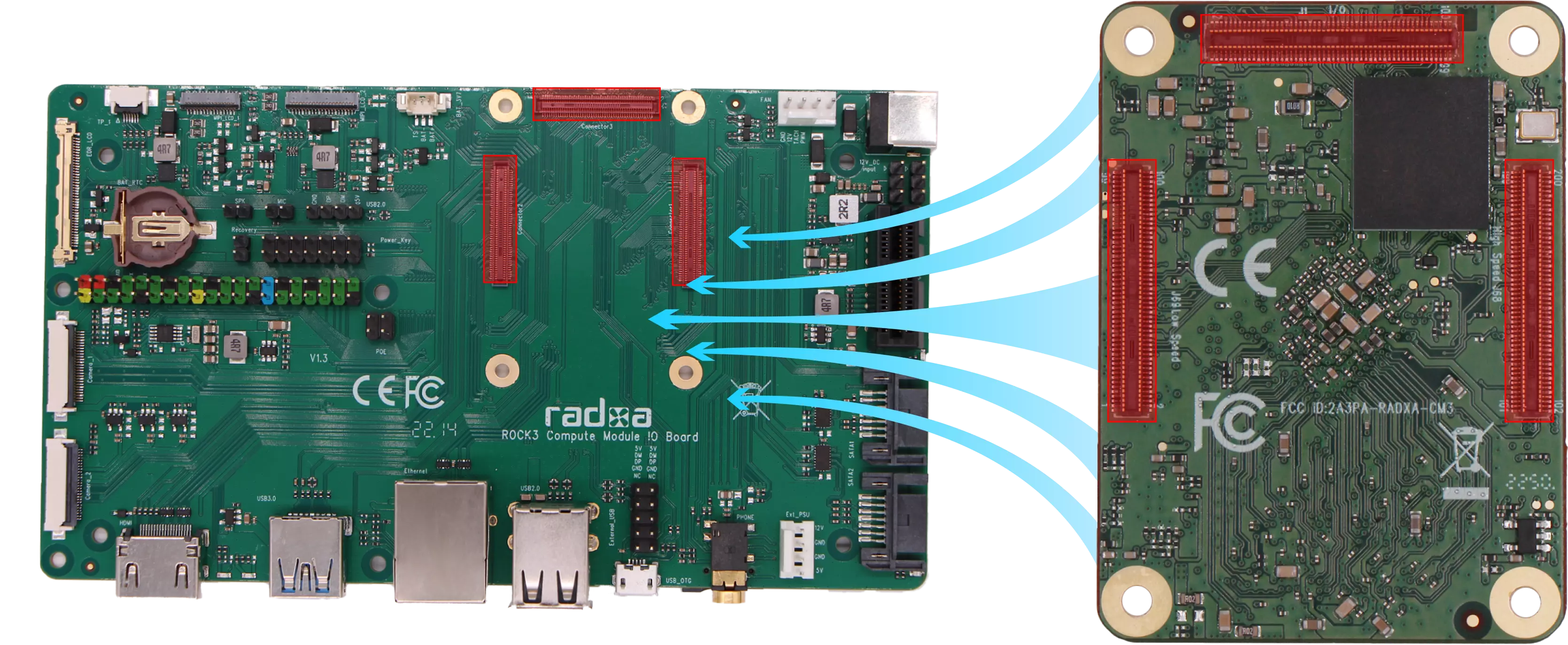

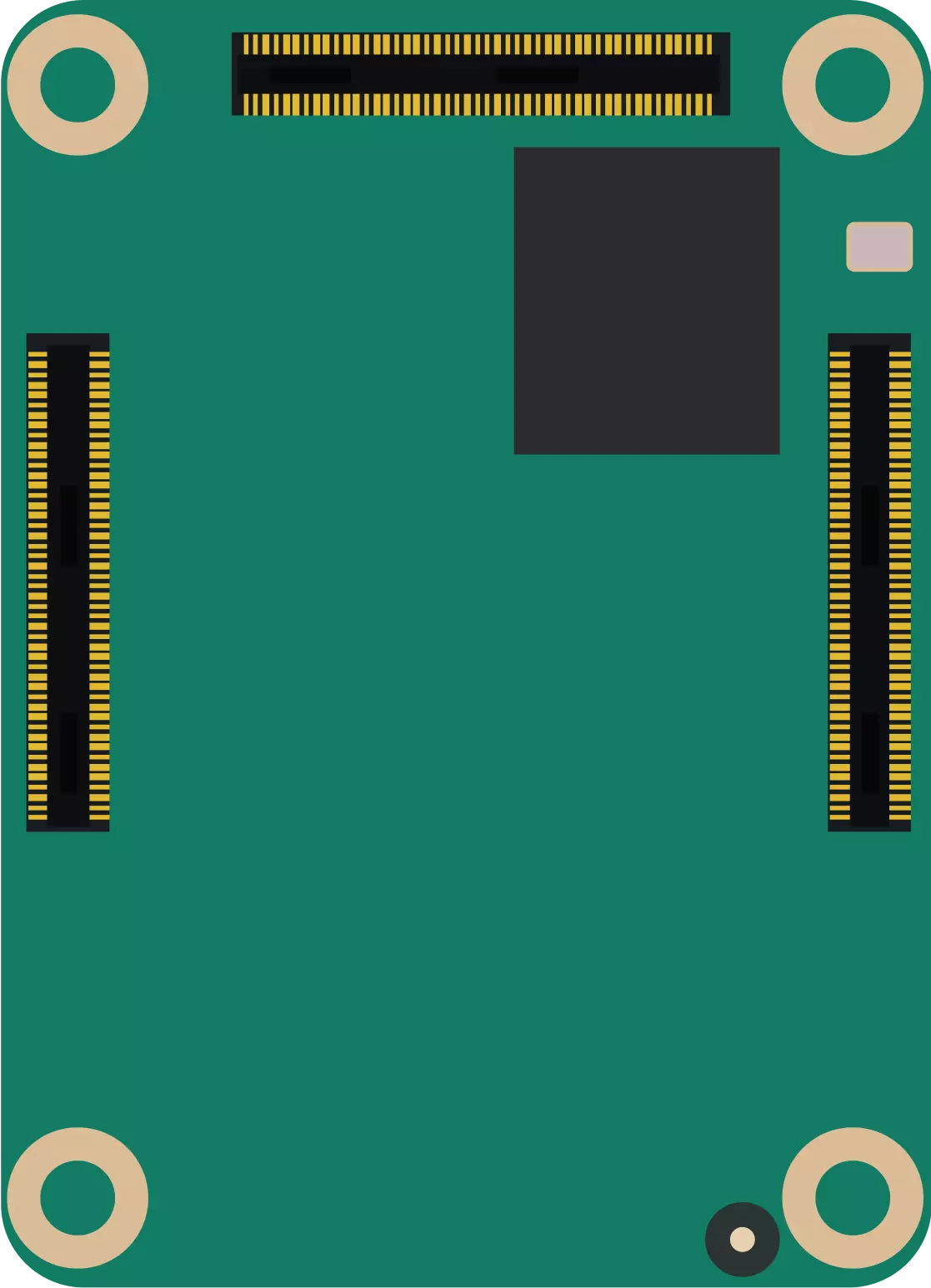

Reliable B2B connections with Standardized Pinout

Seamless integration and Industry-Standard compatibility define Radxa CM3's pinout,
featuring three B2Bconnectors with 100 pins and a 0.4mm pitch.

Reliable B2B connections with Standardized Pinout

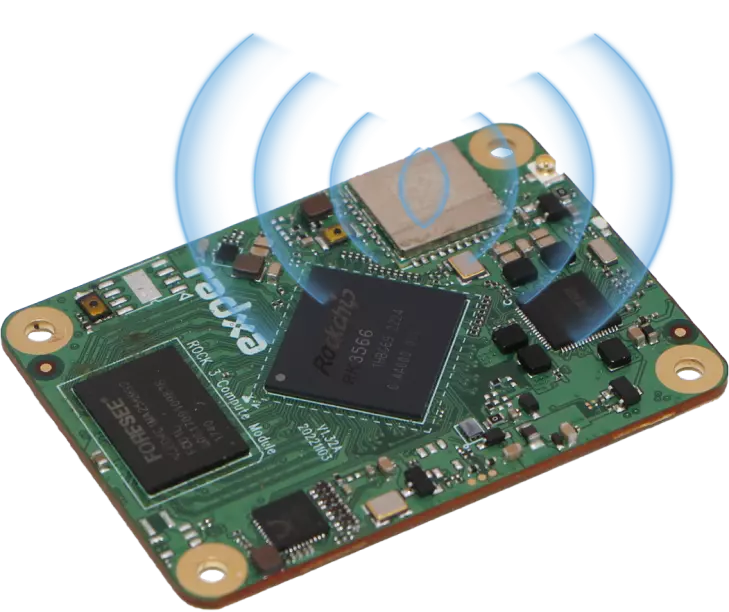

Wired and Wireless Options

Empower your connectivity with the option to choose between Gigabit Ethernet PHY, high-speed 802.11ac Wi-Fi,
and BT5, ensuring seamless data transfer with the outside world.

Wired and Wireless Options

Versatile Interfaces and Expandability

Abundance of interface options including HDMI, MIPI-DSI, MIPI-CSI, PCIe, SATA, USB, SDIO,
enabling seamless connection to various peripherals and expansion modules.

  • SATA
  • USB 2.0
  • HDMI
  • MIPI DSI
  • USB 3.0
  • SDIO
  • MIPI CSI
Contexts
  • I2C
  • SPI
  • UART
  • PWM
  • ADC
  • I2S
  • Gigabit Ethernet PHY
Versatile Interfaces and Expandability

Flexible Memory and eMMC Options

Up to8GB

Up to128GB

Flexible Memory and eMMC Options

Multiple OS support, Prompt Technical Assistance,
and Active Community

Multiple OS support, Prompt Technical Assistance,and Active Community

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Buy Radxa CM3
Buy

Radxa CM3

Choose Available Country or Region

Global

This product is exclusively available through our network of Approved Partners. To find out more about our trusted partner network, please visit their websites.

CM3 Works with

  • Radxa Heatsink 5540A

    Radxa Heatsink 5540A

    Specialized for Radxa Compute Module

  • Radxa Heatsink 5540B

    Radxa Heatsink 5540B

    Specialized for Radxa Compute Module

  • Radxa Taco

    Radxa Taco

    Perfect NAS/Router Solution

  • Radxa CM3 IO Board

    Radxa CM3 IO Board

    an Application Board for Radxa CM3
