Ensuring Stable Long-Term Operation
with High Anti-Interference
Wide Temperature Adaptability
-40 ～ 85 °C
Wide Temperature
Stable Operation
Low Power

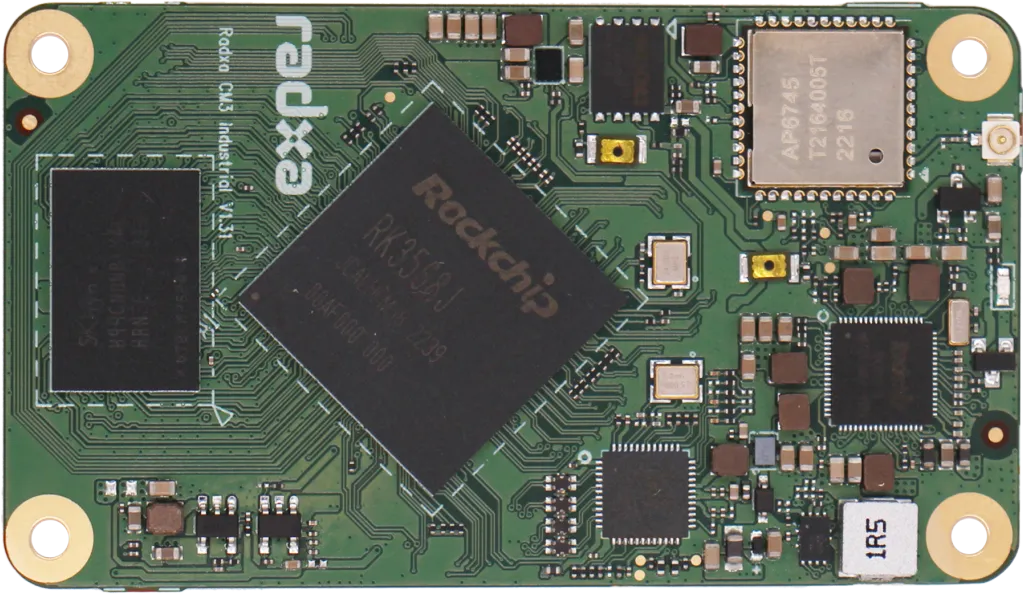

Industrial-Grade SoC
Rockchip RK3568J
4K Ultra HD Display with Multi-Monitor Support
- 4KP60 H.265 / H.264 / VP9 video decoder
- 1080P60 H.264 / H.265 video encoder
- Support 8M ISP, support HDR

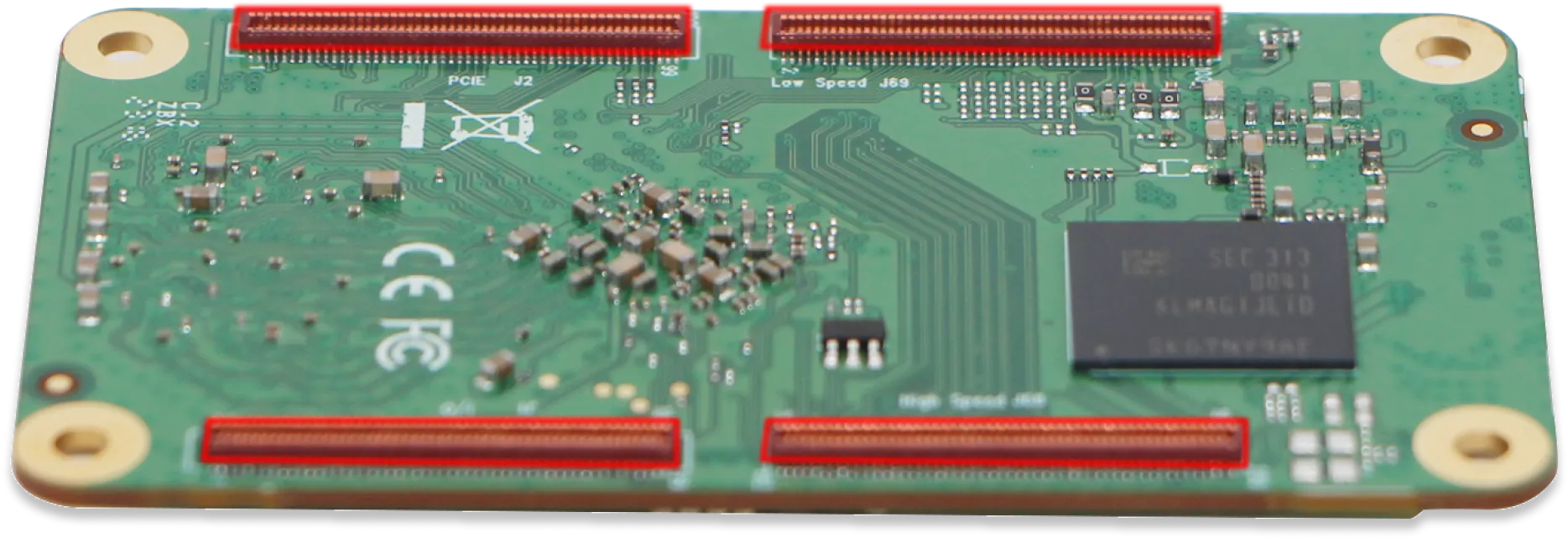

4x 100-Pin B2B Connector for
Rich Functionality
Connectivity Interface
- 2 x USB 2.0 Host
- 1 x USB 3.0 HOST
- 1 x USB 3.0 OTG port
- 1 x PCIe 1-lane Host, Gen 2 ( 5Gbps )
- 1 x PCIe 2-lane Host, Gen 3 (16Gbps)
- 3 x SATA ports
- one shared with USB 3 HOST
- one shared with PCIe
- one shared with USB 3 OTG
Display Interface
- 1x HDMI up to 4K x 2K@60HZ
- 1x eDP four lanes, 2.7Gps per lane
- 2x MIPI DSI four lanes, 1.6Gbps per lane
- 1x LVDS four lanes(muxed with MIPI DSI0)
Audio Interface
- LINEOUT
- I2S
- PDM, support mic array
Robust and User-Friendly
Durable and Easy-to-Disassemble B2B Connectors
The design incorporates a locking mechanism for a secure connection to the baseboard, ensuring enhanced
durability and greater stability
up to
"3000" times
Insertion times
0.4mm
Pin spacing
Streamlined Validation and Interface Testing

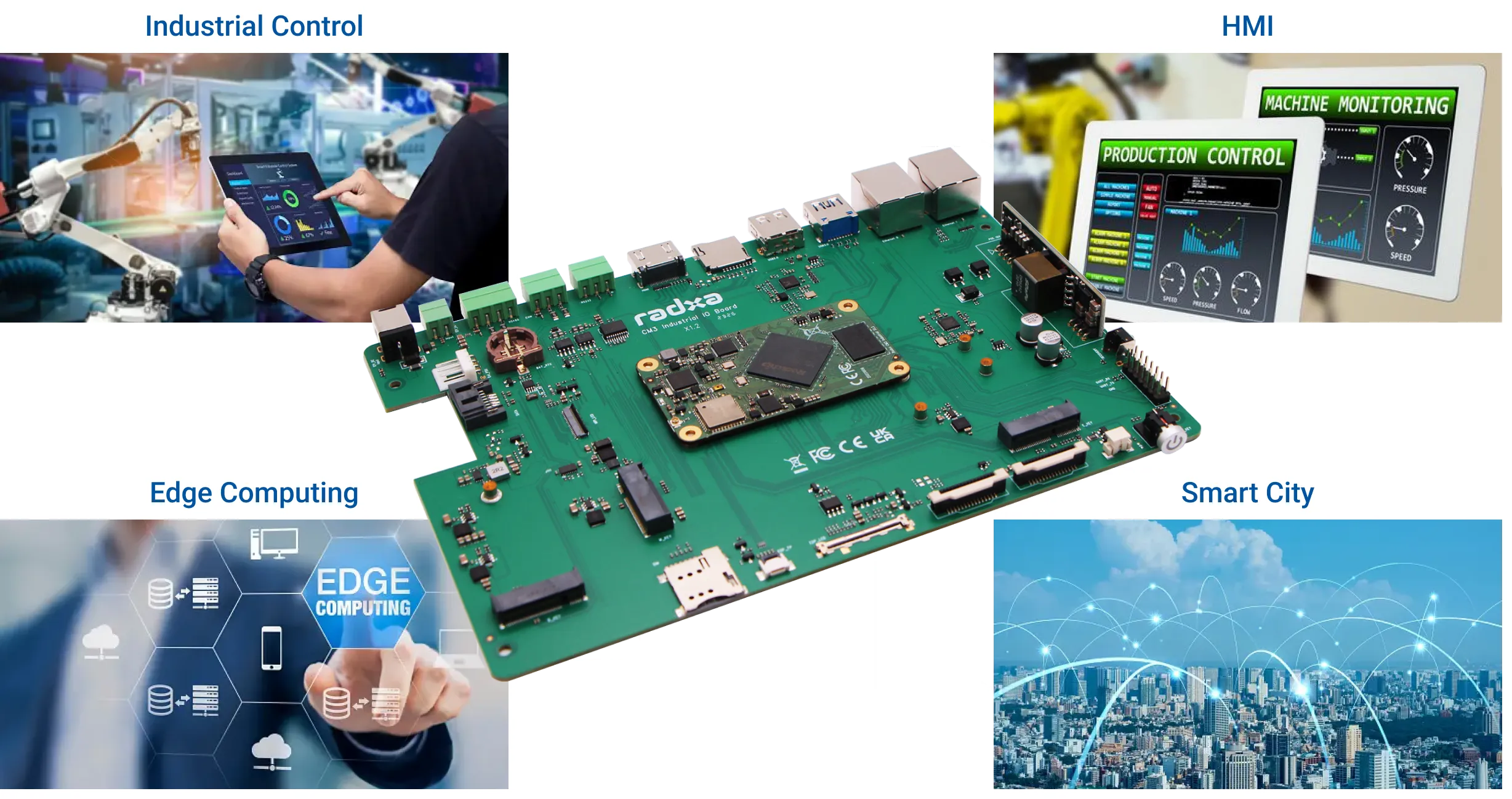

Comprehensive Validation and Easy Interface Testing with Radxa CM3I IO Board
Comprehensive Technical Documentation,
Active Community, and Extensive OS Support
Comprehensive Technical Documentation and Active Community!
Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.
Extensive Open-Source OS Support
We collaborate with third-party OS organizations, offering you extensive OS options. Empower your projects with versatility and innovation by exploring Radxa and third-party supported OS choices here.
The Operating System (OS) supported by the product can be viewed through Radxa's Official Documentation.
Quality Assurance and
Long-Term Supply and Maintenance
01
Stringent Testing, Pursuing Excellence in Quality
A standardized manufacturing process, from component procurement and surface mounting to final production, undergoes multiple rigorous tests to ensure strict quality control.
Advanced Manufacturing
Quality Assurance
Premium Materials
02
Million-Level Shipment Quality Assurance and Supply Chain Optimization
With annual shipments of Radxa-related products in the millions, our supply chain has been optimized for large-scale production with quality assurance. By choosing Radxa's design services, customers can enjoy cost-effective and reliable quality guarantees.
Steady Supply
Automated Production
Timely Logistics
