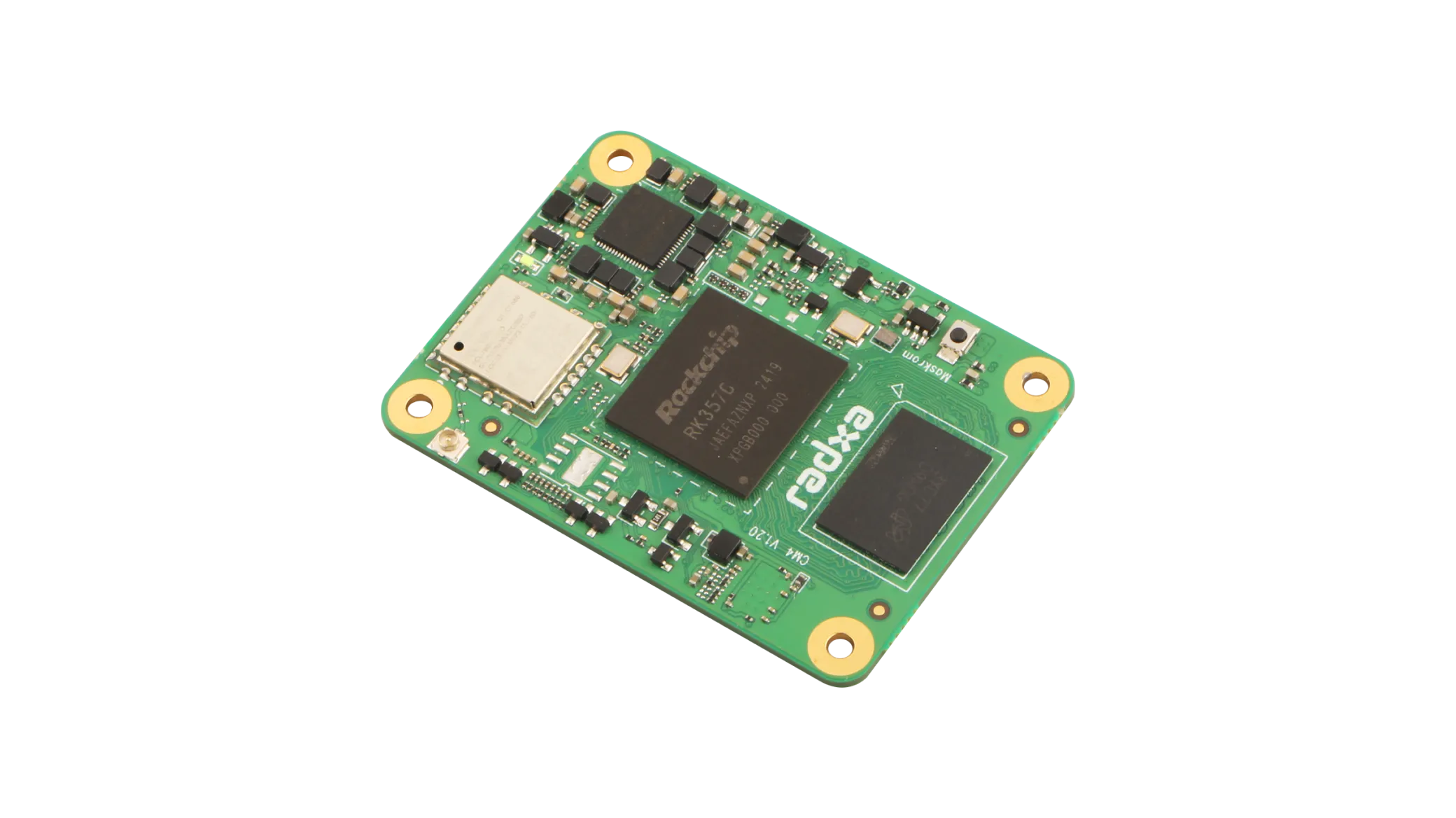

CM4
Edge AI Compute Module, Ready to Deploy
CM4
- Features
- Product Details
- Block Diagram
- Interfaces
- Hardware Spec
- Design Resources
- Documentations
Download
8 Core
6 Tops
HDMI
WiFi 6
BT 5
PCIe
UFS
PoE

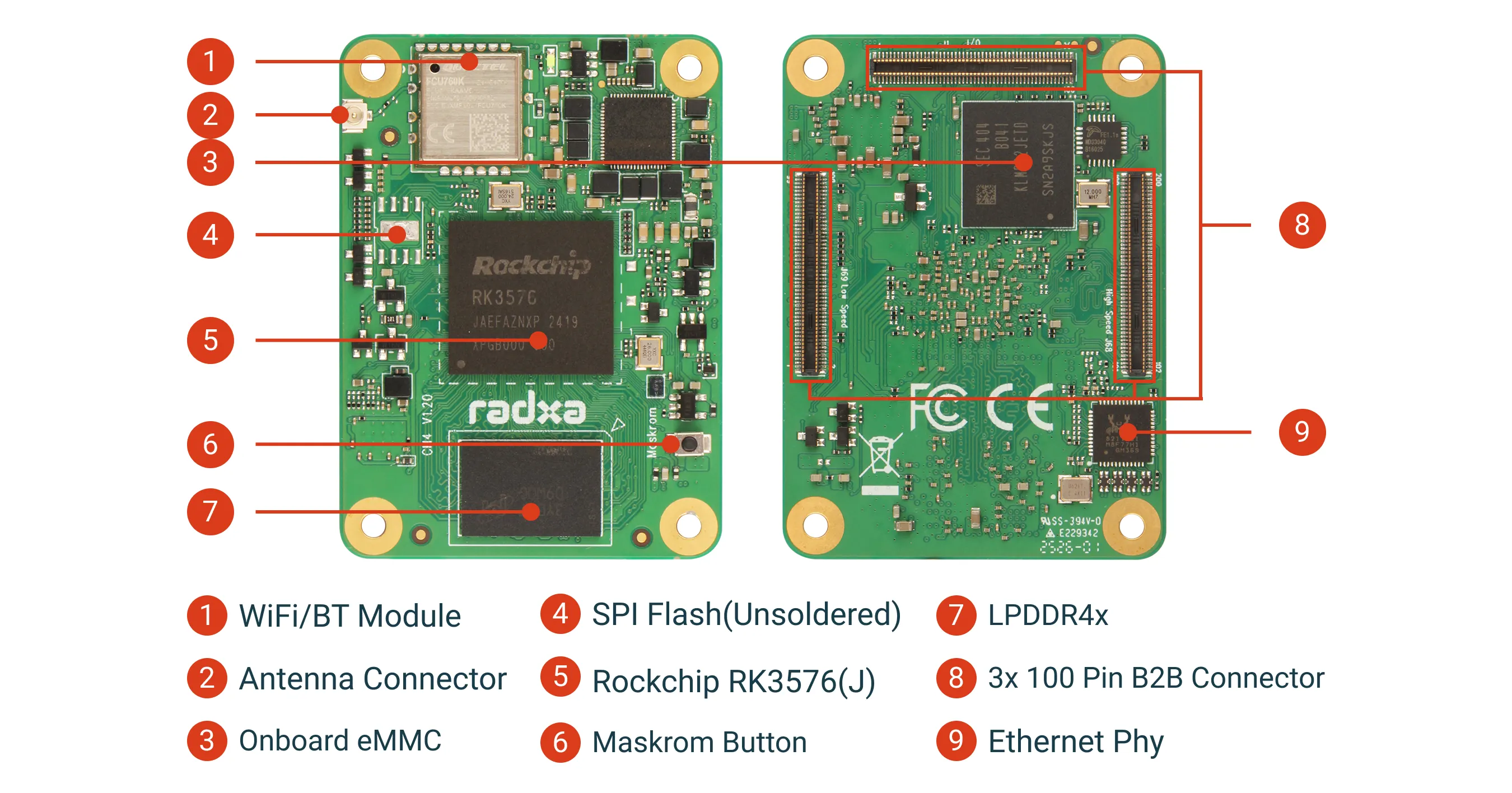

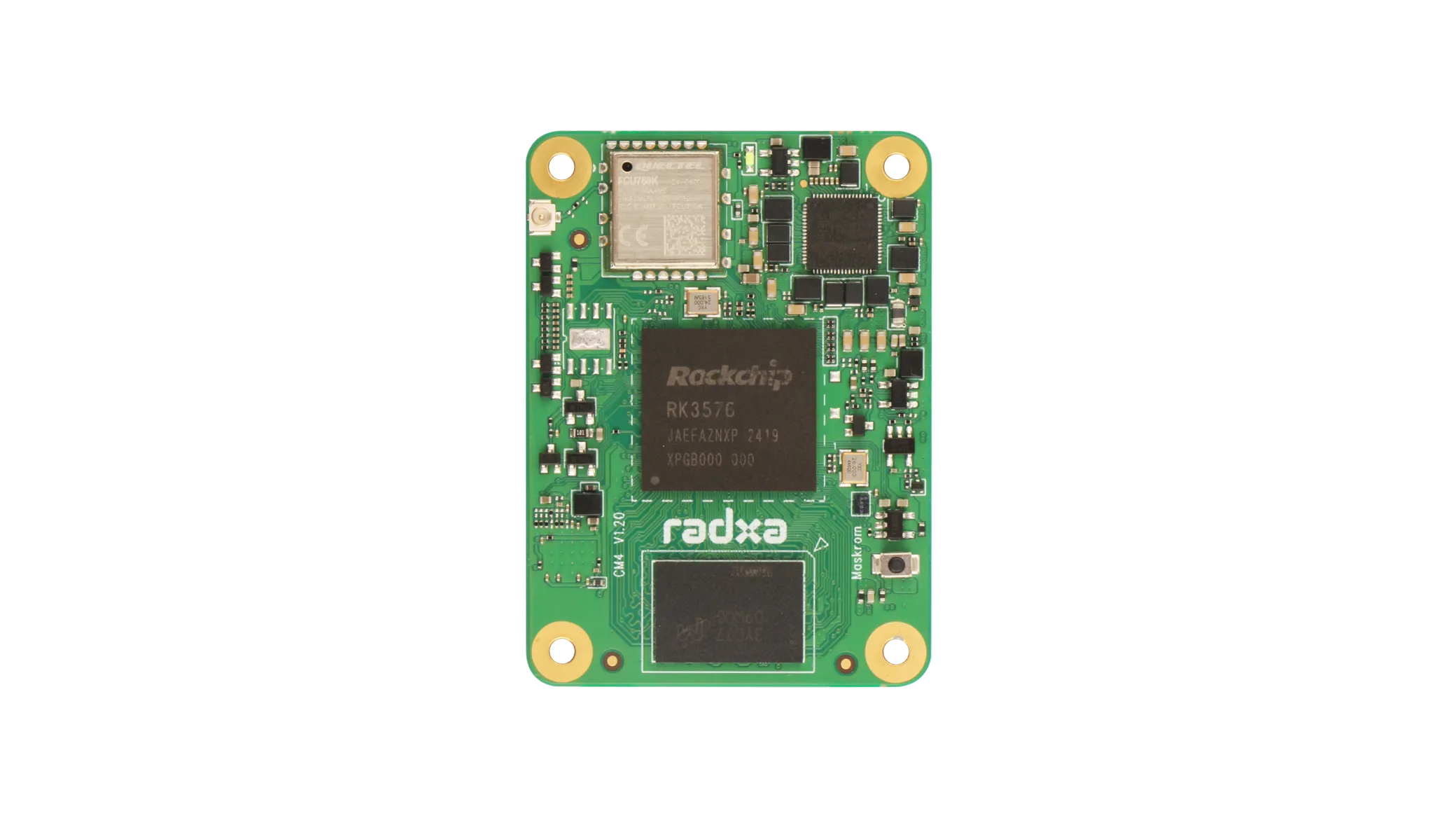

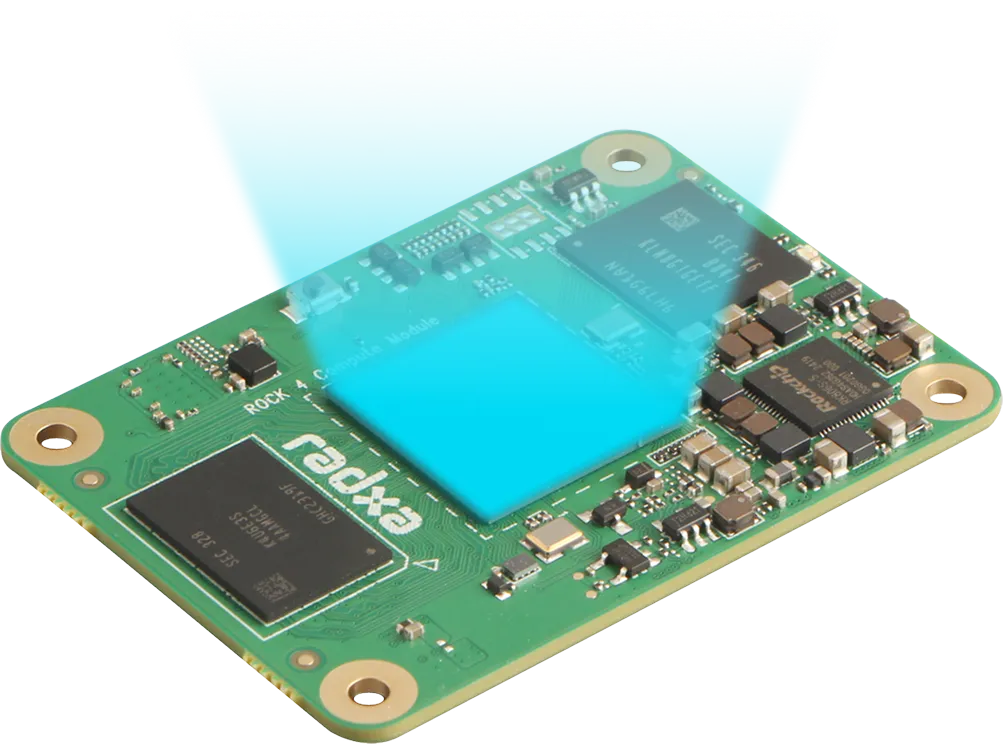

Rockchip RK3576
Rockchip RK3576 SoC Quad [email protected] and Quad Cortex-A53@2GHz
Processor :
Rockchip RK3576 / RK3576J, 8-core
(4x Cortex-A72, 4x Cortex-A55)
GPU : Mali G52 MC3
NPU : Up to 6 TOPS for AI acceleration
Designed for Industrial AI and Edge Computing
6 Tops NPU, RKNN support, LLM support

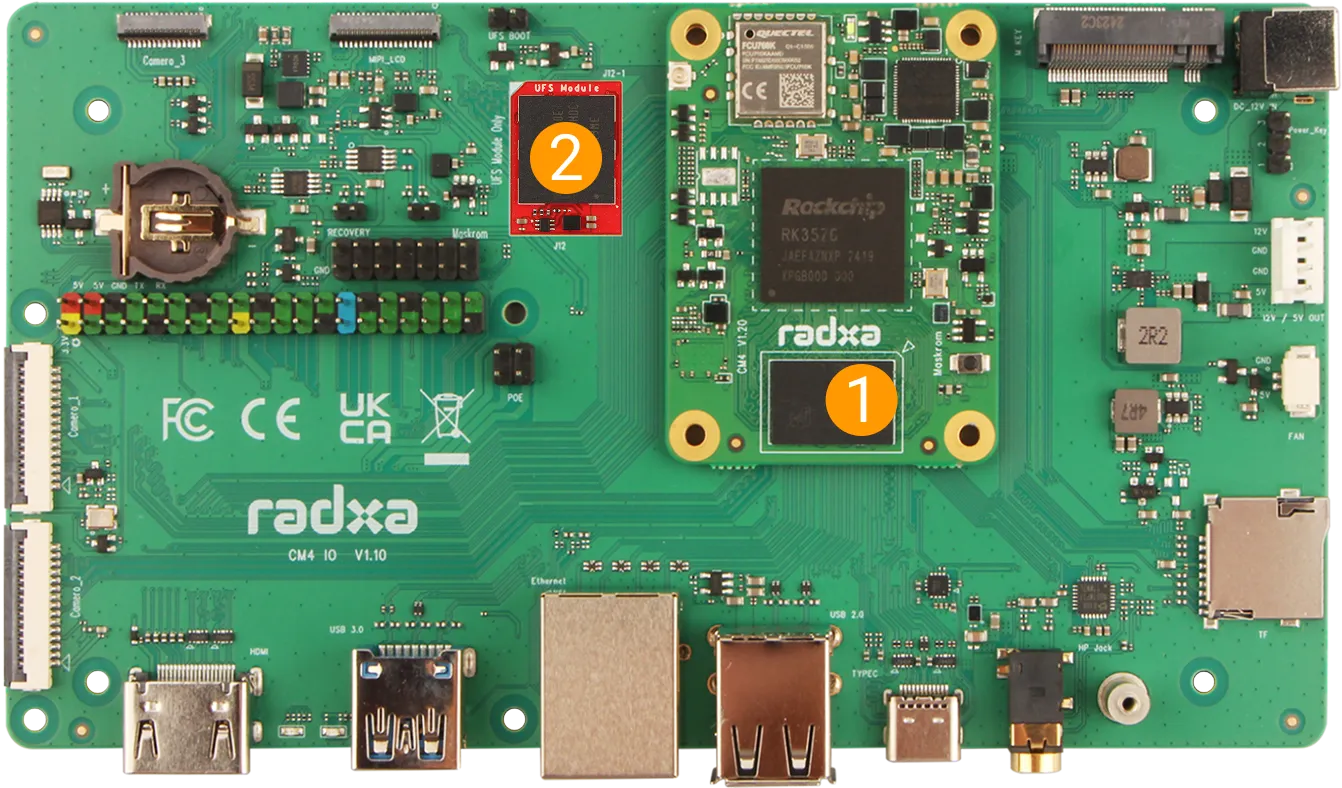

LPDDR4x up to 16GB, Support UFS Expansion
1LPDDR4x RAM (up to 16GB)
2UFS Module

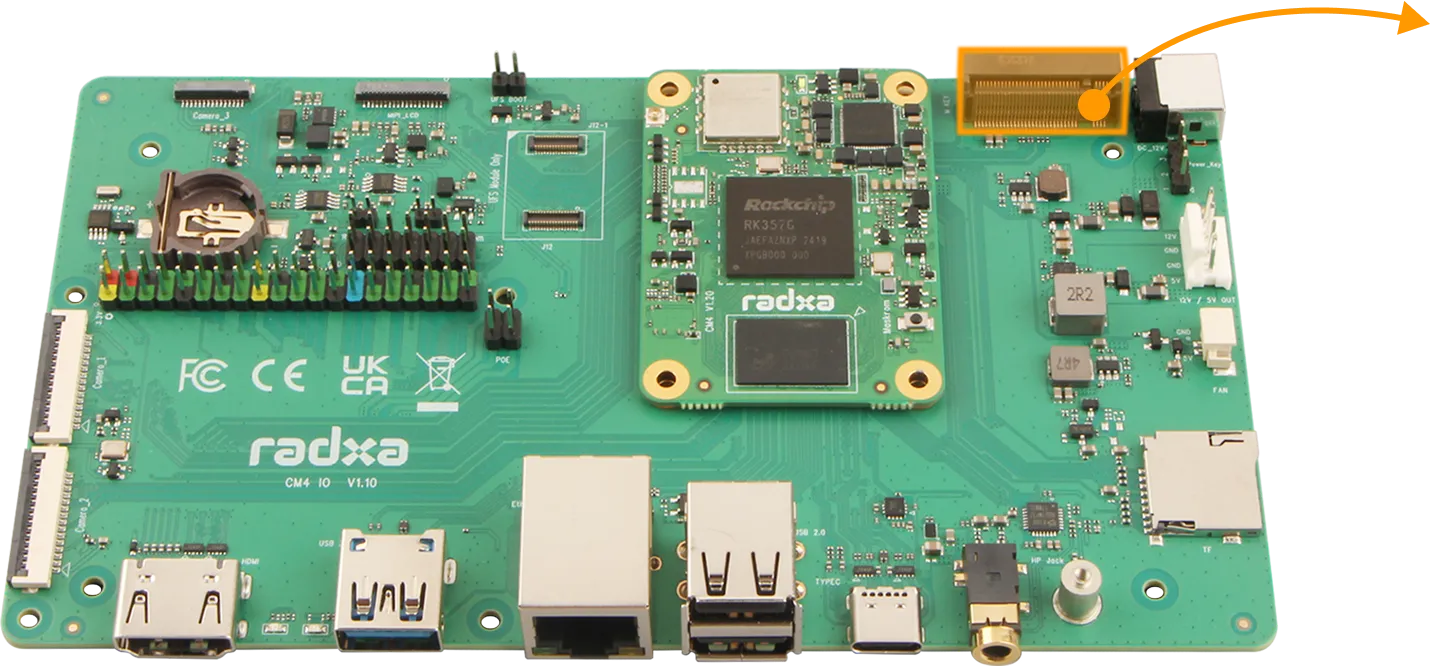

M.2 M Key Connecter Provides PCIe Gen 2 for
Effortless Expansion
Interface Supports SSD, Penta SATA HAT, 2.5G Ethernet, and More Expansion!
M.2 M Key Connector
Provides PCIe 2.1 1-lane for Effortless
Expansion,Supports
Penta SATA HAT
SSD
Enjoy Dual Displays
4Kp120 HDMI TX and 2K MIPI DSI!
Discover Abundant Functionality with
3x 100-Pin B2B Connectors
Connectivity Interface
- 3 x USB 2.0 Host Port
- 1 x USB 3.0 Host Port
- 1 x USB 3.0 OTG Port
- 2 x PCIe2.0 1-lane
- one shared with USB3 and SATA
- one shared with SATA
- Supports SDMMC interface
- Up to 10x UART
- Up to 5x SPI
- Up to 4x CAN
- Up to 8x I2C
- Up to 15x PWM
Display Interface
- 1x HDMI
- 1x eDP
- 2x DP
- 1x 4-lane MIPI DSI
Audio Interface
- SPDIF TX
- I2S
- PDM, support mic array
Camera Interface
- 4x 2-lane MIPI CSI or
- 2x 4-lane MIPI CSI

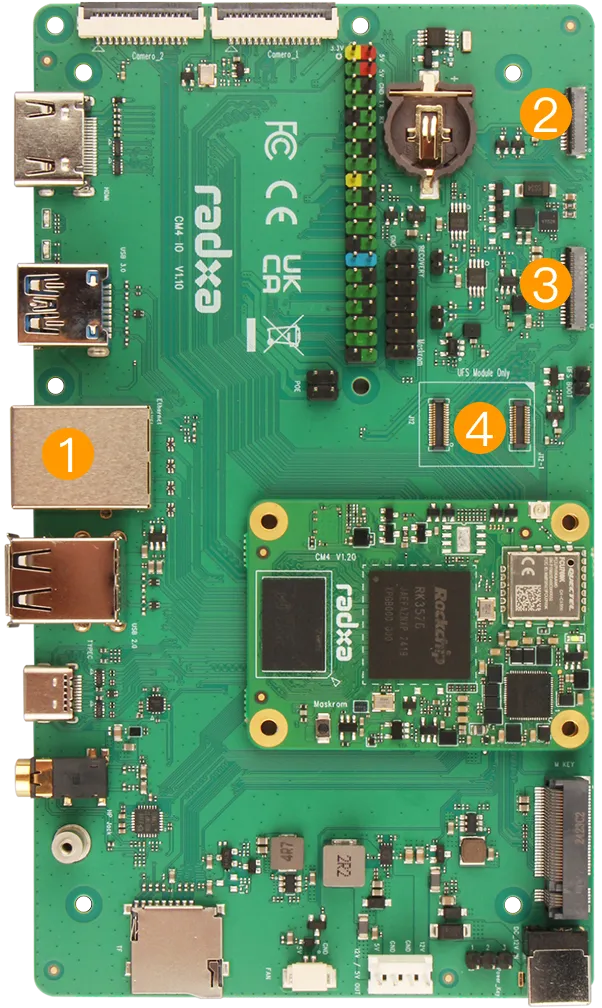

Radxa Product Ecosystem
Gigabit Ethernet with PoE
Support (Additional Radxa 25W PoE HAT Required)
1

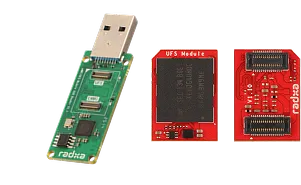

UFS Connector
Supports Radxa UFS Module
4
MIPI CSI Interface
Support Radxa Camera 4K
2
RPi CM4 IO Board
MIPI DSI Interface
Support Radxa Display 8 HD and Radxa Display 10 FHD.
3

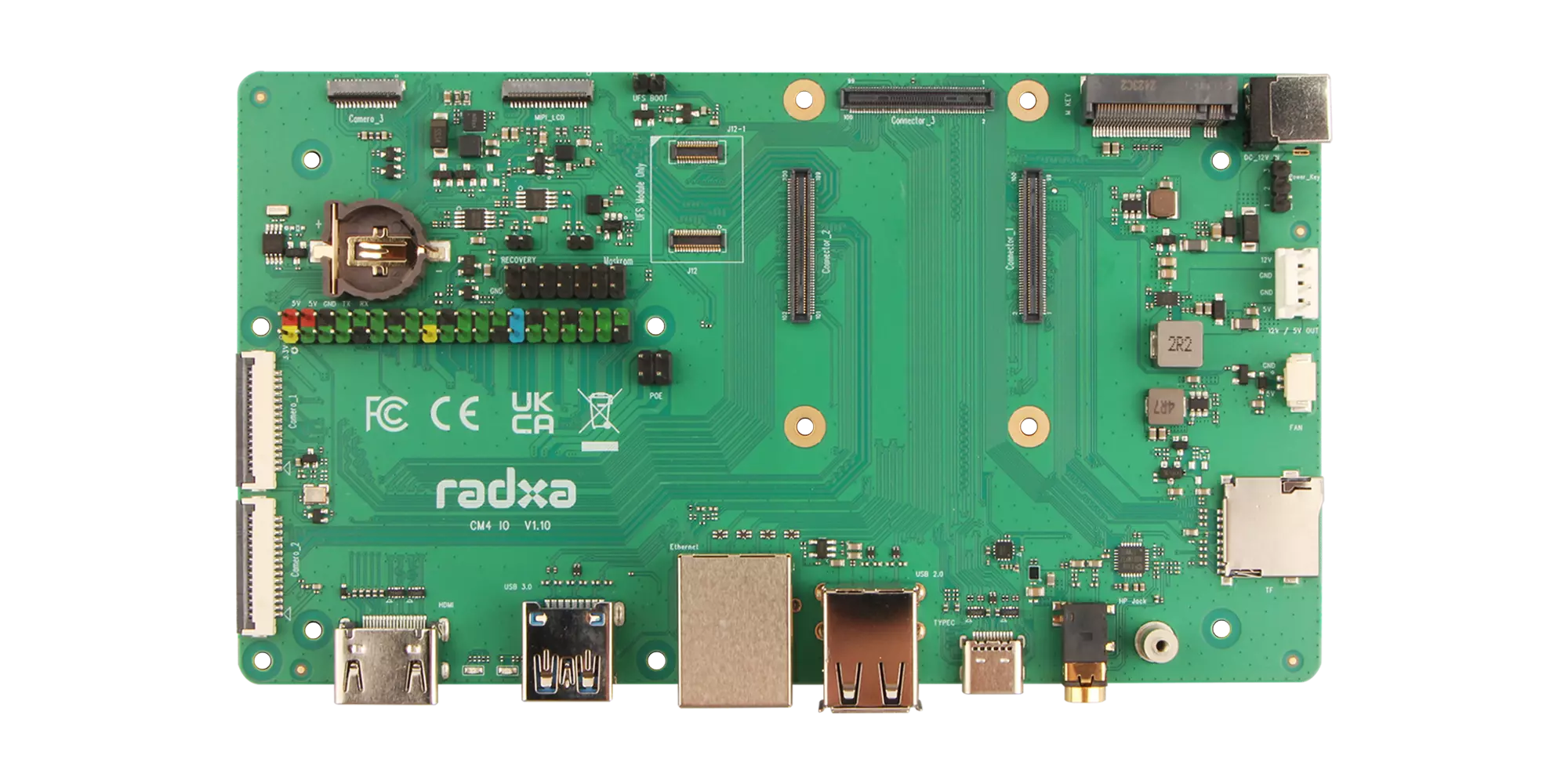

Radxa CM4 IO Board

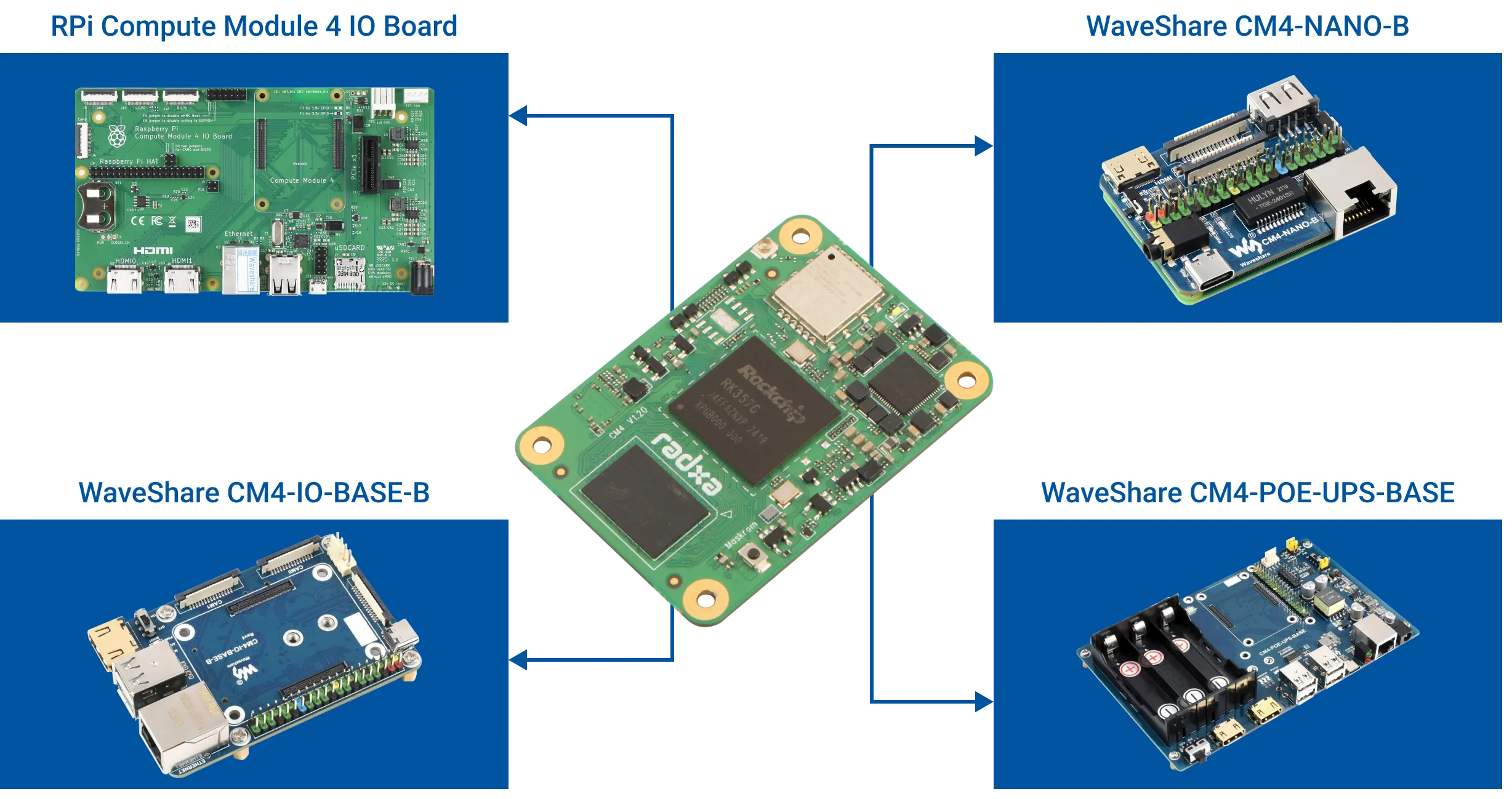

Compatible with Multiple Third-Party IO Boards
Expanding Infinite Possibilities

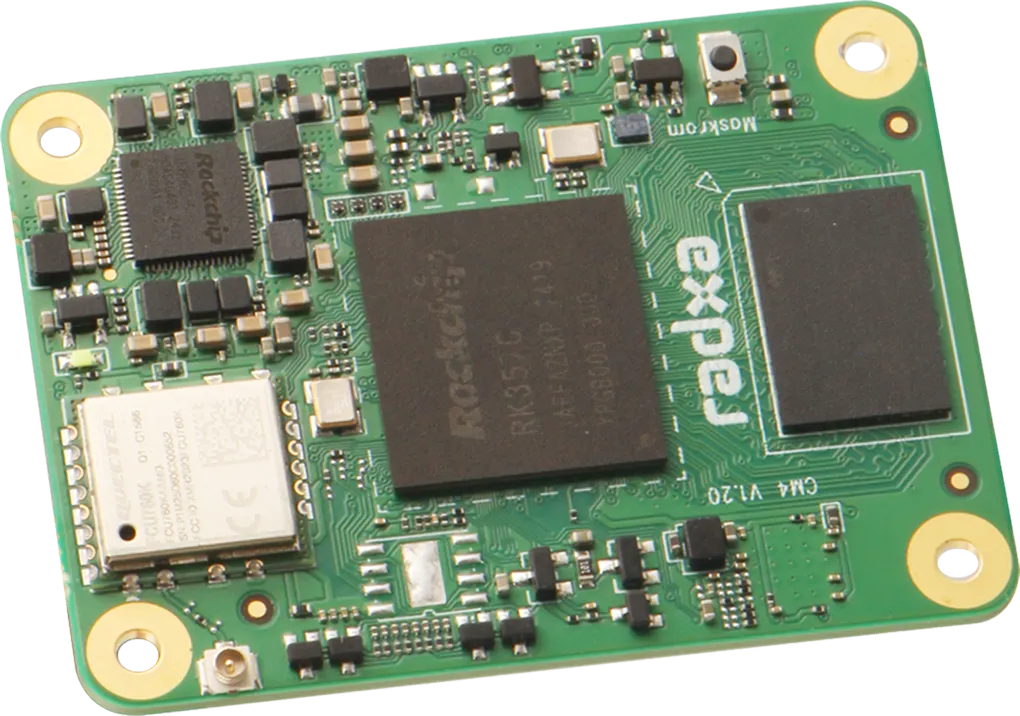

Industrial-Grade Chip Options
Wide Temperature Adaptability
Wide Temperature
Stable Operation
Low Power
Software Supported
Comprehensive Technical Documentation and
Active Community
Comprehensive Technical Documentation and Active Community !
Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.
