RK3588S2 / RK3582
HDMI 8K
NPU
Onboard eMMC
Rockchip RK3582 or Rockchip RK3588S2
Experience Outstanding Performance, Explore Endless Possibilities
Neural Process Unit
Make AI Easy with Support for Popular Deep Learning Frameworks
TensorFlow, Caffe, Tflite, PyTorch, ONNX NN, Android NN, and More!
Multiple Memory and eMMC Combinations
LPDDR4X RAM: 2GB / 4GB / 8GB / 16GB / 32GB
Onboard eMMC: 8GB / 16GB / 32GB / 64GB / 128GB
Support for Multiple Displays
Simultaneous 8K, 4K, and 2K Support
Fully Functional Type-C Supported
USB 3.0 OTG / HOST
DP Display
PD Protocol
Discover Abundant Functionality with
3x 100-Pin B2B Connectors
Connectivity Interface
- 2 x USB 2.0 Host Port
- 1 x USB 3.0 Host Port
- 1 x USB 3.0 OTG Port
- 2 x PCIe2.0 1-lane
- one shared with USB3 and SATA
- one shared with SATA
- 3 x SATA ports
- one shared with USB3 and PCIe2.0
- one shared with PCIe2.0
- Supports SDMMC interface
- Up to 10x UART
- Up to 5x SPI
- Up to 3x CAN
- Up to 7x I2C
- Up to 15x PWM
Display Interface
- 1x HDMI
- 1x eDP
- 1x DP
- 1x 2-lane MIPI DSI
- 1x 4-lane MIPI DSI
Audio Interface
- SPDIF TX
- I2S
- PDM, support mic array
Camera Interface
- 1x 2-lane MIPI CSI
- 1x 4-lane MIPI CSI
Durable and Reliable B2B Connectors
Radxa CM5 utilizes an industrial-grade B2B connector with 3x100 pins,
providing convenient disassembly and installation.
Compatible with Multiple IO Boards

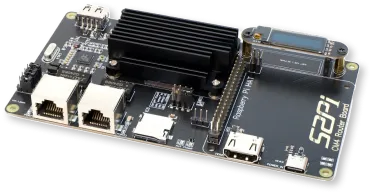

52Pi CM4 Router Board

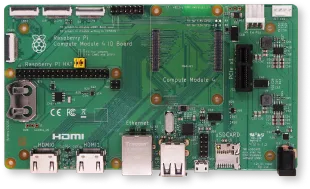

RPi CM4 IO Board
DeskPi Super6C
Piunora
Nebra CM4 Flashstick
Raspberry Pi CM4 TV Stick
Quick Functional Verification with Radxa CM5 IO Board
Accelerate your testing process with the convenience of Radxa CM5 IO board, ensuring swift and efficient functional verification.
Comprehensive Technical Documentation,
Active Community, and Extensive OS Support
Comprehensive Technical Documentation and Active Community!
Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.
Extensive Open-Source OS Support
We collaborate with third-party OS organizations, offering you extensive OS options. Empower your projects with versatility and innovation by exploring Radxa and third-party supported OS choices here.
The Operating System (OS) supported by the product can be viewed through Radxa's Official Documentation.
