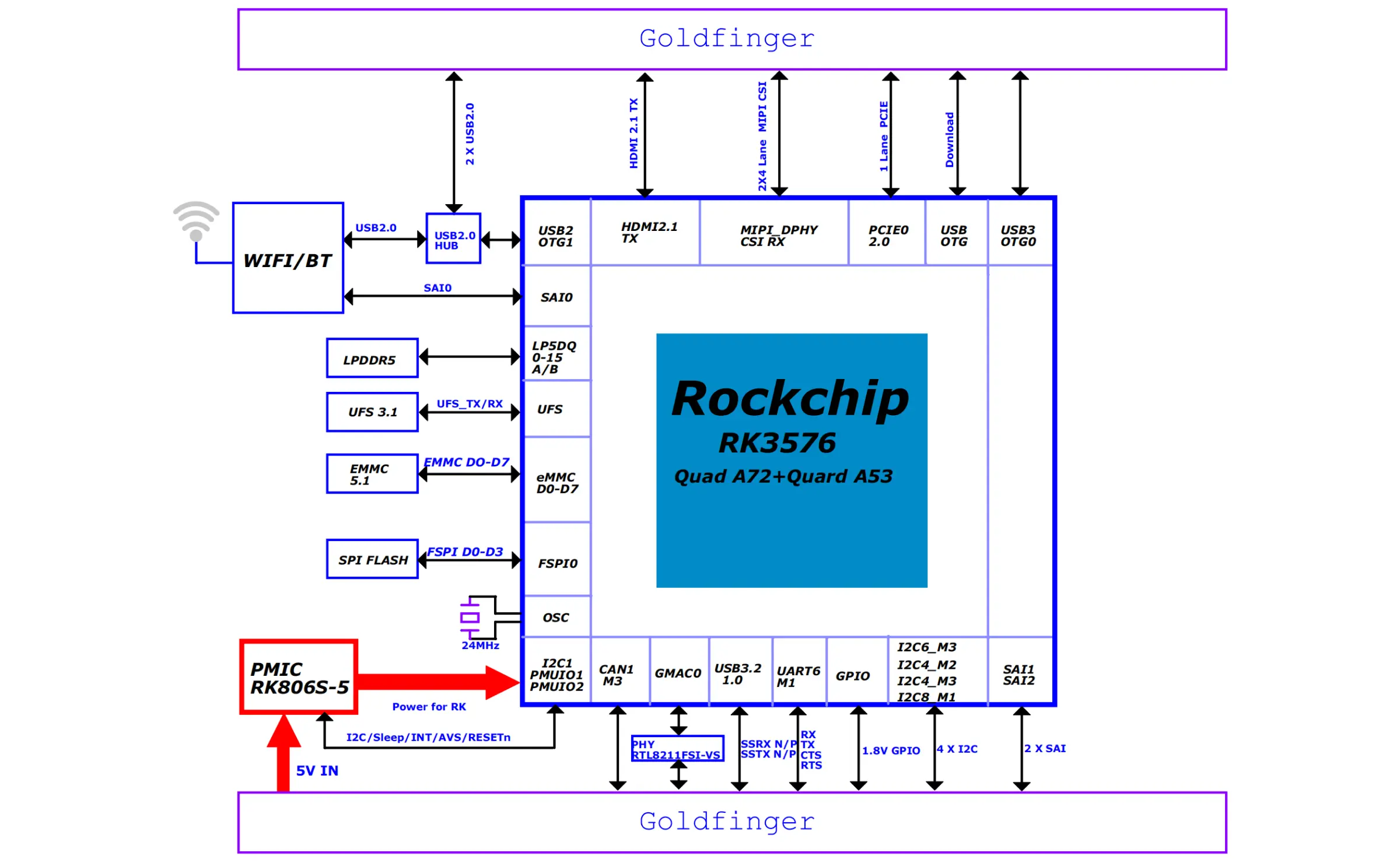

- Block Diagram
- Interfaces
- Hardware Spec
- Design Resources
- Documentations
Download
Rockchip RK3576(J)
Octa-core CPU
6 TOPS
HDMI 4K
LPDDR5
eMMC or UFS
WiFi6
BT 5

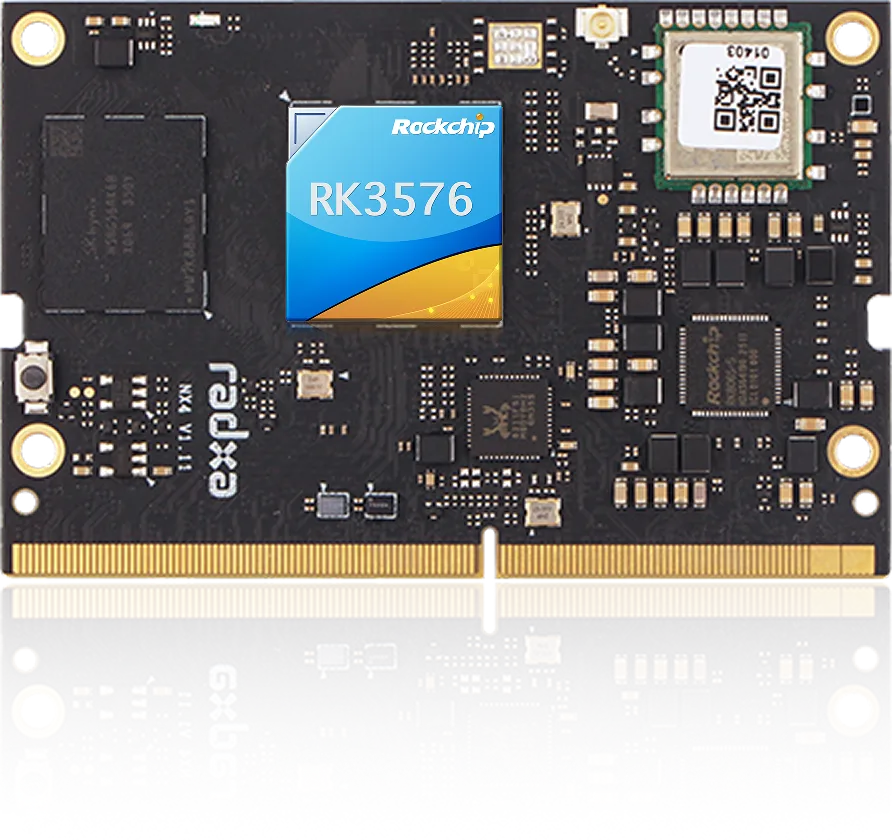

A low Power, High Performance AIoT Processor
- Quad Cortex
A72
- Quad Cortex
A53
- ARM
Mali-G52 MC3
OpenGL ES 1.1/2.0/3.2
OpenCL 2.1
Vulkan® 1.2
Industrial AI and Edge Computing
Compatible with mainstream frameworks, easy deployment, accelerates AI development.
Support deep learning frameworks:

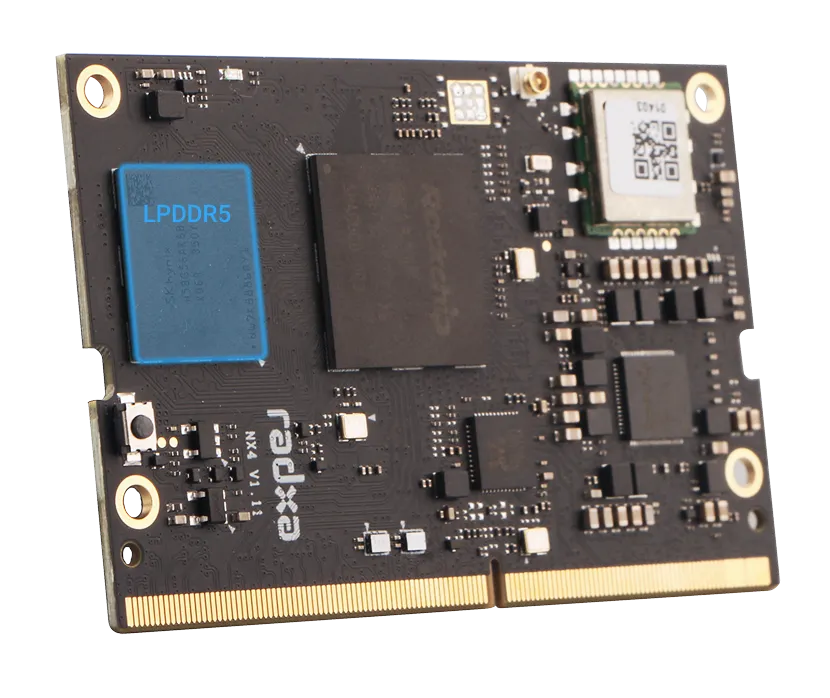

Blazing Fast & Efficient Memory
Unleash extreme throughput for a seamless experience.
LPDDR5
Up to 16GB
Data rate
up to 5500 MT/s
Memory bus width
32-bit(dual-channel, 16-bit per channel)

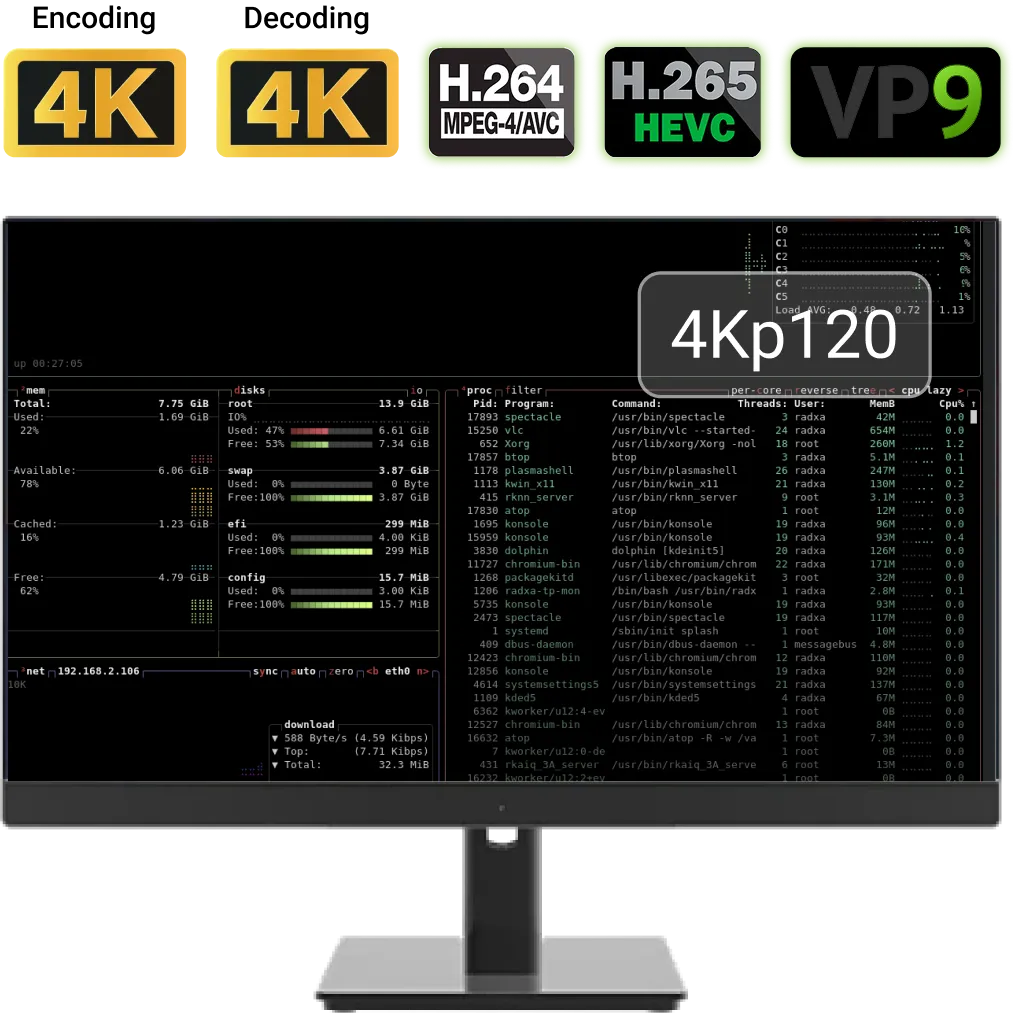

Flagship-class Multimedia
4Kp120 HDMI TX and 2K MIPI DSI!
Display
HDMI 2.1, Up to 4K
Camera
2x MIPI CSI (4-lane)
Video Encoder
H.265 multivideo encoder up to 4K@60fps
Video Decoder
● AV1 / AVS2 / VP9 / H.265 multivideo decoder up to 8K@30fps or 4K@120fps
● H.264 multivideo decoder up to 4K@60fps

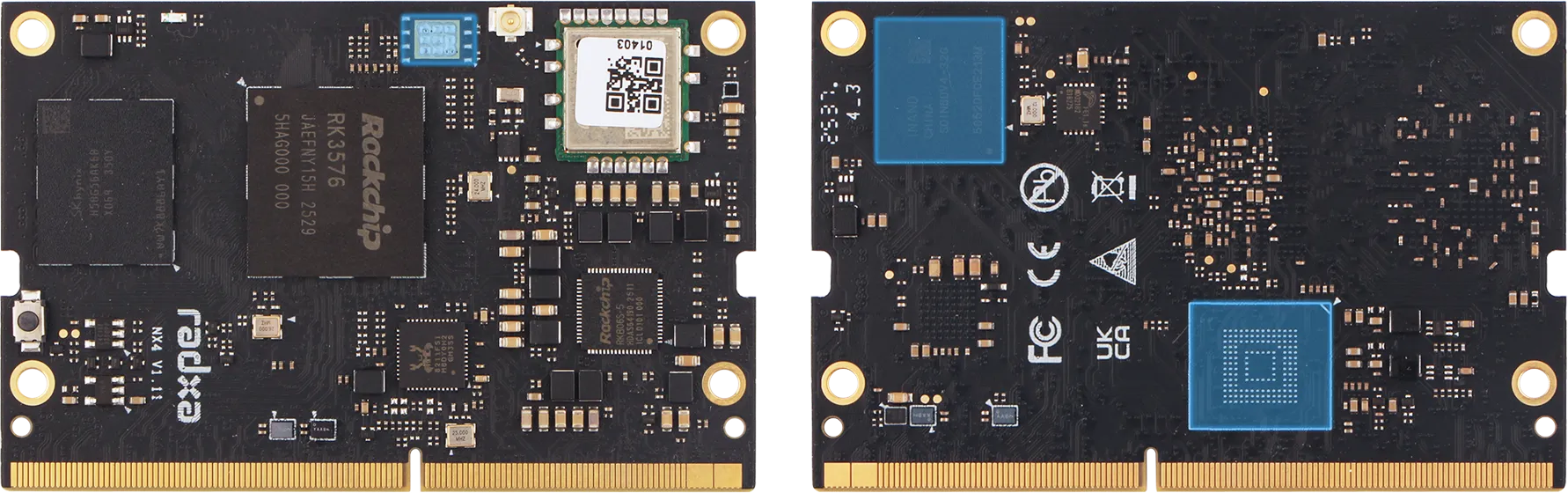

Flexible Storage Options
Unleash extreme throughput for a seamless experience.
- Optionalonboard SPI Flash
- Optional eMMC 5.1Up to 256GB
- Optional UFS 2.0Up to 1TB
Discover Abundant Functionality with 260-Pin
SO-DIMM Edge Connector
Audio Interface
- I2S
- PDM, Support mic array
Connectivity Interface
- 2x USB 2.0 HOST
- 1x USB 3.0 HOST
- 1x USB 3.0 OTG
- Support UART, I2C, CAN, PWM, GPIOs, etc
Display Interface
- 1x HDMI 2.1
Camera Interface
- 1x MIPI CSI (4-lane)
- 1x MIPI CSI (4-lane) or 2x MIPI CSI (2-lane)

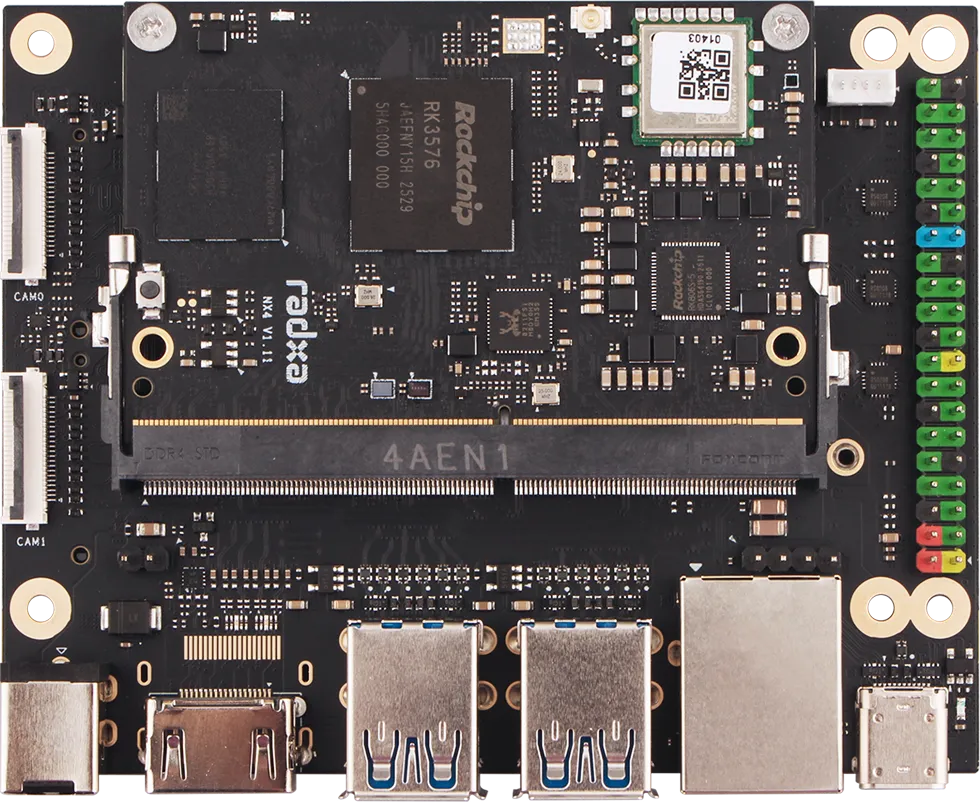

Standard Plug-and-Play SO-DIMM Connector
User-Friendly, 260-Pin SO-DIMM Connector for Easy Installation and Removal
Software Supported
Support Debian, Yocto, Buildroot, Android 14
Application Scenarios
Smart Home
Smart City
Industrial Internet Of Things
Agricultural Internet Of Things
Smart Retail
Intelligent Medical Care
Mechanical Person
Video Conference
Unmanned Aerial Vehicle
Artificial Intelligence (AI)
AR / VR
Intelligent Transport
Comprehensive Technical Documentation and
Active Community
Comprehensive Technical Documentation and Active Community !
Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.
